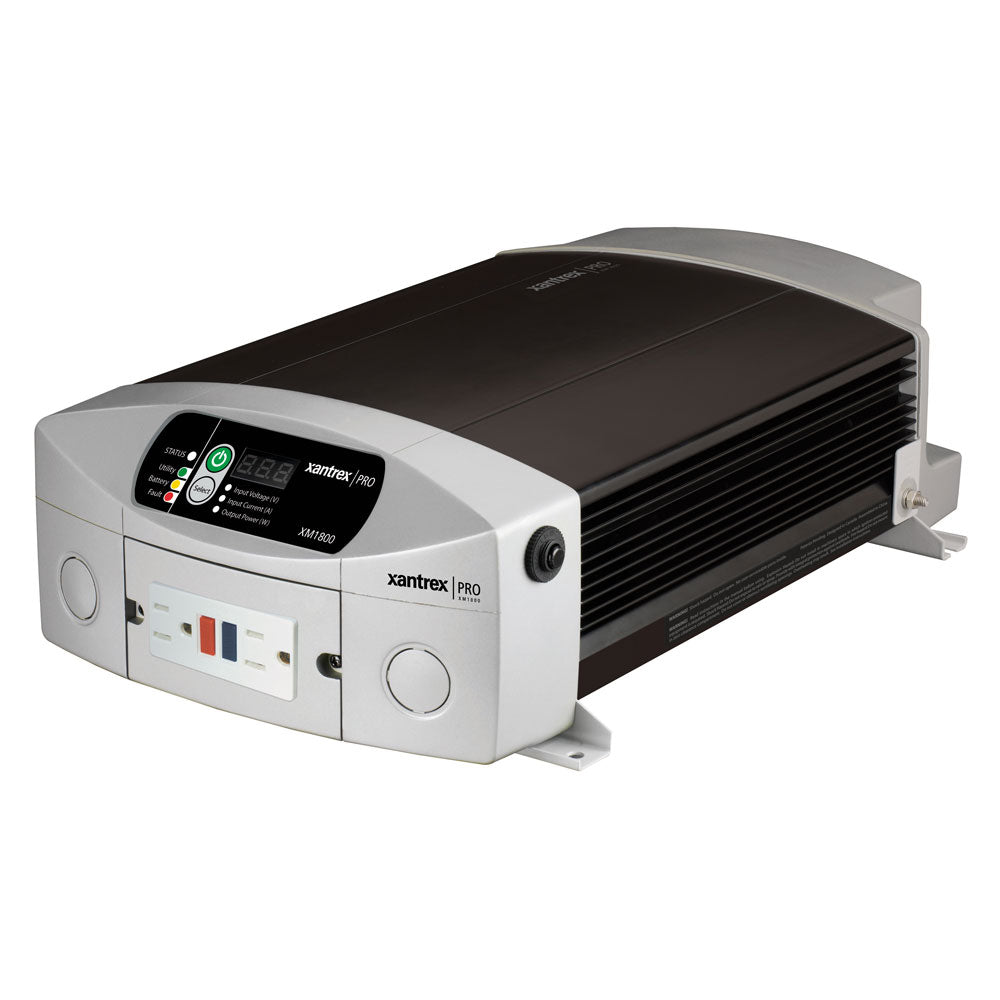

Xantrex XM1800 Pro Series Inverter

No reviews yet Write a Review
$533.05
SKU:
806-1810
UPC:
715535113537
Condition:
New
5 customers are viewing this product

Xantrex XM1800 Pro Series Inverter

$533.05

Xantrex XM1800 Pro Series Inverter Product Description

The Xantrex Power Inverters are the perfect complement to generators when shore power is unavailable, to quietly and efficiently provide household power when needed. ?The PRO Series design is both user friendly and versatile. These power inverters feature a detachable, digital remote control to display precise inverter, AC source and battery status information from one convenient location. A built-in transfer switch automatically detects when generator or shore power status changes to ensure power is always available. both 1000 and 1800 Watts models are designed for demanding RV and marine conditions. They meet FCC Class B regulations to eliminate interference potential with other electronics, while UL 458 certification means they meet strict RV and marine safety standards. Versatile enough to be mounted either horizontally or vertically, these inverters can be easily installed to fit into any compartment. Conformal coated boards also minimize the chance of problems from moist operating conditions.

Xantrex 8061810 Attributes

  • Output Voltage: 120 Volt AC
  • Input Voltage: 12 Volt DC
  • Continuous Output Power (W): 1800 Watt
  • Peak Output Power (W): 3600 Watt
  • Ampere Rating: 15 Amp
  • Efficiency: 88 Percent
  • Length (IN): 13 Inch
  • Width (IN): 8.3 Inch
  • Height (IN): 4.1 Inch
  • Remote On/Off Capable: Yes
  • With USB Port: No
  • With Volt/Watt Meter: Yes
  • With Short Circuit: No
  • With Reverse Battery Protection: Yes
  • With Thermal Protection: No
  • With Battery Cables: No
  • With Built-In Charger: Yes
  • With Fuse: No

Xantrex 8061810 Features & Benefits

  • Built-In 15 Ampere Circuit Breaker To Protect GFCI Connected Loads
  • 1000/1800 Watt Inverter Easily Powers TVs, Small Appliances, And Other Electronics
  • Digital Remote Control Displays Power Output, AC Source And Battery Voltage
  • Detachable Remote Control Can Be Mounted Wherever Convenient
  • Conformal Coated Electronics Provide Moisture Resistance
  • Designed To Be Hard-Wired Using A Terminal Strip Or By Connecting AC Through A GFCI Receptacle
  • Battery Over-Voltage And Under-Voltage Protection. Over Temperature Shutdown
  • Automatic Overload Protection. Short-Circuit Protection
  • Ground Fault Protection
  • Limited 2 Year Warranty

Xantrex 8061810 Installation Instructions

Xantrex 8061810 Warranties

Xantrex 8061810 Technical Bulletins


PRO Series Inverters

Performance inverters designed for RVs and boats

Designed for RV and marine electrical systems that already have a battery charger or generator installed, Xantrex PRO Inverters deliver modified sine wave power for small appliances, TVs, and other onboard electronics from a battery bank.

Description

The Xantrex PRO Series Inverters are the perfect complement to generators when shore power is unavailable, to quietly and efficiently provide household power when needed. The PRO Series design is both user friendly and versatile. These inverters feature a detachable, digital remote control to display precise inverter, AC source and battery status information from one convenient location. A built-in transfer switch automatically detects when generator or shore power status changes to ensure power is always available.

The 1800W is designed for demanding RV and marine conditions. They meet FCC Class B regulations to eliminate interference potential with other electronics, while UL 458 certification means they meet strict RV and marine safety standards. Versatile enough to be mounted either horizontally or vertically, these inverters can be easily installed to fit into any compartment. Conformal coated boards also minimize the chance of problems from moist operating conditions.

Performance Features
  • Inverter easily powers TVs, small appliances, and other electronics
  • Built-in 15A circuit breaker to protect GFCI connected loads
  • Up to 25A pass through for hardwired loads
  • Digital remote control displays power output, AC source and battery voltage
  • Detachable remote control can be mounted wherever convenient
  • Conformal coated electronics provide moisture resistance
  • Designed to be hard-wired using a terminal strip or by connecting AC through a GFCI receptacle (included)

Protection Features
  • Battery over-voltage and under-voltage protection
  • Over temperature shutdown
  • Automatic overload protection
  • Short-circuit protection
  • Ground fault protection

WARNING: This product can expose you to chemicals including Diisononyl Phthalate (DINP) which is known to the State of California to cause cancer, and Di-isodecyl Phthalate (DIDP) which is known to the State of California to cause reproductive harm. For more information go to .



Xantrex Pro series power inverters are the perfect complement to generators when there is no shore power, and can provide household power in a quiet and efficient manner when needed. ...













Frequently Asked Questions (FAQ) About Xantrex XM1800 Pro Series Inverter


















Who is the Xantrex?

Xantrex Technology Inc. is a world leader in advanced power electronics. Our enabling technology converts raw electrical power from any source -- central utility, backup power, distributed or renewable generation, -- into high-quality electricity required by todays electronic and electrical equipment. Xantrex Technologys knowledge and experience in advanced power electronics is helping to accelerate the commercialization of emerging power systems and solutions.

How to describe Xantrex XM1800 Pro Series Inverter?

Xantrex Pro series power inverters are the perfect complement to generators when there is no shore power, and can provide household power in a quiet and efficient manner when needed. ...
  • Get more power and reliability with these PRO Series Inverters
  • Designed for RV and marine electrical systems that already have a battery charger or generator installed
  • Xantrex PRO Inverters deliver modified sine wave power for small inverter loads
  • Designed for RVs and boats
  • Engineered for electrical systems that already have a battery charger or generator installed
  • Deliver modified sine wave power for small loads

The Xantrex PRO Series Inverters are the perfect complement to generators when shore power is unavailable, to quietly and efficiently provide household power when needed. The PRO Series design is both user friendly and versatile. These inverters can be configured to work with a variety of battery types.

What is the warranty policy for Xantrex XM1800 Pro Series Inverter?

One Year
  • Get more power and reliability with these PRO Series Inverters
  • Designed for RV and marine electrical systems that already have a battery charger or generator installed
  • Xantrex PRO Inverters deliver modified sine wave power for small inverter loads
  • Designed for RVs and boats
  • Engineered for electrical systems that already have a battery charger or generator installed
  • Deliver modified sine wave power for small loads
  • The PRO Series inverters are perfect for use with generators when shore power is unavailable.
  • They are also user-friendly, versatile, and efficient.
  • Ideal for use with generators
  • Quiet, efficient household power
  • User friendly, versatile design
  • Compact inverter to supple AC power from batteries
  • Modified sine wave provides power compatible with less sensitive AC loads
  • Transfer switch provides seamless transition from battery to shore power or generator
  • Integrated 120V GFCI outlet with 15A circuit breaker (can be hardwired into boat’s AC system)
  • Detachable display move control and monitoring features to convenient location (includes 25' cable)
  • Low voltage protection prevent discharging batteries to damaging levels
  • Over-temperature and overload protection

What is the working voltage of the product?

120 Volts AC

What is the type of the product?

Inverter

What is the weight of the product?

14

How many outlet exists on this product?

1 Duplex GFCI

What is the watts of the product?

1800

What is the wattage of the product?

1800 Watts Continuous/3600 Watts Peak

What is the AC connection of the Xantrex XM1800 Pro Series Inverter?

Hardwire

Is this product is ISO approved?

FCC Class B
UL 458

What is the output voltage?

1800w

What is the input voltage?

12v

What is the output voltage?

120v

Is this product has ground-fault circuit interrupter (GFCI) feature?

Yes

What is the inverter surge rating of the product?

3600w

What is the waveform of the product?

Modified Sine Wave


Save $266 when you buy the Xantrex XM1800 Pro Series Inverter for only $484 from NVN Marine! Same day shipping before 3pm.

Xantrex XM1800 Pro Series Inverter Technical Specifications

Type:

Vendor:

Xantrex

Weight:

13.0 lb

DC Connection Type:

Hardwire

GFCI:

Yes

Inverter Input Voltage:

12v

Outlet Qty:

1 Duplex GFCI

Inverter Surge Rating:

3600w

Waveform:

Modified Sine Wave

Inverter Output Voltage:

120v

AC Connection Type:

Hardwire

Inverter Cont. Output Wattage:

1800w

Product Manual:

Product Brochure:
