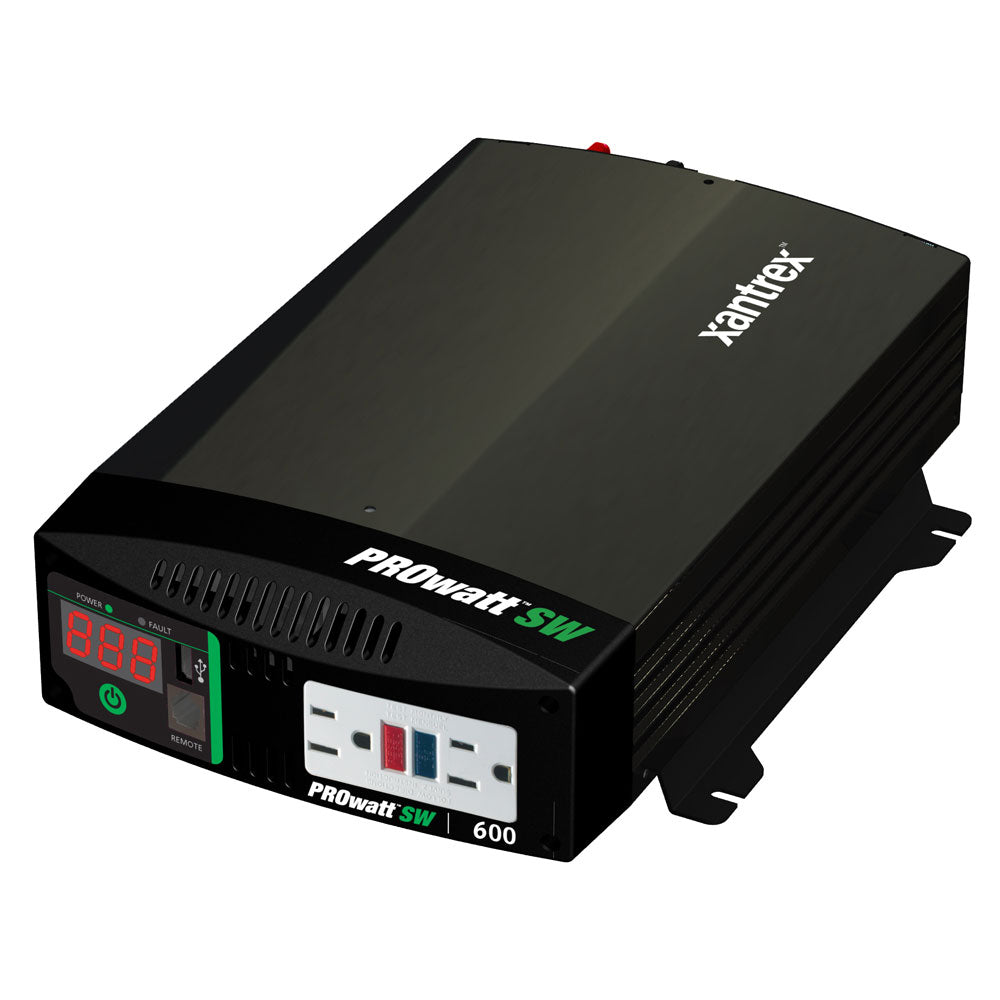

Xantrex PROwatt SW600 - True Sine Wave Inverter

No reviews yet Write a Review
$238.36
SKU:
806-1206
UPC:
715535894061
Condition:
New
5 customers are viewing this product

Xantrex PROwatt SW600 - True Sine Wave Inverter

$238.36

Xantrex PROwatt SW600 - True Sine Wave Inverter Product Description

The compact, easy-to-use and easy-to-install design of the PROwatt SW Series makes it ideal for use in commercial truck, RV and marine applications. With True Sine-Wave output, the PROwatt SW Series can provide power for all types of electrical loads including, variable speed power tools, advanced electrical appliances, microwaves and much more. The PROwatt SW provides household AC power anywhere.

Xantrex 8061206 Attributes

  • Output Voltage: 240 Volt AC
  • Input Voltage: 12 Volt DC
  • Continuous Output Power (W): 540 Watt
  • Peak Output Power (W): 1200 Watt
  • Efficiency: 90 Percent
  • Number Of AC Outlets: 2
  • Length (IN): 12.2 Inch
  • Width (IN): 8.7 Inch
  • Height (IN): 3-1/2 Inch
  • Remote On/Off Capable: Yes
  • With USB Port: Yes
  • With Volt/Watt Meter: Yes
  • With Short Circuit: Yes
  • With Reverse Battery Protection: No
  • With Thermal Protection: No
  • With Battery Cables: No
  • With Built-In Charger: No
  • With Fuse: No

Xantrex 8061206 Features & Benefits

  • Built-In Digital Display For DC Volts And Output Power
  • Built-In USB Port
  • Heavy Duty Terminals For Trouble-Free Battery Connection
  • Available ON/OFF Remote Switch
  • Low Voltage Shutdown. Low Voltage Alarm
  • Over Voltage Protection. Overload Shutdown
  • Over Temperature Shutdown
  • Limited 2 Year Warranty

Xantrex 8061206 Installation Instructions

Xantrex 8061206 Warranties

Xantrex 8061206 Technical Bulletins


PROwatt SW Sine Wave Inverter

PURE POWER. TRUE VALUE.

The PROwatt SW offers affordable, quality pure sine wave inverter solution for both recreational andcommercial applications. PROwatt SW provides the necessary current to startup demanding electrical loads. In addition to dual GFCI AC receptacles, the PROwatt SW Series include an innovative USB connection for providing power to most USB chargeable devices. The PROwatt SW Series offers many safety features not found in similar inverters. When equipped with a remote control, the PROwatt SW Series has the ability to provide automatic ignition lockout shutting down the inverter's output when the vehicle's ignition is not engaged.

The compact, easy-to-use and easy-to-install design of the PROwatt SW Series makes it ideal for use in commercial truck, RV and marine applications. With True Sine-Wave output, the PROwatt SW Series can provide power for all types of electrical loads including, variable speed power tools, advanced electrical appliances, microwaves and much more. The PROwatt SW provides household AC power anywhere.

Product Features:
  • 540W Continuous, 1200W Surge Capability
  • Built-in digital display for DC volts and output power
  • Built-in USB port
  • Dual GFCI AC receptacles for safe operation
  • Heavy duty terminals for trouble-free battery connection
  • Available ON/OFF remote switch (with ignition lockout)
  • Two year warranty


Protection Features:
  • Low voltage shutdown (10.5 Vdc)
  • Low voltage alarm (11.0 Vdc)
  • Over voltage protection (15.5 Vdc)
  • Over load shutdown
  • Over temperature shutdown
  • GFCI protection


Electrical Specifications:
  • Continuous Power:540W
  • Surge Capacity (Peak): 1200W
  • DC Input: 12 Vdc (nominal)
  • AC Output Frequency: 60 ± 0.5 Hz
  • AC Output Voltage Range: 104 - 127 Vac
  • USB Output: 5 V / 500 mA
  • Output Waveform: True Sine Wave
  • Optimum Efficiency: 90%
  • No Load Current Draw: < 0.6 A
  • Input Voltage Range: 10.5 - 15.5 Vdc


General Specifications:
  • Operating Temperature Range: 32°F - 104°F (0°C - 40°C)
  • AC Receptacle: Dual GFCI
  • USB Receptacle: Single Port (Type A)
  • DC Connection: Hardwire
  • Recommended DC Fuse: 150 A
  • Digital Display: DC voltage, AC output power & error codes
  • Dimensions (H x W x L): 3.5" x 8.7" x 12.2" (89 x 220 x 310mm)
  • Weight: 6.5lb (3.0kg)
  • Warranty: Two year

WARNING: This product can expose you to chemicals including Diisononyl Phthalate (DINP) which is known to the State of California to cause cancer, and Di-isodecyl Phthalate (DIDP) which is known to the State of California to cause reproductive harm. For more information go to .



The compact, easy-to-use and easy-to-install design of the prowatt sw series makes it ideal for commercial trucks, recreational vehicles and marine applications. With true sine wave output,...




Frequently Asked Questions (FAQ) About Xantrex PROwatt SW600 - True Sine Wave Inverter











Who is the Xantrex?

Xantrex Technology Inc. is a world leader in advanced power electronics. Our enabling technology converts raw electrical power from any source -- central utility, backup power, distributed or renewable generation, -- into high-quality electricity required by todays electronic and electrical equipment. Xantrex Technologys knowledge and experience in advanced power electronics is helping to accelerate the commercialization of emerging power systems and solutions.

How to describe Xantrex PROwatt SW600 - True Sine Wave Inverter?

The compact, easy-to-use and easy-to-install design of the prowatt sw series makes it ideal for commercial trucks, recreational vehicles and marine applications. With true sine wave output,...

How many outlet exists on this product?

1 Duplex GFCI

What is the AC connection of the Xantrex PROwatt SW600 - True Sine Wave Inverter?

Hardwire

What is the output voltage?

540w

What is the input voltage?

10.5-15.5v

What is the output voltage?

104-127v

Is this product has ground-fault circuit interrupter (GFCI) feature?

Yes

What is the inverter surge rating of the product?

1200w

What is the waveform of the product?

True Sine Wave


Save $168 when you buy the Xantrex PROwatt SW600 - True Sine Wave Inverter for only $216 from NVN Marine! Same day shipping before 3pm.

Xantrex PROwatt SW600 - True Sine Wave Inverter Technical Specifications

Type:

Vendor:

Xantrex

Weight:

6.8 lb

DC Connection Type:

Hardwire

GFCI:

Yes

Outlet Qty:

1 Duplex GFCI

Inverter Surge Rating:

1200w

Inverter Input Voltage:

10.5-15.5v

Waveform:

True Sine Wave

AC Connection Type:

Hardwire

Inverter Output Voltage:

104-127v

Inverter Cont. Output Wattage:

540w

User Guide:

Product Manual:
