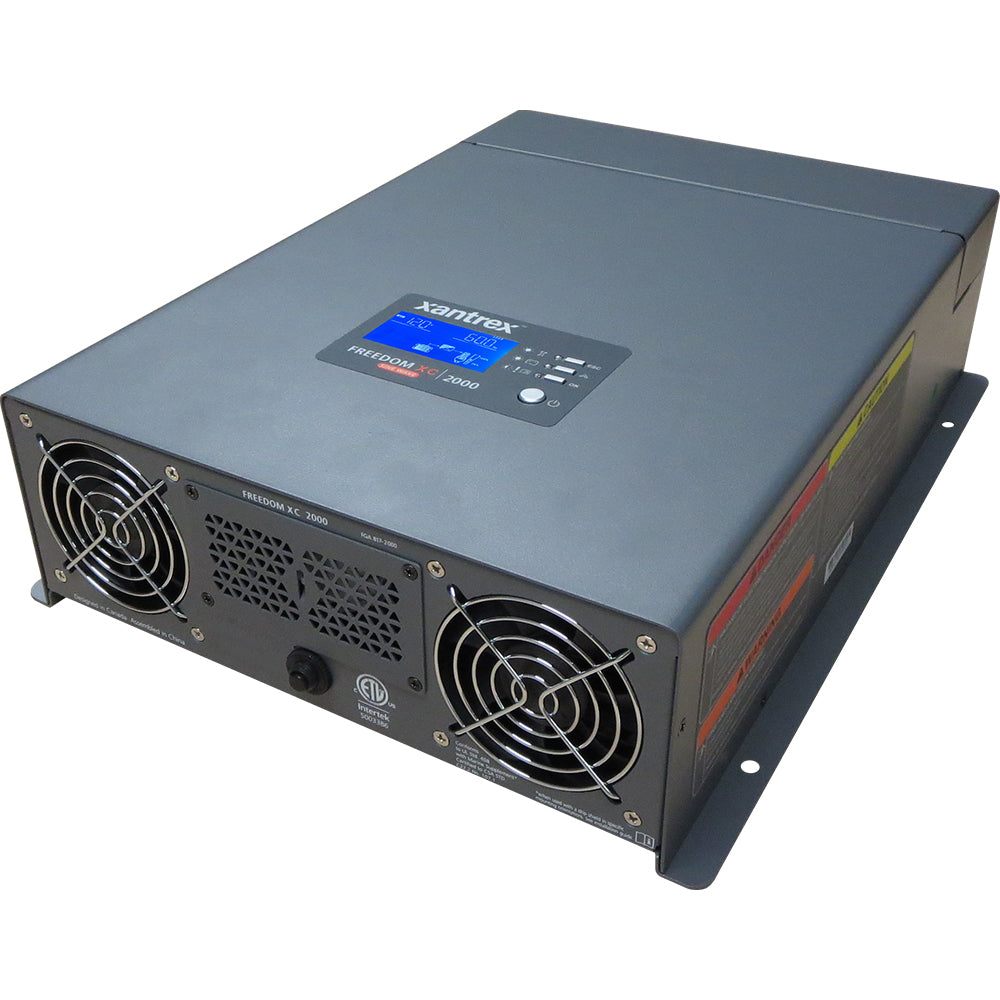

Xantrex Freedom XC 2000 True Sine Wave Inverter/Charger - 12VDC - 120VAC - 2000W/80A

No reviews yet Write a Review
$937.19
SKU:
817-2080
UPC:
715535901349
Condition:
New
5 customers are viewing this product

Xantrex Freedom XC 2000 True Sine Wave Inverter/Charger - 12VDC - 120VAC - 2000W/80A

$937.19

Xantrex Freedom XC 2000 True Sine Wave Inverter/Charger - 12VDC - 120VAC - 2000W/80A Product Description

Freedom XC 2000 True Sine Wave Inverter/Charger - 12VDC - 120VAC - 2000W/80A

True sine wave 120 Vac inverter/charger with built-in transfer switch. Designed for recreational and commercial applications.

The Freedom XC inverter/charger offers premium performance in a lightweight compact package. It cranks out full output in invert or charge mode from -4°F - 104°F for operation in all climate temperatures. The extended surge rating of the Freedom XC makes it ideal to start difficult loads including fridge and microwave. The quick connect terminals at AC IN/OUT make installation a breeze.

Inverter Features:

  • Extended Surge Rating: Surges to 2X continuous power for 2 seconds for motor loads
  • True Sine Wave AC Power: For operation of sensitive and motor loads
  • Ignition Control: Feature to turn inverter on/off via a 12 VDC signal and to minimize battery drain by switching the inverter off when the ignition key is turned off
  • Wide 10-18 VDC Input Range: Ensures inverter operation on high voltage alternators found on many new vehicle chassis
  • Programmable AC Under-Voltage (85-110VAC) Shutdown: Feature ideal to operate under weak shore power or generator input
  • Built-in 30A AC Transfer Relay: Senses when outside AC Power is present and transfers the load from the inverter to the source of incoming power (shore or generator). The unit also automatically switches from invert mode to charge mode

Built-In Charger Features:

  • Power Factor Corrected Multi-Stage Charging: Utilizes less shorepower when charging batteries. This frees up more usable AC power for running electrical devices and appliances and reduces the likelihood of tripping shorepower breakers
  • Programmable: Configurable 3 stage temperature compensated battery charge algorithm for optimal charging of almost any battery type up to 18V
  • Battery Equalization: Maximizes flooded battery life
  • Dead Battery Charging Down to 0 Vdc
  • Power Share: Prioritizes AC loads by reducing the charge current and maintaining the total input current to less than the breaker setting

"Warning"WARNING: This product can expose you to chemicals including Diisononyl Phthalate (DINP) which is known to the State of California to cause cancer, and Di-isodecyl Phthalate (DIDP) which is known to the State of California to cause reproductive harm. For more information go to .



The Xantrex Freedom XC inverter/charger uses a lightweight and compact package that provides excellent performance. It can increase all outputs in reverse or charging mode from -4 degrees Fahrenheit to 104 degrees Fahrenheit to work normally in all climates and temperatures. Freedom XC's extended surge rating makes it ideal for starting unbearable loads, including refrigerators and microwave ovens. The quick-connect terminals of AC IN / OUT make installation a breeze. 2000W12VDC/12VAC true sine wave continuous power/80Amp charger model.













Frequently Asked Questions (FAQ) About Xantrex Freedom XC 2000 True Sine Wave Inverter/Charger - 12VDC - 120VAC - 2000W/80A











Who is the Xantrex?

Xantrex Technology Inc. is a world leader in advanced power electronics. Our enabling technology converts raw electrical power from any source -- central utility, backup power, distributed or renewable generation, -- into high-quality electricity required by todays electronic and electrical equipment. Xantrex Technologys knowledge and experience in advanced power electronics is helping to accelerate the commercialization of emerging power systems and solutions.

How to describe Xantrex Freedom XC 2000 True Sine Wave Inverter/Charger - 12VDC - 120VAC - 2000W/80A?

The Xantrex Freedom XC inverter/charger uses a lightweight and compact package that provides excellent performance. It can increase all outputs in reverse or charging mode from -4 degrees Fahrenheit to 104 degrees Fahrenheit to work normally in all climates and temperatures. Freedom XC's extended surge rating makes it ideal for starting unbearable loads, including refrigerators and microwave ovens. The quick-connect terminals of AC IN / OUT make installation a breeze. 2000W12VDC/12VAC true sine wave continuous power/80Amp charger model.
  • True sine wave technology for a clean, reliable power supply
  • 2000W continuous power output with up to 4000W surge capability
  • Built-in transfer switch for easy installation
  • 2000 watt pure sine wave inverter/charger
  • Comes with a built-in transfer switch
  • Ideal for recreational and commercial applications

The Xantrex Freedom XC 2000 Watt True Sinewave Inverter, 80Amp Charger Model: 817-2080 is the ultimate power solution for your home, business or remote cabin. It is a complete power system in a box.

How many outlet exists on this product?

Optional
  • True sine wave technology for a clean, reliable power supply
  • 2000W continuous power output with up to 4000W surge capability
  • Built-in transfer switch for easy installation
  • 2000 watt pure sine wave inverter/charger
  • Comes with a built-in transfer switch
  • Ideal for recreational and commercial applications
  • Gives you the freedom to move your AC power source anywhere you need it
  • Motor loads are provided with up to 2X continuous power for 2 seconds, so you can do more with less
  • The 817-2080 inverter is a true sine wave inverter, which means that sensitive equipment such as computers and TVs run smoothly on this device
  • Xantrex Freedom XC 2000 Watt True Sinewave Inverter, 80Amp Charger Model: 817-2080
  • Extended Surge Rating: Surges to 2X continuous power for 2 seconds for motor loads
  • True Sine Wave AC Power: For operation of sensitive and motor loads
  • Ignition

What is the AC connection of the Xantrex Freedom XC 2000 True Sine Wave Inverter/Charger - 12VDC - 120VAC - 2000W/80A?

Hardwire

What is the output voltage?

2000w

What is the input voltage?

12v

What is the output voltage?

120v

Is this product has ground-fault circuit interrupter (GFCI) feature?

Optional

What is the inverter surge rating of the product?

4000w

What is the waveform of the product?

True Sine Wave


Save $251 when you buy the Xantrex Freedom XC 2000 True Sine Wave Inverter/Charger - 12VDC - 120VAC - 2000W/80A for only $851 from NVN Marine! Same day shipping before 3pm.

Xantrex Freedom XC 2000 True Sine Wave Inverter/Charger - 12VDC - 120VAC - 2000W/80A Technical Specifications

Type:

Vendor:

Xantrex

Weight:

19.4 lb

Waveform:

True Sine Wave

Inverter Output Voltage:

120v

Inverter Input Voltage:

12v

Inverter Surge Rating:

4000w

Outlet Qty:

Optional

GFCI:

Optional

DC Connection Type:

Hardwire

AC Connection Type:

Hardwire

Inverter Cont. Output Wattage:

2000w

Product Manual:

Product Brochure:
