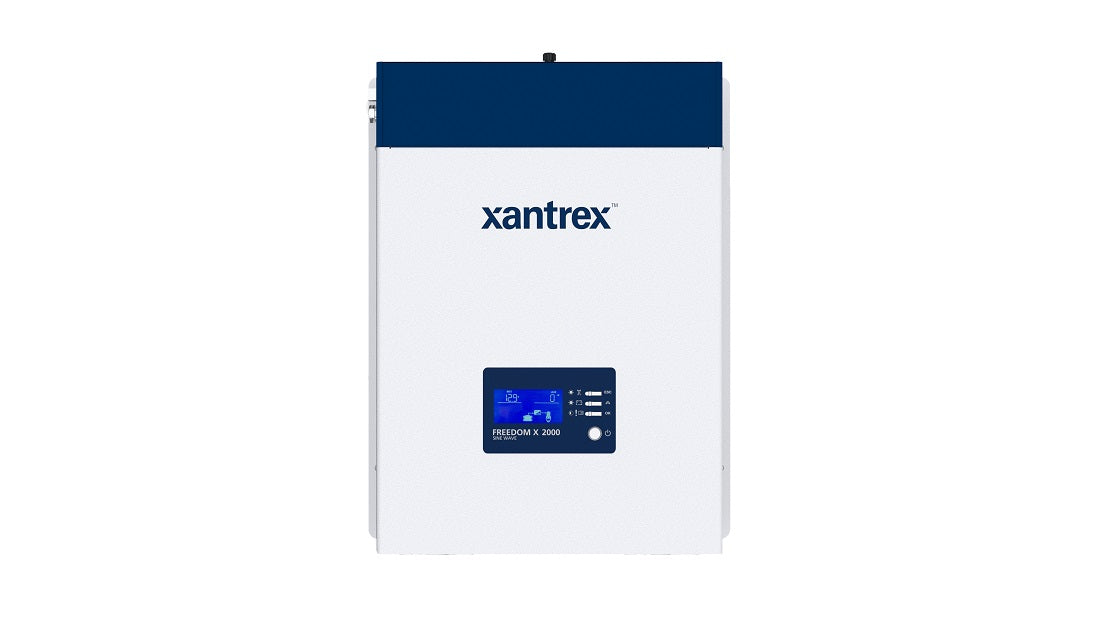

Xantrex Freedom X 2000 230v 2000W Inverter
Model: 817-2000-12True sine wave 120 Vac inverter with built-in transfer switch. Designed for recreational and commercial applications.. Configure and monitor system performance via Bluetooth app available on the optional Bluetooth remote panel (# 808-0817-02)
The Freedom X inverter offers premium performance in a lightweight compact package. It cranks out full output from -20°C - 40°C for operation in all climate temperatures. The extended surge rating of the Freedom X makes it ideal to start difficult loads including fridge and microwave. The quick connect terminals at AC IN/OUT make installation a breeze.
SpecificationsELECTRICAL SPECS - INVERTER | |
AC Output Operating Voltage Options | 220/230/240V |
Continuous Output Power | Continuous Power 2000 W @40 C True sine wave (TSW) |
Continuous AC Output Current | 8.3 A |
Surge Power | 4000 W (> 2 sec) |
Frequency (Configurable) | 50 Hz (or 60 Hz) |
DC Input Operating voltage range | 10.0 - 17.0 V |
DC Input Max Non-Operating Voltage | 25.2 V |
DC Input Nominal Voltage (inverting) | 12.0 V |
DC Nominal Current at Full Load | 192 A |
Peak Efficiency | 91% |
Full Load Efficiency | > 87.5% |
GENERAL SPECS | |
Operating Temperature Range | -20 to 60 C, with output derated above 40 °C |
Storage Temperature Range | -40 to 70 C |
Operating Humidity Range | 5 to 95% RH, non-condensing |
Operating Input AC Pass-Through Voltage Range | 170-280V |
Safe Non-Operating Input AC Voltage Range | Up to 300V |
Transfer Relay AC Current Rating | 30 A , 24 A continous |
L x W x H (without flanges) | 370 mm x 275 mm x 100 mm |
L x W x H (with flanges) | 370 mm x 305 mm x 100 mm |
Net Weight | 7.2 kgs |
REGULATORY APPROVALS | |
Safety | CE Marking, Low Voltage Directive Compliant (Marine installations, drip shield, 808-1050) |
EMC | CE Marking, EMC Directive and Automotive EMC - Regulation 10 R-06 Compliant |
Environmental | CE Marking, RoHS Directive Compliant |
