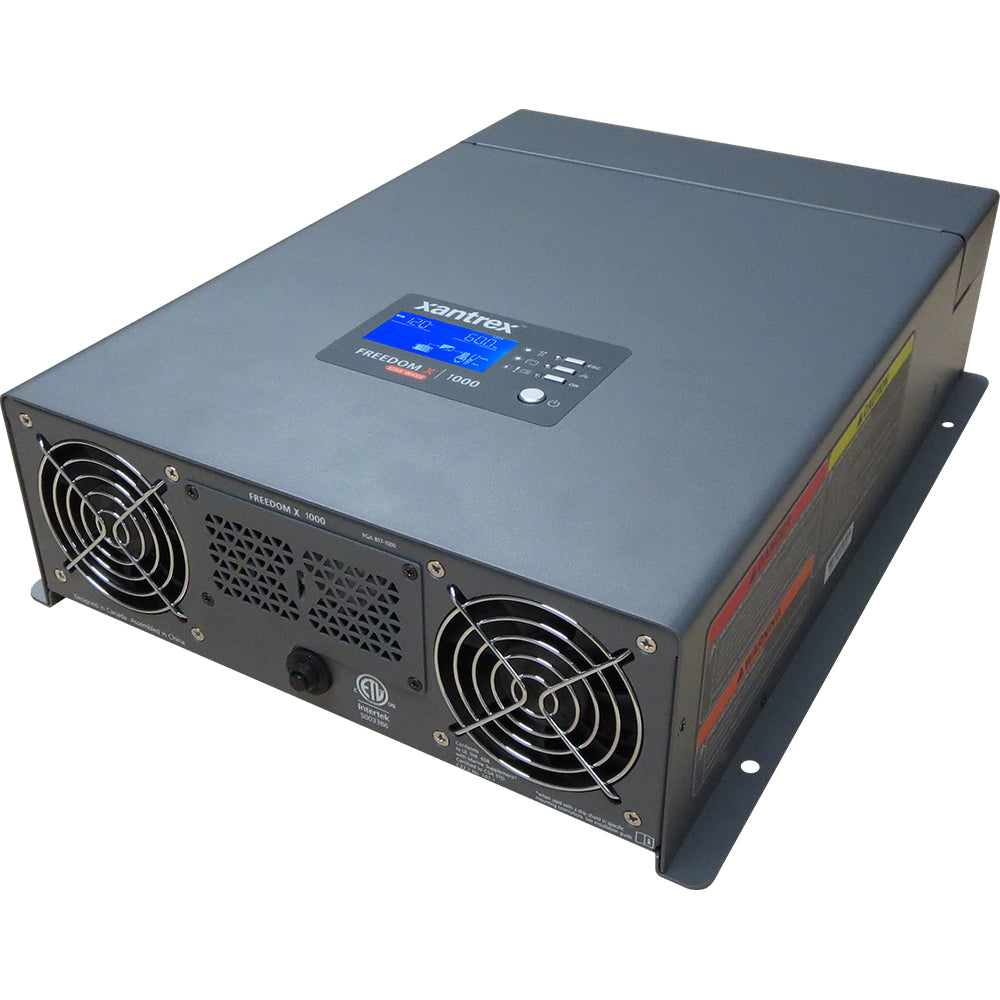

Xantrex Freedom X 1000 True Sine Wave Power Inverter - 12VDC - 120VAC - 1000W

No reviews yet Write a Review
$387.85
SKU:
817-1000
UPC:
715535901417
Condition:
New
5 customers are viewing this product

Xantrex Freedom X 1000 True Sine Wave Power Inverter - 12VDC - 120VAC - 1000W

$387.85

Xantrex Freedom X 1000 True Sine Wave Power Inverter - 12VDC - 120VAC - 1000W Product Description

True sine wave 120 Vac inverter with built-in transfer switch. Features extended surge rating, ignition control, configure and monitor system performance via Bluetooth app using the optional Freedom X Bluetooth remote panel.

Xantrex 8171000 Attributes

  • Output Voltage: 120 Volt AC
  • Input Voltage: 12 Volt DC
  • Continuous Output Power (W): 1000 Watt
  • Peak Output Power (W): 2000 Watt
  • Ampere Rating: 8.4 Amp
  • Efficiency: 91 Percent
  • Length (IN): 14.2 Inch
  • Width (IN): 10.6 Inch
  • Height (IN): 3.7 Inch
  • Remote On/Off Capable: Yes
  • With USB Port: No
  • With Volt/Watt Meter: No
  • With Short Circuit: No
  • With Reverse Battery Protection: No
  • With Thermal Protection: No
  • With Battery Cables: No
  • With Built-In Charger: No
  • With Fuse: No

Xantrex 8171000 Features & Benefits

  • Offers Premium Performance In A Lightweight Compact Package
  • Cranks Out Full Output From -4 Degree Fahrenheit - 104 Degree Fahrenheit For Operation In All Climate Temperatures
  • The Extended Surge Rating Makes It Ideal To Start Difficult Loads Including Fridge And Microwave
  • Designed For Recreational And Commercial Applications
  • Surges To 2X Continuous Power For 2 Seconds For Motor Loads
  • True Sine Wave AC Power For Operation Of Sensitive And Motor Loads
  • The Quick Connect Terminals At AC IN AND OUT Make Installation A Breeze
  • View AC And Battery Current, Percentage Status Bar For Inverter Output On The Onboard Display
  • Limited 2 Year Warranty

Xantrex 8171000 Installation Instructions

Xantrex 8171000 Warranties

Xantrex 8171000 Technical Bulletins


Freedom X 1000 True Sine Wave Power Inverter - 12VDC - 120VAC - 1000W

True sine wave 120 Vac inverter with built-in transfer switch. Designed for recreational and commercial applications.

The Freedom X inverter offers premium performance in a lightweight compact package. It cranks out full output from -4°F - 104°F for operation in all climate temperatures. The extended surge rating of the Freedom X makes it ideal to start difficult loads including fridge and microwave. The quick connect terminals at AC IN/OUT make installation a breeze.

Features:

  • Extended Surge Rating: Surges to 2X continuous power for 2 seconds for motor loads
  • True Sine Wave AC Power: For operation of sensitive and motor loads
  • Ignition Control: Feature to turn inverter on/off via a 12 VDC signal and to minimize battery drain by switching the inverter off when the ignition key is turned off
  • Wide 10-18 VDC Input Range: Ensures inverter operation on high voltage alternators found on many new vehicle chassis
  • Built-in 30A AC Transfer Relay: Senses when outside AC Power is present and transfers the load from the inverter to the source of incoming power (shore or generator). The unit also automatically switches from invert mode to charge mode
  • Quick Installation: Huge wiring bay for easy access and quick connect AC in/out terminals for fast & easy wiring

WARNING: This product can expose you to chemicals including Diisononyl Phthalate (DINP) which is known to the State of California to cause cancer, and Di-isodecyl Phthalate (DIDP) which is known to the State of California to cause reproductive harm. For more information go to .



Freedom X Inverter MFG 817-1000 1000 watt-120VAC true sine wave output 2X surge output 12VDC input ignition control 30A conversion relay optional GFCI socket optional remote...













Frequently Asked Questions (FAQ) About Xantrex Freedom X 1000 True Sine Wave Power Inverter - 12VDC - 120VAC - 1000W














Who is the Xantrex?

Xantrex Technology Inc. is a world leader in advanced power electronics. Our enabling technology converts raw electrical power from any source -- central utility, backup power, distributed or renewable generation, -- into high-quality electricity required by todays electronic and electrical equipment. Xantrex Technologys knowledge and experience in advanced power electronics is helping to accelerate the commercialization of emerging power systems and solutions.

How to describe Xantrex Freedom X 1000 True Sine Wave Power Inverter - 12VDC - 120VAC - 1000W?

Freedom X Inverter MFG 817-1000 1000 watt-120VAC true sine wave output 2X surge output 12VDC input ignition control 30A conversion relay optional GFCI socket optional remote...

What is the working voltage of the product?

12V

What is the weight of the product?

20

How many outlet exists on this product?

Optional

What is the watts of the product?

1000W

What is the AC connection of the Xantrex Freedom X 1000 True Sine Wave Power Inverter - 12VDC - 120VAC - 1000W?

Hardwire

What is the input voltage?

12v

What is the output voltage?

1000w

What is the output voltage?

120v

Is this product has ground-fault circuit interrupter (GFCI) feature?

Optional

What is the inverter surge rating of the product?

2000w

What is the waveform of the product?

True Sine Wave


Save $287 when you buy the Xantrex Freedom X 1000 True Sine Wave Power Inverter - 12VDC - 120VAC - 1000W for only $352 from NVN Marine! Same day shipping before 3pm.

Xantrex Freedom X 1000 True Sine Wave Power Inverter - 12VDC - 120VAC - 1000W Technical Specifications

Type:

Vendor:

Xantrex

Weight:

13.1 lb

Outlet Qty:

Optional

GFCI:

Optional

DC Connection Type:

Hardwire

AC Connection Type:

Hardwire

Waveform:

True Sine Wave

Inverter Output Voltage:

120v

Inverter Input Voltage:

12v

Inverter Surge Rating:

2000w

Inverter Cont. Output Wattage:

1000w

Product Manual:

Product Brochure:
