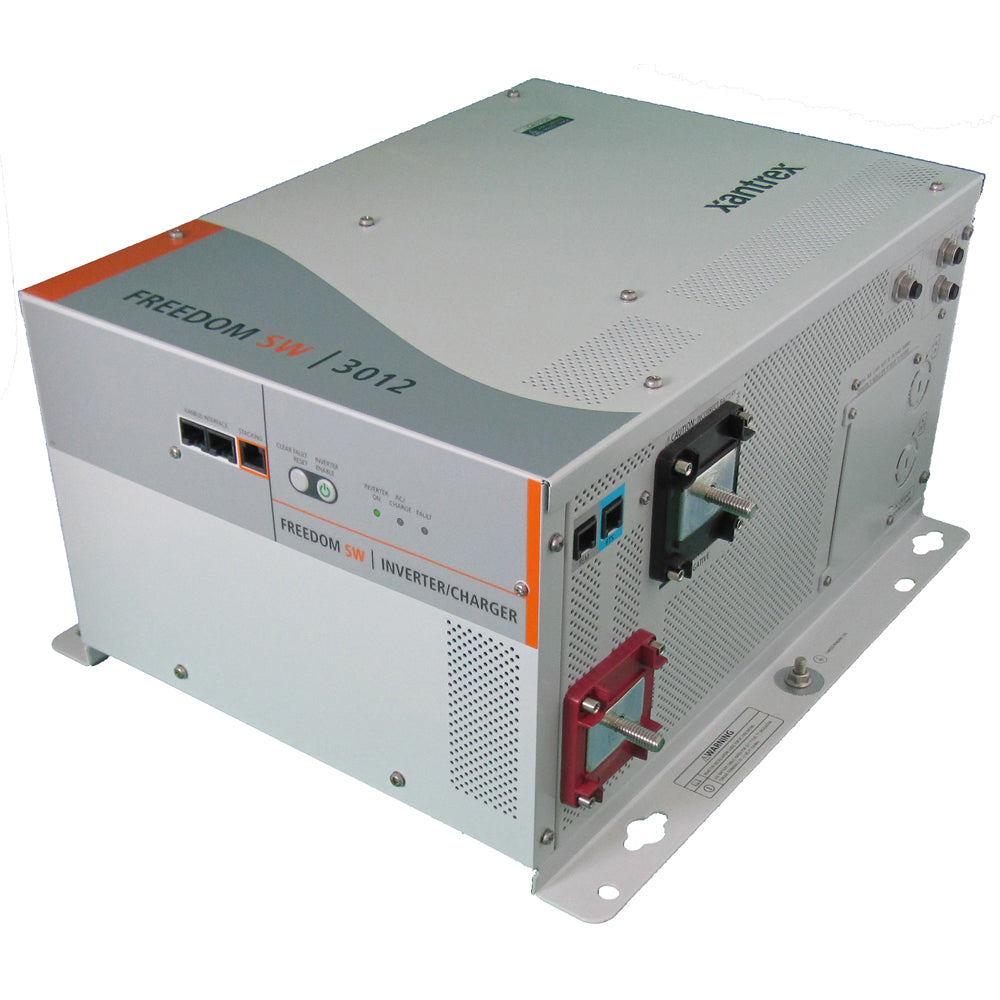

Xantrex Freedom SW3012 12V 3000W Inverter/Charger

No reviews yet Write a Review
$2,001.99
SKU:
815-3012
UPC:
715535897192
Condition:
New
5 customers are viewing this product

Xantrex Freedom SW3012 12V 3000W Inverter/Charger

$2,001.99

Xantrex Freedom SW3012 12V 3000W Inverter/Charger Product Description

The second generation 2000 Watts model has been completely redesigned to include many of the same great features found in its high power counterpart. A key feature enhancement is ‘Generator Support Mode’ which enables the Freedom SW to supplement a generator¹ when AC loads exceed the generator’s capacity. The new generation models also feature improved AC transfer or AC input detection time, providing the ability to transfer AC loads to batteries in less than 10 Milliseconds when the incoming grid or generator power is lost. Connected loads are almost unable to feel the power transition due to this quick transfer time. Both models are approved to UL458 with marine supplement, CSA, ABYC and FCC, Class B requirements.

Xantrex 8153012 Attributes

  • Output Voltage: 120 Volt AC
  • Input Voltage: 12 Volt DC
  • Continuous Output Power (W): 3000 Watt
  • Peak Output Power (W): 6000 Watt
  • Ampere Rating: 80 Amp
  • Efficiency: 90 Percent
  • Number Of AC Outlets: 2
  • Length (IN): 15-1/4 Inch
  • Width (IN): 13-1/2 Inch
  • Height (IN): 7-3/4 Inch
  • Remote On/Off Capable: Yes
  • With USB Port: No
  • With Volt/Watt Meter: No
  • With Short Circuit: Yes
  • With Reverse Battery Protection: Yes
  • With Thermal Protection: No
  • With Battery Cables: No
  • With Built-In Charger: Yes
  • With Fuse: No

Xantrex 8153012 Features & Benefits

  • Battery Over-Voltage And Under-Voltage Protection
  • Over-Temperature Shutdown
  • Automatic Overload Protection
  • Short-Circuit Protection
  • Integrated, Resettable AC Breakers
  • Pure Sine Wave Output To Operate Sensitive Electronics
  • Parallel And Series Stacking Capability
  • Built-In Transfer Switch Automatically Transfers Between Inverter Power And Incoming AC Power
  • Temperature Compensated Charging For A Variety Of Climate Conditions
  • Limited 2 Year Warranty

Xantrex Freedom SW3012 Inverter/Charger
815-3012

12V, 3000W - 120 Vac / 60 Hz

Powerful. Configurable. Versatile...

The NEW GENERATION Freedom SW series represents highly sophisticated and advanced inverter/ chargers available in 3000 W with 150 A charger and 2000 W with 100 A charger models.

Product Description
The second generation 3000 watt model has been completely redesigned to include many of the same great features found in its high power counterpart.A key feature enhancement is 'Generator Support Mode' which enables the Freedom SW to supplement a generator when AC loads exceed the generator's capacity. The new generation models also feature improved AC transfer/AC input detection time, providing the ability to transfer AC loads to batteries in less than 10 milliseconds when the incoming grid or generator power is lost. Connected loads are almost unable to feel the power transition due to this quick transfer time. Both models are approved to UL458 with marine supplement, CSA, ABYC and FCC, Class B requirements.

NEW - PARALLEL AND SERIES STACKING

Parallel stacking enables the Freedom SW inverter/chargers to double the AC output in inverter mode. Series stacking enables the Freedom SW inverter/chargers to generate 120/240 V split phase output2

2 AC source must be split phase, requires Stacking Cable (part# 808-9005)

Application
Designed for a variety of mobile applications such as commercial, emergency and recreational vehicles, marine vessels, construction and military equipment.

Product Features
  • Pure sine wave output to operate sensitive electronics
  • Advanced configuration options for customized applications
  • Parallel and series stacking capability
  • Built-in transfer switch automatically transfers between inverter power and incoming AC power
  • Power factor corrected, multi-stage charger for fast, efficient charging
  • Temperature compensated charging for a vareity of climate conditions
  • Ignition lockout feature helps prevent unnecessary battery drain when the alternator is not providing power3
  • Wide operating temperature range: -4°F to 140°F (-20°C to 60°C)
  • Conformal coated circuit boards for humid environments
  • Dual input / Dual output AC interface for 3000 W model
  • Ability to charge batteries drained to extremely low voltage
  • Compatible with the Xantrex Automatic Generator Start4 (Part# 809-0915)


3When used with the remote panel
4Sold separately

Protection Features
  • Battery over-voltage and under-voltage protection
  • Over-temperature shutdown
  • Automatic overload protection
  • Short-circuit protection
  • Integrated, resettable AC breakers

WARNING: This product can expose you to chemicals including Diisononyl Phthalate (DINP) which is known to the State of California to cause cancer, and Di-isodecyl Phthalate (DIDP) which is known to the State of California to cause reproductive harm. For more information go to .



Xantrex Freedon SW3012 inverter/charger 815-301212v, 3000w-120 vac / 60 hzpowerful. Configurable. Versatile. The new generation of free sw series represents a highly complex and advanced inverter/charger, where the power of the 150W charger is 3000W, and the power of the 100A charger is 2000W. Product description The second-generation 3000 watt model has been completely redesigned and includes many of the same main functions in its high-power similar products. An important feature enhancement is the "generator support mode", when the AC load exceeds the rated power, it can freely provide supplements for the generator. The capacity of the generator. The new generation model also has an improved AC transmission/AC input detection time function. When the input power of the grid or generator is lost, the AC load can be transferred to the battery in less than 10 milliseconds. Due to the short transmission time, the connected load hardly feels power conversion. Both models have passed ul458 certification, and have Class B requirements for marine supplements, csa, abyc and fcc. The new function parallel and series stacking parallel stacking enables sw/f inverter/charger to double the AC output in inverter mode. Stacking in series allows free SW inverter/charger to produce 120/240 V split-phase output 2 2 AC power must be split-phase, which requires stacking cable part 808-9005 application design.




Frequently Asked Questions (FAQ) About Xantrex Freedom SW3012 12V 3000W Inverter/Charger














Who is the Xantrex?

Xantrex Technology Inc. is a world leader in advanced power electronics. Our enabling technology converts raw electrical power from any source -- central utility, backup power, distributed or renewable generation, -- into high-quality electricity required by todays electronic and electrical equipment. Xantrex Technologys knowledge and experience in advanced power electronics is helping to accelerate the commercialization of emerging power systems and solutions.

How to describe Xantrex Freedom SW3012 12V 3000W Inverter/Charger?

Xantrex Freedon SW3012 inverter/charger 815-301212v, 3000w-120 vac / 60 hzpowerful. Configurable. Versatile. The new generation of free sw series represents a highly complex and advanced inverter/charger, where the power of the 150W charger is 3000W, and the power of the 100A charger is 2000W. Product description The second-generation 3000 watt model has been completely redesigned and includes many of the same main functions in its high-power similar products. An important feature enhancement is the "generator support mode", when the AC load exceeds the rated power, it can freely provide supplements for the generator. The capacity of the generator. The new generation model also has an improved AC transmission/AC input detection time function. When the input power of the grid or generator is lost, the AC load can be transferred to the battery in less than 10 milliseconds. Due to the short transmission time, the connected load hardly feels power conversion. Both models have passed ul458 certification, and have Class B requirements for marine supplements, csa, abyc and fcc. The new function parallel and series stacking parallel stacking enables sw/f inverter/charger to double the AC output in inverter mode. Stacking in series allows free SW inverter/charger to produce 120/240 V split-phase output 2 2 AC power must be split-phase, which requires stacking cable part 808-9005 application design.

What is the working voltage of the product?

12

What is the weight of the product?

70

How many outlet exists on this product?

Optional

What is the watts of the product?

3000W Continuous

How many banks supporting for charge?

1

What is the input voltage?

120v

What is the output voltage?

150a

What is the output voltage?

12v

What is the output voltage?

3000w

What is the input voltage?

12v

What is the output voltage?

120v


Save $1417 when you buy the Xantrex Freedom SW3012 12V 3000W Inverter/Charger for only $1819 from NVN Marine! Same day free shipping before 3pm.

Xantrex Freedom SW3012 12V 3000W Inverter/Charger Technical Specifications

Type:

Vendor:

Xantrex

Weight:

69.4 lb

Charger Output Voltage:

12v

Inverter Output Voltage:

120v

Inverter Input Voltage:

12v

Charger Input - Voltage:

120v

Outlet Qty:

Optional

Charging Banks:

1

Inverter Cont. Output Wattage:

3000w

Charger Output - Amps:

150a

User Guide:

Product Manual:

Product Installation:
