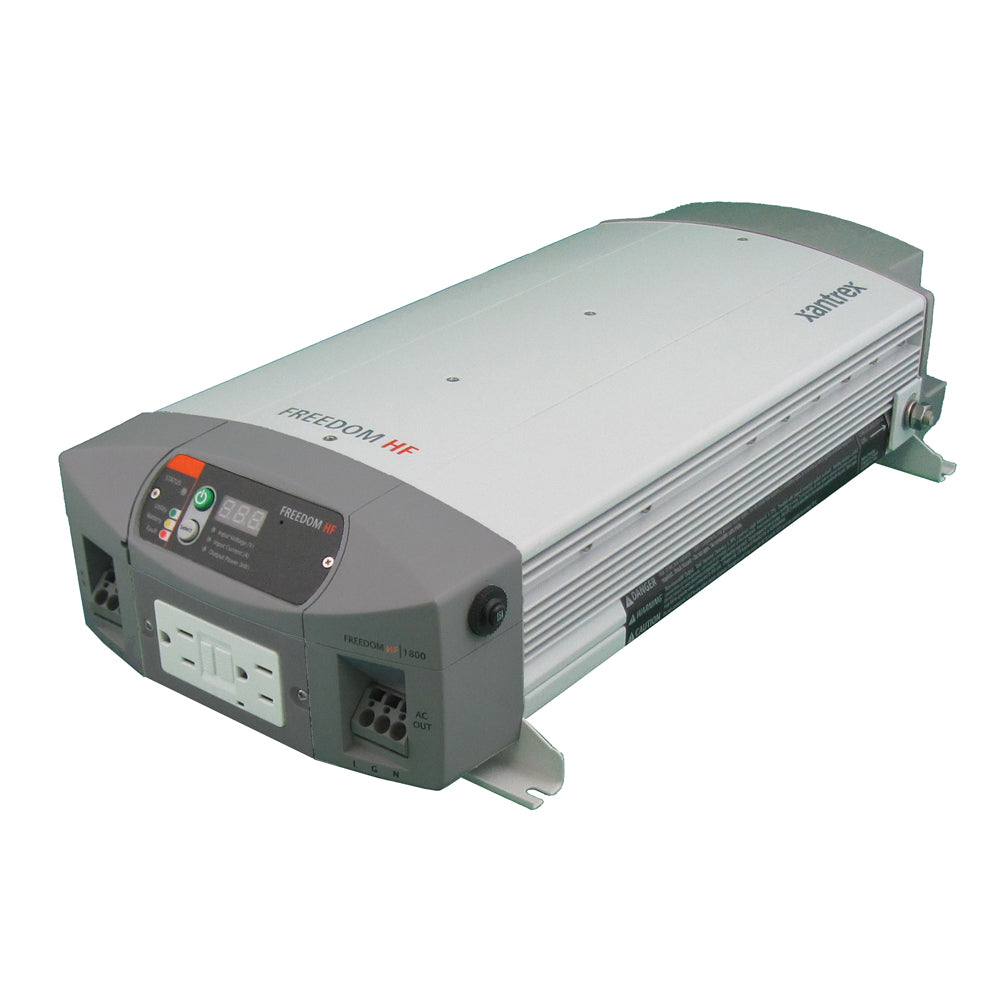

Xantrex Freedom HF 1055 Inverter Charger - 120VAC 55A 12VDC

No reviews yet Write a Review
$696.29
SKU:
806-1055
UPC:
715535610555
Condition:
New
5 customers are viewing this product

Xantrex Freedom HF 1055 Inverter Charger - 120VAC 55A 12VDC

$696.29

Xantrex Freedom HF 1055 Inverter Charger - 120VAC 55A 12VDC Product Description

The Freedom HF Inverter/Charger is one of the smallest, lightest, and most affordable inverter/chargers in the market today. The Freedom HF Inverter/Charger features modified sine wave output and is designed to operate entertainment systems and small appliances in boats, RV’s and trucks. Some of the key feature enhancements include quick-connect AC terminal block on both AC input and output for incredibly easy installation. The ignition lockout feature minimizes battery drain by disabling the inverter when the ignition is turned off.

Xantrex 8061055 Attributes

  • Output Voltage: 120 Volt AC
  • Input Voltage: 12 Volt DC
  • Continuous Output Power (W): 1000 Watt
  • Peak Output Power (W): 2000 Watt
  • Ampere Rating: 55 Amp
  • Efficiency: 87 Percent
  • Number Of AC Outlets: 2
  • Length (IN): 15-1/2 Inch
  • Width (IN): 9-1/2 Inch
  • Height (IN): 4.2 Inch
  • Remote On/Off Capable: Yes
  • With USB Port: No
  • With Volt/Watt Meter: Yes
  • With Short Circuit: Yes
  • With Reverse Battery Protection: No
  • With Thermal Protection: No
  • With Battery Cables: No
  • With Built-In Charger: Yes
  • With Fuse: No

Xantrex 8061055 Features & Benefits

  • Battery Over-Voltage And Under-Voltage Protection
  • Over-Temperature Shutdown
  • Automatic Overload Protection
  • Short-Circuit Protection
  • Ground-Fault Protection
  • ETL Certified To UL458 For Use In Mobile RV And Commercial Applications
  • Automatic Three-Stage Battery Charger
  • Ignition Lockout Feature Helps To Minimize Battery Drain
  • Designed To Power Demanding Loads Such As Microwave Ovens, TVs, DVD Players, Small Appliances And Other Electronic Equipment
  • Limited 2 Year Warranty

Xantrex 8061055 Installation Instructions

Xantrex 8061055 Warranties

Xantrex 8061055 Technical Bulletins


Freedom HF 1055 Inverter Charger - 120VAC 55A 12VDC

The new generation Freedom HF is equipped with quick-connect AC terminals and ignition lockout capability. The quick-connect AC terminals enable quick installation eliminating the need for strain relief clamps. The ignition lockout feature helps to minimize battery drain by disabling the inverter when the ignition is turned off.

The Freedom HF Inverter/Charger is one of the smallest, lightest, and most affordable inverter/chargers in the market today. The Freedom HF Inverter/Charger features modified sine wave output and is designed to operate entertainment systems and small appliances in boats, RV's and trucks. The Freedom HF is available in three models: 1000 watts with a 20-amp charger, 1000 watts with a 55-amp charger and 1800 watts with a 40-amp charger.

Multistage charging helps ensure that batteries are recharged quickly and efficiently. All models are equipped with a built-in automatic transfer switch and dual GFCI receptacle. Detachable digital remote control panel display provides precise system information and can be mounted at a convenient location for remote monitoring.

Some of the key feature enhancements include quick-connect AC terminal block on both AC input and output for incredibly easy installation. The ignition lockout feature minimizes battery drain by disabling the inverter when the ignition is turned off.

Product Features:
  • Input Voltage: 12V
  • AC Output: GFCI and/or Hardwire
  • Designed to power demanding loads such as microwave ovens, TVs, DVD players, small appliances and other electronic equipment
  • Removable digital display pre-attached with 25' extension cable for remote system monitoring
  • Ignition lockout feature helps to minimize battery drain
  • Automatic three-stage battery charger
  • Designed to be hardwired using quick-connect AC terminal blocks or by connecting AC through GFCI receptacles (included)
  • Built-in 30-amp relay to automatically transfer between inverter power and incoming AC utility power


Protection Features:
  • Battery over-voltage and under-voltage protection
  • Over-temperature shutdown
  • Automatic overload protection
  • Short-circuit protection
  • Ground-fault protection
  • ETL certified to UL458 for use in mobile RV and commercial applications

WARNING: This product can expose you to chemicals including Diisononyl Phthalate (DINP) which is known to the State of California to cause cancer, and Di-isodecyl Phthalate (DIDP) which is known to the State of California to cause reproductive harm. For more information go to .



Freedom HW provides 1000 watt inverter output and 55 amp charger, designed to meet the demanding standards of motorhome and commercial vehicle manufacturers. The temperature-controlled multi-stage charging can ensure the safe and effective charging of the battery. It includes a 30-amp automatic transfer switch and a detachable digital remote control panel display, which can provide accurate system information and can be installed where this information is needed.













Frequently Asked Questions (FAQ) About Xantrex Freedom HF 1055 Inverter Charger - 120VAC 55A 12VDC











Who is the Xantrex?

Xantrex Technology Inc. is a world leader in advanced power electronics. Our enabling technology converts raw electrical power from any source -- central utility, backup power, distributed or renewable generation, -- into high-quality electricity required by todays electronic and electrical equipment. Xantrex Technologys knowledge and experience in advanced power electronics is helping to accelerate the commercialization of emerging power systems and solutions.

How to describe Xantrex Freedom HF 1055 Inverter Charger - 120VAC 55A 12VDC?

Freedom HW provides 1000 watt inverter output and 55 amp charger, designed to meet the demanding standards of motorhome and commercial vehicle manufacturers. The temperature-controlled multi-stage charging can ensure the safe and effective charging of the battery. It includes a 30-amp automatic transfer switch and a detachable digital remote control panel display, which can provide accurate system information and can be installed where this information is needed.

How many outlet exists on this product?

1 Duplex GFCI

What is the output voltage?

12v

What is the output voltage?

55a

What is the input voltage?

120v

How many banks supporting for charge?

1

What is the output voltage?

1000w

What is the input voltage?

12v

What is the output voltage?

120v


Save $353 when you buy the Xantrex Freedom HF 1055 Inverter Charger - 120VAC 55A 12VDC for only $632 from NVN Marine! Same day shipping before 3pm.

Xantrex Freedom HF 1055 Inverter Charger - 120VAC 55A 12VDC Technical Specifications

Type:

Vendor:

Xantrex

Weight:

12.7 lb

Charger Input - Voltage:

120v

Outlet Qty:

1 Duplex GFCI

Charging Banks:

1

Inverter Output Voltage:

120v

Inverter Input Voltage:

12v

Inverter Cont. Output Wattage:

1000w

Charger Output Voltage:

12v

Charger Output - Amps:

55a

User Guide:

Product Manual:

Product Installation:
