Victron Smart BatteryProtect - 220AMP - 6-35 VDC - Bluetooth Capable

No reviews yet Write a Review
$115.94
SKU:
BPR122022000
UPC:
8719076041269
Condition:
New
5 customers are viewing this product

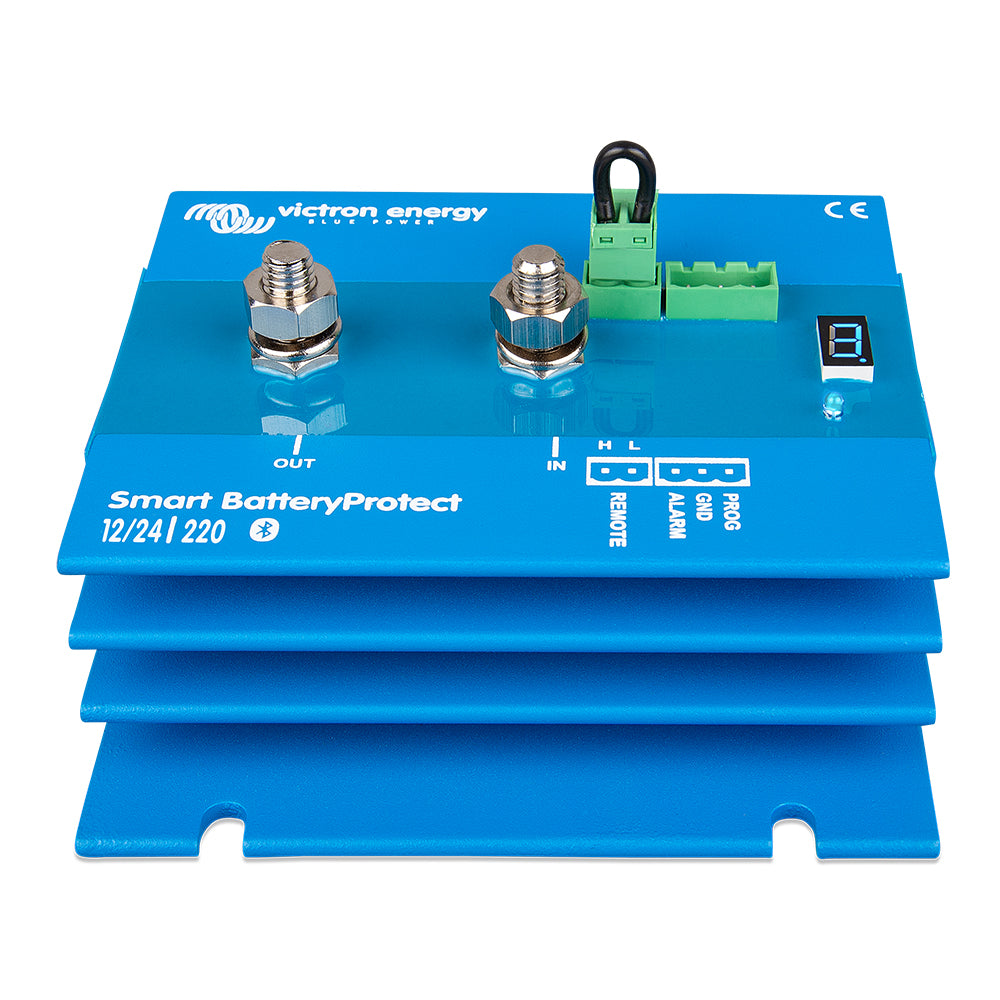

Victron Smart BatteryProtect - 220AMP - 6-35 VDC - Bluetooth Capable

$115.94

Victron Smart BatteryProtect - 220AMP - 6-35 VDC - Bluetooth Capable Product Description

Smart BatteryProtect - 220AMP - 6-35 VDC - Bluetooth Capable

Features:

  • Protects the battery against excessive discharge and can be used as a system on/off switch The Smart BatteryProtect disconnects the battery from non-essential loads before it is completely discharged (which would damage the battery) or before it has insufficient power left to crank the engine. The on/off input can be used as a system on/off switch.
  • 12/24V auto ranging The Smart BatteryProtect automatically detects system voltage one time only.
  • Bluetooth: programming made easy When using Bluetooth to program the Smart BatteryProtect any required engage/disengage levels can be set. Alternatively, one of nine predefined engage/disengage levels can be set with the programming pin (see manual). If required, Bluetooth can be disabled.
  • A special setting for Li-ion batteries In this mode the BatteryProtect can be controlled by the VE.Bus BMS. Note: the BatteryProtect can also be used as a charge interrupter in between a battery charger and a Li-ion battery. See connection diagram in the manual.
  • Ultra-low current consumption This is important in case of Li-ion batteries, especially after low voltage shutdown. Please see our Li-ion battery datasheet and the VE.Bus BMS manual for more information.
  • Over voltage protection To prevent damage to sensitive loads due to over voltage, the load is disconnected whenever the DC voltage exceeds 16.3V respectively 32.6V.
  • Ignition proof No relays but MOSFET switches, and therefore no sparks.
  • Delayed alarm output The alarm output is activated if the battery voltage drops below the preset disconnect level during more than 12 seconds. Starting the engine will therefore not activate the alarm. The alarm output is a short circuit proof open collector output to the negative (minus) rail, max. current 50 mA. The alarm output is typically used to activate a buzzer, LED or relay.
  • Delayed load disconnect and delayed reconnect The load will be disconnected 90 seconds after the battery voltage drops below the preset level. If the battery voltage increases again to the connect threshold within this time period (after the engine has been started for example), the load will not be disconnected. The load will be reconnected 30 seconds after the battery voltage has increased to more than the preset reconnect voltage.

"Warning"WARNING: This product can expose you to chemicals which are known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to .

Please contact your dealer for any returns, repairs or support issues related to this product.

Smart BatteryProtect-220AMP-6-35 VDC-with Bluetooth function: prevent the battery from over-discharging, can be used as a system on/off switch. Smart ...













Frequently Asked Questions (FAQ) About Victron Smart BatteryProtect - 220AMP - 6-35 VDC - Bluetooth Capable



Who is the Victron Energy?

Victron Energy is a global company with a reputation for technical innovation, reliability, and build quality. Victron products, which excel at efficiently combining two or more distinct power sources, are recognized internationally as the professional choice for resilient energy storage systems. Victron products include sinewave inverters, sinewave inverters/chargers, battery chargers, DC/DC converters, transfer switches, battery monitors and more.

How to describe Victron Smart BatteryProtect - 220AMP - 6-35 VDC - Bluetooth Capable?

Smart BatteryProtect-220AMP-6-35 VDC-with Bluetooth function: prevent the battery from over-discharging, can be used as a system on/off switch. Smart ...


Save $18 when you buy the Victron Smart BatteryProtect - 220AMP - 6-35 VDC - Bluetooth Capable for only $105 from Anchor Sailor! Same day shipping before 3pm.

Victron Smart BatteryProtect - 220AMP - 6-35 VDC - Bluetooth Capable Technical Specifications

Type:

Vendor:

Victron Energy

Weight:

2.1 lb
