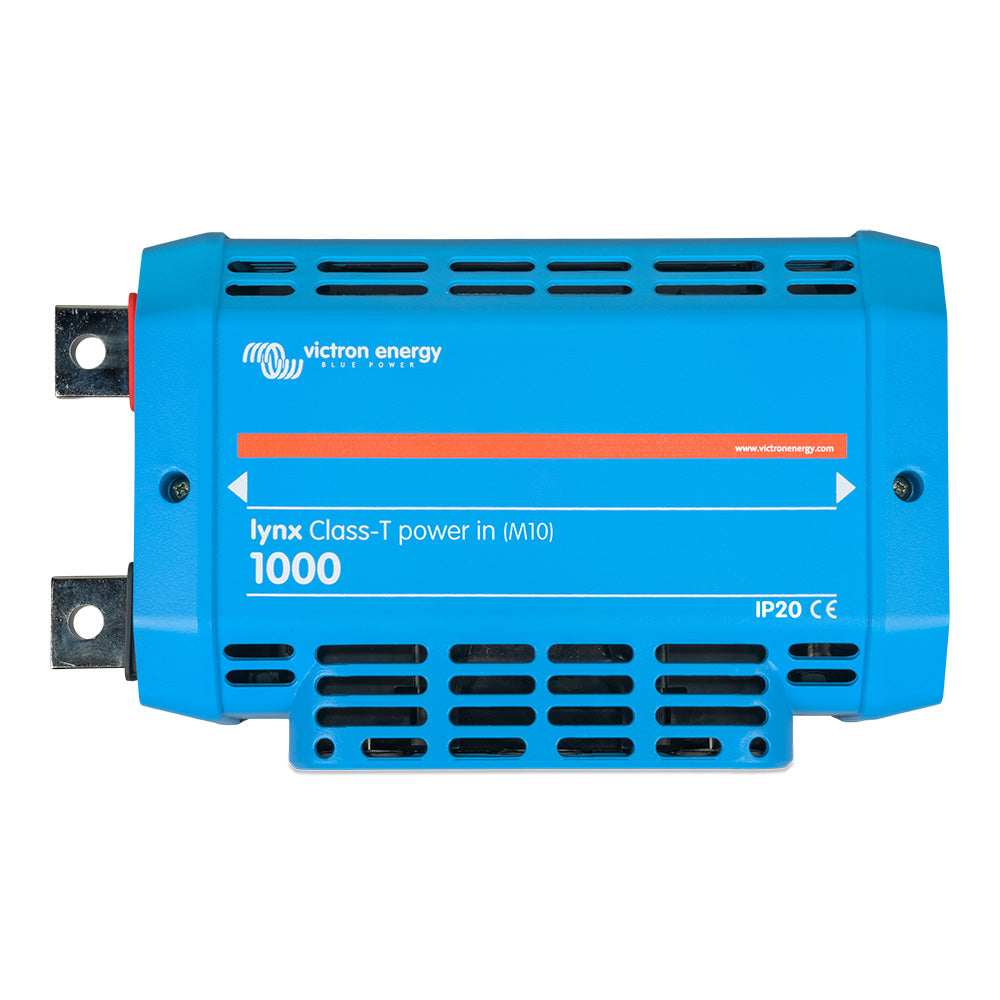

Victron Lynx Power-In Class-T M10 Terminals

No reviews yet Write a Review
$187.00
SKU:
LYN060404010
Condition:
New
5 customers are viewing this product

Victron Lynx Power-In Class-T M10 Terminals

$187.00

Victron Lynx Power-In Class-T M10 Terminals Product Description

Lynx Power-In Class-T M10 Terminals

The Lynx Class-T Power In connects and fuses up to two strings of lithium batteries. It features a positive and negative busbar, connections for two Class-T fuses, and a connection to ground the DC system. The Class T-fuses, are available in 225A, 250A, 350A, and 400A (must be purchased separately).

For installations using three or more strings of lithium batteries, use multiple Lynx Class-T modules. As a core component of the Lynx Distribution system, the Lynx Class-T seamlessly integrates with all other M10 Lynx products.

The Lynx Distribution System

The Lynx Distribution System is a modular busbar system that incorporates DC connections, distribution, fusing, and battery monitoring and/or lithium battery management.

The Lynx Distribution System Consists of the Following Parts

Lynx Power In

A positive and negative busbar with four batteries or DC equipment connections.

Lynx Distributor

A positive and negative busbar with four fused connections for batteries or DC equipment and fuse monitoring is available in two versions.

Lynx Shunt VE.Can

A positive busbar with a space for a main system fuse and a negative busbar with a shunt for battery monitoring. It has VE.Can communication for monitoring and setup with a GX device.

Lynx Smart BMS

For use together with Victron Energy Smart Lithium batteries. It contains a positive busbar with a contactor driven by a battery management system (BMS) and a negative busbar with a shunt for battery monitoring.

It has Bluetooth communication for monitoring and setup via the VictronConnect App and VE.Can communication for monitoring with a GX device and the VRM portal. Available as a 1000A model with M10 busbars.

Specifications

Power:

  • Voltage Range: 9 - 60Vdc
  • Current Rating: 1000Adc continuous
  • Connections: M10
  • Busbar: 3/8”

Physical:

  • Enclosure Material: ABS
  • Enclosure Dimensions (H x W x D): 279 x 169 x 97mm
  • Unit Weight: 2.1 kg
  • Busbar Material: Tinned copper
  • Busbar Dimensions (H x W): 8 x 30mm

Environmental:

  • Operating Temperature Range: -40°C to +60°
  • Storage Temperature Range: -40°C to +60°
  • Humidity: Max. 95% (non-condensing)
  • Protection Class: IP20
Please contact your dealer for any returns, repairs or support issues related to this product.



Save $30 when you buy the Victron Lynx Power-In Class-T M10 Terminals for only $170 from Anchor Sailor! Same day shipping before 3pm.

Victron Lynx Power-In Class-T M10 Terminals Technical Specifications

Type:

Vendor:

Victron Energy

Fuse Type:

Class T

User Guide:

Product Manual:
