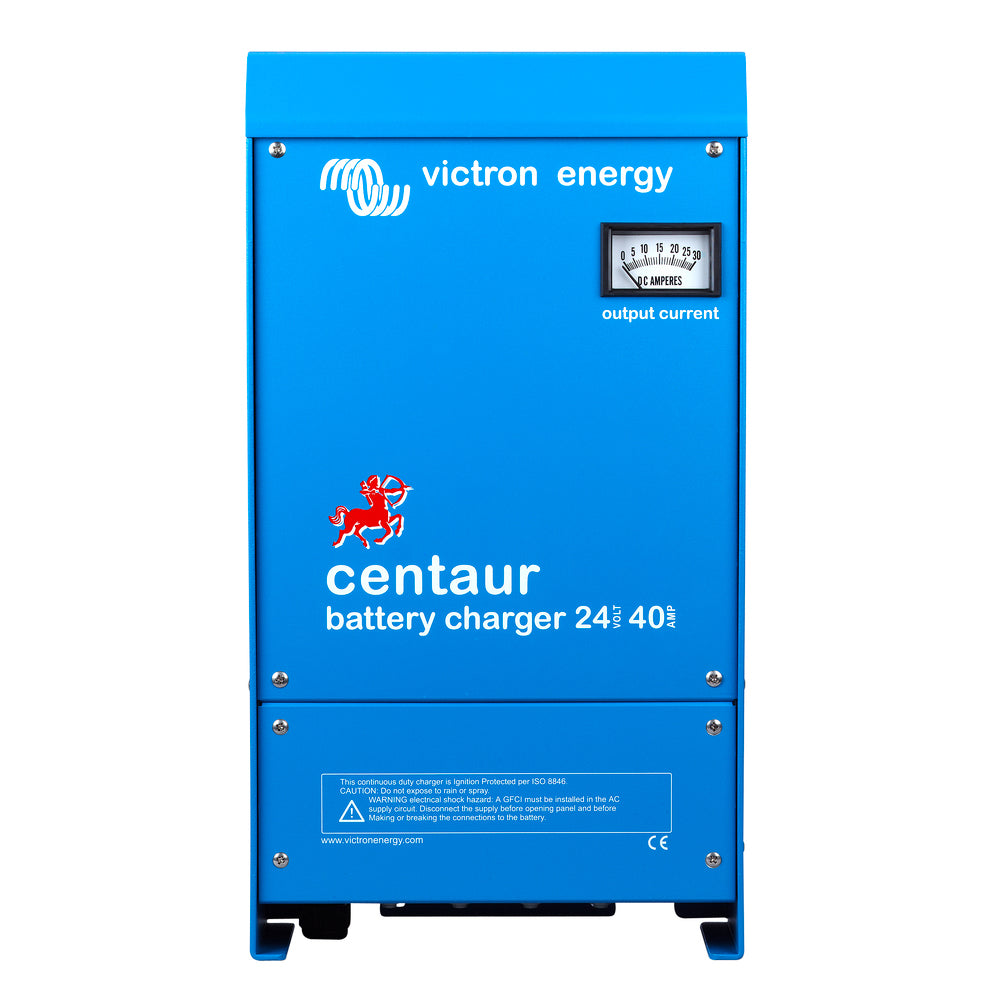

Victron Centaur Charger - 24 VDC - 40AMP - 3-Bank - 120-240 VAC

No reviews yet Write a Review
$853.66
SKU:
CCH024040000
UPC:
8719076021568
Condition:
New
5 customers are viewing this product

Victron Centaur Charger - 24 VDC - 40AMP - 3-Bank - 120-240 VAC

$853.66

Victron Centaur Charger - 24 VDC - 40AMP - 3-Bank - 120-240 VAC Product Description

Centaur Charger - 24 VDC - 40AMP - 3-Bank - 120-240 VAC

Features:

  • Quality without compromise -  Aluminium epoxy powder coated cases with drip shield and stainless steel fixings withstand the rigors of an adverse environment: heat, humidity and salt air. Circuit boards are protected with an acrylic coating for maximum corrosion resistance. Temperature sensors ensure that power components will always operate within specified limits, if needed by automatic reduction of output current under extreme environmental conditions.
  • Universal 90-265V AC input voltage range and also suitable for DC supply (AC-DC and DC-DC operation) All models will operate without any adjustment needed over a 90 to 265 Volt input voltage range, whether 50 Hz or 60 Hz.
  • The chargers also accept a 90-400 V DC supply.
  • Three outputs that each can supply the full output current Three isolated outputs to simultaneously charge 3 battery banks Each output is capable to supply the full rated current.
  • Three-stage charging, with temperature compensation The Centaur charges at bulk rate until the output has reduced to 70% of the rated Amps, at which a 4 hour timer begins. After the timed period the charger switches to float rate. An internal temperature sensor is used to compensate the charge voltage with – 2 mV/ºC (– 1 mV/ºF) per cell. A DIP switch is available to select the optimum charge/float voltages for Flooded Lead-acid, Gel or AGM batteries

"Warning"WARNING: This product can expose you to chemicals which are known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to .

Please contact your dealer for any returns, repairs or support issues related to this product.

Victron Energy's new Centaur battery charger series is designed to be a truly global product. The general regulatory compliance and input/output specifications are...













Frequently Asked Questions (FAQ) About Victron Centaur Charger - 24 VDC - 40AMP - 3-Bank - 120-240 VAC








Who is the Victron Energy?

Victron Energy is a global company with a reputation for technical innovation, reliability, and build quality. Victron products, which excel at efficiently combining two or more distinct power sources, are recognized internationally as the professional choice for resilient energy storage systems. Victron products include sinewave inverters, sinewave inverters/chargers, battery chargers, DC/DC converters, transfer switches, battery monitors and more.

How to describe Victron Centaur Charger - 24 VDC - 40AMP - 3-Bank - 120-240 VAC?

Victron Energy's new Centaur battery charger series is designed to be a truly global product. The general regulatory compliance and input/output specifications are...
  • 3-Bank Charger
  • 24 VDC, 40AMP
  • 120/240 Volt AC input
  • Outputs to three separate banks of batteries at the same time
  • Centaur Chargers are made in the USA and built to last.
  • These chargers are designed to withstand extreme conditions, and are rated for indoor & outdoor use.
  • The 3-bank design provides plenty of power in a compact package, making it perfect for use in emergency situations where space is at a premium.
  • The 120/240VAC input accommodates worldwide usage, with the ability to be configured for different input voltages.
  • Centaur Charger is manufactured to the highest quality standards, ensuring reliability and durability.
  • The rugged design with aluminium powder coated cases and stainless steel fixings makes it ideal for use in a variety of environments.
  • The 3-bank, 24 VDC, 40Amp charger can be used with 120 or 240 VAC input voltage.

Is this product portable?

No
  • 3-Bank Charger
  • 24 VDC, 40AMP
  • 120/240 Volt AC input
  • Outputs to three separate banks of batteries at the same time
  • Centaur Chargers are made in the USA and built to last.
  • These chargers are designed to withstand extreme conditions, and are rated for indoor & outdoor use.
  • The 3-bank design provides plenty of power in a compact package, making it perfect for use in emergency situations where space is at a premium.
  • The 120/240VAC input accommodates worldwide usage, with the ability to be configured for different input voltages.
  • Centaur Charger is manufactured to the highest quality standards, ensuring reliability and durability.
  • The rugged design with aluminium powder coated cases and stainless steel fixings makes it ideal for use in a variety of environments.
  • The 3-bank, 24 VDC, 40Amp charger can be used with 120 or 240 VAC input voltage.

What is the output voltage?

24v

What is the output voltage?

40a

What is the input voltage?

90-265v

How many banks supporting for charge?

3


Save $136 when you buy the Victron Centaur Charger - 24 VDC - 40AMP - 3-Bank - 120-240 VAC for only $776 from NVN Marine! Same day fast and free shipping before 3pm.

Victron Centaur Charger - 24 VDC - 40AMP - 3-Bank - 120-240 VAC Technical Specifications

Type:

Vendor:

Victron Energy

Weight:

21.8 lb

Portable:

No

Charger Output Voltage:

24v

Charger Output - Amps:

40a

Charger Input - Voltage:

90-265v

Charging Banks:

3
