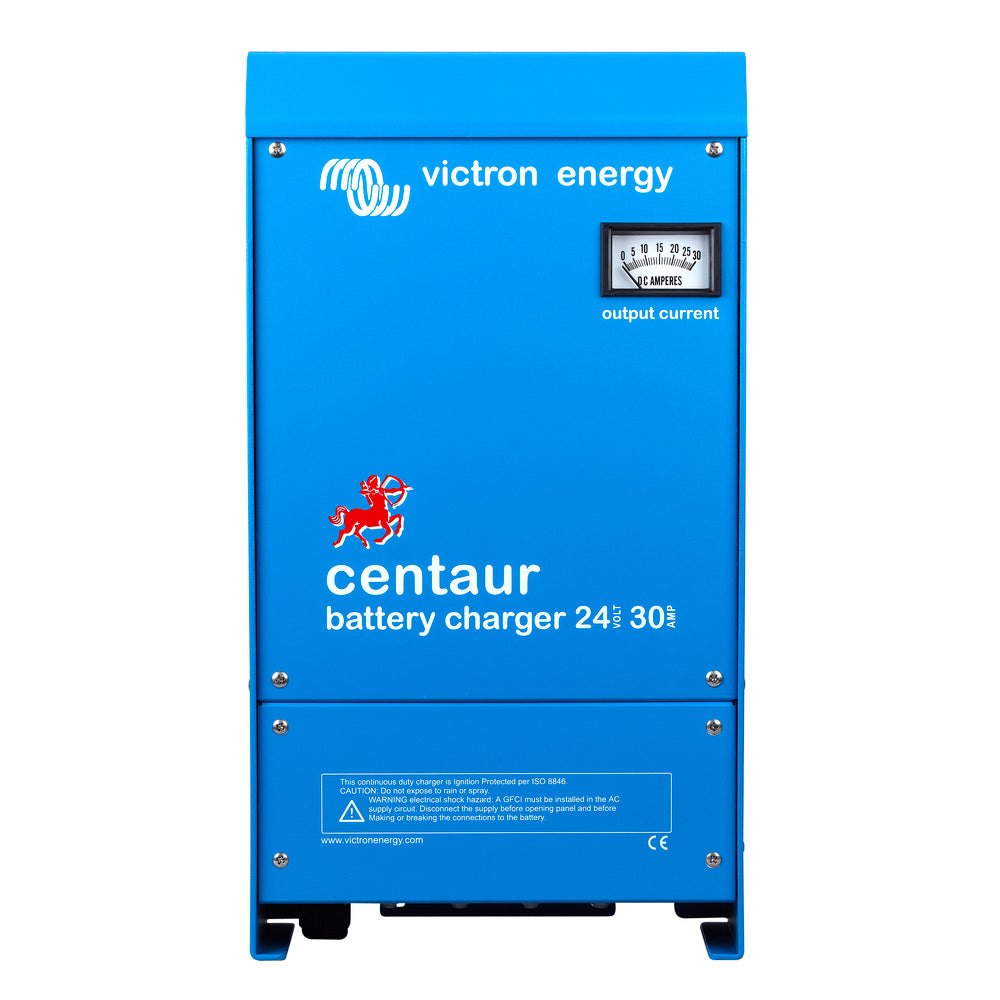

Victron Centaur Charger - 24 VDC - 30AMP - 3-Bank - 120-240 VAC

No reviews yet Write a Review
$653.57
SKU:
CCH024030000
UPC:
8719076021551
Condition:
New
5 customers are viewing this product

Victron Centaur Charger - 24 VDC - 30AMP - 3-Bank - 120-240 VAC

$653.57

Victron Centaur Charger - 24 VDC - 30AMP - 3-Bank - 120-240 VAC Product Description

The new Centaur range of battery chargers from Victron Energy have been designed to be a true world-wide product. Universal compliance and input/output specifications are cornerstone characteristics of the new range from the established Dutch manufacturer.

Designed to meet the requirements of both CE for Europe and UL for the United States, the Centaur model range features auto-ranging input covering 90-265Vac 50/60Hz input meaning they can be used anywhere in the world. Crucially, and unlike other products that state universal input, the Centaur range will maintain full output power within the entire specified range.



Centaur Charger - 24 VDC - 30AMP - 3-Bank - 120-240 VAC

Features:

  • Quality without compromise -  Aluminium epoxy powder coated cases with drip shield and stainless steel fixings withstand the rigors of an adverse environment: heat, humidity and salt air. Circuit boards are protected with an acrylic coating for maximum corrosion resistance. Temperature sensors ensure that power components will always operate within specified limits, if needed by automatic reduction of output current under extreme environmental conditions.
  • Universal 90-265V AC input voltage range and also suitable for DC supply (AC-DC and DC-DC operation) All models will operate without any adjustment needed over a 90 to 265 Volt input voltage range, whether 50 Hz or 60 Hz.
  • The chargers also accept a 90-400 V DC supply.
  • Three outputs that each can supply the full output current Three isolated outputs to simultaneously charge 3 battery banks Each output is capable to supply the full rated current.
  • Three-stage charging, with temperature compensation The Centaur charges at bulk rate until the output has reduced to 70% of the rated Amps, at which a 4 hour timer begins. After the timed period the charger switches to float rate. An internal temperature sensor is used to compensate the charge voltage with – 2 mV/ºC (– 1 mV/ºF) per cell. A DIP switch is available to select the optimum charge/float voltages for Flooded Lead-acid, Gel or AGM batteries

"Warning"WARNING: This product can expose you to chemicals which are known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to .

Please contact your dealer for any returns, repairs or support issues related to this product.

Victron Energy's new Centaur battery charger series is designed to be a truly global product. General regulatory compliance and input/output specifications are the cornerstone features of the new product series offered by well-known Dutch manufacturers. The Centaur model series is designed to meet the requirements of European CE and American UL, and its automatic range input covers 90-265VAC 50/60Hz input, which means they can be used anywhere in the world. Crucially, unlike other products that state universal input, the Centaur series will maintain full output power throughout the specified range. The Centaur model will also work on 90-400VDC input, making it an ideal charging DC-DC converter in diesel electrical systems. Other features include a fully automatic three-stage charging feature (guarantee every charge), and three isolated charging outputs for multi-battery configurations to suit most typical installations. The range covers 12V and 24V models from 16A to 100A. Regardless of the anticipated market or where the ship will be used, the same product is applicable to any ship. This fact has equal advantages for shipbuilders and shipowners. Considering the price sensitivity in this highly competitive market, a single model range in all markets also means more competitive costs. On the premise of not affecting the quality of the Victron Energy brand, this series of products can be widely used all over the world, with competitiveness and compatibility.













Frequently Asked Questions (FAQ) About Victron Centaur Charger - 24 VDC - 30AMP - 3-Bank - 120-240 VAC









Who is the Victron Energy?

Victron Energy is a global company with a reputation for technical innovation, reliability, and build quality. Victron products, which excel at efficiently combining two or more distinct power sources, are recognized internationally as the professional choice for resilient energy storage systems. Victron products include sinewave inverters, sinewave inverters/chargers, battery chargers, DC/DC converters, transfer switches, battery monitors and more.

How to describe Victron Centaur Charger - 24 VDC - 30AMP - 3-Bank - 120-240 VAC?

The new Centaur range of battery chargers from Victron Energy have been designed to be a true world-wide product. Universal compliance and input/output specifications are cornerstone characteristics of the new range from the established Dutch manufacturer.

Designed to meet the requirements of both CE for Europe and UL for the United States, the Centaur model range features auto-ranging input covering 90-265Vac 50/60Hz input meaning they can be used anywhere in the world. Crucially, and unlike other products that state universal input, the Centaur range will maintain full output power within the entire specified range.

  • Centaur Charger - 24 VDC - 30AMP - 3-Bank - 120-240 VAC
  • Quality without compromise. Aluminium epoxy powder coated cases with drip shield and stainless steel fixings withstand the rigors of an adverse environment: heat, humidity and more.
  • The perfect balance of power and safety. Centaur chargers are engineered to be safe, reliable and efficient.
  • Centaur Charger is a 3-bank, 24 VDC, 30 AMP, 120-240 VAC power converter with a built-in battery charger.
  • It is designed for use in remote areas where there are no power outlets or where the power supply is unstable.
  • This charger can be used to charge the batteries of other equipment as well as to provide AC power.
  • Centaur Charger is a heavy-duty power supply that provides clean and reliable power to your equipment.
  • The three outputs are independently fused and can be configured to suit your needs.
  • It is the perfect power solution for any job site, warehouse or factory.

Is this product portable?

No
  • Centaur Charger - 24 VDC - 30AMP - 3-Bank - 120-240 VAC
  • Quality without compromise. Aluminium epoxy powder coated cases with drip shield and stainless steel fixings withstand the rigors of an adverse environment: heat, humidity and more.
  • The perfect balance of power and safety. Centaur chargers are engineered to be safe, reliable and efficient.
  • Centaur Charger is a 3-bank, 24 VDC, 30 AMP, 120-240 VAC power converter with a built-in battery charger.
  • It is designed for use in remote areas where there are no power outlets or where the power supply is unstable.
  • This charger can be used to charge the batteries of other equipment as well as to provide AC power.
  • Centaur Charger is a heavy-duty power supply that provides clean and reliable power to your equipment.
  • The three outputs are independently fused and can be configured to suit your needs.
  • It is the perfect power solution for any job site, warehouse or factory.

What is the output voltage?

24v

What is the output voltage?

30a

What is the input voltage?

90-265v

How many banks supporting for charge?

3

What is the manufacturer notes about Victron Centaur Charger - 24 VDC - 30AMP - 3-Bank - 120-240 VAC?

The new Centaur range of battery chargers from Victron Energy have been designed to be a true world-wide product. Universal compliance and input/output specifications are cornerstone characteristics of the new range from the established Dutch manufacturer.

Designed to meet the requirements of both CE for Europe and UL for the United States, the Centaur model range features auto-ranging input covering 90-265Vac 50/60Hz input meaning they can be used anywhere in the world. Crucially, and unlike other products that state universal input, the Centaur range will maintain full output power within the entire specified range.



Save $104 when you buy the Victron Centaur Charger - 24 VDC - 30AMP - 3-Bank - 120-240 VAC for only $594 from NVN Marine! Same day free shipping before 3pm.

Victron Centaur Charger - 24 VDC - 30AMP - 3-Bank - 120-240 VAC Technical Specifications

Type:

Vendor:

Victron Energy

Weight:

15.05 lb

Portable:

No

Charging Banks:

3

Charger Output Voltage:

24v

Charger Output - Amps:

30a

Charger Input - Voltage:

90-265v
