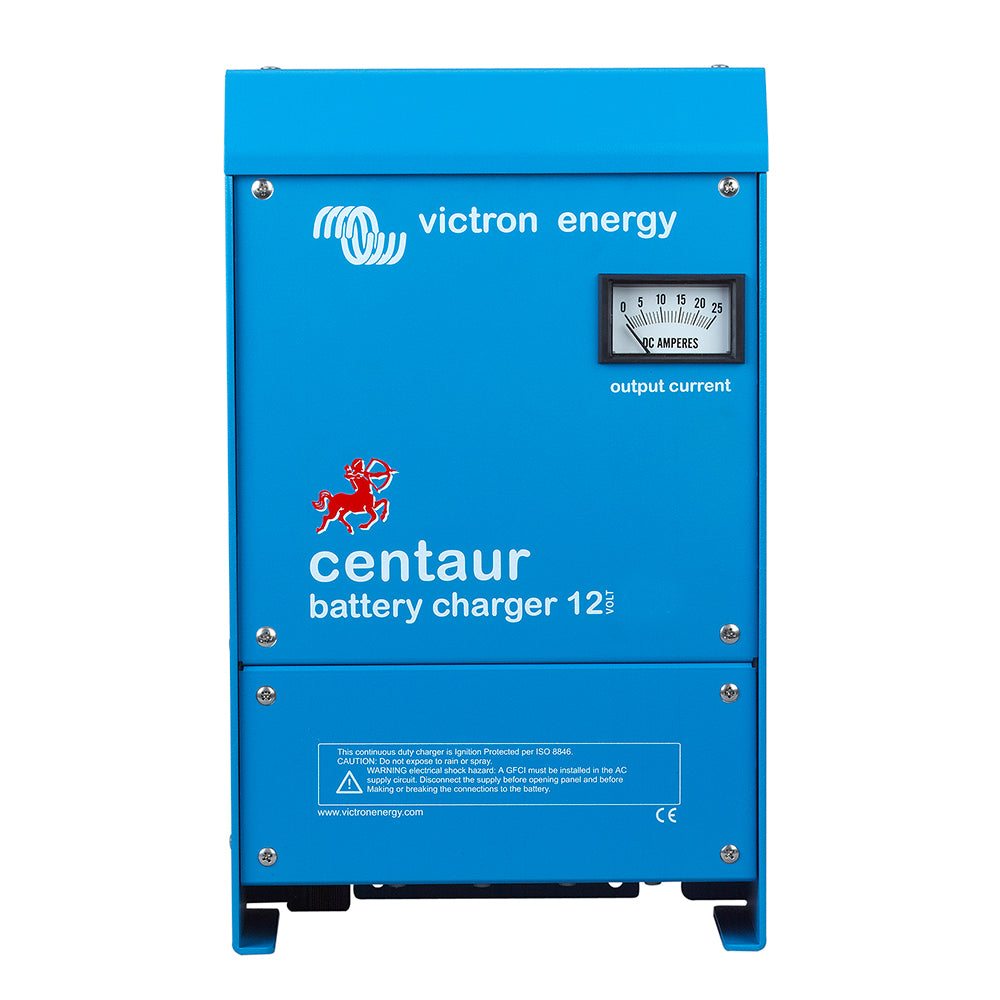

Victron Centaur Charger - 12 VDC - 80AMP - 3-Bank - 120-240 VAC

No reviews yet Write a Review
$930.33
SKU:
CCH012080000
UPC:
8719076021520
Condition:
New
5 customers are viewing this product

Victron Centaur Charger - 12 VDC - 80AMP - 3-Bank - 120-240 VAC

$930.33

Victron Centaur Charger - 12 VDC - 80AMP - 3-Bank - 120-240 VAC Product Description

Centaur Charger - 12 VDC - 80AMP - 3-Bank - 120-240 VAC

Features:

  • Quality without compromise -  Aluminium epoxy powder coated cases with drip shield and stainless steel fixings withstand the rigors of an adverse environment: heat, humidity and salt air. Circuit boards are protected with an acrylic coating for maximum corrosion resistance. Temperature sensors ensure that power components will always operate within specified limits, if needed by automatic reduction of output current under extreme environmental conditions.
  • Universal 90-265V AC input voltage range and also suitable for DC supply (AC-DC and DC-DC operation) All models will operate without any adjustment needed over a 90 to 265 Volt input voltage range, whether 50 Hz or 60 Hz.
  • The chargers also accept a 90-400 V DC supply.
  • Three outputs that each can supply the full output current Three isolated outputs to simultaneously charge 3 battery banks Each output is capable to supply the full rated current.
  • Three-stage charging, with temperature compensation The Centaur charges at bulk rate until the output has reduced to 70% of the rated Amps, at which a 4 hour timer begins. After the timed period the charger switches to float rate. An internal temperature sensor is used to compensate the charge voltage with – 2 mV/ºC (– 1 mV/ºF) per cell. A DIP switch is available to select the optimum charge/float voltages for Flooded Lead-acid, Gel or AGM batteries

"Warning"WARNING: This product can expose you to chemicals which are known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to .

Please contact your dealer for any returns, repairs or support issues related to this product.

No compromise on quality. The epoxy aluminum powder-coated housing with drip guard and stainless steel fixture can withstand the harsh test of harsh environments: high temperature, humidity and salty air. The circuit board is protected with an acrylic coating for maximum corrosion resistance. The temperature sensor automatically reduces the output current under extreme environmental conditions to ensure that the power components are always operating within the specified limits. Universal 90-265V AC input voltage range, also suitable for DC power supply (AC-DC and DC-DC operation) All models can operate in the 90 to 265V input voltage range (whether 50 Hz or 60 Hz), Without any adjustments. Three isolated outputs can charge three battery packs at the same time. Each output can provide a complete rated current. Three-stage charging with temperature compensation. The Centaur is charged at a batch rate until the output drops to 70% of the rated ampere, and then a 4-hour timer is started. After the timer time has elapsed, the charger switches to the floating rate. The internal temperature sensor is used to compensate the charging voltage with -2 mV/C (-1 mV/F) per battery. The DIP switch can select the best charge/float voltage for lead pantothenate, gel or AGM batteries.













Frequently Asked Questions (FAQ) About Victron Centaur Charger - 12 VDC - 80AMP - 3-Bank - 120-240 VAC








Who is the Victron Energy?

Victron Energy is a global company with a reputation for technical innovation, reliability, and build quality. Victron products, which excel at efficiently combining two or more distinct power sources, are recognized internationally as the professional choice for resilient energy storage systems. Victron products include sinewave inverters, sinewave inverters/chargers, battery chargers, DC/DC converters, transfer switches, battery monitors and more.

How to describe Victron Centaur Charger - 12 VDC - 80AMP - 3-Bank - 120-240 VAC?

No compromise on quality. The epoxy aluminum powder-coated housing with drip guard and stainless steel fixture can withstand the harsh test of harsh environments: high temperature, humidity and salty air. The circuit board is protected with an acrylic coating for maximum corrosion resistance. The temperature sensor automatically reduces the output current under extreme environmental conditions to ensure that the power components are always operating within the specified limits. Universal 90-265V AC input voltage range, also suitable for DC power supply (AC-DC and DC-DC operation) All models can operate in the 90 to 265V input voltage range (whether 50 Hz or 60 Hz), Without any adjustments. Three isolated outputs can charge three battery packs at the same time. Each output can provide a complete rated current. Three-stage charging with temperature compensation. The Centaur is charged at a batch rate until the output drops to 70% of the rated ampere, and then a 4-hour timer is started. After the timer time has elapsed, the charger switches to the floating rate. The internal temperature sensor is used to compensate the charging voltage with -2 mV/C (-1 mV/F) per battery. The DIP switch can select the best charge/float voltage for lead pantothenate, gel or AGM batteries.
  • 12 VDC - 80AMP - 3-Bank - 120-240 VAC
  • Quality without compromise: Aluminium epoxy powder coated cases with drip shield and stainless steel fixings withstand the rigors of an adverse environment: heat, humidity and more.
  • Built for heavy duty use, this high amp charger is designed to power up a fleet of vehicles at once.
  • Centaur Charger is a robust, reliable, and high-performance battery charger that is designed to meet the needs of demanding power users.
  • It can charge up to 3 batteries at the same time - with an 80Amp charge rate per bank.
  • The charger has a built-in cooling fan and is able to withstand tough environmental conditions.
  • Centaur Charger - 12 VDC - 80AMP - 3-Bank - 120-240 VAC
  • Centaur chargers are designed to withstand the rigors of an adverse environment: heat, humidity, and dirt.
  • Centaurs are the only chargers on the market that offer a full 3 year warranty for peace of mind.
  • The patented design offers 12 Volts at up to 80 Amps, making it perfect for powering heavy duty machinery.

Is this product portable?

No
  • 12 VDC - 80AMP - 3-Bank - 120-240 VAC
  • Quality without compromise: Aluminium epoxy powder coated cases with drip shield and stainless steel fixings withstand the rigors of an adverse environment: heat, humidity and more.
  • Built for heavy duty use, this high amp charger is designed to power up a fleet of vehicles at once.
  • Centaur Charger is a robust, reliable, and high-performance battery charger that is designed to meet the needs of demanding power users.
  • It can charge up to 3 batteries at the same time - with an 80Amp charge rate per bank.
  • The charger has a built-in cooling fan and is able to withstand tough environmental conditions.
  • Centaur Charger - 12 VDC - 80AMP - 3-Bank - 120-240 VAC
  • Centaur chargers are designed to withstand the rigors of an adverse environment: heat, humidity, and dirt.
  • Centaurs are the only chargers on the market that offer a full 3 year warranty for peace of mind.
  • The patented design offers 12 Volts at up to 80 Amps, making it perfect for powering heavy duty machinery.

What is the output voltage?

12v

What is the output voltage?

80a

What is the input voltage?

90-265v

How many banks supporting for charge?

3


Save $149 when you buy the Victron Centaur Charger - 12 VDC - 80AMP - 3-Bank - 120-240 VAC for only $845 from NVN Marine! Same day fast and free shipping before 3pm.

Victron Centaur Charger - 12 VDC - 80AMP - 3-Bank - 120-240 VAC Technical Specifications

Type:

Vendor:

Victron Energy

Weight:

23.6 lb

Charger Output - Amps:

80a

Portable:

No

Charger Input - Voltage:

90-265v

Charger Output Voltage:

12v

Charging Banks:

3

User Guide:
