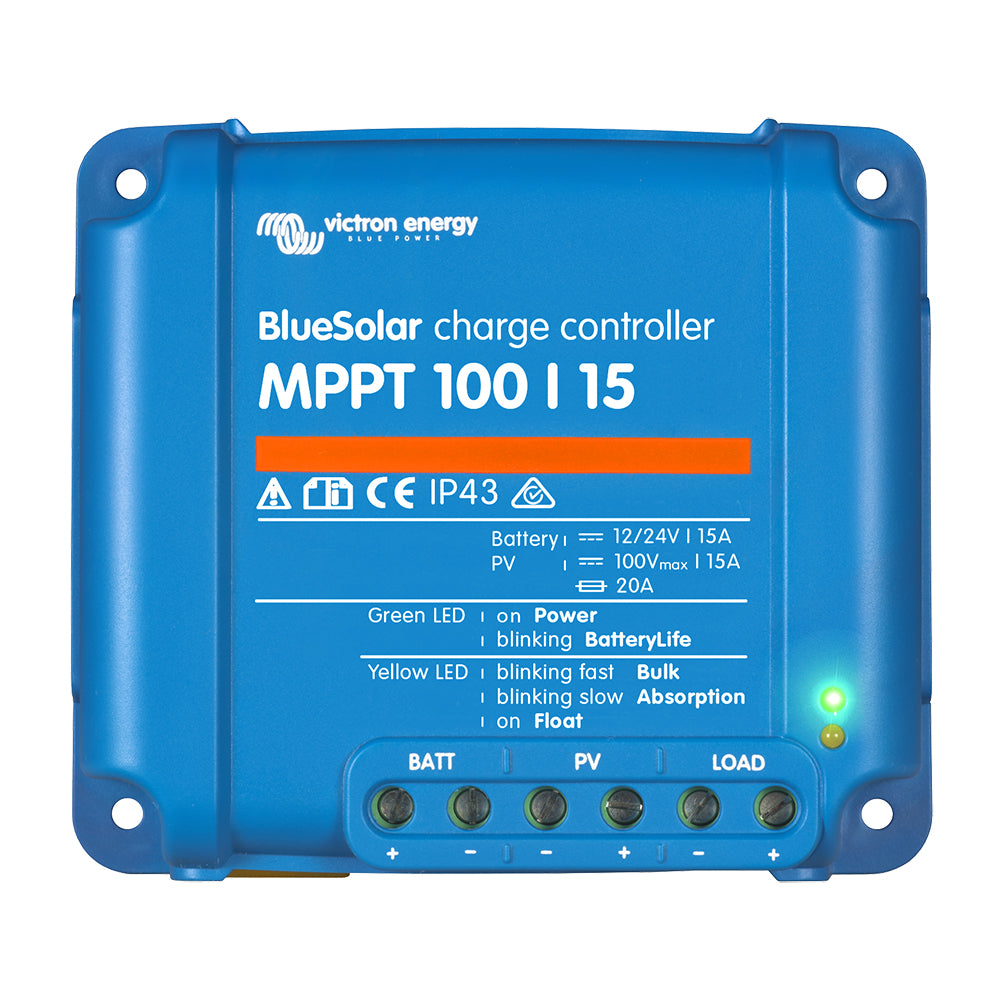

Victron BlueSolar MPPT Charge Controller - 100V - 15AMP

No reviews yet Write a Review
$97.09
SKU:
SCC010015200R
UPC:
8719076025337
Condition:
New
5 customers are viewing this product

Victron BlueSolar MPPT Charge Controller - 100V - 15AMP

$97.09

Victron BlueSolar MPPT Charge Controller - 100V - 15AMP Product Description

BlueSolar MPPT Charge Controller - 100V - 15AMP

Features:

  • Ultra-fast Maximum Power Point Tracking (MPPT) Especially in case of a clouded sky, when light intensity is changing continuously, an ultra-fast MPPT controller will improve energy harvest by up to 30% compared to PWM charge controllers and by up to 10% compared to slower MPPT controllers.
  • Load output Over-discharge of the battery can be prevented by connecting all loads to the load output. The load output will disconnect the load when the battery has been discharged to a pre-set voltage. Alternatively, an intelligent battery management algorithm can be chosen: see Battery Life. The load output is short circuit proof. Some loads (especially inverters) can best be connected directly to the battery, and the inverter remote control connected to the load output. A special interface cable may be needed, please see the manual.
  • Battery Life: intelligent battery management When a solar charge controller is not able to recharge the battery to its full capacity within one day, the result is often that the battery will continually be cycled between a ‘partially charged’ state and the ‘end of discharge’ state. This mode of operation (no regular full recharge) will destroy a lead-acid battery within weeks or months. The Battery Life algorithm will monitor the state of charge of the battery and, if needed, day by day slightly increase the load disconnect level (i.e. disconnect the load earlier) until the harvested solar energy is sufficient to recharge the battery to nearly the full 100%. From that point onwards the load disconnect level will be modulated so that a nearly 100% recharge is achieved about once every week.
  • Programmable battery charge algorithm See the software section on our website for details
  • Day/night timing and light dimming option See the software section on our website for details
  • Programming, real-time data and history display options - Color Control GX or other GX devices: see the Venus documents on our website. - A smartphone or other Bluetooth-enabled device: VE.Direct Bluetooth Smart dongle needed

"Warning"WARNING: This product can expose you to chemicals which are known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to .

Please contact your dealer for any returns, repairs or support issues related to this product.

Maximum power point tracking (MPPT) is a technique used to obtain the maximum possible power from solar panels. This is achieved by applying a variable load on the panel to achieve the optimal output voltage, and then converting this voltage to the optimal voltage required by the battery. The effect of this is that the output can be increased by up to 30% compared with similar panels that do not use this technology. The solar controller can automatically adjust 12 or 24 volt systems. Especially in the case of dark clouds in the sky, when the light intensity is constantly changing, compared with the PWM charge controller, the ultra-fast MPPT controller will increase the energy collection by up to 30%, compared with the slower MPPT controller , Will increase by as much as 10%. Ultra-fast maximum power point tracking (MPPT) intelligent battery life program automatically detects 12 or 24 volts, can be used with any panel output voltage up to 100 volts, maximum 15 ampere load, 12 or 24 volts built-in overheat protection reverse polarity protection output shore power Circuit protection The internal circuit is protected by IP. Click to get the data sheet. Read the blog post. Programming requires the use of VE-USB controller or Bluetooth dongle. NEW UL 1741 and CSA C22.2 certification. Read this blog post. The solar panel can provide a higher input voltage for the MPPT controller, thereby making it more efficient and more efficient. It can also reduce the voltage drop in the wires. The first number of the model number is the maximum input voltage, and the second number is the maximum amperage on the output side.








Frequently Asked Questions (FAQ) About Victron BlueSolar MPPT Charge Controller - 100V - 15AMP








Who is the Victron Energy?

Victron Energy is a global company with a reputation for technical innovation, reliability, and build quality. Victron products, which excel at efficiently combining two or more distinct power sources, are recognized internationally as the professional choice for resilient energy storage systems. Victron products include sinewave inverters, sinewave inverters/chargers, battery chargers, DC/DC converters, transfer switches, battery monitors and more.

How to describe Victron BlueSolar MPPT Charge Controller - 100V - 15AMP?

Maximum power point tracking (MPPT) is a technique used to obtain the maximum possible power from solar panels. This is achieved by applying a variable load on the panel to achieve the optimal output voltage, and then converting this voltage to the optimal voltage required by the battery. The effect of this is that the output can be increased by up to 30% compared with similar panels that do not use this technology. The solar controller can automatically adjust 12 or 24 volt systems. Especially in the case of dark clouds in the sky, when the light intensity is constantly changing, compared with the PWM charge controller, the ultra-fast MPPT controller will increase the energy collection by up to 30%, compared with the slower MPPT controller , Will increase by as much as 10%. Ultra-fast maximum power point tracking (MPPT) intelligent battery life program automatically detects 12 or 24 volts, can be used with any panel output voltage up to 100 volts, maximum 15 ampere load, 12 or 24 volts built-in overheat protection reverse polarity protection output shore power Circuit protection The internal circuit is protected by IP. Click to get the data sheet. Read the blog post. Programming requires the use of VE-USB controller or Bluetooth dongle. NEW UL 1741 and CSA C22.2 certification. Read this blog post. The solar panel can provide a higher input voltage for the MPPT controller, thereby making it more efficient and more efficient. It can also reduce the voltage drop in the wires. The first number of the model number is the maximum input voltage, and the second number is the maximum amperage on the output side.

Is this product portable?

No

What is the output voltage?

12v/24v

What is the output voltage?

15a

What is the input voltage?

18-75v

How many banks supporting for charge?

1


Save $10 when you buy the Victron BlueSolar MPPT Charge Controller - 100V - 15AMP for only $61 from NVN Marine! Same day shipping before 3pm.

Victron BlueSolar MPPT Charge Controller - 100V - 15AMP Technical Specifications

Type:

Vendor:

Victron Energy

Weight:

1.2 lb

Charger Input - Voltage:

18-75v

Charger Output - Amps:

15a

Charger Output Voltage:

12v/24v

Charging Banks:

1

Portable:

No

User Guide:

Product Installation:
