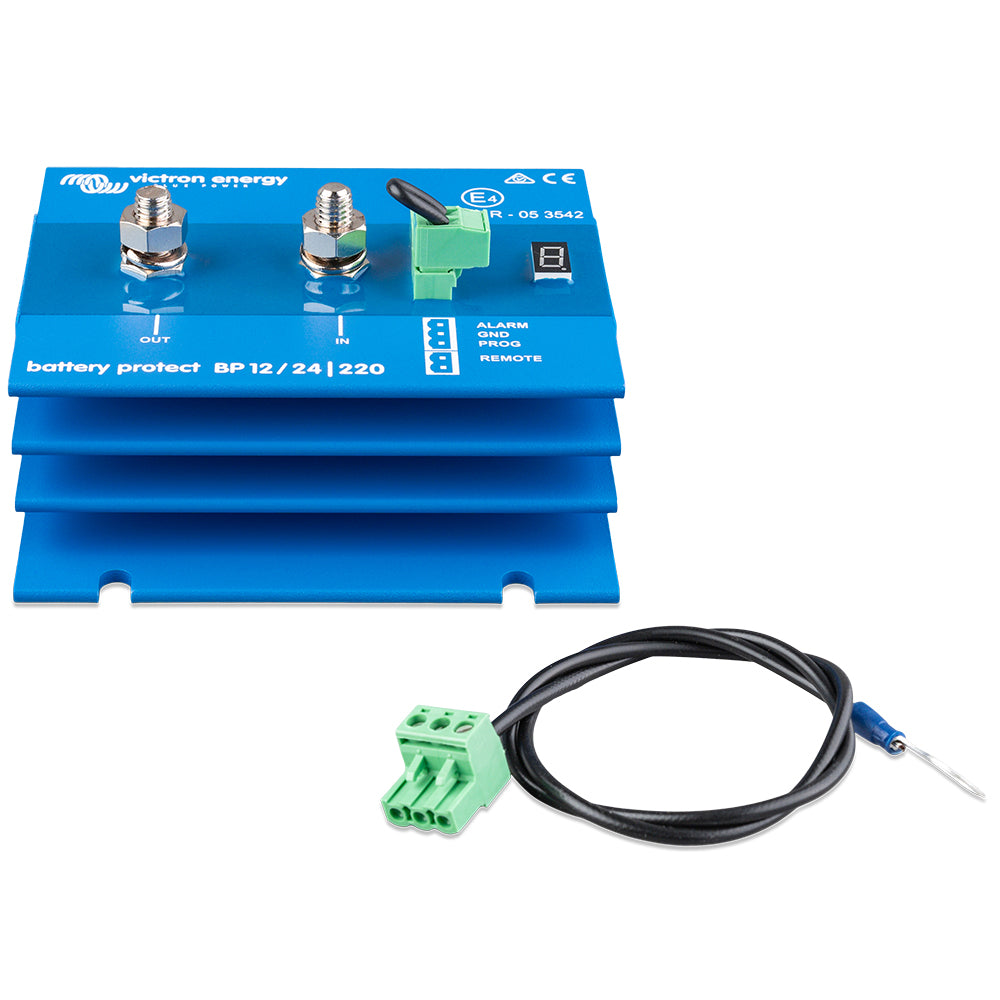

Victron BatteryProtect BP-220 - 220AMP - 6-35 VDC

No reviews yet Write a Review
$96.31
SKU:
BPR000220400
UPC:
8719076021452
Condition:
New
5 customers are viewing this product

Victron BatteryProtect BP-220 - 220AMP - 6-35 VDC

$96.31

Victron BatteryProtect BP-220 - 220AMP - 6-35 VDC Product Description

The BatteryProtect disconnects the battery from non essential loads before it is completely discharged (which would damage the battery) or before it has insufficient power left to crank the engine. The Battery Protect is a unidirectional device. It can only deal with current in one direction, so either current to a load, or current from a charger, but not both currents at the same time. In addition to this, current only can only flow from the Battery terminal to the Load terminal. In case of use with a load, the battery connects to the Battery terminal, and in case of use with a charger, the charger connects to the Battery terminal.

BatteryProtect BP-220 - 220AMP - 6-35 VDC

Features:

  • The BatteryProtect disconnects the battery from non essential loads before it is completely discharged (which would damage the battery) or before it has insufficient power left to crank the engine.
  • 12/24V auto ranging The BatteryProtect automatically detects system voltage
  • Programming made easy The BatteryProtect can be set to engage / disengage at several different voltages. The seven segment display will indicate which setting has been chosen.
  • A special setting for Li-ion batteries In this mode the BatteryProtect can be controlled by the VE.Bus BMS. Note: the BatteryProtect can also be used as a charge interrupter in between a battery charger and a Li-ion battery. See connection diagram in the manual.
  • Ultra low current consumption This is important in case of Li-ion batteries, especially after low voltage shutdown. Please see our Li-ion battery datasheet and the VE.Bus BMS manual for more information.
  • Over voltage protection To prevent damage to sensitive loads due to over voltage, the load is disconnected whenever the DC voltage exceeds 16V respectively 32V.
  • Ignition proof No relays but MOSFET switches, and therefore no sparks.
  • Delayed alarm output The alarm output is activated if the battery voltage drops below the preset disconnect level during more than 12 seconds. Starting the engine will therefore not activate the alarm. The alarm output is a short circuit proof open collector output to the negative (minus) rail, max. current 50 mA. The alarm output is typically used to activate a buzzer, LED or relay. Delayed load disconnect and delayed reconnect The load will be disconnected 90 seconds after the alarm has been activated. If the battery voltage increases again to the connect threshold within this time period (after the engine has been started for example), the load will not be disconnected. The load will be reconnected 30 seconds after the battery voltage has increased to more than the preset reconnect voltage.

"Warning"WARNING: This product can expose you to chemicals which are known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to .

Please contact your dealer for any returns, repairs or support issues related to this product.

BatteryProtect BP-220-220AMP-6-35 VDC Features: BatteryProtect will disconnect the battery from non-essential loads before the battery is fully discharged (this will damage the battery...













Frequently Asked Questions (FAQ) About Victron BatteryProtect BP-220 - 220AMP - 6-35 VDC




Who is the Victron Energy?

Victron Energy is a global company with a reputation for technical innovation, reliability, and build quality. Victron products, which excel at efficiently combining two or more distinct power sources, are recognized internationally as the professional choice for resilient energy storage systems. Victron products include sinewave inverters, sinewave inverters/chargers, battery chargers, DC/DC converters, transfer switches, battery monitors and more.

How to describe Victron BatteryProtect BP-220 - 220AMP - 6-35 VDC?

The BatteryProtect disconnects the battery from non essential loads before it is completely discharged (which would damage the battery) or before it has insufficient power left to crank the engine. The Battery Protect is a unidirectional device. It can only deal with current in one direction, so either current to a load, or current from a charger, but not both currents at the same time. In addition to this, current only can only flow from the Battery terminal to the Load terminal. In case of use with a load, the battery connects to the Battery terminal, and in case of use with a charger, the charger connects to the Battery terminal.

What is the manufacturer notes about Victron BatteryProtect BP-220 - 220AMP - 6-35 VDC?

The BatteryProtect disconnects the battery from non essential loads before it is completely discharged (which would damage the battery) or before it has insufficient power left to crank the engine. The Battery Protect is a unidirectional device. It can only deal with current in one direction, so either current to a load, or current from a charger, but not both currents at the same time. In addition to this, current only can only flow from the Battery terminal to the Load terminal. In case of use with a load, the battery connects to the Battery terminal, and in case of use with a charger, the charger connects to the Battery terminal.


Save $15 when you buy the Victron BatteryProtect BP-220 - 220AMP - 6-35 VDC for only $87 from Anchor Sailor! Same day shipping before 3pm.

Victron BatteryProtect BP-220 - 220AMP - 6-35 VDC Technical Specifications

Type:

Vendor:

Victron Energy

Weight:

2.5 lb

User Guide:

Product Installation:
