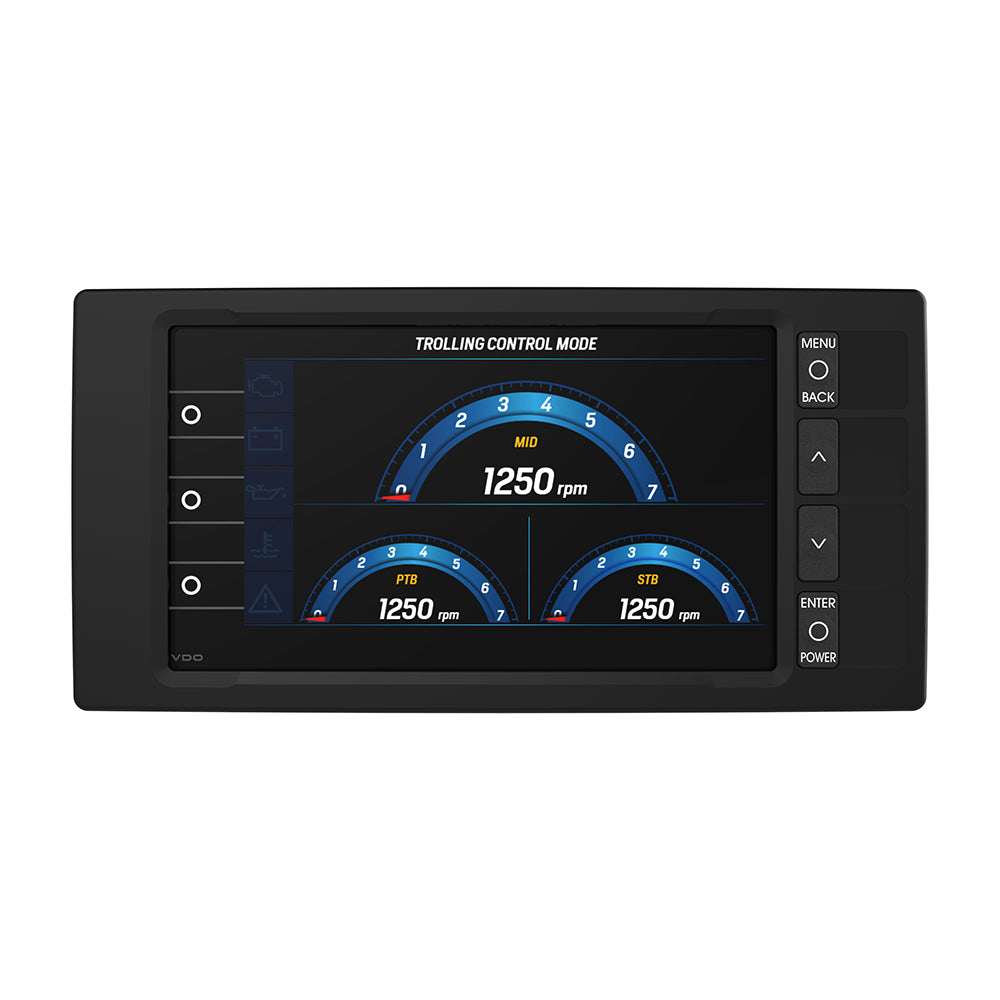

Veratron OceanLink® 7" NMEA 2000® Certified TFT Gateway - Black

No reviews yet Write a Review
$1,172.64
SKU:
A2C1865330001
UPC:
7640178724457
Condition:
New
5 customers are viewing this product

Veratron OceanLink® 7" NMEA 2000® Certified TFT Gateway - Black

$1,172.64

Veratron OceanLink® 7" NMEA 2000® Certified TFT Gateway - Black Product Description

The OceanLink 7" multifunction TFT Display features a full 24 bit / 16 m colors optically bonded display with transmissive layer technology for perfect readability even in direct sunlight. The TFT Display receives and distributes a wide array of data received from NMEA 2000 and J1939 CAN Bus systems and analogue sensors directly connected to the display. Users can customize up to 10 different data pages with single, double, treble or quad grid layouts. The Display can be linked via NMEA 2000 with other OceanLink gauges, displays or NavControls using the unique VDO Bus or directly connected to the NMEA 2000 backbone (optional adapter cable required) for simple installation on any yacht.

OceanLink® 7" NMEA 2000® Certified TFT Gateway - Black

The new OceanLink® 7" multifunction TFT Display features a full 24 bit/16 m colors optically bonded display with transmissive layer technology for perfect readability even in direct sunlight. The TFT Display shows and distributes a wide array of data received from NMEA 2000® and J1939 CAN Bus systems and analog sensors directly connected to the display. Users can customize up to 40 different data pages with single, double, treble or quad grid layouts.

TFT Displays can be daisy-chained with other OceanLink® gauges, displays or NavControls using the unique VDO Marine Bus or directly connected to the NMEA 2000® backbone (optional adapter cable required) for simple installation on any yacht.

Features:

  • Touch screen function
  • Optical bonded mineral glass lens
  • Front & rear side protection rating IPX7
  • 1x NMEA 2000® connector
  • 2x J1939
  • 6x Analog input
  • 2x Frequency input
  • 2x 4–20 mA
  • 3x Digital input or 0–5 V
  • 2x Alarm output
  • 2x Video input
  • 2x EasyLink data output
  • 2x Programmable alarm output 500 mA
  • Operating temperature range -20°C/+70°C
  • 12/24V

"Warning"WARNING: This product can expose you to chemicals including LEAD which is known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to .



OceanLink 7 "TFT gateway certified by NMEA 2000-Black OceanLink 7" TFT gateway certified by NMEA 2000 converts analog and J1939 data into NMEA 2000 data. The display has a daylight-readable 24-bit optically bonded transmissive screen, 40 different customizable screens, and supports up to 20 individual satellite meters. OceanLink technical information: 1 NMEA 2000 connector, 1 J1939 and 4 analog inputs, 6 0-400 ohm analog inputs, 2 frequency inputs, 3 0-5V inputs, 2 4-20mA inputs and 2 RGB video input. The working temperature range is -25°C / +70°C. The front and back protection grade of the optically bonded mineral glass lens is IPX9 touch screen sliding technology.






Frequently Asked Questions (FAQ) About Veratron OceanLink® 7" NMEA 2000® Certified TFT Gateway - Black











Who is the Veratron?

Veratron was established in 2018 to serve its customers with high quality, cost competitive products. With more than 45 years of now how in the company, Veratron provides the market with premium instruments. Veratron has all the competences on board to deliver high value solutions from first sketches to the final product.

How to describe Veratron OceanLink® 7" NMEA 2000® Certified TFT Gateway - Black?

The OceanLink 7" multifunction TFT Display features a full 24 bit / 16 m colors optically bonded display with transmissive layer technology for perfect readability even in direct sunlight. The TFT Display receives and distributes a wide array of data received from NMEA 2000 and J1939 CAN Bus systems and analogue sensors directly connected to the display. Users can customize up to 10 different data pages with single, double, treble or quad grid layouts. The Display can be linked via NMEA 2000 with other OceanLink gauges, displays or NavControls using the unique VDO Bus or directly connected to the NMEA 2000 backbone (optional adapter cable required) for simple installation on any yacht.
  • 7" display
  • Full 24-bit/16 million colors
  • Transmissive layer technology
  • The OceanLink® 7" TFT Display is the perfect solution for any boat or marine application.
  • Featuring a 7" TFT LCD display, the OceanLink® 7" is a multifunctional display that can be used to show navigation data and route guidance information, as well as provide engine data at the same time.
  • This display features a full 24 bit/16 m colors optically bonded display with transmissive layer technology for perfect readability even in bright sunlight.
  • 7" high-resolution display
  • Built-in NMEA 2000 interface
  • Transmissive layer technology for perfect readability even in the sun

What is the exterior color of product?

Black
  • 7" display
  • Full 24-bit/16 million colors
  • Transmissive layer technology
  • The OceanLink® 7" TFT Display is the perfect solution for any boat or marine application.
  • Featuring a 7" TFT LCD display, the OceanLink® 7" is a multifunctional display that can be used to show navigation data and route guidance information, as well as provide engine data at the same time.
  • This display features a full 24 bit/16 m colors optically bonded display with transmissive layer technology for perfect readability even in bright sunlight.
  • 7" high-resolution display
  • Built-in NMEA 2000 interface
  • Transmissive layer technology for perfect readability even in the sun

In which country this product made in?

Switzerland

What is the screen size of the product?

7"

What's the Veratron OceanLink® 7" NMEA 2000® Certified TFT Gateway - Black package dimensions and weight?

8 (w) X 4 (h) X 11.5 (l) inches and the weight is: 3.35 lb.

What is the shape of the product?

Rectangular

What is the transducer type of the product?

Not Included

What is the instrument function of the product?

Multifunction

What is the manufacturer notes about Veratron OceanLink® 7" NMEA 2000® Certified TFT Gateway - Black?

The OceanLink 7" multifunction TFT Display features a full 24 bit / 16 m colors optically bonded display with transmissive layer technology for perfect readability even in direct sunlight. The TFT Display receives and distributes a wide array of data received from NMEA 2000 and J1939 CAN Bus systems and analogue sensors directly connected to the display. Users can customize up to 10 different data pages with single, double, treble or quad grid layouts. The Display can be linked via NMEA 2000 with other OceanLink gauges, displays or NavControls using the unique VDO Bus or directly connected to the NMEA 2000 backbone (optional adapter cable required) for simple installation on any yacht.


Save $113 when you buy the Veratron OceanLink® 7" NMEA 2000® Certified TFT Gateway - Black for only $1019 from NVN Marine! Same day shipping before 3pm.

Veratron OceanLink® 7" NMEA 2000® Certified TFT Gateway - Black Technical Specifications

Type:

Vendor:

Veratron

Weight:

3.35 lb

Instrument Function:

Multifunction

Screen Size:

7"

Shape:

Rectangular

Transducer Type:

Not Included

Product Brochure:
