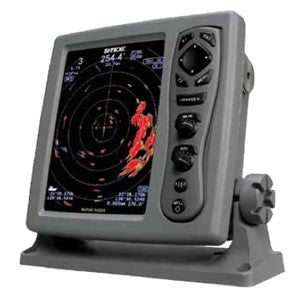

Si-tex T941A 4kW 36nm Radar with 25"" Dome
Model: T941ASI-TEX's T-900 Series Radars feature new sophisticated Hyper-Digital Processing (HDP) Technology for real-time presentation and superior target discrimination. It virtually eliminates unwanted noise to provide a clearer detailed image of targets and enhances the detection of smaller targets.
Brilliant 8.4"" color LCD daylight viewable display with 480 x 640 pixel resolution and anti-reflective glare coating for outstanding viewing.
SpecificationsANTENNA UNIT | |
Peak Power Output | 4kw |
Output Frequency | 9410 +/- 30MHz |
Horizontal Beam width | 6° |
Vertical Beam Width | 25° |
Rotation | 24 or 48rpm ( 48rpm requires 24v) |
Pulse width | .08, 0.15, 0.3, 0.5, 1usec |
IF Frequency | 60 MHz |
Range accuracy | better than 8m |
Minimum detecting distance | Within 25m |
Display Unit | |
Display type | 8.4"" TFT Color LCD 480 x 640 |
Off centering | Max 66% |
Display modes | Heads up, North up*, Course up*, WPT up** and True Motion* |
Dimension H x W x D | 9.5in x 9.5in x 4.4in |
The Sitex T941A is a top-of-the-line, true color radar for the professional surveyor. With a 25" dome and 8.4" color display, the T941A is perfect for those who need to see beyond the horizon and want to know what's happening in real-time.
Type: | |
---|---|
Vendor: |
SI-TEX |
Weight: |
45.0 lb |
