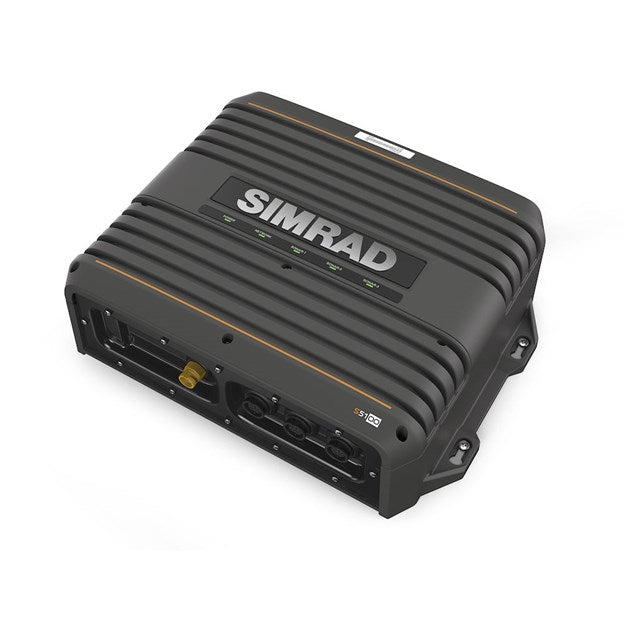

Simrad S5100 Module Redefining High-Performance Sonar Product Description
Simrad S5100 Sounder ModuleThree Channel CHIRP Fishfider for NSO and NSS SystemsThe S5100 high-performance CHIRP sonar module features three fully independent channels able to deliver high-resolution sonar coverage across multiple depth ranges, precision-focused for offshore sportfishing anglers. Simultaneous split-screen viewing capability puts you in complete control of the water column, while advanced processing technology allows you to fish with noise-free clarity at all depth ranges without ever losing bottom depth tracking. Mix and match your favourite transducer coverage and transmit power for wide and narrow beam-widths to reveal more fish, detecting small and tightly spaced fish and identifying thermoclines; or adjust specific CHIRP frequencies from 28 to 250 kHz to precisely target specific depths producing big, crisp arches with clear target separation.The S5100 is Simrad's first sounder module to feature three fully independent sonar channels, delivering true simultaneous coverage of up to three different depth ranges with uncompromising performance at every range. Connect three single-channel transducers, or pair one dual-channel and one single-channel, to create the perfect sonar coverage for the areas you fish and the species you target.CHIRP sonar uses frequency-swept pulses to provide improved target resolution and noise rejection compared to traditional single-frequency sonar. With the S5100's advanced CHIRP technology, you'll see clear to the bottom with no mid-water noise or clutter.The Simrad S5100 is compatible with Airmar's wide-angle CHIRP series of transducers. These are a perfect fit for targeting pelagic species, with enhanced coverage of the upper water column. Wide-angle transducers are also useful in shallow water, where traditional narrow beam angles can provide limited bottom coverage. A wider coverage area not only speeds your search but means individual fish targets are easier to see.
Simrad 0013260001 Attributes
-
Size: 13.4 Inch Length X 3.9 Inch Width X 9.8 Inch Height
-
Frequency: 28/250 kHz
-
Input Voltage: 12 To 24 Volt
-
Temperature Range: 5 Degree Fahrenheit To 131 Degree Fahrenheit
-
Waterproof: IPX5 Rating Waterproof
-
Includes: 15 Feet Ethernet Cable/ 4-Pin Power Cable/ 7-Pin Transducer To 9-Pin Sonar Adapter
Simrad 0013260001 Features & Benefits
- Combine any three frequency ranges to target multiple depths, including Ultra-Low, Low, Medium, or High CHIRP
- Compatible with wide-angle CHIRP transducers for greater coverage of the water column
- Simultaneous split-screen viewing of multiple depth ranges on your display
- Maximum depth of 3,000 metres / 10,000 feet (transducer dependent)
- Easy to install with three plug-and-play 9-pin transducer connectors
- Compatible with Simrad NSS evo3 and NSS evo2 multifunction displays, NSO evo2 systems, and S2000-series fish finders
- Limited 2 Year Warranty
Simrad 0013260001 Installation Instructions
Simrad 0013260001 Warranties
S5100 Module Redefining High-Performance SonarThe S5100 high-performance CHIRP sonar module delivers true simultaneous coverage of up to three different depth ranges, at high resolution, making it the perfect sonar solution for offshore sportfishing anglers.
Simultaneous split-screen viewing capability puts you in complete control of the water column; while advanced processing technology allows you to fish with noise-free clarity at all depth ranges without ever losing bottom depth tracking.
Mix and match your favorite transducer coverage and transmit power for wide and narrow beam-widths to reveal more fish, detecting small and tightly spaced fish and identifying thermoclines - or adjust specific CHIRP frequencies from 28 to 250 kHz to precisely target specific depths producing big, crisp arches with clear target separation.
Features:
- 3 fully independent sonar channels deliver high-resolution coverage
- Noise-free clarity at all depth ranges
- Combine any three frequency ranges to target multiple depths, including Ultra-Low, Low, Medium, or High CHIRP
- Compatible with wide-angle CHRIP transducers for greater coverage of the water column
- Simultaneous split-screen viewing of multiple depth ranges on your display
- Maximum depth of 3,000 meters/10,000 feet (transducer dependent)
- Easy to install with three plug-and-play 9-pin transducer connectors
- Compatible with Simrad NSS evo3 and NSS evo2 multifunction displays, NSO evo2 systems and S2000-series fishfinders
High-performance CHIRP sonar Simrad S5100 high-performance CHIRP module provides three independent sonar channels in three different depth ranges, each with unparalleled performance. Just connect three single-frequency transducers, or pair dual-channel and single-channel transducers, you can get the best coverage and clearer target interval, and easily determine the fish species. The use of CHIRP wide-angle sensor provides users with greater coverage of the water column, ensuring that you see the most accurate details below. To view the split-screen sonar at the same time, each user can customize the configuration of the split-screen sonar to suit your sounder needs. Since all three sonar channels are different, you can view different frequency ranges in real time on one display, allowing you to observe the contours of the seafloor and schools of fish excellently. Depending on the sensor you choose to use, you can reach a depth of 10,000 feet. (3,000 meters) make it an ideal CHIRP module choice for inshore and offshore fishermen. Now, it is easier than ever to spot, identify and spot smaller fish in narrow areas, and see the ever-changing hotbed. Your Simrad S5100 CHIRP module can take fish discovery to a whole new level. Compatible with Simrad NSS evo3, NSS evo2, NSO evo2 and S2000 series fish finder, this module provides plug-and-play connectivity and is faster than before.
Frequently Asked Questions (FAQ) About Simrad S5100 Module Redefining High-Performance Sonar
Who is the Simrad?
Simrad is part of the Norway-based Navico family, a worldwide leader in marine electronics. Simrad manufactures a full line of sophisticated marine electronics systems for the recreational yachting and light commercial markets. Simrads products are based on six core areas of expertise: radar, echo sounding, communications, automatic steering, navigation and system integration.
How to describe Simrad S5100 Module Redefining High-Performance Sonar?
High-performance CHIRP sonar
Simrad S5100 high-performance CHIRP module provides three independent sonar channels in three different depth ranges, each with unparalleled performance. Just connect three single-frequency transducers, or pair dual-channel and single-channel transducers, you can get the best coverage and clearer target interval, and easily determine the fish species. The use of CHIRP wide-angle sensor provides users with greater coverage of the water column, ensuring that you see the most accurate details below. To view the split-screen sonar at the same time, each user can customize the configuration of the split-screen sonar to suit your sounder needs. Since all three sonar channels are different, you can view different frequency ranges in real time on one display, allowing you to observe the contours of the seafloor and schools of fish excellently. Depending on the sensor you choose to use, you can reach a depth of 10,000 feet. (3,000 meters) make it an ideal CHIRP module choice for inshore and offshore fishermen. Now, it is easier than ever to spot, identify and spot smaller fish in narrow areas, and see the ever-changing hotbed. Your
Simrad S5100 CHIRP module can take fish discovery to a whole new level. Compatible with
Simrad NSS evo3, NSS evo2, NSO evo2 and S2000 series fish finder, this module provides plug-and-play connectivity and is faster than before.
- The S5100 module is a high-performance, three-range sonar module for use with the Simrad NSS evo2.
- It delivers true simultaneous coverage of up to three different depth ranges, at high resolution, making it the perfect sonar solution for offshore applications.
- It's also an excellent choice for fishing vessels and other smaller craft.
- CHIRP sonar module with simultaneous coverage of up to three different depth ranges for a more detailed, accurate picture of the seabed
- High-resolution imaging for a clear view of the seabed and accurate positioning
- Ideal for offshore use
What is the working frequency of the product?
28/250 kHz
- The S5100 module is a high-performance, three-range sonar module for use with the Simrad NSS evo2.
- It delivers true simultaneous coverage of up to three different depth ranges, at high resolution, making it the perfect sonar solution for offshore applications.
- It's also an excellent choice for fishing vessels and other smaller craft.
- CHIRP sonar module with simultaneous coverage of up to three different depth ranges for a more detailed, accurate picture of the seabed
- High-resolution imaging for a clear view of the seabed and accurate positioning
- Ideal for offshore use
- Simrad S5100 High-Performance CHIRP Sonar Module
- Three fully independent sonar channels deliver high-resolution coverage
- Noise-free clarity at all depth ranges
- Combine any three frequency ranges to target multiple depths
- Simrad S5100 High-Performance CHIRP Sonar Module Model: 000-13260-001
- Three fully independent sonar channels deliver high-resolution coverage
- Noise-free clarity at all depth ranges
- Combine any three frequency ranges to target multiple depths
What is the size?
13.4 Inch Length X 3.9 Inch Width X 9.8 Inch Height
Is this product waterproof?
Buy with the best price
Simrad S5100 Module Redefining High-Performance Sonar for only
$2209 from NVN Marine! Same day fast and free shipping before 3pm.
Simrad S5100 Module Redefining High-Performance Sonar Technical Specifications
| Type: |
|
| Vendor: |
Simrad
|
| Weight: |
13.8 lb
|
