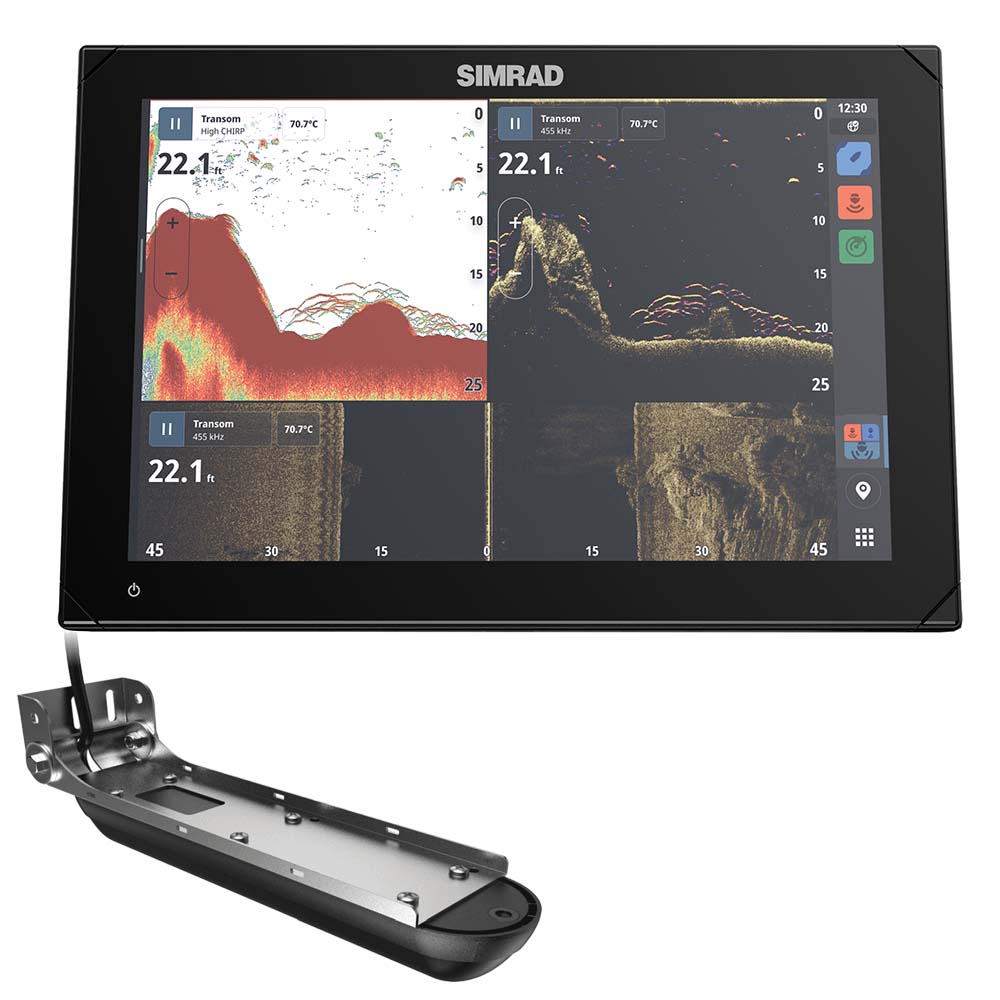

Simrad NSX 3012 - Smart Chartplotter / fishfinder. Active Imaging™ 3-in-1 transducer. C-MAP® DISCOVER™ X chart included

Model: 000-15367-001

• Features support for the new marine-optimized C-MAP® DISCOVER™ X and C-MAP REVEAL™ X charts with a fresh, intuitive chart presentation and daily updates
• High-definition IPS touch screen with extreme viewing angles, viewable through polarized lenses
• Support for high-resolution views of fish and structure with Active Imaging™ featuring CHIRP, SideScan and DownScan Imaging™, plus 1kW transducer capability to reach greater depths
• Quickly identify fish with FishReveal™
• Setup Wizard to get you up and running quickly, plus simpler sonar setup
• Full integration with the capability to expand the system with Simrad® radar, autopilot, and more
• Faster Autorouting with seamless accessibility
• Stay on course with full Simrad® autopilot integration
• Modern and straightforward interface
• Simrad® App integration — keep your chart data at your fingertips, both on and off the water
• Third-party app integration
• Wireless connectivity, plus Ethernet and NMEA 2000® networking capability
• IP Video Support

Experience modern simplicity in rich detail. NSX pairs a clean and straightforward interface with high-definition visuals to deliver a whole new experience. Easily access and use all NSX features, including smart drag-and-drop screen customization, fully editable instruments bar and enhanced day and night modes. Get crystal clear views of chart detail, structure and bottom contours with the vibrant SolarMAX™ IPS touch screen. The high-definition display is viewable from any angle, in direct sunlight, and through polarized lenses with complete touch screen operation.

See map details in a new way with a next-generation C-MAP® DISCOVER X™ marine-optimized charts developed for NSX, featuring a fresh, intuitive chart presentation and daily updates. NSX also supports marine-optimized C-MAP Reveal X charts with coastal, seafloor and inland Shaded Relief. C-MAP charts include full-featured Vector Charts with Custom Depth Shading and High-Resolution Bathymetry showing accurate contour lines down to a 1-foot level of detail. You can improve planning and route plotting with Tides and Currents projections and our fastest ever Autorouting. Plus, there’s a new Map Inspection feature with one-touch access to information on locations, POIs, tides, channels and more. The Simrad® Companion App acts like an extension of your NSX with the same chart experiences and all your chart data at your fingertips, on or off the water. The app lets you plan trips, review Tracks and plot Waypoints on your App and sync directly to your NSX.

NSX opens up a world of possibilities, from the included Active Imaging™ 3-in-1 transducer with CHIRP sonar, SideScan and DownScan Imaging™ to system expansion options like Autopilot and a wide range of compatible 1kW transducers that allow you to search greater depths. Identify hazards immediately with our award-winning pulse compression HALO Radars. See near and far simultaneously (up to 72 nm) and be ready instantly with low-power standby mode. Highlight targets using custom modes such as harbor, offshore and weather. Known for its legendary performance, Simrad® Autopilots free you up to enjoy all of your activities. Whether trawling for game fish or planning your next destination, we’ve got you covered. Available for outboard and inboard engines, our 'extra pair of hands' helps run patterns and routes, navigate to waypoints, and stay on course.

With everything from a Setup Wizard to Simrad® App integration, simple sonar setup and hints to assist you when you need it, NSX makes life on the water easier than ever before. The Setup Wizard helps with step-by-step instructions to get you up and running quickly, while the Simrad® App offers a whole host of added extras. These include hassle-free software updates, on and off the water trip planning, a streamlined chart display that looks the same across all platforms, plus easy transfer of all data, including routes and waypoints. But that’s not all. Sonar hints offer guidance on what’s happening during settings adjustments and sonar device setup gives you easy-to-understand prompts for each step of the process — you’ll be up and running in no time. All you need to do now is choose your next adventure.

Specifications

Display
Size and Type	12"" SolarMax IPS Touchscreen display for wide viewing angles, extreme clarity and sunlight viewability with polarized sunglasses
Resolution	1280 x 800
Viewing Angles	85° (top, bottom, left, and right)
Screen Brightness	>1200 nits
Backlight Color	White
Power
Supply Voltage	12 V DC (10 - 17 V DC min - max)
Power Consumption max	29.7 W (2150 mA at 13.8 V)
Recommended Fuse Rating	3A
Physical
Dimensions W x H x D	With bracket: W: 319.5 mm (12.58"") x H: 215.1 mm (8.46"") x D: 86.0 mm (3.38"")
MountingType	Bracket (supplied), panel mount or flush mount
Compass Safe Distance	50 cm (1.7 ft)
Environmental
Operating Temperature Range	-15°C to 55°C (5°F to 131°F)
Storage Temperature Range	-20°C to 60°C (-4°F to 140°F)
Waterproof rating	IPx6 and IPx7
Humidity	IEC 60945 Damp heat 66°C (150°F) at 95% relative (18 hr)
Shock Vibration	100,000 cycles of 20 G
Interface and connections
Interface	Multi-touch screen
Sonar Compatibility	One 9 pin Xsonic 1 kW Sonar port. Single channel CHIRP, 50/200 khz, HDI, Active Imaging
Ethernet	1 port (5-pin connector)
NMEA 2000	1 x NMEA 2000 Micro-C port, 1 LEN
NMEA 0183	No
USB	1 port (USB A) Output: 5 V DC, 1.5 A
External Storage	1 MicroSD slot, 1 port (USB A)
GPS	Internal, 10Hz, WASS, MSAS, EGNOS
GPS Correction	10 Hz high speed update (internal) WASS, MSAS, EGNOS, GLONASS
GPS Position Accuracy	Horizontal Accuracy 3 m (9.8 ft)
GPS Receiver Channels	32 Channels
GPS Update rate	10Hz
J1939	No
ConnectivityPcConnectivity	No
WiFi	IEEE 802.11b/g/n
Bluetooth	Bluetooth 4.0 with support for Bluetooth Classic
Languages	English(US), English(UK), Danish, German, Spanish, Finnish, French, Greek, Italian, Dutch, Norwegian, Portuguese (Brazil), Portuguese (Portugal) Swedish
Charts Supported	C-MAP Discover X, C-MAP Reveal X
Radar Compatibility	Halo Dome radars, Halo open array radars
Weather	No
AIS	Receive AIS data over NMEA 2000
Digital Switching	Simrad COMMAND DDS only on release to market

What's in the Box:

• NSX 3012 Display
• M-NA-T-200-D-MS: DISCOVER X - NORTH AMERICA
• Gimbal mounting bracket with knobs
• Suncover
• NSX 3012 Dash mount kit
• 4-pin Power Cable
• Fuse Kit NSX
• Corner bezel clips for NSX
• Active Imaging™ 3-in-1 transducer
"
• The most advanced and fastest-ever Autorouting technology.
• Next-gen C-MAP® charts for the most up-to-date fishing information.
• 3 in 1 transducer for a full range of fishing use, from shallow to deep water.
• The NSX™ 3012 12" Chartplotter & Fishfinder with Active Imaging™ 3-in-1 Transducer offers the latest in chartplotting technology for an unbeatable fishing experience.
• With Active Imaging, you can get a live view of underwater objects in real time. You will never miss a fish again!
• C-MAP® charts are the most up to date and accurate charts on the market, so you can navigate with confidence.
• NSX™ 3012 12" Chartplotter & Fishfinder with Active Imaging™ 3-in-1 Transducer
• C-MAP® charts of the U.S. and Canada, plus the Bahamas, Caribbean, and Central America
• Built-in GPS provides accurate boat positioning and speed data
• Advanced fishfinding with Active Imaging to see fish arches on the screen
