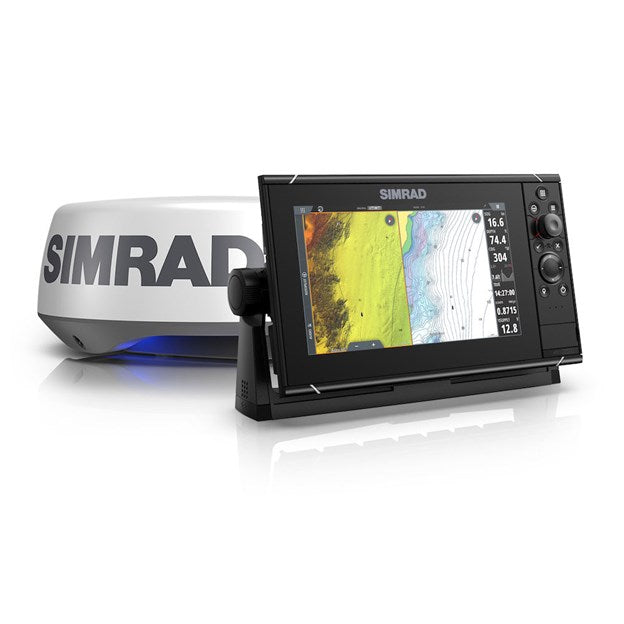

Simrad NSS9 evo3S Combo Radar Bundle w/Halo20+ Product Description
Simrad NSS9 Evo3S Multi-Function Display and Halo20+ Radar Bundle With 9" Touchscreen, Keypad Controls, CHIRP Sonar, and C-Map Charts NSS9 evo3S features a high-definition 9-inch display that delivers big-picture views of charts, radar, sonar, and more under all conditions. Featuring the new iMX 8 high-performance processor, with superfast response times, you have control of an unprecedented level of built-in functionality, ultra-wide viewing angles, and reliable touch or keypad operation. Includes preloaded C-MAP charts. HALO20+ radar introduces industry-first 60 RPM rotation at ranges up to 2 nautical miles, delivering a full 360-degree sweep every single second. These ultra-fast updates give you an almost real-time view at close range, offering the ultimate view for collision avoidance. Whether you're navigating through crowded waterways or contending with poor visibility, Halo radar cuts through the clutter to give you a clear and current picture of your surroundings. VelocityTrack technology provides instant visual feedback on whether targets are coming towards you or moving away. Using the Doppler effect, this feature automatically checks every target seen by your radar; there's no need to manually select individual targets, and no limit to the number of targets on screen at one time. Simple color coding highlights potential hazards, improving your situational awareness and further reducing your risk of collision.
Simrad 0015554001 Attributes
-
Display Size: 9 Inch
-
Display Type: IPS
-
Resolution: 1280 x 720 pixels
-
Interface: Keypad/ Touchscreen
-
Dimensions: 11.3 Inch Length x 3-1/2 Inch Width x 6.55 Inch Height
-
Waterproof: IPX6/ IPX7 Rating Waterproof
-
Sensor Compatibility: NMEA 0183 Compatible
Simrad 0015554001 Features & Benefits
- iMX 8 Integrated six-core processor for superior performance
- 9-inch SolarMAX IPS display with ultra-wide viewing angles; viewable through Polarized sunglasses
- Switch seamlessly between touchscreen and keypad control
- Built in high-performance echosounder with 1kW CHIRP, Built-in GPS receiver and wireless connectivity
- Control Simrad sonar, radar, autopilot, and other accessories
- Industry-standard connectivity to engines, sound system, and more
- Choose low-profile flush mounting or convenient bracket mounting
- Download the Simrad App and connect with smartphones, tablets, and internet hotspots
- Preloaded C-MAP US Enhanced charts provide detailed mapping with 1-foot contours, easy routing and C-MAP Reveal data in Florida
- Limited 2 Year Warranty
Simrad 0015554001 Installation Instructions
Simrad 0015554001 Warranties
Simrad 0015554001 Technical Bulletins
NSS9 evo3S Combo Radar Bundle with Halo20+
Improved Charting experience with iMX8 processor
With a 2X faster page loading time, choosing any split screen combination with views in 3D or Navigation perspective has never been easier. NSSevo3S features a preloaded US Chart with high-resolution inland and coastal coverage, plus a C-MAP® Reveal layer of the ocean floor in Florida.
In addition to the preloaded C-MAP chart, NSSevo3S is compatible with a wide range of charting providers, including C-MAP, Navionics®, CMOR and Florida Marine Tracks.
Enhanced Sonar with superior on-water performance
1kW CHIRP-enabled sonar provides exceptional bottom-tracking and fish-finding performance. Dual transducer ports offer the convenience of connecting multiple transducers to a single display.
Better-than-ever processing power ensures Active Imaging delivers picture-like views of fish-holding structure, and crystal clear views of the bottom ahead using ForwardScan® sonar.
SolarMAX IPS displays for high-definition views
Clear views under any lighting condition with SolarMAX IPS technology, and ultra-wide viewing angles to keep everything in sight, even when viewed through polarized sunglasses.
These all-weather screens have been engineered to withstand the heat of the summer sun and are optically bonded to prevent condensation or fogging within the display.
UI Improvements
- A dark-themed wallpaper for less light pollution from a dash of multiple screens.
- The Audio side bar can now expand into a full page view.
- The addition of a chart orientation button to switch instantly between North up, Heading up and Course up without having to open the menu.
- The addition of a Tide Graph in the instrument bar to monitor tide changes without having to leavetheexisting page
Wireless connectivity for smartphones and tablets
Displays can be mirrored to compatible iOS and Android devices to access charts, radar, sonar, engine data and more. Wireless connectivity also enables online software upgrades through any internet hotspot, access to the latest features and accessory support.
The Simrad App can also be downloaded for added benefits from device registration and manual downloads, to saving waypoints and your favorite fishing spots accessible both on and off the water.
Radar Options
HALO® Pulse Compression radar systems can be added to negotiate crowded harbors, navigate safely in poor visibility, monitor distant weather squalls and even locate flocks of feeding birds in order to locate fishing spots.
FLIR IP Camera Support
Day and night situational awareness can be improved by adding a FLIR M232 thermal imaging camera. The M232 features a resolution of 320x240 and offers the ability to pan and tilt the camera to allow for 360 degree viewing while underway. The M232 distributes video over Ethernet allowing for both display and control from a NSSevo3S.
WM-4 Receiver
Get up-to-date, detailed weather forecasts, weather radar, lightning, storm warnings, sea surface temperature, insight on favorable areas for particular fish species and more, when you complete your boats system with a WM-4 Receiver and a SiriusXM® Marine Satellite Weather subscription. Add audio to your Marine Weather or Fish Mapping* subscription and get access to more than 140 SiriusXM® radio channels at a discount.
Fast & Simple Networkingand Connectivity
Industry-standard connectivity to create multi-display systems and link to all on-board electronics, engine and fuel monitoring in real-time, control of on-board sound systems and much more.
Includes system expansion with Simrad modules and accessories, advanced fish-finding tools such as deep water S5100, Active ImagingTM 3-in-1 or TotalScanTM, increased situational awareness with legendary HALO® Pulse Compression radar, and automated control with a fully integrated Simrad autopilot.
Halo20+
See Far And Near With One Compact Dome
Perfect for a wide mid-sized to large sailboats, HALO20+ comes in a compact 20-inch dome antenna and delivers high-quality short, mid and long-range detection. Monitor two distance ranges at once in Dual Range mode so you can keep an eye on far away weather cells while watching for collision hazards up close. HALO20+ radars pulse compression technology means no compromises in detection at either selected range, while beam sharpening provides enhanced separation between small or distant targets.
The Best View To Avoid Collision
HALO20+ radar does a full 360 degree sweep every second, thanks to its industry-first 60 RPM rotation at ranges up to 1.5 nautical miles. These ultra-fast updates give you an almost real-time view at close range, offering the ultimate view for collision avoidance of fast moving targets.
Built-in VelocityTrack Doppler Technology
VelocityTrack technology grands instant visual feedback on whether targets are coming towards you or moving away with colour-coding approaching vessels for high visibility while de-emphasizing diverging targets, increasing situational awareness and decreasing the risk of collision. HALO20+ radar automatically checks every target in range; theres no need to manually select individual targets, and no limit to the number of targets on screen at one time.
Ready Whenever You Are
HALO20+ Radar wakes instantly from its low-power standby mode, delivering this high-speed radar coverage exactly where and when you require it. Even if your HALO20+ Radar is completely powered down, start-up only takes some seconds, not minutes like traditional pulse radar.
Easy to Use Radar
Harbour, offshore, weather and custom modes tune HALO20+ Radars advanced signal processing to help ensure that targets can be seen vividly even in the toughest environmental conditions.
Features:
- 36 nm range from a compact 20-inch dome
- Advanced pulse compression technology with beam sharpening
- Simultaneous Dual Range operation sees both far and near
- Ultra-fast 60 RPM operation at ranges up to 1.5 nm
- VelocityTrack Doppler technology to avoid collision
- Easy operation with harbour, offshore, weather and custom modes
- MARPA target tracking (up to 10 targets, 20 in dual range)
- Ready instantly from standby
- Low power consumption
In The Box:
NSS9
- Display Unit
- Bezel Trim
- Documentation pack
- Power cable kit
- U-bracket kit
- Panel mounting kit
Halo 20+
- Halo Radar
- Mounting bolts and washers
- Documentation pack
- Interconnection cable
- Ethernet adapter RJ45 to 5-pin, 1.5m
- Waterproof cable boot f/ interconnection cable RJ45 plug
- Cable retainer kit
Connections:
- Ethernet - Ethernet network
- Power - power, power control, and external alarm
- Video- composite video and NMEA0183
- NMEA 2000 - NMEA 2000 data
- Sonar CH1
- Sonar CH2
The NSS9 evo3S combined radar kit with Halo20+ improves the graphics experience of the iMX8 processor. The page loading time has been shortened by 2 times, and any combination of split screens with views can be selected...
Frequently Asked Questions (FAQ) About Simrad NSS9 evo3S Combo Radar Bundle w/Halo20+
Who is the Simrad?
Simrad is part of the Norway-based Navico family, a worldwide leader in marine electronics. Simrad manufactures a full line of sophisticated marine electronics systems for the recreational yachting and light commercial markets. Simrads products are based on six core areas of expertise: radar, echo sounding, communications, automatic steering, navigation and system integration.
How to describe Simrad NSS9 evo3S Combo Radar Bundle w/Halo20+?
The NSS9 evo3S combined radar kit with Halo20+ improves the graphics experience of the iMX8 processor. The page loading time has been shortened by 2 times, and any combination of split screens with views can be selected...
- The latest in radar technology with the most advanced features.
- Combines the latest in radar technology with the most advanced features.
- Comes with a powerful iMX8 processor that provides a 2X faster page loading time, so you can get to your data faster than ever before.
- Get a new radar system and charting experience with the latest technology.
- Get a new 3D charting system that allows you to see your data from any angle.
- NSS9 evo3S radar is capable of detecting targets from more than 50 miles away.
The Simrad NSS9 evo3S and Halo20+ Radar bundle is a great way to get a powerful, full-featured radar and a high-resolution, high-bright display. The NSS9 evo3S is easy to use with its touchscreen UI and full keypad. It also has an advanced echosounder built in for more accurate readings in all sea conditions.
What is the resolution of the product?
1280 x 720 pixels
- The latest in radar technology with the most advanced features.
- Combines the latest in radar technology with the most advanced features.
- Comes with a powerful iMX8 processor that provides a 2X faster page loading time, so you can get to your data faster than ever before.
- Get a new radar system and charting experience with the latest technology.
- Get a new 3D charting system that allows you to see your data from any angle.
- NSS9 evo3S radar is capable of detecting targets from more than 50 miles away.
- The Simrad NSS9 evo3S is the world's most advanced multifunctional sonar system for professional fishing.
- The Halo20+ Radar Bundle is a high-performance, high-resolution, and high-brightness radar that offers more than double the range of conventional radars.
- SolarMax IPS Displays provide an easy to use touchscreen UI as well as full keypad for simple and precise control in any sea conditions.
- Simrad NSS9 evo3S and Halo20+ Radar bundle Model: 000-15554-001
- High Resolution, High Bright, SolarMax IPS Displays
- Easy to use touchscreen UI as well as full keypad for simple and precise control in any sea conditions
- Built-in advanced echosounder
What is the screen size of the product?
What is the resolution (vxh) of the product?
Transducer included to the product?
What is the weight of the product?
Is this product waterproof?
IPX6/ IPX7 Rating Waterproof
What is the display type of the product?
What is the display size of the product?
What is the controlling interface of the product?
What is the cartography brand of product?
What is the array size of the product?
What is the dimensions of the product?
11.3 Inch Length x 3-1/2 Inch Width x 6.55 Inch Height
Is this product is touchscreen?
What is the maximum range (miles) of the product?
Buy with the best price
Simrad NSS9 evo3S Combo Radar Bundle w/Halo20+ for only
$4698 from NVN Marine! Same day fast and free shipping before 3pm.
Simrad NSS9 evo3S Combo Radar Bundle w/Halo20+ Technical Specifications
| Type: |
|
| Vendor: |
Simrad
|
| Weight: |
43.0 lb
|
| Transducer Included: |
No
|
| Screen Size: |
9"
|
| Resolution (VxH): |
720x1280
|
| Range - Max (Miles): |
36NM
|
| Cartography Brand: |
Navionics/C-Map/Lowrance
|
| Array Size (Inches): |
20"
|
| Touchscreen: |
Yes
|
| Product Brochure: |
|
| Product Installation: |
|
