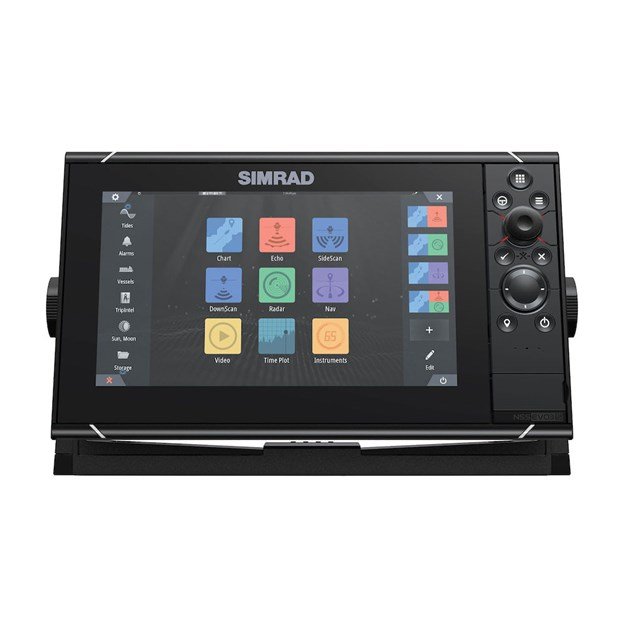

Simrad NSS9 evo3S Chartplotter/Fishfinder MFD Product Description
A high-definition 9 Inch display, thats great for center consoles and other powerboats. Featuring a iMX 8 high-performance processor, with superfast response times, this compact package delivers extensive functionality. Enjoy stunning clarity and ultra-wide viewing angles, combined with an all-weather touchscreen and keypad for total control in all conditions. features preloaded C-MAP (R) charts. Take total control of your on-water experience. SolarMAX (R) IPS displays offer exceptional clarity and ultra-wide viewing angles in any light conditions, while a iMX 8 high-performance processor delivers superfast response times for seamless screen transitions. Choose between all-weather touchscreen technology or keypad with a rotary dial as the situation demands. Its easy to monitor and control all of your on-board electronics with simple menus, customizable split-screen layouts, and a programmable function key for one-button access to the features you use most. Just add your choice of transducer. 1 Kilowatt CHIRP-enabled sonar provides exceptional bottom-tracking and fish-finding performance, including support for dual-channel CHIRP transducers that deliver multiple depth range coverage from a single unit. Dual transducer ports offer the convenience of connecting multiple transducers to a single display. Advanced processing power easily powers ActiveTarget , the highest resolution live sonar on the market, Active Imaging , providing picture-like views of fish-holding structure, and StructureScan 3D for high-resolution three-dimensional views beneath your vessel.
Simrad 0015402001 Attributes
-
Display Size: 9 Inch
-
Resolution: 1280 x 720 pixels
-
Interface: Keypad Or Touchscreen
-
Dimensions: 11.3 Inch Width X 6.55 Inch Height X 3-1/2 Inch Depth
-
Waterproof: IPX6/ IPX7 Rating Waterproof
-
Sensor Compatibility: NMEA 2000 Compatible
Simrad 0015402001 Features & Benefits
- IMX 8 Integrated Processor For Superior Performance
- 9 Inch SolarMAX IPS Display With Ultra-Wide Viewing Angles; Viewable Through Polarized Sunglasses
- Switch Seamlessly Between Touchscreen And Keypad Control
- Built In High-Performance Echosounder With 1KilloWatt CHIRP
- Built-In GPS Receiver And Wireless Connectivity
- Control Simrad Sonar, Radar, Autopilot, And Other Accessories
- Industry-Standard Connectivity To Engines, Sound System And More
- TripIntel Trip Planning And Support For Automatic Routing
- Choose Low-Profile Flush Mounting Or Convenient Bracket Mounting
- Limited 2 Year Warranty
Simrad 0015402001 Installation Instructions
Simrad 0015402001 Warranties
Simrad 0015402001 Technical Bulletins
NSS9 evo3S Multi-Function Chartplotter/Fishfinder
Improved Charting experience with iMX8 processor
With a 2X faster page loading time, choosing any split screen combination with views in 3D or Navigation perspective has never been easier. NSSevo3S features a preloaded US Chart with high-resolution inland and coastal coverage, plus a C-MAP® Reveal layer of the ocean floor in Florida.
In addition to the preloaded C-MAP chart, NSSevo3S is compatible with a wide range of charting providers, including C-MAP, Navionics®, CMOR and Florida Marine Tracks.
Enhanced Sonar with superior on-water performance
1kW CHIRP-enabled sonar provides exceptional bottom-tracking and fish-finding performance. Dual transducer ports offer the convenience of connecting multiple transducers to a single display.
Better-than-ever processing power ensures Active Imaging delivers picture-like views of fish-holding structure, and crystal clear views of the bottom ahead using ForwardScan® sonar.
SolarMAX IPS displays for high-definition views
Clear views under any lighting condition with SolarMAX IPS technology, and ultra-wide viewing angles to keep everything in sight, even when viewed through polarized sunglasses.
These all-weather screens have been engineered to withstand the heat of the summer sun and are optically bonded to prevent condensation or fogging within the display.
UI Improvements
- A dark-themed wallpaper for less light pollution from a dash of multiple screens.
- The Audio side bar can now expand into a full page view.
- The addition of a chart orientation button to switch instantly between North up, Heading up and Course up without having to open the menu.
- The addition of a Tide Graph in the instrument bar to monitor tide changes without having to leave the existing page
Wireless connectivity for smartphones and tablets
Displays can be mirrored to compatible iOS and Android devices to access charts, radar, sonar, engine data and more. Wireless connectivity also enables online software upgrades through any internet hotspot, access to the latest features and accessory support.
The Simrad App can also be downloaded for added benefits from device registration and manual downloads, to saving waypoints and your favorite fishing spots accessible both on and off the water.
Radar Options
HALO® Pulse Compression radar systems can be added to negotiate crowded harbors, navigate safely in poor visibility, monitor distant weather squalls and even locate flocks of feeding birds in order to locate fishing spots.
FLIR IP Camera Support
Day and night situational awareness can be improved by adding a FLIR M232 thermal imaging camera. The M232 features a resolution of 320x240 and offers the ability to pan and tilt the camera to allow for 360 degree viewing while underway. The M232 distributes video over Ethernet allowing for both display and control from a NSSevo3S.
WM-4 Receiver
Get up-to-date, detailed weather forecasts, weather radar, lightning, storm warnings, sea surface temperature, insight on favorable areas for particular fish species and more, when you complete your boats system with a WM-4 Receiver and a SiriusXM® Marine Satellite Weather subscription. Add audio to your Marine Weather or Fish Mapping* subscription and get access to more than 140 SiriusXM® radio channels at a discount.
Fast & Simple Networkingand Connectivity
Industry-standard connectivity to create multi-display systems and link to all on-board electronics, engine and fuel monitoring in real-time, control of on-board sound systems and much more.
Includes system expansion with Simrad modules and accessories, advanced fish-finding tools such as deep water S5100, Active Imaging 3-in-1 or TotalScan, increased situational awareness with legendary HALO® Pulse Compression radar, and automated control with a fully integrated Simrad autopilot.
In The Box:
- Display Unit
- Bezel Trim
- Documentation pack
- Power cable kit
- U-bracket kit
- Panel mounting kit
Connections:
- Ethernet - Ethernet network
- Power - power, power control, and external alarm
- Video- composite video and NMEA0183
- NMEA 2000 - NMEA 2000 data
- Sonar CH1
- Sonar CH2
The 9-inch high-definition display is very suitable for the center console and other motor boats. This compact package uses the new iMX 8 high-performance processor, with ultra-fast response time and a wide range of functions. Enjoy amazing clarity and ultra-wide viewing angles, combined with an all-weather touch screen and keyboard, for complete control in all conditions. Includes pre-loaded C-MAP chart.
Frequently Asked Questions (FAQ) About Simrad NSS9 evo3S Chartplotter/Fishfinder MFD
Who is the Simrad?
Simrad is part of the Norway-based Navico family, a worldwide leader in marine electronics. Simrad manufactures a full line of sophisticated marine electronics systems for the recreational yachting and light commercial markets. Simrads products are based on six core areas of expertise: radar, echo sounding, communications, automatic steering, navigation and system integration.
How to describe Simrad NSS9 evo3S Chartplotter/Fishfinder MFD?
The 9-inch high-definition display is very suitable for the center console and other motor boats. This compact package uses the new iMX 8 high-performance processor, with ultra-fast response time and a wide range of functions. Enjoy amazing clarity and ultra-wide viewing angles, combined with an all-weather touch screen and keyboard, for complete control in all conditions. Includes pre-loaded C-MAP chart.
- The new iMX8 processor with a 2X faster page loading time makes the charting experience more enjoyable.
- Navigate your way to any destination with ease by choosing from any combination of 3D views and Navigation perspective.
- NSS9 evo3S Multi-Function Chartplotter/Fishfinder
- Improved charting experience with iMX8 processor
- 2X faster page loading time
- Choose any split screen combination with views in 3D or Navigation perspective
What is the resolution of the product?
1280 x 720 pixels
- The new iMX8 processor with a 2X faster page loading time makes the charting experience more enjoyable.
- Navigate your way to any destination with ease by choosing from any combination of 3D views and Navigation perspective.
- NSS9 evo3S Multi-Function Chartplotter/Fishfinder
- Improved charting experience with iMX8 processor
- 2X faster page loading time
- Choose any split screen combination with views in 3D or Navigation perspective
- High Resolution, High Bright, SolarMax IPS Displays
- Easy to use touchscreen UI as well as full keypad for simple and precise control in any sea conditions
- Built-in advanced echosounder capable of 1kW
- The latest in Simrad's line of high-end evo3 multifunction displays, the NSS evo3S 9in Display Model: 000-15402-001 is a unique combination of touchscreen UI and full keypad.
- With a high resolution, high brightness, solarmax IPS display that's easy to use with either your fingers or the full keypad, the NSS evo3S 9in Display Model: 000-15402-001 is perfect for any kind of boat.
- With built in advanced echos
What is the screen size of the product?
Transducer included to the product?
What is the weight of the product?
Is this product waterproof?
IPX6/ IPX7 Rating Waterproof
What is the display size of the product?
What is the controlling interface of the product?
What is the cartography brand of product?
What is the dimensions of the product?
11.3 Inch Width X 6.55 Inch Height X 3-1/2 Inch Depth
Is this product is touchscreen?
Buy with the best price
Simrad NSS9 evo3S Chartplotter/Fishfinder MFD for only
$2399 from NVN Marine! Same day fast and free shipping before 3pm.
Simrad NSS9 evo3S Chartplotter/Fishfinder MFD Technical Specifications
| Type: |
|
| Vendor: |
Simrad
|
| Weight: |
9.15 lb
|
| Transducer Included: |
No
|
| Touchscreen: |
Yes
|
| Screen Size: |
9"
|
| Cartography Brand: |
Navionics/C-Map/Lowrance
|
