Simrad NSS16 evo3S Chartplotter/Fishfinder MFD Product Description
NSS16 evo3S Multi-Function Chartplotter/Fishfinder
Improved Charting experience with the iMX8 processor
With a 2X faster page loading time, choosing any split screen combination with views in 3D or Navigation perspective has never been easier. NSSevo3S features a preloaded US Chart with high-resolution inland and coastal coverage, plus a C-MAP® Reveal layer of the ocean floor in Florida.
In addition to the preloaded C-MAP chart, NSSevo3S is compatible with a wide range of charting providers, including C-MAP, Navionics®, CMOR and Florida Marine Tracks.
Enhanced Sonar with superior on-water performance
1kW CHIRP-enabled sonar provides exceptional bottom-tracking and fish-finding performance. Dual transducer ports offer the convenience of connecting multiple transducers to a single display.
Better-than-ever processing power ensures Active Imaging delivers picture-like views of fish-holding structure, and crystal clear views of the bottom ahead using ForwardScan® sonar.
SolarMAX IPS displays for high-definition views
Clear views under any lighting condition with SolarMAX IPS technology, and ultra-wide viewing angles to keep everything in sight, even when viewed through polarized sunglasses.
These all-weather screens have been engineered to withstand the heat of the summer sun and are optically bonded to prevent condensation or fogging within the display.
UI improvements
- A dark-themed wallpaper for less light pollution from a dash of multiple screens.
- The Audio side bar can now expand into a full page view.
- The addition of a chart orientation button to switch instantly between North up, Heading up and Course up without having to open the menu.
- The addition of a Tide Graph in the instrument bar to monitor tide changes without having to leave the existing page
Wireless connectivity for smartphones and tablets
Displays can be mirrored to compatible iOS and Android devices to access charts, radar, sonar, engine data and more. Wireless connectivity also enables online software upgrades through any internet hotspot, access to the latest features and accessory support.
The Simrad App can also be downloaded for added benefits from device registration and manual downloads, to saving waypoints and your favorite fishing spots accessible both on and off the water.
Radar Options
HALO® Pulse Compression radar systems can be added to negotiate crowded harbors, navigate safely in poor visibility, monitor distant weather squalls and even locate flocks of feeding birds in order to locate fishing spots.
FLIR IP Camera Support
Day and night situational awareness can be improved by adding a FLIR M232 thermal imaging camera. The M232 features a resolution of 320x240 and offers the ability to pan and tilt the camera to allow for 360 degree viewing while underway. The M232 distributes video over Ethernet allowing for both display and control from a NSSevo3S.
WM-4 Receiver
Get up-to-date, detailed weather forecasts, weather radar, lightning, storm warnings, sea surface temperature, insight on favorable areas for particular fish species and more, when you complete your boats system with a WM-4 Receiver and a SiriusXM® Marine Satellite Weather subscription. Add audio to your Marine Weather or Fish Mapping* subscription and get access to more than 140 SiriusXM® radio channels at a discount.
Fast & Simple Networkingand Connectivity
Industry-standard connectivity to create multi-display systems and link to all on-board electronics, engine and fuel monitoring in real-time, control of on-board sound systems and much more.
Includes system expansion with Simrad modules and accessories, advanced fish-finding tools such as deep water S5100, Active Imaging 3-in-1 or TotalScan, increased situational awareness with legendary HALO® Pulse Compression radar, and automated control with a fully integrated Simrad autopilot.
In The Box:
- Display Unit
- Bezel Trim
- Documentation pack
- Power cable kit
- Panel mounting kit
Connections:
- Ethernet - 2x Ethernet network
- Power - power, power control, and external alarm
- Video- composite video and NMEA0183
- NMEA 2000 - NMEA 2000 data
- Sonar CH1
- Sonar CH2
- HDMI - HDMI video output
- USB connector - mouse, keyboard or mass storage

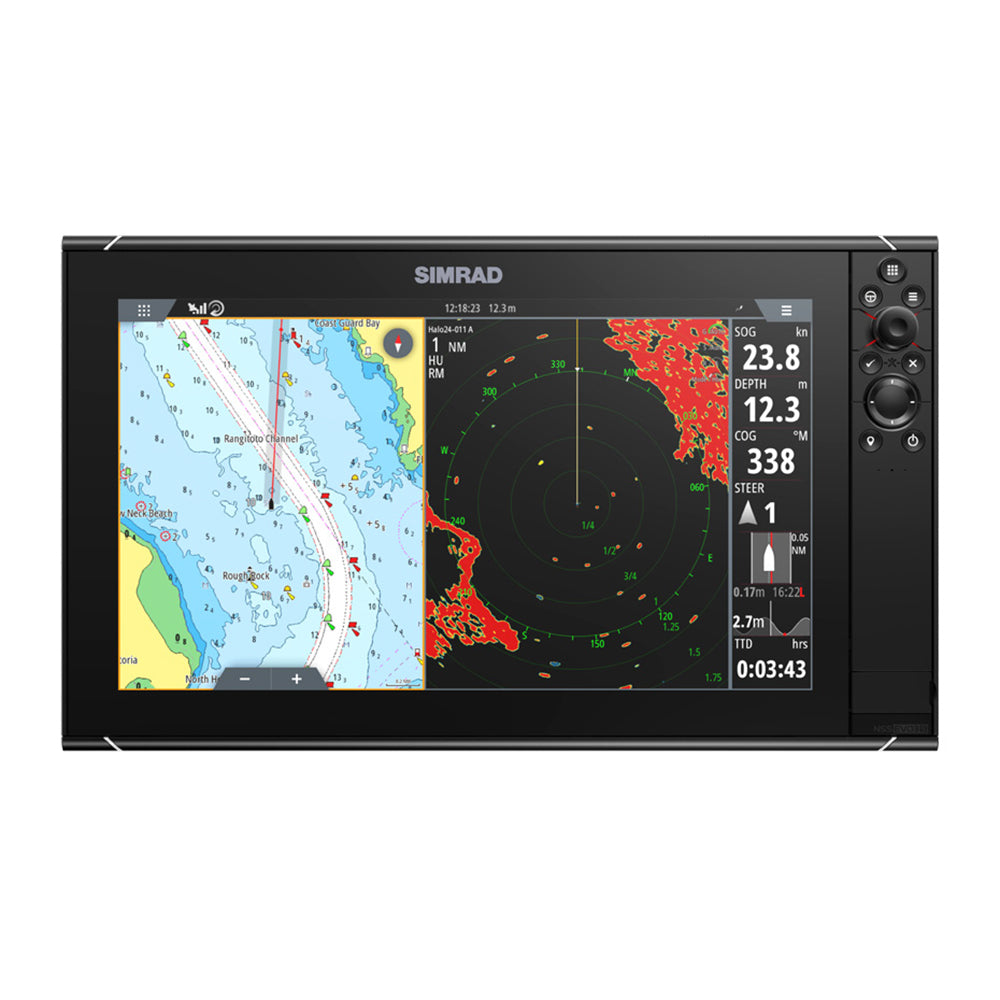

NSS16 evo3S has a 16-inch full HD display that can display screen details to the greatest extent and provides unprecedented built-in functions, including chart, radar, sonar, etc. The new iMX 8 high-performance processor ensures complete navigation control for each of your commands. Experience ultra-wide viewing angle, reliable touch or keyboard operation to adapt to all conditions.
Frequently Asked Questions (FAQ) About Simrad NSS16 evo3S Chartplotter/Fishfinder MFD
Who is the Simrad?
Simrad is part of the Norway-based Navico family, a worldwide leader in marine electronics. Simrad manufactures a full line of sophisticated marine electronics systems for the recreational yachting and light commercial markets. Simrads products are based on six core areas of expertise: radar, echo sounding, communications, automatic steering, navigation and system integration.
How to describe Simrad NSS16 evo3S Chartplotter/Fishfinder MFD?
NSS16 evo3S has a 16-inch full HD display that can display screen details to the greatest extent and provides unprecedented built-in functions, including chart, radar, sonar, etc. The new iMX 8 high-performance processor ensures complete navigation control for each of your commands. Experience ultra-wide viewing angle, reliable touch or keyboard operation to adapt to all conditions.
- The latest evo3S Multi-Function Chartplotter/Fishfinder offers improved charting experience with the iMX8 processor.
- With a 2X faster page loading time, choosing any split screen combination with views in 3D or Navigation perspective has never been easier.
- The iMX8 processor is 2x faster than the previous generation, providing a quicker and smoother experience.
- With the improved charting experience, you can now have any view of your choice on one split screen.
- Navigate with ease with 3D views and navigation perspective.
The Simrad NSS evo3S 16in Display Model: 000-15404-001 is a high-resolution, high-bright, and solar max IPS displays. The easy to use touchscreen UI as well as full keypad for simple and precise control in any sea conditions. This model also has built-in advanced echosounder capable of 1kW.
What is the screen size of the product?
16"
- The latest evo3S Multi-Function Chartplotter/Fishfinder offers improved charting experience with the iMX8 processor.
- With a 2X faster page loading time, choosing any split screen combination with views in 3D or Navigation perspective has never been easier.
- The iMX8 processor is 2x faster than the previous generation, providing a quicker and smoother experience.
- With the improved charting experience, you can now have any view of your choice on one split screen.
- Navigate with ease with 3D views and navigation perspective.
- The latest in Simrad's NSS evo3S line of multifunctional displays, the 16in 000-15404-001 is a complete package for any vessel.
- With a high resolution, high brightness and solarmax IPS display, the 000-15404-001 is easy to use with its touchscreen UI and full keypad.
- The built-in advanced echo sounder is a 1kW unit that can be used in any sea condition.
- 16in high-resolution, high-brightness display
- SolarMax IPS displays for easy viewing in any conditions
- Waterproof and floating touchscreen UI that's easy to use and precise
- 1kW echosounder for accurate readings in the toughest of conditions
Transducer included to the product?
What is the cartography brand of product?
Is this product is touchscreen?
Buy with the best price
Simrad NSS16 evo3S Chartplotter/Fishfinder MFD for only
$5499 from NVN Marine! Same day fast and free shipping before 3pm.
Simrad NSS16 evo3S Chartplotter/Fishfinder MFD Technical Specifications
| Type: |
|
| Vendor: |
Simrad
|
| Weight: |
19.3 lb
|
| Transducer Included: |
No
|
| Touchscreen: |
Yes
|
| Screen Size: |
16"
|
| Cartography Brand: |
Navionics/C-Map/Lowrance
|
| User Guide: |
|
| Product Manual: |
|
| Product Brochure: |
|
| Product Installation: |
|
