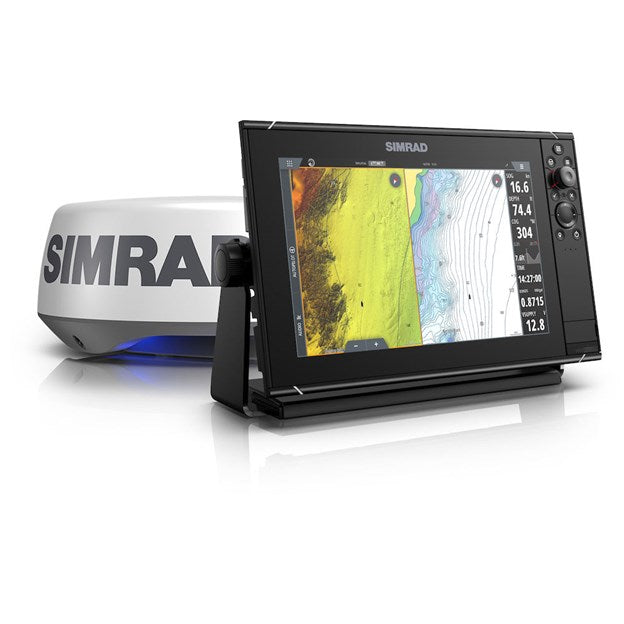

Simrad NSS12 evo3S Combo Multi-Function Chartplotter/Fishfinder Radar Bundle HALO20+ - No HDMI Video Outport Product Description

Take total control of your on-water experience. SolarMAX (R) IPS displays offer exceptional clarity and ultra-wide viewing angles in any light conditions, while a iMX 8 high-performance processor delivers superfast response times for seamless screen transitions. Choose between all-weather touchscreen technology or keypad with a rotary dial as the situation demands. It’s easy to monitor and control all of your on-board electronics with simple menus, customizable split-screen layouts, and a programmable function key for one-button access to the features you use most. Just add your choice of transducer. 1 Kilowatt CHIRP-enabled sonar provides exceptional bottom-tracking and fish-finding performance, including support for dual-channel CHIRP transducers that deliver multiple depth range coverage from a single unit. Dual transducer ports offer the convenience of connecting multiple transducers to a single display. Advanced processing power easily powers ActiveTarget ™, the highest resolution live sonar on the market, Active Imaging ™, providing picture-like views of fish-holding structure, and StructureScan ™ 3D for high-resolution three-dimensional views beneath your vessel. Choice of any split screen combination, views in 3D or Navigation perspective, and Radar overlay. features compatibility with a range of 3rd party chart vendors. Upgraded chart detail for the US features three key new features - High resolution bathymetry with 1 foot contours, C-MAP Reveal embedded for Florida and Easy-Routing capabilities. Industry-standard connectivity makes it easy to create multi-display systems and link displays to all of your on-board electronics; while a iMX 8 high-performance processor ensures engine and fuel monitoring in real-time, control of on-board sound systems and much more.

Simrad 0015555002 Attributes

• Display Size: 12 Inch
• Display Type: IPS
• Resolution: 1280 X 800 Pixels
• Interface: Touchscreen/ Keypad
• Dimensions: 13.84 Inch Length X 3.82 Inch Depth X 8.87 Inch Height
• Waterproof: IPX6 And IPX7 Rating Waterproof
• Sensor Compatibility: NMEA 0183 Compatible

Simrad 0015555002 Features & Benefits

• IMX 8 Integrated Processor For Superior Performance
• 12 Inch SolarMAX ™ IPS Display With Ultra-Wide Viewing Angles; Viewable Through Polarized Sunglasses
• Switch Seamlessly Between Touchscreen And Keypad Control
• Built In High-Performance Echosounder With 1 Kilowatt CHIRP
• Built-In GPS Receiver And Wireless Connectivity
• Control Simrad Sonar, Radar, Autopilot, And Other Accessories
• Industry-Standard Connectivity To Engines, Sound System, And More
• TripIntel ™ Trip Planning And Support For Automatic Routing
• Choose Low-Profile Flush Mounting Or Convenient Bracket Mounting
• No Supplier Warranty

Simrad 0015555002 Installation Instructions

NSS12 evo3S Combo Multi-Function Chartplotter/Fishfinder Radar Bundle HALO20+ - No HDMI Video Outport

Improved Charting experience with the iMX8 processor

With a 2X faster page loading time, choosing any split-screen combination with views in 3D or Navigation perspective has never been easier. NSSevo3S™ features a preloaded US Chart with high-resolution inland and coastal coverage, plus a C-MAP® Reveal layer of the ocean floor in Florida.

In addition to the preloaded C-MAP chart, NSSevo3S is compatible with a wide range of charting providers, including C-MAP, Navionics®, CMOR, and Florida Marine Tracks.

Enhanced Sonar with superior on-water performance

1kW CHIRP-enabled sonar provides exceptional bottom-tracking and fish-finding performance. Dual transducer ports offer the convenience of connecting multiple transducers to a single display.

Better-than-ever processing power ensures Active Imaging™ delivers picture-like views of fish-holding structures, and crystal clear views of the bottom ahead using ForwardScan® sonar.

SolarMAX™ IPS display for high-definition views

Clear views under any lighting condition with SolarMAX™ IPS technology, and ultra-wide viewing angles to keep everything in sight, even when viewed through polarized sunglasses.

These all-weather screens have been engineered to withstand the heat of the summer sun and are optically bonded to prevent condensation or fogging within the display.

UI improvements

• Dark-themed wallpaper for less light pollution from a dash of multiple screens.
• The Audio side bar can now expand into a full page view.
• The addition of a chart orientation button to switch instantly between North up, Heading up and Course up without having to open the menu.
• The addition of a Tide Graph in the instrument bar to monitor tide changes without having to leave the existing page

Wireless connectivity for smartphones and tablets

Displays can be mirrored to compatible iOS and Android devices to access charts, radar, sonar, engine data, and more. Wireless connectivity also enables online software upgrades through any internet hotspot, access to the latest features, and accessory support.

The Simrad App can also be downloaded for added benefits – from device registration and manual downloads to saving waypoints and your favorite fishing spots – accessible both on and off the water.

Radar Options

HALO® Pulse Compression radar systems can be added to negotiate crowded harbors, navigate safely in poor visibility, monitor distant weather squalls, and even locate flocks of feeding birds in order to locate fishing spots.

FLIR IP Camera Support

Day and night situational awareness can be improved by adding a FLIR M232 thermal imaging camera. The M232 features a resolution of 320x240 and offers the ability to pan and tilt the camera to allow for 360-degree viewing while underway. The M232 distributes video over Ethernet allowing for both display and control from an NSSevo3S™.

WM-4 Receiver

Get up-to-date, detailed weather forecasts, weather radar, lightning, storm warnings, sea surface temperature, insight on favorable areas for particular fish species, and more, when you complete your boat’s system with a WM-4 Receiver and a SiriusXM® Marine Satellite Weather subscription. Add audio to your Marine Weather or Fish Mapping* subscription and get access to more than 140 SiriusXM® radio channels at a discount.

Fast & Simple Networking & Connectivity

Industry-standard connectivity to create multi-display systems and link to all on-board electronics, engine and fuel monitoring in real-time, control of on-board sound systems, and much more.

Includes system expansion with Simrad modules and accessories, advanced fish-finding tools such as deepwater S5100, Active Imaging™ 3-in-1 or TotalScan™, increased situational awareness with legendary HALO® Pulse Compression radar, and automated control with a fully integrated Simrad autopilot.

What's In The Box?

• Display Unit
• Bezel Trim
• Documentation pack
• Power cable kit
• U-bracket kit
• Panel mounting kit

Connections:

• Ethernet - 2x Ethernet network
• Power - power, power control, and external alarm
• Video- composite video and NMEA0183
• NMEA 2000 - NMEA 2000 data
• Sonar CH1
• Sonar CH2

HALO20+ 20" Radar with 10M Cable

See Far And Near With One Compact Dome

Perfect for wide mid-sized to large sailboats, HALO20+ comes in a compact 20-inch dome antenna and delivers high-quality short, mid, and long-range detection. Monitor two distance ranges at once in Dual Range mode so you can keep an eye on faraway weather cells while watching for collision hazards up close. HALO20+ radar’s pulse compression technology means no compromises in detection at either selected range, while beam sharpening provides enhanced separation between small or distant targets.

The Best View To Avoid Collision

HALO20+ radar does a full 360-degree sweep every second, thanks to its industry-first 60 RPM rotation at ranges up to 1.5 nautical miles. These ultra-fast updates give you an almost real-time view at close range, offering the ultimate view for collision avoidance of fast-moving targets.

Built-in VelocityTrack™ Doppler Technology

VelocityTrack™ technology grants instant visual feedback on whether targets are coming towards you or moving away with color-coding approaching vessels for high visibility while de-emphasizing diverging targets, increasing situational awareness, and decreasing the risk of collision. HALO20+ radar automatically checks every target in range; there’s no need to manually select individual targets, and no limit to the number of targets on screen at one time.

Ready Whenever You Are

HALO20+ Radar wakes instantly from its low-power standby mode, delivering this high-speed radar coverage exactly where and when you require it. Even if your HALO20+ Radar is completely powered down, start-up only takes some seconds, not minutes like traditional pulse radar.

Easy to Use Radar

Harbor, offshore, weather and custom modes tune HALO20+ Radar’s advanced signal processing to help ensure that targets can be seen vividly – even in the toughest environmental conditions.

Features:

• 36 nm range from a compact 20-inch dome
• Advanced pulse compression technology with beam sharpening
• Simultaneous Dual Range operation sees both far and near
• Ultra-fast 60 RPM operation at ranges up to 1.5 nm
• VelocityTrack™ Doppler technology to avoid collision
• Easy operation with the harbor, offshore, weather, and custom modes
• MARPA target tracking (up to 10 targets, 20 in dual range)
• Ready instantly from standby
• Low power consumption

What's In The Box?

• 20" dome
• 10m cable (000-14548-001)
• Ethernet Adapter Cable (000-14552-001)
