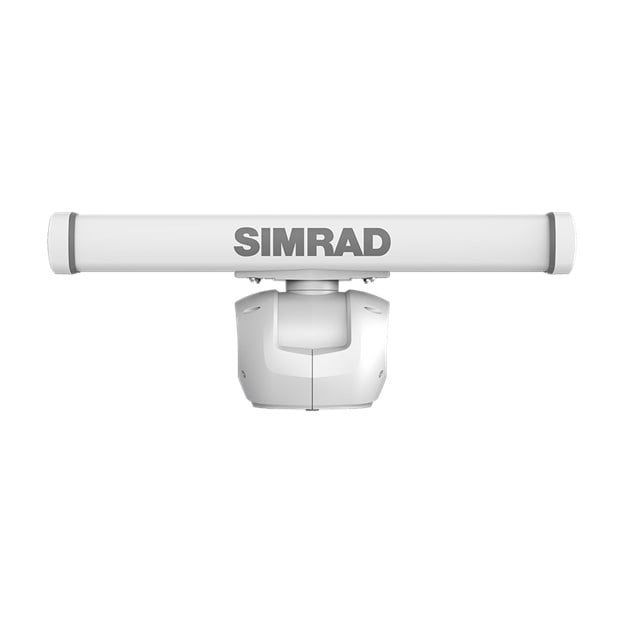

Simrad HALO® 2003 Radar w/3' Open Array & 20M Cable Product Description
Benefit from safer navigation and unmatched ease of use with the new HALO ® 2000 Open Array radar. Advanced Pulse Compression technology allows you to detect birds, hazards and storms with superior precision across both short and long distances. While the range of Preset Modes and enhanced power provide constant peace of mind. The HALO ® 2000 and 3000 array radars offer a premium experience on the water. An impressive 50 Watt of power: equivalent to a 12 Kilowatt magnetron radar: delivers an unrivalled combination of short- and long-range coverage that enables you to see targets from six meters (20 Feet) out to 72 (and 96) nautical miles with exceptional clarity. Pulse Compression technology powers confident navigation through marinas, and superior storm and hazard detection across a greater distance. The HALO ® array series not only increase situational awareness and collision avoidance, but also offer higher-resolution target detection you wont find in lower-powered radars.
Simrad 0015758001 Attributes
-
Radar Type: Open Array
-
Size: 36 Inch Array
-
Range: 75 Meters To 72 Nautical Miles
-
Rotation Speed: 16 To 48 RPM
-
Power Output: 50 Watt
-
Dimension: 12.76 Inch Length x 13.35 Inch Width x 16.81 Inch Height
-
Color: White
-
Waterproof Rating: IPX6 Rating Waterproof
-
Includes: With Power And Ethernet Cable/ Pedestal
Simrad 0015758001 Features & Benefits
- 50 Watt Power For Longer Range And Higher-Resolution Target Detection
- Advanced Pulse Compression Technology With Beam Sharpening
- Simultaneous Dual Range Operation
- Easy Operation With Harbor, Offshore, Weather, And Bird Modes
- Track Up To 50 Targets With ZoneTrack
- VelocityTrack Doppler Technology For Collision Avoidance
- Dangerous Target Alerts For Radar And AIS Targets
- Ready Instantly From Standby, And In 16 To 25 Second From Power-On
- Limited 2 Year Warranty
Simrad 0015758001 Installation Instructions
Simrad 0015758001 Technical Bulletins
HALO® 2003 Radar with 3' Open Array & 20M Cable
Features:
- HALO® 2000 - 50W power for a longer range (from 6m to up to 72nm) and higher-resolution target detection
- Advanced pulse compression technology with beam sharpening
- Simultaneous Dual Range operation
- Easy operation with Harbour, Offshore, Weather, and Bird modes
- Track up to 50 targets per defined area with ZoneTrack (two areas can be defined)
- VelocityTrack Doppler technology for collision avoidance
- Dangerous Target Alerts for radar and AIS targets
- Ready instantly from standby, and in 16-25 seconds from power-on
- 3' Open Array Antenna
Benefit from safer navigation and unmatched ease of use with the new HALO® 2000 and 3000 Open Array radars. Advanced Pulse Compression technology allows you to detect birds, hazards, and storms with superior precision across both short and long distances. While the range of Preset Modes and enhanced power provide constant peace of mind.
More Power Matters
The HALO® 2000 radar offers a premium experience on the water. An impressive 50 W of power equivalent to a 12 kW magnetron radar delivers an unrivaled combination of short- and long-range coverage that enables you to see targets from six meters (20 feet) out to 72 nautical miles with exceptional clarity. Pulse Compression technology powers confident navigation through marinas, and superior storm and hazard detection across a greater distance. The HALO® array series not only increase situational awareness and collision avoidance but also offer higher-resolution target detection you wont find in lower-powered radars.
Safer Navigation
The HALO 2000 series boast an array of new features that make navigation safer and offer peace of mind. ZoneTrack brings the best of professional boating technology to recreational users, allowing them to track up to 50 vessels within a defined area, automatically detecting their course and speed. HALOs Dangerous Target Alerts highlight range, graphical bearing, and heading of other vessels relative to yours. Meanwhile, VelocityTrack uses Doppler technology to show targets color-coded so you can identify potential threats at a glance. Because, when it comes to safety, situational awareness is everything.
Building on the HALO Legacy
The next generation of pulse compression radars, HALO 2000 and 3000 build on the features that have made HALO an established choice for boaters across the globe. The solid-state technology gets you up and running quickly, and HALOs low-power pulsed transmissions make it safe to run in harbors and marinas. Dual Range mode allows you to keep an eye on distant weather cells while monitoring channel markers and high-speed watercraft up close. Advanced digital signal processing gives you a clearer view of targets, helping eliminate sea clutter, while Beam Sharpening provides enhanced separation between small or distant targets. Finally, HALO 2000 and 3000 have the same footprint as their predecessors, making it easy to upgrade your current system. Its also compatible with a range of Simrad® chart plotters, including NSS, NSX, NSO, and GO.
Easier Operation
Designed with an intuitive interface HALO arrays make operation easier with smart features like Harbour, Offshore, Bird, and Weather modes. These Preset Modes require no manual tuning just select your chosen mode and go. This simple approach also extends to fishing, with HALOs powerful bird-finding capability which enables boaters to find flocks of birds and more importantly schools of fish at a distance.
What's Included:
- 000-11464-001 HALO Antenna - 3ft
- 000-15762-001 HALO 200X Pedestal
- 000-15768-001 20M Cable
- 000-15757-001 RI-50 Power Supply
Frequently Asked Questions (FAQ) About Simrad HALO® 2003 Radar w/3' Open Array & 20M Cable
Who is the Simrad?
Simrad is part of the Norway-based Navico family, a worldwide leader in marine electronics. Simrad manufactures a full line of sophisticated marine electronics systems for the recreational yachting and light commercial markets. Simrads products are based on six core areas of expertise: radar, echo sounding, communications, automatic steering, navigation and system integration.
How to describe Simrad HALO® 2003 Radar w/3' Open Array & 20M Cable?
"
Simrad Halo 2003 50w Pulse Compression Radar System with 3' Antenna, 20m Cable and RI-50
Model: 000-15758-001
- HALO 2000 - 50W power for longer range (from 6m to up to 72nm) and higher-resolution target detection
- Advanced pulse compression technology with beam sharpening
- Simultaneous Dual Range operation
- Easy operation with Harbour, Offshore, Weather, and Bird modes
- Track up to 50 targets per defined area with ZoneTrack (two areas can be defined)
- VelocityTrack Doppler technology for collision avoidance
- Dangerous Target Alerts for radar and AIS targets
- Ready instantly from standby, and in 16-25 seconds from power-on
Benefit from safer navigation and unmatched ease of use with the new HALO® 2000 and 3000 Open Array radars. Advanced Pulse Compression technology allows you to detect birds, hazards and storms with superior precision across both short and long distances. While the range of Preset Modes and enhanced power provide constant peace of mind.
The HALO® 2000 radar offers a premium experience on the water. An impressive 50 W of power equivalent to a 12 kW magnetron radar delivers an unrivaled combination of short- and long-range coverage that enables you to see targets from six meters (20 feet) out to 72 nautical miles with exceptional clarity. Pulse Compression technology powers confident navigation through marinas, and superior storm and hazard detection across a greater distance. The HALO® array series not only increase situational awareness and collision avoidance but also offer higher-resolution target detection you wont find in lower-powered radars.
The HALO 2000 series boast an array of new features that make navigation safer and offer peace of mind. ZoneTrack brings the best of professional boating technology to recreational users, allowing them to track up to 50 vessels within a defined area, automatically detecting their course and speed. HALOs Dangerous Target Alerts highlight range, graphical bearing, and heading of other vessels relative to yours. Meanwhile, VelocityTrack uses Doppler technology to show targets color-coded so you can identify potential threats at a glance. Because, when it comes to safety, situational awareness is everything.
The next generation of pulse compression radars, HALO 2000 and 3000 build on the features that have made HALO an established choice for boaters across the globe. The solid-state technology gets you up and running quickly, and HALOs low-power pulsed transmissions make it safe to run in harbors and marinas. Dual Range mode allows you to keep an eye on distant weather cells while monitoring channel markers and high-speed watercraft up close. Advanced digital signal processing gives you a clearer view of targets, helping eliminate sea clutter, while Beam Sharpening provides enhanced separation between small or distant targets. Finally, HALO 2000 and 3000 have the same footprint as their predecessors, making it easy to upgrade your current system. Its also compatible with a range of Simrad® chart plotters, including NSS, NSX, NSO, and GO.
Designed with an intuitive interface HALO arrays make operation easier with smart features like Harbour, Offshore, Bird, and Weather modes. These Preset Modes require no manual tuning just select your chosen mode and go. This simple approach also extends to fishing, with HALOs powerful bird-finding capability which enables boaters to find flocks of birds and more importantly schools of fish at a distance.
Specifications| Environmental |
| Operating temperature | -25°C to +55°C (-13°F to +131°F) |
| Relative humidity | IEC60945 Exposed product |
| Vibration | IEC60945 Exposed product |
| UV | IEC60945 Exposed product |
| Waterproofing | IPX6 for the pedestal and antenna, IPX5 for the RI-50 interface module |
| Relative wind velocity | HALO 2000 and HALO 3000 radars with 3 ft, 4 ft or 6 ft antenna have a wind rating of 80 knots at 48 rpm in both 24V and 12V systems. |
| Power |
| Power consumption | 235 W (peak, 12V) at maximum wind velocity, 380 W (peak, 24V) at maximum wind velocity, 45-60 W (average) at zero wind velocity, 11 W (average) in standby mode. Refers to RI-50 input terminals |
| DC Input | Radar system input 12 OR 24 V DC into the RI-50: 12 V Systems 10.8 - 15 V DC, 24 V Systems 20 - 31.2 V DC. Pedestal voltage input is 50 V DC nominal generated by RI-50 |
| Power up time | 30-40 seconds from POWER OFF to TRANSMIT |
| Physical |
| Height | 429 mm (16.88") with antenna mounted |
| Antenna swing circle diameter | 3 ft model: 3.75 ft / 1142 mm / 44.96" |
| Pedestal weight | 20.3 Kg (44.8lb) |
| RI-50 weight | 1.6 Kg (3.5 lb) |
| 10 m (33 ft) cable weight | 1.6 Kg (3.5 lb) |
| Antenna |
| Rotation speed | 16 to 48 rpm depending on operating mode |
| Beam width | 3 ft model: 2.4°+/-10% (-3 dB width) 1.7° with Beam sharpening mode on |
| Beam width Vertical | 25° +/-10 % (-3 dB width) |
| Plane of polarization | Horizontal polarization |
| Sidelobe level 3 ft | Below -23 dB max. (within ±10°), Below -30 dB max. (outside ±10°) |
| Radar |
| Peak power output | 50 W ± 10% under any transmit condition up to 10% duty cycle max |
| Transmitter | Solid state module with no long-term transmitter power degradation |
| Transmitter frequency | Synthesized - Upper half of X-Band 9.390 - 9.495 GHz |
| Pulse length | 0.04 usec |
| Chirp length | 2-64 usec |
| Chirp bandwidth | 2-48 MHz. Up to 1 pulse and 4 chirps in a burst with burst repetition rate of 500-3000Hz. Range and mode dependent. |
| Effective pulse compression ratio | less than 150 in all modes. |
| Instrumented range | 72 nm |
| SART/RACON triggering | Yes trigger distance: about 1nm max weather, sea state, and SART position dependent |
| Duplexer | Circulator and isolator |
| LNA | GaAs front-end |
| IF section | Center frequency: 31.25 MHz Bandwidth: 50 MHz max.* A/D; 16 bit 125 MSPS *Narrower bandwidths defined by signal processing |
| Noise figure | 5 dB (Min) at antenna input |
| Compass safe distance; Pedestal | STD. 1.0 m (3.3 ft), Steer 0.5 m (1.6 ft) |
| Compass safe distance; RI-50 | 1.0 m (3.3 ft) |
| Other |
| Communication ports | Ethernet 10/100 Base-T RJ-45 for radar data and control |
| Transmit synchronization | RS-422 output |
| Remote power on | yes |
| Antenna park hold | Yes (while radar is unpowered) |
| Motor | Brushless with solid state commutation with electromagnetic braking for parking |
What's in the Box:- Halo 200x Pedestal
- RI-50 Power Supply
- 20m Power and Ethernet cable
- 3' Antenna
"
What's the color of Simrad HALO® 2003 Radar w/3' Open Array & 20M Cable?
What is the waterproof rating of the product?
Buy with the best price
Simrad HALO® 2003 Radar w/3' Open Array & 20M Cable for only
$6399 from NVN Marine! Same day free shipping before 3pm.
Simrad HALO® 2003 Radar w/3' Open Array & 20M Cable Technical Specifications
| Type: |
|
| Vendor: |
Simrad
|
| Array Size (Inches): |
3FT
|
| Power - Output: |
50W
|
| Range - Max (Miles): |
72NM
|
