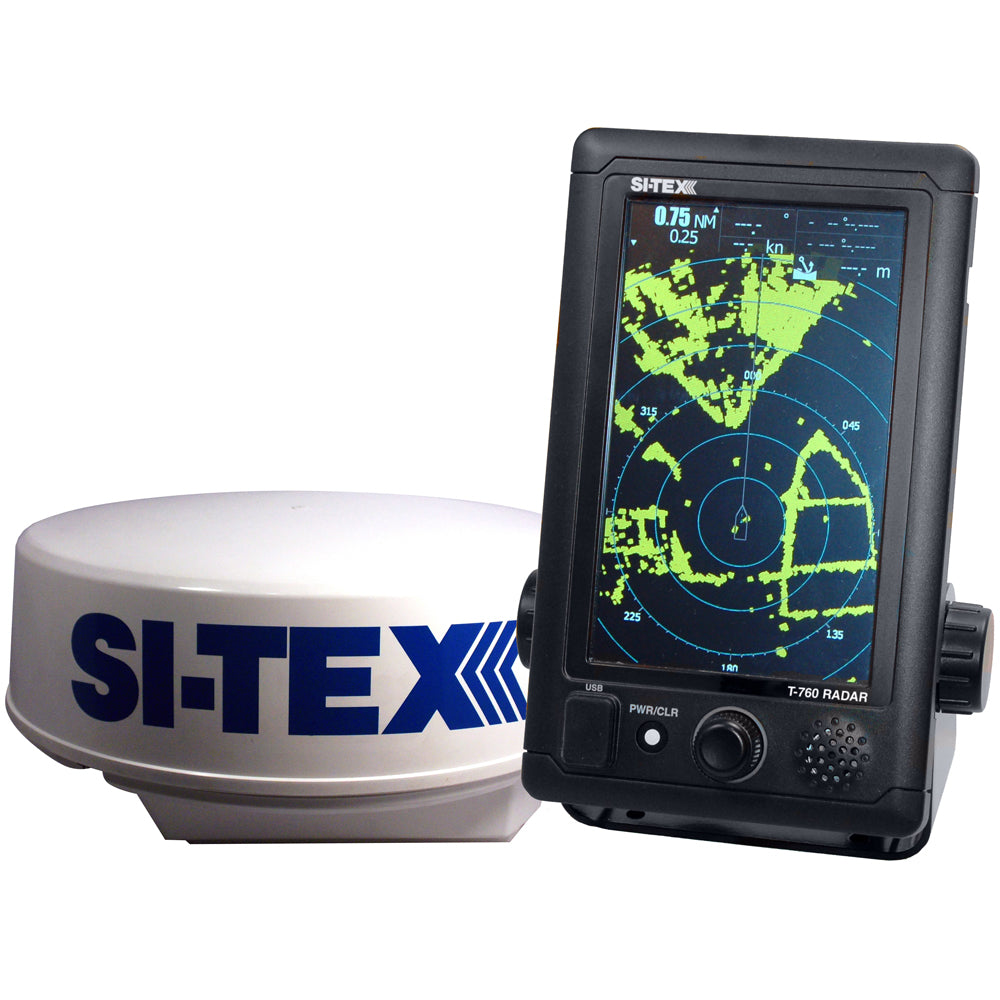

SI-TEX T-760 Compact Color Radar w/4kW 18" Dome - 7" Touchscreen Product Description
Si-Tex T-760 Radar7" Color Touchscreen LCD with 18" 4KW RadomeThe T-760 Series Radar proves that you don't need a big boat or deep pockets to benefit from today's best marine radar technology. This newest member of the SI-TEX radar family brings advanced features like touch screen control, AIS target tracking and standard MARPA (Mini Automatic Radar Plotting Aid) to a wide audience of cruisers, sailors and fishermen.One glance at the new SI-TEX T-760 Series makes it clear why this new radar is such a great "fit" for so many boats - and boaters. Its compact, slim case and vertically oriented, 7-inch (800X480 pixel) touchscreen color LCD display allow for versatile mounting options, even on small and/or crowded consoles and helm stations.The T-760 Series case measures only 5.4" W X 8.9" H X 3.5" D. Yet, this system boasts a long list of professional-grade features, including powerful 4kW output, up to 48nm range, multi-speed antenna rotation, standard 50-target AIS tracking capability and standard 10-target MARPA - features often associated with larger, costlier systems. Control of all these features is achieved via the T-760's touch screen LCD display and single rotary encoder dial, for simple, intuitive operation.The T-760 is equipped with an 18-inch compact radome antenna for solid performance in a wide range of conditions and range scale choices from 1/8th nm to 24nm. The T-760 features a powerful 4kW transmitter, ensuring accurate detection and presentation of targets large and small. It also offers multi-speed antenna rotation (16/27/36/48rpm) for optimum target detection and tracking over a range of boat speeds.Among many other notable standard features of the T-760 Series are Relative Motion, True Motion, North-Up, Head-Up and Course-Up presentation modes, Auto or Manual Sea/Rain Clutter modes, 11 Trail Indication settings (including Off and Continuous), and more.
Si-Tex T760 Attributes
-
Antenna Size: 18" radome
-
Interface: NMEA 0183 in; optional RGB video output
-
Voltage: 12-24 VDC
-
Beamwidth: 5.2; horizontal
Si-Tex T760 Features & Benefits
T-760 Compact Color Radar with 4kW 18" Dome
Big radar performance and features are available for any size boat -- and budget with the SI-TEX T-760. A vertically oriented, slim case boasts advanced touch screen technology and a host of professional features. Powerful 4kW output ensures superior target acquisition and tracking in the the most challenging conditions.
The T-760 Series case measures only 5.4" W X 8.9" H X 3.5" D. Yet, this system boasts a long list of professional-grade features, including powerful 4kW output, up to 24nm range, multi-speed antenna rotation, standard 50-target AIS tracking capability and standard 10-target MARPA - features often associated with larger, costlier systems. Control of all these features is achieved via the T-760's touch screen LCD display and single rotary encoder dial, for simple, intuitive operation.
The series includes the T-760, equipped with an 18-inch compact radome antenna for solid performance in a wide range of conditions and range scale choices from 1/8th nm to 24nm. Both the T-760 and T-761 feature powerful 4kW transmitters, ensuring accurate detection and presentation of targets large and small. Both models also offer multi-speed antenna rotation (16/27/36/48rpm) for optimum target detection and tracking over a range of boat speeds.
Among many other notable standard features of the T-760 Series are Relative Motion, True Motion, North-Up, Head-Up and Course-Up presentation modes, Auto or Manual Sea/Rain Clutter modes, 11 Trail Indication settings (including Off and Continuous), and more. With input from a SI-TEX Metadata AIS module (or other AIS receiver), the T-760 Series can track up to 50 AIS targets simultaneously for enhanced navigational safety in crowded waterways. With input of bearing, ship's speed and lat/lon data, the T-760 Series empowers navigators with professional MARPA tracking of up to 10 targets at distances up to 20nm.
In the SI-TEX tradition, the T-760 Series radar is ruggedly built to withstand harsh conditions at sea on commercial as well as recreational vessels. SI-TEX's two-year limited warranty and Long Island, New York-based service department are the navigator's assurance of reliable performance and long-term satisfaction
Features:
- 7" color LCD display
- 10M Cable
- Intuitive touch screen/rotary dial control
- Standard 50 target AIS tracking
- Standard 10 target MARPA
- Multi-speed (16-48 rpm) antenna rotation for optimum performance in real-world conditions
- Features include Relative Motion/True Motion/Head-Up/North-Up
- Optional color RGB video output
The T-760 series has a 4kW 18-inch radome system (SI-TEX) with a 7-inch display (T-760). SI-TEX marine electronics has launched its 2014 new T-760 series radar, proving that you do not...
Frequently Asked Questions (FAQ) About SI-TEX T-760 Compact Color Radar w/4kW 18" Dome - 7" Touchscreen
Who is the SI-TEX?
There's an old saying, "If it ain't broke, don't fix it!" This sums up the SI-TEX philosophy perfectly. Thanks to strong products built in the SI-TEX tradition of simplicity, performance and reliability, friendly and responsive technical support, SI-TEX business has been steadily growing. SI-TEX is committed to developing new products based on the ways customers really use their boats, rather than just cramming in a bunch of costly bells and whistles for the sake of marketing buzz.
How to describe SI-TEX T-760 Compact Color Radar w/4kW 18" Dome - 7" Touchscreen?
The T-760 series has a 4kW 18-inch radome system (
SI-TEX) with a 7-inch display (T-760).
SI-TEX marine electronics has launched its 2014 new T-760 series radar, proving that you do not...
- The T-760 Compact Color Radar is the best radar on the market.
- It has a 4kW 18" Dome with big radar performance and features for any size boat -- and budget.
- The T-760 Compact Color Radar has a vertically oriented, slim case that boasts advanced touch screen technology and a host of other features.
- The SI-TEX T-760 is a compact color radar with 4kW 18" dome that provides big radar performance and features for any size boat.
- This vertically oriented, slim case comes with advanced touch screen technology and a host of features to meet your needs.
The SI-TEX T-760 Compact is an AIS Ship Radar with a 7" color wide LCD display and a TOUCH screen. It has a high performance 4kW 1.5ft (T-760 24NM)/2ft (T-761 48NM) radar antenna for scanning the water's surface and detecting ships at a range of up to 24 nautical miles (T-760) or 48 n
What is the working voltage of the product?
12-24 VDC
- The T-760 Compact Color Radar is the best radar on the market.
- It has a 4kW 18" Dome with big radar performance and features for any size boat -- and budget.
- The T-760 Compact Color Radar has a vertically oriented, slim case that boasts advanced touch screen technology and a host of other features.
- The SI-TEX T-760 is a compact color radar with 4kW 18" dome that provides big radar performance and features for any size boat.
- This vertically oriented, slim case comes with advanced touch screen technology and a host of features to meet your needs.
- The TOUCH screen is as intuitive as it gets, making it easy to navigate through the menus and settings.
- The scanner can scan up to 50 targets at a time at speeds of up to 24NM/sec or 2ft/sec.
- With MARPA technology, you can track 10 targets simultaneously with speeds of up to 48NM/sec or 3ft/sec.
- The TOUCH screen makes it easy to use, no need for a mouse or keyboard.
- High quality 7 inch color wide LCD display with TOUCH screen.
- Hi-performance 4kW 1.5ft ( T-760 24NM)/2ft (T-761 48NM) radome scanner.
- Easy operation with TOUCH and rotary encoder dial.
What is the screen size of the product?
What is the controlling interface of the product?
NMEA 0183 in; optional RGB video output
What is the maximum range (miles) of the product?
Save
$524 when you buy the
SI-TEX T-760 Compact Color Radar w/4kW 18" Dome - 7" Touchscreen for only
$1824 from NVN Marine! Same day free shipping before 3pm.
SI-TEX T-760 Compact Color Radar w/4kW 18" Dome - 7" Touchscreen Technical Specifications
| Type: |
|
| Vendor: |
SI-TEX
|
| Weight: |
30.0 lb
|
| Range - Max (Miles): |
24nm
|
| Screen Size: |
7"
|
| User Guide: |
|
| Product Manual: |
|
| Product Brochure: |
|
