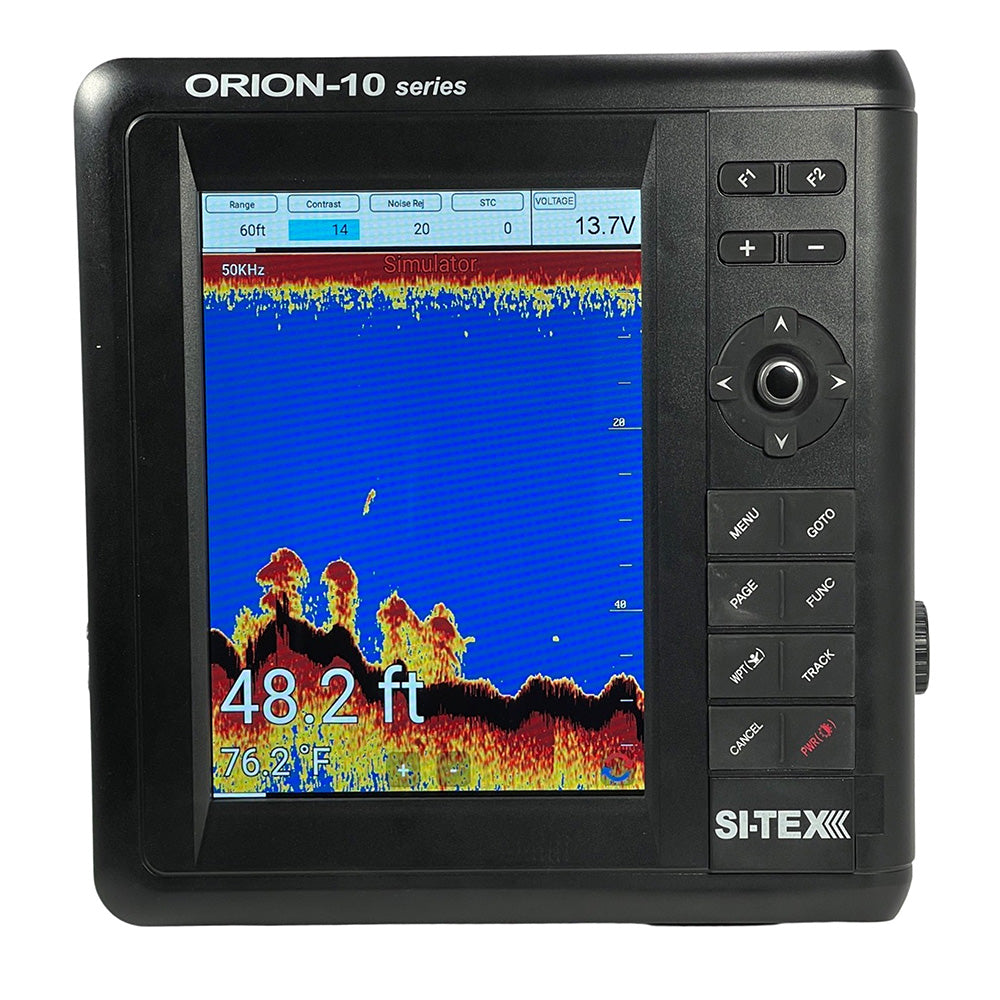

SI-TEX 10" Chartplotter/Sounder Combo w/Internal GPS & C-MAP 4D Card

No reviews yet Write a Review
$2,346.25
SKU:
ORIONCF
Condition:
New
5 customers are viewing this product

SI-TEX 10" Chartplotter/Sounder Combo w/Internal GPS & C-MAP 4D Card

$2,346.25

SI-TEX 10" Chartplotter/Sounder Combo w/Internal GPS & C-MAP 4D Card Product Description

10" Chartplotter/Sounder Combo with Internal GPS & C-MAP 4D Card

10.4” Touch Screen with Heavy Duty Silicone Keypad so operators can choose to use either the Touch Screen or the Keypad to Operate. The unit can also be programmed to switch between Day Time and Night Time Screens by the operator at custom-selected times.

It has the unique ability to be set up in either Portrait or Landscape Layouts. The mounting bracket has two different attachment points to accommodate the screen layouts. And with a simple menu command, the screen will rotate 90’ degrees from Portrait to Landscape format depending on the customer's preference.

The unit is very quickly flush-mounted with removable trim pieces on the top and bottom edges to allow the unit to be screwed in from the front.

Features:

  • 100,000 waypoints (A total of 16 colors and 16 icons are selectable for each point with a name tag (8 alphanumeric characters)
  • 50,000 track points (2 types)
  • 100 routes max capacity (20 WPTs per each Route. Each with name tags)
  • Uses the C-Map 4D Cartography Only
  • Internal GPS antenna and the option for a simple passive GPS antenna if needed
  • 52 Channel GPS Receiver that works with U.S. GNSS, Russian GLONASS, and the European GALILEO GPS Networks.
  • Network Data Connections – NMEA-2000 & NMEA-0183

Chartplotter Technical Specifications:

  • Horizontal Positioning Accuracy - Autonomous 2.5m (CEP 50%)
  • Sensitivity - Acquisition (-148 dBm), Tracking (-165 dBm), Reacquisition (-162 dBm)
  • Nav Update - 1Hz, 5Hz
  • Latitude Limits - Between 85°N to 85°S
  • Map Scale - 0.05nm to 1500nm
  • Display Screen - 10.4-inch Color LCD with LED backlight
  • Resolution - SVGA (800 X 600 pixels)
  • Power Supply - DC 12V-36V(+-10%) 12W
  • Operating Temperature - -15°C+50°C

Fishfinder Technical Specifications:

  • Display Mode - Normal (single/dual-frequency), Bottom-lock, Bottom-zoom, A-scope
  • Frequency - 50 and 200 KHz (single or dual)
  • Output Power - 600W/1.5W
  • Range - 600W : 2.5m 600m / 1.5KW: 2.5m 1500m
  • Image speed - Fixed 8 speeds (4/1, 2/1, 1/1, 1/2, 1/4, 1/8, 1/16, 1/32) and stop
  • Function - Gain (auto/manual), Range (auto/manual), Depth with shift (auto/manual), Pulse length selection, White/Black line, Water temperature, Support speed sensor

In the Box:

  • Display Unit
  • Protector
  • Mounting Bracket
  • Bracket Knobs
  • Fuse & Bolt
  • Power Cable
  • Owner's Manual




Frequently Asked Questions (FAQ) About SITEX 10" CHARTPLOTTER/SOUNDER COMBO W/ INTERNAL GPS & C-MAP


Who is the SI-TEX?

There's an old saying, "If it ain't broke, don't fix it!" This sums up the SI-TEX philosophy perfectly. Thanks to strong products built in the SI-TEX tradition of simplicity, performance and reliability, friendly and responsive technical support, SI-TEX business has been steadily growing. SI-TEX is committed to developing new products based on the ways customers really use their boats, rather than just cramming in a bunch of costly bells and whistles for the sake of marketing buzz.


Save $420 when you buy the SI-TEX 10" Chartplotter/Sounder Combo w/Internal GPS & C-MAP 4D Card for only $1478 from Anchor Sailor! Same day free shipping before 3pm.

SI-TEX 10" Chartplotter/Sounder Combo w/Internal GPS & C-MAP 4D Card Technical Specifications

Type:

Vendor:

SI-TEX

Cartography Brand:

C-Map

Screen Size:

10.4"

Touchscreen:

Yes

Transducer Included:

No

Product Manual:
