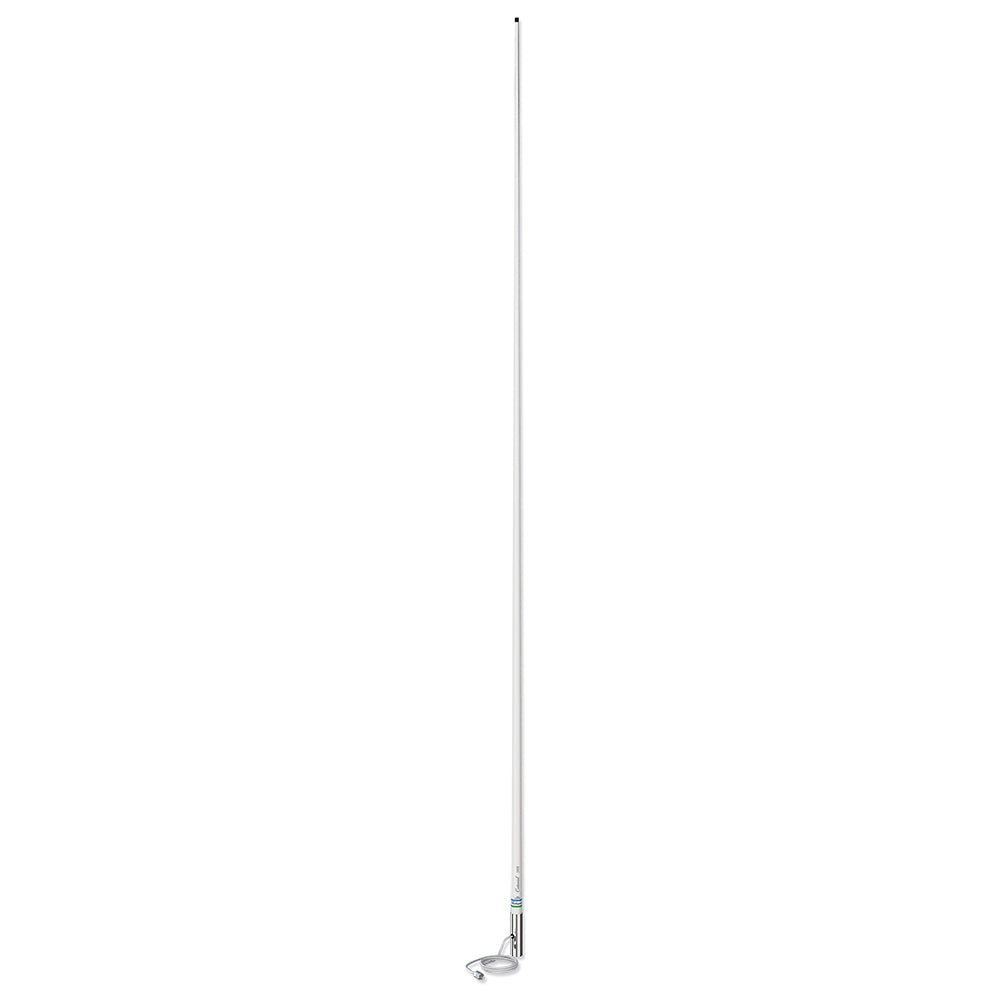

Shakespeare 5101 8' Classic VHF Antenna w/15' Cable Product Description
Built for value without compromising performance or durability, the Classic Series covers the widest variety of vessels in the Shakespeare ® family. These antennas keep you connected and meet essential communication needs while offshore.
Shakespeare 5101 Attributes
-
Compatibility: VHF Marine Radio
-
Type: Monopole
-
Length: 8 Feet
-
Gain: 6 Decibel
-
Mounting Type: Ratchet Mount
-
Color: White
-
Material: Brass Ferrule
Shakespeare 5101 Features & Benefits
- Smooth, Durable, High-Gloss White Or Fiberglass Finish Prevents Yellowing
- Brass And Copper Elements Provide Standard Range And Reception
- Chrome-Plated Brass Or Nylon Ferrule With Standard 1: -14 Thread Provides For Basic Install
- Easy To Install
- Limited 2 Year Warranty
5101 8' Classic VHF Antenna with 15' Cable - Reduced Length Version
END-FED WITH MATCHING STUB
A standard of excellence in an economical antenna! Shakespeare brings you the best of the high-end features in an 8' antenna with a brass element and a smooth, high gloss, polyurethane finish that wont turn yellow in the sun. This antenna delivers not only performance, but superb value.
Features:
- Brass and copper elements
- Chrome-plated brass ferrule with standard 1"-14 thread
- Includes 15' RG-58 cable and a PL-259 connector
- Suggested mount: Shakespeare Style 4187 Ratchet Mount, or use a Shakespeare Style 410-R Mounting Kit plus a Style 4008 Extension Mast to form a 16' antenna system
- One section
- Shakespeare Limited Warranty: 2 years
Technical Specifications:
- Frequency: VHF Marine Band
- Bandwidth: (within 2.0 1 SWR): 5 MHz
- SWR: 1.5:1 at 156.8 MHz
- Impedance: (Ohms): 50
- Gain: 6 dB
- Max. Input (Watts): 50
- DC Ground: YES - however, the antenna will read "open circuit" when tested with ohmeter.
- Termination: 15' RG-58 cable
- Height (feet): 8'
- Polarization: Vertical
- Radiation pattern: Omni - directional
Shakespeareââ¬â¢s new 5101 Centennial Antenna is an eight-foot, 6dB end-feed design with matching stubs. It sets a new standard of excellence for economical antennas! With the help of Centennial 5101, Shakespeare brings you the best of high-end features. Its 8'antenna has brass elements and a smooth, high-gloss polyurethane coating that will not turn yellow in the sun. This antenna not only has excellent performance, but also has extraordinary value.
Shakespeare Style 414 Shim Kit for Ratchet Mounts
Shakespeare 5187 Stainless Steel Ratchet Mount
Frequently Asked Questions (FAQ) About Shakespeare 5101 8' Classic VHF Antenna w/15' Cable
Who is the Shakespeare?
How to describe Shakespeare 5101 8' Classic VHF Antenna w/15' Cable?
What is the type of the product?
What is the material of Shakespeare 5101 8' Classic VHF Antenna w/15' Cable?
How long is the product? (Inches)
What is the length of the product?
What is the mounting type of the product?
What is the length of product?
What is the weight of the product?
What's the color of Shakespeare 5101 8' Classic VHF Antenna w/15' Cable?
What is the constuction of product?
What is the compatibility of this product?
What is the ferrule type of the product?
What is the BAND of the antenna?
Who is the Shakespeare?
Celebrating over 100 years of innovation, Shakespeare is the dominant force worldwide in marine antennas, and a world leader in military and commercial antenna technology. When you see a Shakespeare antenna you know our master craftsmen built it with their very own hands. They hand assemble and hand finish every antenna.
How to describe Shakespeare 5101 8' Classic VHF Antenna w/15' Cable?
Shakespeareââ¬â¢s new 5101 Centennial Antenna is an eight-foot, 6dB end-feed design with matching stubs. It sets a new standard of excellence for economical antennas! With the help of Centennial 5101, Shakespeare brings you the best of high-end features. Its 8'antenna has brass elements and a smooth, high-gloss polyurethane coating that will not turn yellow in the sun. This antenna not only has excellent performance, but also has extraordinary value.
What is the type of the product?
What is the material of Shakespeare 5101 8' Classic VHF Antenna w/15' Cable?
How long is the product? (Inches)
What is the length of the product?
What is the mounting type of the product?
What is the length of product?
What is the weight of the product?
What's the color of Shakespeare 5101 8' Classic VHF Antenna w/15' Cable?
What is the constuction of product?
What is the compatibility of this product?
What is the ferrule type of the product?
What is the BAND of the antenna?
Save
$38 when you buy the
Shakespeare 5101 8' Classic VHF Antenna w/15' Cable for only
$71 from NVN Marine! Same day shipping before 3pm.
Shakespeare 5101 8' Classic VHF Antenna w/15' Cable Technical Specifications
Type: |
Communication | Antennas
|
Vendor: |
Shakespeare
|
Weight: |
1.6 lb
|
Antenna Band: |
VHF
|
Color: |
White
|
Construction: |
Fiberglass
|
Ferrule Type: |
Chrome Plated
|
Length (Inches): |
8'
|
User Guide: |
Download PDF
|
