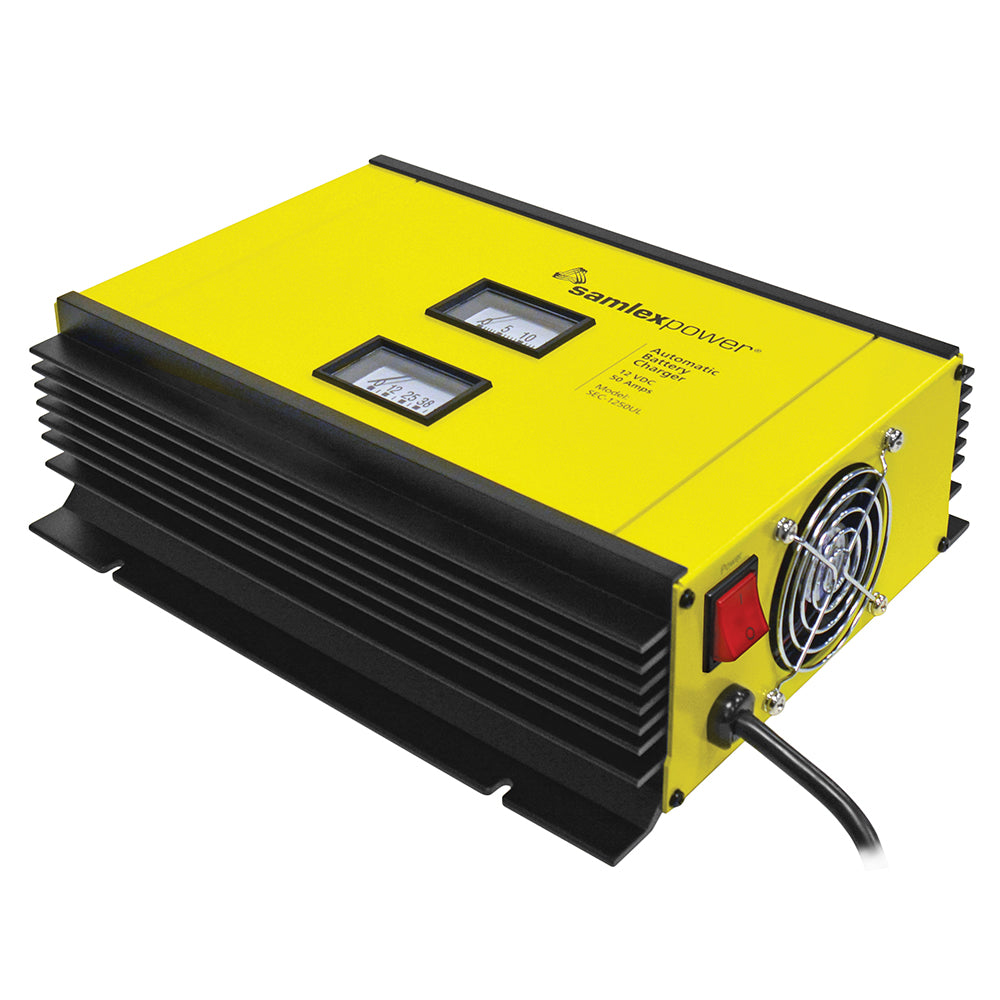

Samlex 50A Battery Charger - 12V - 2-Bank - 3-Stage w/Dip Switch & Lugs - Includes Temp Sensor

No reviews yet Write a Review
$811.75
SKU:
SEC-1250UL
UPC:
622988083037
Condition:
New
5 customers are viewing this product

Samlex 50A Battery Charger - 12V - 2-Bank - 3-Stage w/Dip Switch & Lugs - Includes Temp Sensor

$811.75

Samlex 50A Battery Charger - 12V - 2-Bank - 3-Stage w/Dip Switch & Lugs - Includes Temp Sensor Product Description

This advanced fully automatic three-stage 50 Ampere battery charger is ideal for charging all types of 12 Volt lead-acid batteries ( Flooded / Absorbed Glass Mat (AGM) / Gel Cell) from a 120 Volt, 60 Hertz or 230 Volt, 50 Hertz AC source. By means of a DIP switch setting, conversion to a two-stage algorithm is possible to charge batteries connected to a DC load (DC UPS). The unit can also be used as a DC Power Supply. Features include overload, short-circuit and over-temperature protection. The unit allows charging of up-to 2 separate battery banks.

Samlex America SEC1250UL Attributes

  • Number Of Banks: 2
  • Application: 12 Volt AGM/ Flooded/ Gel Lead-Acid Batteries
  • Output Voltage: 12 Volt
  • Input Voltage: 120 To 230 Volt
  • Ampere Rating: 50 Amp Charging
  • Number Of Stages: 2/ 3 Stage
  • Universality: Fully Universal
  • Length (IN): 13.03 Inch
  • Width (IN): 9.61 Inch
  • Height (IN): 3.82 Inch

Samlex America SEC1250UL Features & Benefits

  • Switch Mode Technology For High Efficiency, Lightweight And Quiet Operation
  • Automatic Operation For ALL Lead Acid Batteries Flooded, AGM Or Gel Cell
  • Can Charge 2 Banks Of Batteries Simultaneously, No Isolator Necessary
  • Can Be Used As A Power Supply Or DC UPS When Used In Conjunction With A Battery
  • Protections: Short Circuit, Overload, Reverse Battery Connection And Over Temperature
  • Limited 2 Year Warranty

Samlex America SEC1250UL Installation Instructions

Samlex America SEC1250UL Technical Bulletins


50A Battery Charger - 12V - 2-Bank - 3-Stage w/Dip Switch & Lugs - Includes Temp Sensor

This advanced fully automatic three-stage 50 Amp battery charger is ideal for charging all types of 12 Volt lead-acid batteries ( Flooded / Absorbed Glass Mat (AGM) / Gel Cell) from a 120 V, 60 Hz or 230 V, 50 Hz AC source. By means of a DIP switch setting, conversion to a two-stage algorithm is possible to charge batteries connected to a DC load (DC UPS). The unit can also be used as a DC Power Supply. Features include overload, short-circuit and over-temperature protection. The unit allows charging of up-to 2 separate battery banks.

Features:

  • Switch mode technology for high efficiency, lightweight and quiet operation
  • Automatic operation for ALL Lead Acid Batteries Flooded, AGM or Gel Cell
  • Can charge 2 banks of batteries simultaneously, no isolator necessary
  • Can be used as a power supply or DC UPS when used in conjunction with a battery
  • User Configurable AC Input voltage 120 or 230 VAC, 50 / 60 Hz
  • User Selectable ( by DIP Switch) for 2 or 3 stage, rapid and safe charging of stand-alone and loaded Lead Acid Batteries
  • “Half Power Mode” reduces maximum charging current to half the rated capacity, allows for safe charging of lower capacity batteries
  • Voltmeter and Ammeter for monitoring
  • Fan cooled based on output current
  • Protections: Short circuit, overload, reverse battery connection and over temperature
  • Includes temperature sensor to prevent under/overcharging of battery if temperature varies extensively

Specifications:

  • Input: 120 VAC 60 Hz or 230 VAC 50 Hz
  • Output: 12 VDC
  • Amps: 50
  • Remote Control: 900-RC
  • Weight: 9.0 (lbs)
  • Weight: 4.1 (kg)
  • Dimensions: 13.03 x 9.60 x 3.82 (in)
  • Dimensions: 331 x 244 x 97 (mm)
  • Safety: Listed to UL Standard UL-1564, EMI Compliant to FCC Part 15(B), Class B
  • Warranty: 2 Year Limited

Applications:

  • Automotive
  • Recreational vehicles
  • Marine
  • Communications sites
  • Battery back-up systems


If the size is right, they can even charge batteries that are already exposed to external loads! The charging rate is from 10 to 80 amps, depending on the model, you can also...




Frequently Asked Questions (FAQ) About Samlex 50A Battery Charger - 12V - 2-Bank - 3-Stage w/Dip Switch & Lugs - Includes Temp Sensor










Who is the Samlex America?

To develop enduring relationships with our customers by providing innovative power conversion products supported by the best customer service in the industry. Samlex manufactures and distributes power conversion products to customers around the globe. Synonymous with providing quality products at competitive pricing and being supported by the best customer service in the industry.

How to describe Samlex 50A Battery Charger - 12V - 2-Bank - 3-Stage w/Dip Switch & Lugs - Includes Temp Sensor?

If the size is right, they can even charge batteries that are already exposed to external loads! The charging rate is from 10 to 80 amps, depending on the model, you can also...

Is this product portable?

No

What is the weight of the product?

10.6

What is the size?

13.0 x 9.6 x 3.82

What is the output voltage?

12v

What is the output voltage?

50a

What is the input voltage?

120/240v

How many banks supporting for charge?

2


Save $127 when you buy the Samlex 50A Battery Charger - 12V - 2-Bank - 3-Stage w/Dip Switch & Lugs - Includes Temp Sensor for only $511 from NVN Marine! Same day shipping before 3pm.

Samlex 50A Battery Charger - 12V - 2-Bank - 3-Stage w/Dip Switch & Lugs - Includes Temp Sensor Technical Specifications

Type:

Vendor:

Samlex America

Weight:

11.0 lb

Charger Output Voltage:

12v

Charger Output - Amps:

50a

Charging Banks:

2

Portable:

No

Charger Input - Voltage:

120/240v
