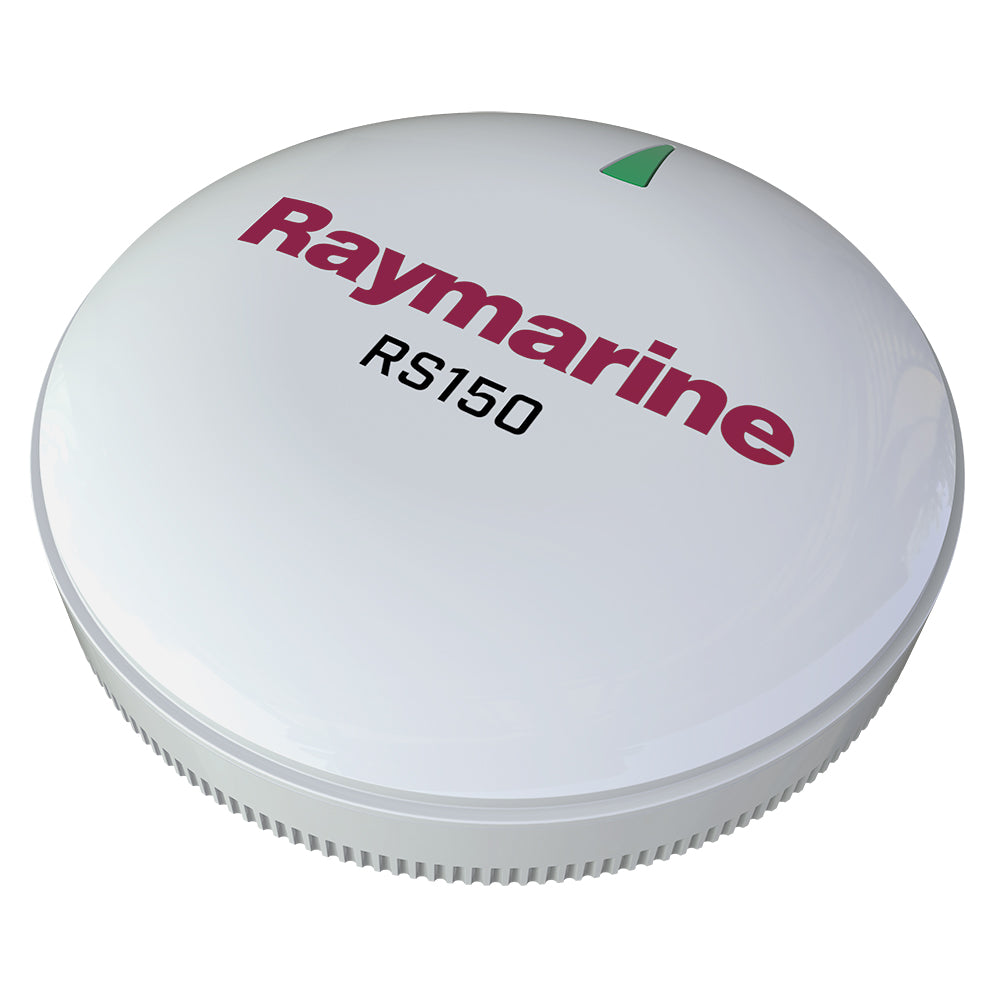

Raymarine RS150 GPS Sensor

No reviews yet Write a Review
$313.71
SKU:
E70310
UPC:
723193796917
Condition:
New
5 customers are viewing this product

Raymarine RS150 GPS Sensor

$313.71

Raymarine RS150 GPS Sensor Product Description

Raystar 150 10Hz GPS/Glonass antenna (STng)

The RS150 GPS is a high-performance, self-contained, remotely mounted GPS/GNSS sensor for Raymarine navigation systems.

Raymarine E70310 Attributes

  • Mounting Location: Surface Mount Or Pole Mount
  • Color: White
  • Temperature Range: -25 Degree Fahrenheit To 55 Degree Fahrenheit
  • Dimensions: 4.27 Inch Diameter x 1.05 Inch Height
  • Waterproof Rating: IPX6 Waterproof
  • Includes: With Mounting Gasket/ Threaded Studs/ Finger Nuts/ SeaTalkng Cable

Raymarine E70310 Features & Benefits

  • 72-Channel GPS Receiver
  • Fast 10 Hertz Position Updates
  • Satellite Differential GPS-Compatible And Space-Based Augmentation System Enabled With WASS, EGNOS, MSAS And GAGAN Support
  • GNSS Receiver With GLONASS Compatibility
  • Low Power Consumption: 30 MA
  • SeaTalk And NMEA2000 Compatible
  • Designed For Low Profile Surface Mounting Or Optional Pole Mounting
  • Limited 2 Year Warranty

Raymarine E70310 Warranties


RS150 GPS Sensor

The RS150 GPS is a high performance, 72-channel, remotely mounted GPS sensor for Raymarine navigation systems. The RS150 offers fast 10Hz position updates and enhanced accuracy. The RS150 is also a GNSS receiver and supports the GLONASS global navigation satellite system.

Features:

  • 72-channel GPS receiver
  • Fast 10Hz position updates
  • Satellite differential GPS-compatible. Space-Based Augmentation System (SBAS) enabled with WASS, EGNOS, MSAS and GAGAN support
  • A GNSS receiver with GLONASS compatibility
  • Low power consumption: 30mA (1 LEN)
  • SeaTalkng and NMEA2000 compatible (using a device net adapter cable)
  • Designed for low profile surface mounting or optional pole mounting

Specifications:

  • Nominal supply voltage: 12V D.C. Powered by N2K bus
  • Operating voltage range: 8 - 32V DC
  • Power consumption: 30 mA max (NMEA LEN = 1)
  • Operating temperature: -13ºF to 131ºF (-25ºC to +55ºC)
  • Relative humidity: max 93%
  • Waterproof: IPx6/7
  • Supported connection protocols: SeaTalkng: NMEA 2000 (certified) (via DeviceNet adaptor)
  • Sensitivity: High sensitivity - acquisition down to -163dBm
  • No. of channels: 72
  • Positioning System: GPS & GLONASS
  • Satellite Differential Type: WAAS (United States); EGNOS (Europe); MSAS (Japan); GAGAN (India)
  • Differential acquisition: Automatic
  • Position accuracy (95%): <15M
  • Position accuracy with SDGPS (95%): <5M
  • Speed accuracy (95%): <0.3kt
  • Time to first fix from cold start: <2 minutes (< 45 seconds typical)
  • Time to first fix from hot start: < 8 seconds -72 hour hold up battery allows for hot start
  • Geodetic Datum: WGS84


-RS150 GPS sensor-72 channel RS150 inherits RS130 GPS, and has faster 10Hz performance and...






Frequently Asked Questions (FAQ) About Raymarine RS150 GPS Sensor












Who is the Raymarine?

Raymarine, the world leader in marine electronics, develops and manufactures the most comprehensive range of electronic equipment. Raymarine is dedicated to the design, manufacture and distribution of the highest quality marine electronic products and services to the worldwide recreational and light commercial markets. Whether it be stand-alone units or fully integrated systems, Raymarine understands boating and what it takes to make it safer.

How to describe Raymarine RS150 GPS Sensor?

Raystar 150 10Hz GPS/Glonass antenna (STng)

What is the exterior color of product?

White

What is the type of the product?

Antennas

What's the Raymarine RS150 GPS Sensor package dimensions and weight?

6.5 (w) X 3.5 (h) X 9 (l) inches and the weight is: 1.45 lb.

What's the color of Raymarine RS150 GPS Sensor?

White

What is the waterproof rating of the product?

IPX6 Waterproof

What is the dimensions of the product?

4.27 Inch Diameter x 1.05 Inch Height

What is the connector type of the product?

NMEA2000 Micro

What is the length of cable?

3 m (10')

What is the manufacturer notes about Raymarine RS150 GPS Sensor?

Raystar 150 10Hz GPS/Glonass antenna (STng)


Save $62 when you buy the Raymarine RS150 GPS Sensor for only $272 from NVN Marine! Same day shipping before 3pm.

Raymarine RS150 GPS Sensor Technical Specifications

Type:

Vendor:

Raymarine

Weight:

1.8 lb

Type:

Antennas

Product Installation:
