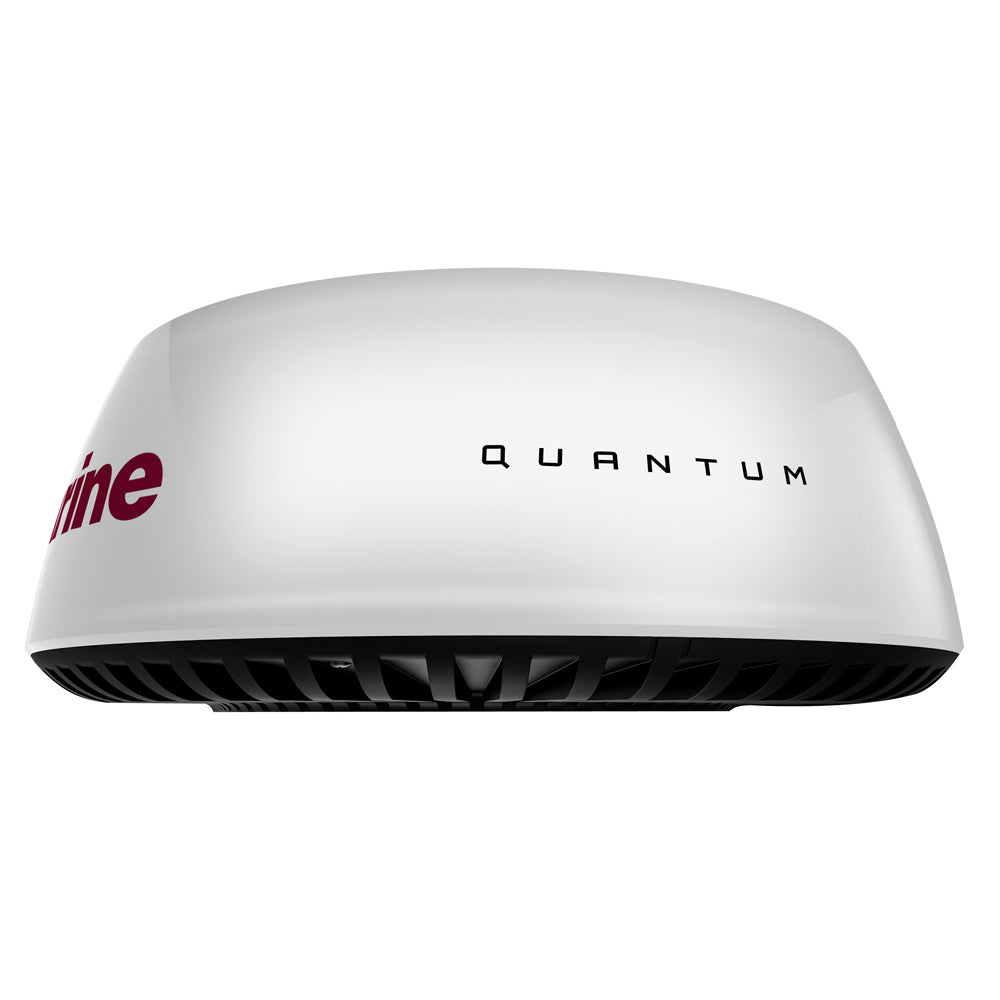

Raymarine Quantum™ Q24W Radome w/Wi-Fi Only - 10M Power Cable Included

No reviews yet Write a Review
$1,781.99
SKU:
E70344
UPC:
723193813164
Condition:
New
5 customers are viewing this product

Raymarine Quantum™ Q24W Radome w/Wi-Fi Only - 10M Power Cable Included

$1,781.99

Raymarine Quantum™ Q24W Radome w/Wi-Fi Only - 10M Power Cable Included Product Description

Raymarine Quantum is a compact, high-performance solid-state marine radar featuring CHIRP pulse compression technology. Setting a new standard for radar imaging, Quantum delivers superior radar target recognition on both long and extremely short ranges. Integrated Wi-Fi and thin cabling simplify installation plus Quantum's energy-efficient and lightweight design provides safe radiated emissions and substantially reduced power consumption.

Raymarine E70344 Attributes

  • Radar Type: Radome
  • Size: 18 Inch Dome
  • Range: 24 Nautical Miles
  • Rotation Speed: 24 RPM
  • Power Output: 17 Watt
  • Dimension: 21.3 Inch Diameter x 8-1/4 Inch Height
  • Input Voltage: 12 Volt To 24 Volt
  • Beam Width: 4.9 Degree Horizontal/ 20 Degree Vertical
  • Color: White
  • Waterproof Rating: IPX6 Rating Waterproof
  • Includes: Mounting Hardware/ 10 Meter Power Cable

Raymarine E70344 Features & Benefits

  • Provides Excellent Short-Range Detection And Enhanced Target Detail With 18 Feet Minimum Range
  • CHIRP Pulse Compression Ensures More Energy Reaches Each Target, Resulting In Superior Imaging On Long Ranges
  • Superior Interference Rejection Eliminates Noise From Other Radars
  • Easy Upgrade: Quantum Fits The Same Bolt Pattern As Other Raymarine Scanners
  • Lightweight And Easy To Install: Quantum Weighs Up To 50 Percent Less Than Comparable Magnetron Radars
  • Safe Emissions: Mount Quantum Anywhere Onboard
  • Wi-Fi Only Version Allows For A Quick, Simple Installation
  • Limited 2 Year Warranty

Raymarine E70344 Installation Instructions

Raymarine E70344 Warranties

Raymarine E70344 Technical Bulletins


Quantum™ Q24W Radome w/Wi-Fi Only - 10M Power Cable Included

Raymarine Quantum Radar, by FLIR, is the next generation of marine radar featuring CHIRP pulse compression technology.

Setting a standard for compact solid state radar, Quantum delivers superior radar imaging on both long and extremely short ranges. Integrated Wi-Fi and thin cabling simplifies installation plus Quantum's energy efficient and lightweight design provides safe radiated emissions and substantially reduced power consumption.

Superior Radar Imaging
FLIR's exclusive ATXT advanced target separation technology displays targets like boats, landmarks, rocks, buoys, and weather cells with unsurpassed resolution and separation quality.

CHIRP Pulse Compression
Excellent short-range detection and enhanced target detail with 18' (6m) minimum range. CHIRP Pulse compression ensures more energy reaches each target, resulting in superior imaging on long ranges.

Small Target Detection
Quantum's CHIRP Pulse Compression technology identifies small, weak targets, even when positioned close to strong returns.

Simplified Installation
Simple Wi-Fi connection between Quantum and any Raymarine LightHouse II powered MFD. Quantum's small diameter power cable is easy to route through tight spaces. Easy to upgrade - Quantum uses the same bolt pattern as previous generation radars. Optional Quantum adapter cable eliminate the need to run new radar cables.

Energy Efficient & Lightweight Design
Weighs 50% less than traditional magnetron radars. Safe Emissions thanks to Quantum's low power solid state radar transmitter. Very low power consumption (17 Watts transmit and 7 watts standby). Extended vessel battery life when under sail.

Setting the standard for compact solid-state radars, quantum provides excellent radar imaging over long and very short distances. Integrated wi-fi and thin wiring simplifies installation, and the high quantum efficiency and lightweight design provides safe radiation emission and greatly reduces power consumption. Excellent radar imager's unique atxt advanced target separation technology can display targets, such as ships, landmarks, rocks, buoys, and weather chambers, with unparalleled resolution and separation quality. Chirp compression has excellent short-distance detection capabilities and enhances target details with a minimum distance of 18 6m. Chirp compression ensures that more energy reaches each target, enabling excellent imaging over long distances. Small target detection quantum chirp pulse compression technology can identify small, weak targets, even if their positions are close to strong gains. Simplified installation and simple Wi-Fi connection between Quantum and any raymarine lighthouse II powered mfd. Quantum small-diameter power cords are easy to pass through narrow spaces. Easy to upgrade-Quantum uses the same bolt pattern as the previous generation radar. The optional quantum adapter cable eliminates the need to run new radar cables. Energy-efficient q24w radome with Wi-Fi only-10m power cord included. Conditions: This product is brand new, unopened and sealed in its original factory packaging.













Frequently Asked Questions (FAQ) About Raymarine Quantum™ Q24W Radome w/Wi-Fi Only - 10M Power Cable Included








Who is the Raymarine?

Raymarine, the world leader in marine electronics, develops and manufactures the most comprehensive range of electronic equipment. Raymarine is dedicated to the design, manufacture and distribution of the highest quality marine electronic products and services to the worldwide recreational and light commercial markets. Whether it be stand-alone units or fully integrated systems, Raymarine understands boating and what it takes to make it safer.

How to describe Raymarine Quantum™ Q24W Radome w/Wi-Fi Only - 10M Power Cable Included?

Setting the standard for compact solid-state radars, quantum provides excellent radar imaging over long and very short distances. Integrated wi-fi and thin wiring simplifies installation, and the high quantum efficiency and lightweight design provides safe radiation emission and greatly reduces power consumption. Excellent radar imager's unique atxt advanced target separation technology can display targets, such as ships, landmarks, rocks, buoys, and weather chambers, with unparalleled resolution and separation quality. Chirp compression has excellent short-distance detection capabilities and enhances target details with a minimum distance of 18 6m. Chirp compression ensures that more energy reaches each target, enabling excellent imaging over long distances. Small target detection quantum chirp pulse compression technology can identify small, weak targets, even if their positions are close to strong gains. Simplified installation and simple Wi-Fi connection between Quantum and any raymarine lighthouse II powered mfd. Quantum small-diameter power cords are easy to pass through narrow spaces. Easy to upgrade-Quantum uses the same bolt pattern as the previous generation radar. The optional quantum adapter cable eliminates the need to run new radar cables. Energy-efficient q24w radome with Wi-Fi only-10m power cord included. Conditions: This product is brand new, unopened and sealed in its original factory packaging.
  • Radar that is compact, lightweight and offers the best performance of any radar on the market
  • CHIRP pulse compression technology gives you a more detailed view of your surroundings than ever before
  • The next generation of marine radar
  • Quantum& 153; Q24W Radome w/Wi-Fi Only - 10M Power Cable Included
  • CHIRP pulse compression technology
  • Compact solid state radar

Raymarine Quantum radar is the next generation of marine radar with CHIRP pulse compression technology. Setting a new standard for marine electronics, Quantum offers advanced features that are not available in any other marine radar. It's the only radar that provides real-time 360-degree coverage and is capable of detecting targets at distances up to 2x farther than previous generations. The Quantum's innovative, high-performance antenna ensures superior target detection and acquisition;

What is the weight of the product?

48
  • Radar that is compact, lightweight and offers the best performance of any radar on the market
  • CHIRP pulse compression technology gives you a more detailed view of your surroundings than ever before
  • The next generation of marine radar
  • Quantum& 153; Q24W Radome w/Wi-Fi Only - 10M Power Cable Included
  • CHIRP pulse compression technology
  • Compact solid state radar
  • Raymarine Quantum Q24C 18" CHIRP Radar, WiFi Only Version Model: E70344 UPC: 723193813164
  • Raymarine Quantum Radar, by FLIR, is the next generation of marine radar featuring CHIRP pulse compression technology. Setting a new standard for marine radars with its easy installation, high resolution and long range detection.
  • With an IPX7 waterproof rating and a sleek design that's perfect for any boat or ship.
  • Raymarine Quantum Q24C 18" CHIRP Radar, WiFi Only Version Model: E70344 UPC: 723193813164
  • Raymarine Quantum Radar, by FLIR, is the next generation of marine radar featuring CHIRP pulse compression technology. Setting a new standard for performance and reliability.
  • The Quantum series of radars offer the best signal clarity and target separation in their class.

What is the size?

18 Inch Dome

What's the color of Raymarine Quantum™ Q24W Radome w/Wi-Fi Only - 10M Power Cable Included?

White

What is the waterproof rating of the product?

IPX6 Rating Waterproof

What is the array size of the product?

18"


Save $220 when you buy the Raymarine Quantum™ Q24W Radome w/Wi-Fi Only - 10M Power Cable Included for only $1619 from NVN Marine! Same day fast and free shipping before 3pm.

Raymarine Quantum™ Q24W Radome w/Wi-Fi Only - 10M Power Cable Included Technical Specifications

Type:

Vendor:

Raymarine

Weight:

19.6 lb

Array Size (Inches):

18"
