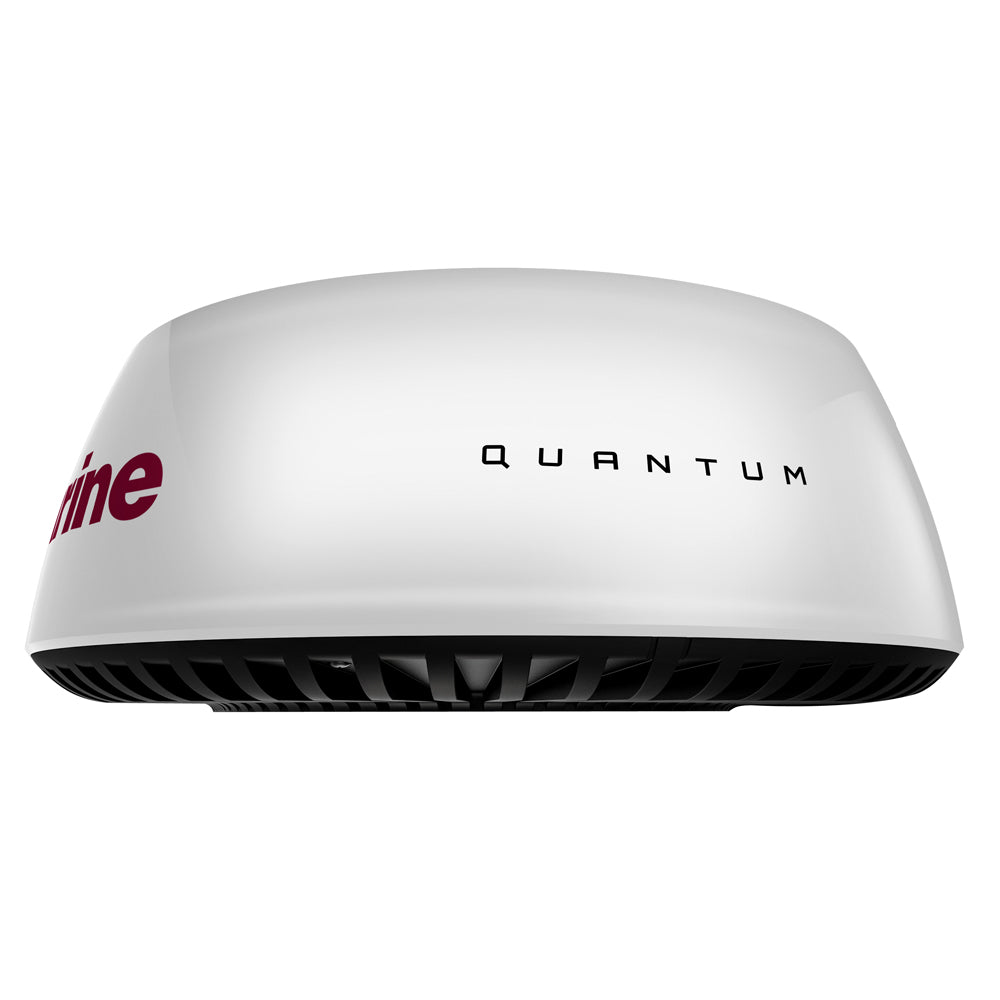

Raymarine Quantum™ Q24C Radome w/Wi-Fi & Ethernet - 10M Power Cable Included

No reviews yet Write a Review
$2,089.99
SKU:
E70210
UPC:
723193783931
Condition:
New
5 customers are viewing this product

Raymarine Quantum™ Q24C Radome w/Wi-Fi & Ethernet - 10M Power Cable Included

$2,089.99

Raymarine Quantum™ Q24C Radome w/Wi-Fi & Ethernet - 10M Power Cable Included Product Description

Raymarine Quantum is a compact, high-performance solid-state marine radar featuring CHIRP pulse compression technology. Setting a new standard for radar imaging, Quantum delivers superior radar target recognition on both long and extremely short ranges. Integrated Wi-Fi and thin cabling simplify installation plus Quantum's energy-efficient and lightweight design provides safe radiated emissions and substantially reduced power consumption.

Raymarine E70210 Attributes

  • Radar Type: Radome
  • Size: 18 Inch Dome
  • Range: 24 Nautical Miles
  • Rotation Speed: 24 RPM
  • Power Output: 17 Watt
  • Dimension: 21.3 Inch Diameter x 8-1/4 Inch Height
  • Input Voltage: 12 Volt To 24 Volt
  • Beam Width: 4.9 Degree Horizontal/ 20 Degree Vertical
  • Color: White
  • Waterproof Rating: IPX6 Rating Waterproof
  • Includes: Mounting Hardware/ 10 Meter Power Cable

Raymarine E70210 Features & Benefits

  • Provides Excellent Short-Range Detection And Enhanced Target Detail With 18 Feet Minimum Range
  • CHIRP Pulse Compression Ensures More Energy Reaches Each Target, Resulting In Superior Imaging On Long Ranges
  • Broad Usage Applications, Quantum Is Perfect For Sailboats, Ribs And Smaller Powerboats
  • Superior Interference Rejection Eliminates Noise From Other Radars
  • Easy Upgrade: Quantum Fits The Same Bolt Pattern As Other Raymarine Scanners
  • Lightweight And Easy To Install: Quantum Weighs Up To 50 Percent Less Than Comparable Magnetron Radars
  • Safe Emissions: Mount Quantum Anywhere Onboard
  • Simplified Installation And Can Utilize Existing Cables (With An Adapter) If Being Used As An Upgrade
  • Limited 2 Year Warranty

Raymarine E70210 Installation Instructions

Raymarine E70210 Warranties

Raymarine E70210 Technical Bulletins


Quantum™ Q24C Radome w/Wi-Fi & Ethernet - 10M Power Cable Included

Raymarine Quantum Radar, by FLIR, is the next generation of marine radar featuring CHIRP pulse compression technology.

Setting a standard for compact solid state radar, Quantum delivers superior radar imaging on both long and extremely short ranges. Integrated Wi-Fi and thin cabling simplifies installation plus Quantum's energy efficient and lightweight design provides safe radiated emissions and substantially reduced power consumption.

Superior Radar Imaging
FLIR's exclusive ATXT advanced target separation technology displays targets like boats, landmarks, rocks, buoys, and weather cells with unsurpassed resolution and separation quality.

CHIRP Pulse Compression
Excellent short-range detection and enhanced target detail with 18' (6m) minimum range. CHIRP Pulse compression ensures more energy reaches each target, resulting in superior imaging on long ranges.

Small Target Detection
Quantum's CHIRP Pulse Compression technology identifies small, weak targets, even when positioned close to strong returns.

Simplified Installation
Simple Wi-Fi connection between Quantum and any Raymarine LightHouse II powered MFD. Quantum's small diameter power cable is easy to route through tight spaces. Easy to upgrade - Quantum uses the same bolt pattern as previous generation radars. Optional Quantum adapter cable eliminate the need to run new radar cables.

Energy Efficient & Lightweight Design
Weighs 50% less than traditional magnetron radars. Safe Emissions thanks to Quantum's low power solid state radar transmitter. Very low power consumption (17 Watts transmit and 7 watts standby). Extended vessel battery life when under sail.

Raymarine's 18-inch hemispherical radar with WiFi connection Raymarine's Quantum Q24C radar not only has excellent radar imaging performance, but also has become the first choice for Dome radar due to its simplified installation, lightweight design and reduced power consumption. Quantum Q24C radar uses CHIRP pulse compression technology to ensure that more energy reaches the target, so even if it is close to a sturdy return structure or container, it can identify smaller and weaker targets and provide higher separation and clarity degree. The CHIRP pulse compression of Quantum Q24C provides excellent target detection and details as low as 6 meters. At startup, Quantum Q24C consumes only 17 watts, and only 7 watts in standby mode. The solid-state structure and low power consumption of Quantum Q24C also make its transmission safer than traditional magnetron radar. FLIR's exclusive ATX advanced radar imaging technology and advanced target separation technology can display targets, such as ships, landmarks, rocks, buoys and weather cabins, with unparalleled resolution and separation quality, which is also incomparable with the performance of Quantum Q24C radome match. section. Q24 is also the first radar to connect to MFD powered by Raymarine Lighthouse II with Wi-Fi function via cable or wireless.













Frequently Asked Questions (FAQ) About Raymarine Quantum™ Q24C Radome w/Wi-Fi & Ethernet - 10M Power Cable Included








Who is the Raymarine?

Raymarine, the world leader in marine electronics, develops and manufactures the most comprehensive range of electronic equipment. Raymarine is dedicated to the design, manufacture and distribution of the highest quality marine electronic products and services to the worldwide recreational and light commercial markets. Whether it be stand-alone units or fully integrated systems, Raymarine understands boating and what it takes to make it safer.

How to describe Raymarine Quantum™ Q24C Radome w/Wi-Fi & Ethernet - 10M Power Cable Included?

Raymarine's 18-inch hemispherical radar with WiFi connection Raymarine's Quantum Q24C radar not only has excellent radar imaging performance, but also has become the first choice for Dome radar due to its simplified installation, lightweight design and reduced power consumption. Quantum Q24C radar uses CHIRP pulse compression technology to ensure that more energy reaches the target, so even if it is close to a sturdy return structure or container, it can identify smaller and weaker targets and provide higher separation and clarity degree. The CHIRP pulse compression of Quantum Q24C provides excellent target detection and details as low as 6 meters. At startup, Quantum Q24C consumes only 17 watts, and only 7 watts in standby mode. The solid-state structure and low power consumption of Quantum Q24C also make its transmission safer than traditional magnetron radar. FLIR's exclusive ATX advanced radar imaging technology and advanced target separation technology can display targets, such as ships, landmarks, rocks, buoys and weather cabins, with unparalleled resolution and separation quality, which is also incomparable with the performance of Quantum Q24C radome match. section. Q24 is also the first radar to connect to MFD powered by Raymarine Lighthouse II with Wi-Fi function via cable or wireless.
  • Quantum™ Q24C Radome w/Wi-Fi & Ethernet - 10M Power Cable Included
  • Raymarine Quantum Radar, by FLIR, features CHIRP pulse compression technology.
  • The next generation of marine radar that sets a standard for compact solid state radar.
  • CHIRP pulse compression technology for the clearest, most detailed images possible
  • Compact, solid state design with no moving parts for greater reliability
  • Wi-Fi and Ethernet connectivity to provide easy access to your radar's data

Raymarine Quantum Q24C 18" CHIRP Radar, WiFi and Cabled capable Model: E70210 UPC: 723193783931 Raymarine Quantum Radar, by FLIR, is the next generation of marine radar featuring CHIRP pulse compression technology. Setting a new standard for marine radar with its high level of accuracy and detail, Quantum delivers unrivaled performance in any weather conditions. The Quantum is backed by

What is the weight of the product?

47
  • Quantum™ Q24C Radome w/Wi-Fi & Ethernet - 10M Power Cable Included
  • Raymarine Quantum Radar, by FLIR, features CHIRP pulse compression technology.
  • The next generation of marine radar that sets a standard for compact solid state radar.
  • CHIRP pulse compression technology for the clearest, most detailed images possible
  • Compact, solid state design with no moving parts for greater reliability
  • Wi-Fi and Ethernet connectivity to provide easy access to your radar's data
  • Raymarine Quantum Radar, by FLIR, is the next generation of marine radar featuring CHIRP pulse compression technology.
  • Setting a new standard for radar performance with advanced signal processing and an ultra-wide frequency range, your vessel can now detect targets that are more difficult to see with traditional radar.
  • Thanks to the increased detection range and accuracy, you can now see more detail on targets at greater distances, day or night.
  • Raymarine Quantum Q24C 18" CHIRP Radar, WiFi and Cabled capable Model: E70210 UPC: 723193783931
  • Raymarine Quantum Radar, by FLIR, is the next generation of marine radar featuring CHIRP pulse compression technology. Setting a new standard for marine radar performance.
  • The Quantum's advanced signal processing delivers unparalleled target separation and detail in all conditions.
  • The Quantum's high precision GPS antenna provides the most accurate positioning data available to provide you with an unrivaled level of situational

What is the size?

18 Inch Dome

What's the color of Raymarine Quantum™ Q24C Radome w/Wi-Fi & Ethernet - 10M Power Cable Included?

White

What is the waterproof rating of the product?

IPX6 Rating Waterproof

What is the array size of the product?

18"


Buy with the best price Raymarine Quantum™ Q24C Radome w/Wi-Fi & Ethernet - 10M Power Cable Included for only $1899 from NVN Marine! Same day fast and free shipping before 3pm.

Raymarine Quantum™ Q24C Radome w/Wi-Fi & Ethernet - 10M Power Cable Included Technical Specifications

Type:

Vendor:

Raymarine

Weight:

20.2 lb

Array Size (Inches):

18"
