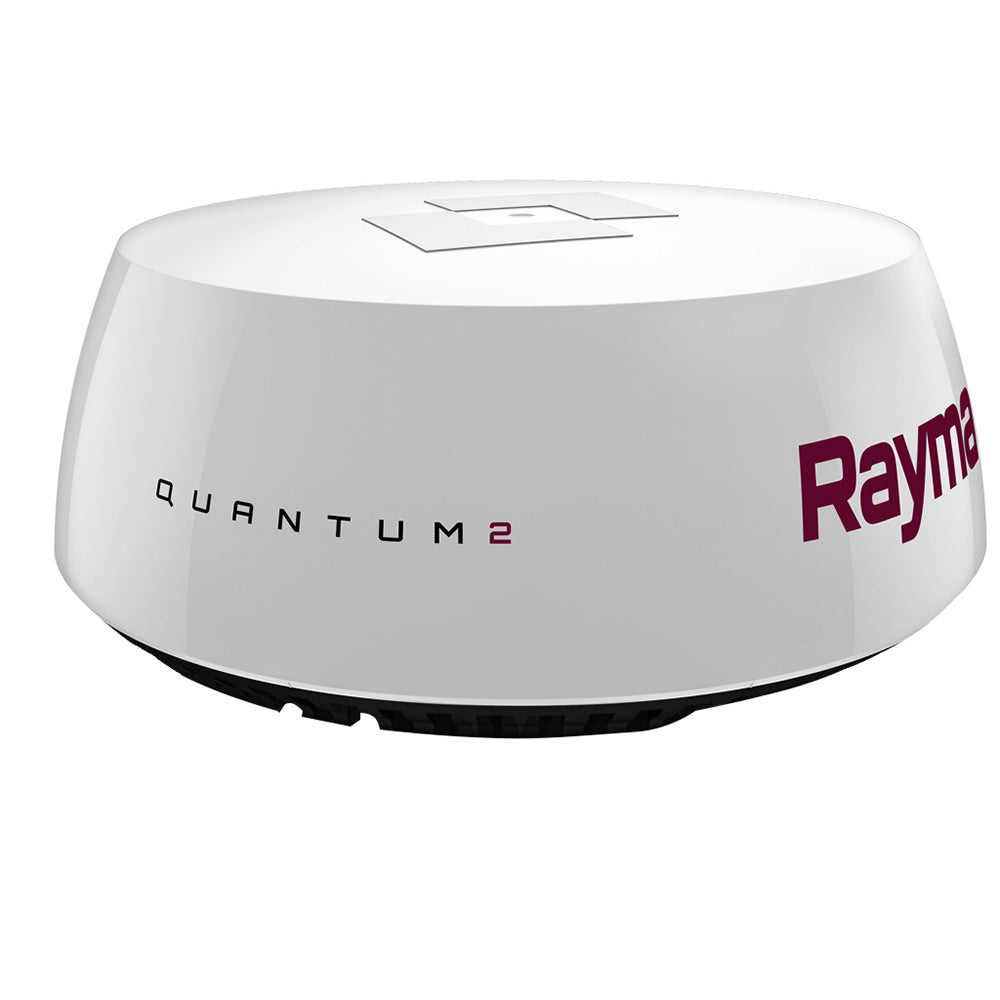

Raymarine Quantum 2 Q24D Radar Doppler w/10M Power & Data Cables Product Description
Keep inexperienced boaters and hidden dangers at bay even in the most congested waterways. Quantum 2 with Doppler collision avoidance technology makes it easy to discern potentially dangerous targets when navigating in high-traffic areas. Using advanced Doppler processing, Quantum 2 instantly highlights moving radar contacts and color codes them to indicate whether they are inbound or outbound.
Raymarine T70416 Attributes
-
Radar Type: Radome
-
Size: 18 Inch Dome
-
Range: 24 Nautical Miles
-
Rotation Speed: 24 RPM
-
Power Output: 17 Watt
-
Dimension: 21.3 Inch Diameter x 8-1/4 Inch Height
-
Input Voltage: 12 Volt To 24 Volt
-
Beam Width: 4.9 Degree Horizontal/ 20 Degree Vertical
-
Color: White
-
Waterproof Rating: IPX6 Rating Waterproof
-
Includes: Doppler Collision Avoidance Technology; With Mounting Hardware/ 10 Meter Power Cable
Raymarine T70416 Features & Benefits
- Provides Excellent Short-Range Detection And Enhanced Target Detail With 18 Feet Minimum Range
- Doppler Moving Target Display Allows For Superior Situational Awareness At A Glance
- Fully Automatic MARPA Target Tracking, Along With Manual MARPA Mode
- Adjustable TrueTrails Target History Shows The Motion History Of Moving Contacts
- Quantum 2 Doppler Radar, Perfect For Sailboats, Ribs And Smaller Powerboats
- Simplified, Fast Installation And Can Utilize Existing Raymarine Scanner Fixing Points
- Once Installed, Quantum 2 Starts Right Up And Immediately Provides Awareness
- Limited 2 Year Warranty
Raymarine T70416 Installation Instructions
Raymarine T70416 Warranties
Raymarine T70416 Technical Bulletins
Quantum 2 Q24D Radar Doppler with 10M Power & Data Cables
The Raymarine Quantum 2 Radar has Doppler collision avoidance technology. The Quantum 2 next generation CHIRP pulse compression radar by Raymarine provides superior target awareness at both long and extremely short ranges.
Using advanced Doppler processing, the system instantly highlights moving radar contacts and color codes them to indicate whether they are inbound or outbound. Quantum with Doppler makes it easy to discern potentially dangerous targets when navigating in high-traffic areas.
Easily Identify Dangerous Targets
Raymarine Quantum 2 Doppler target processing readily identifies and color codes moving radar contacts for instant recognition and reduced risk of collision.
Safer Navigation
Quantum 2s exclusive Safety Sector feature provides the maximum level of visibility to dangerous targets in the path of your vessel (both mobile and stationary).
Superior Collision Avoidance
Doppler-enabled MARPA provides an effortless means of dangerous target tracking by eliminating the need to setup guard zones. Raymarine MARPA target tracking is the same technology trusted by the United States Coast Guard.
Features:
- Doppler moving target display allows for superior situational awareness at-a-glance
- Fully automatic ARPA target tracking, along with manual MARPA mode
- Adjustable TrueTrails target history shows the motion history of moving contacts
- CHIRP Pulse Compression detects contacts as close as 18-feet for zero-visibility navigation
- 24-mile range for early detection of traffic, navigation aids, landfall and weather
- Immediate awareness Quantum starts up and is ready to go in seconds
- Superior interference rejection eliminates noise from other radars
- Simplified installation with Wi-Fi or thin wire network connectivity
- Easy upgrade Quantum 2 fits the same bolt pattern as other Raymarine scanners
- Lightweight and easy to install Quantum weighs up to 50% less than comparable magnetron radars
- Safe emissions mount Quantum anywhere onboard
- Low power consumption for extended battery life under sail
How Doppler Radar Works:
- Microwave energy waves are bounced off of a distant target, just like conventional radar.
- Moving targets send back echoes whose frequencies shift upward or downward from what was originally transmitted.
- For inbound targets, the frequency increases as the leading edge of the returning echoes are received more frequently as the targets range decreases.
- For outbound targets, the frequency drops as the returning echoes spread out as its range increases.
- Doppler radars are engineered to detect these small shifts in wave frequency, and use them to classify moving radar targets.
Doppler Target Processing
Doppler radar is tuned specifically to detect the radar echo frequency shift returned by moving vs. stationary targets.Quantum 2 then uniquely color codes moving targets to indicate whether they are getting closer, or moving away.
- Inbound targets are colored red
- Outbound targets are colored green
Color coded targets make it simple to pick out moving traffic from other stationary targets like land, navigation aids or stopped/anchored vessels.
Quantum 2 Safety Sector
Doppler does an excellent job of bringing attention to moving targets, but it does downplay stationary targets, that can be equally as dangerous.Safety Sector provides equal attention to these imminent threats by coloring them as inbound targets. Potential targets include:
- Buoys
- Exposed Hazard (rocks, pilings, etc...)
- Slow moving, low visibility vessels
- Quantum 2's Safety Sector spreads 15° from the bow to a distance of approximately 200m
NOTE: The safety sector is not visible on the display. Quantum 2 automatically processes and highlights targets within this region in red.
The Quantum 2 also features fully automatic target acquisition and tracking. Configure custom safety or alarm zones and be alerted to new radar contacts entering the zone. Quantum 2 can begin tracking those contacts automatically, calculating their course, speed, closest point of approach and more. Youll be alerted to dangerous contacts with audible alerts and easy to understand on-screen graphics.
Quantum 2 also features Raymarines True Trails target history display. The True Trails features enables you to see a historical wake behind every moving contact. This additional information makes it even easier to interpret the motion of other vessels, and make smart maneuvering decisions to pass safely.
Like every Raymarine Quantum system, youll also benefit from a rugged and lightweight design that is super-easy to install. Quantum 2 has very low power consumption making it especially friendly to vessels running exclusively on battery power. Quantum 2 with Doppler can be installed in a traditional wired configuration, or use its built-in Wi-Fi technology to connect it to your Raymarine MFD.
The Quantum 2 with Doppler truly sets the standard for on the water safety and collision avoidance.
The Raymarine Quantum 2 Q24D Doppler radar with target tracking function provides a safer navigation experience through a simplified installation method, and its weight is only half of the competitors' radar domes. The 24NM range of Quantum 2 is very suitable for picking up and tracking long-distance targets. Low power consumption and excellent short-range target separation capabilities make this radar an ideal choice for small motorboats and sailboats. By adding Raymarine Raynet to the Raynet coupler and increasing the connection between Raynet and Raynet cable, the connected 10m data cable can be expanded. The Doppler technology used in the Quantum 2 Q24D has been specially adjusted to detect the frequency shift of radar echoes from moving and stationary targets. Quantum 2 actually color-codes the moving targets to determine which objects are moving toward or away from the container. You can even set boundary areas, and if one of the targets enters these areas, you will receive an alert to notify you. This is a great feature if you plan to travel overnight. Quantum 2 has Raymarine's "True Trails" target history display, which allows you to view the historical "wake up" behind each moving object. This makes it very simple to determine the direction of travel for these targets, allowing you to make informed decisions to maneuver your boat. The Raymarine Quantum 2 Q24D Doppler 18-inch radar will add a lot of colors to the compatible Raymarine MFD.
Frequently Asked Questions (FAQ) About Raymarine Quantum 2 Q24D Radar Doppler w/10M Power & Data Cables
Who is the Raymarine?
Raymarine, the world leader in marine electronics, develops and manufactures the most comprehensive range of electronic equipment. Raymarine is dedicated to the design, manufacture and distribution of the highest quality marine electronic products and services to the worldwide recreational and light commercial markets. Whether it be stand-alone units or fully integrated systems, Raymarine understands boating and what it takes to make it safer.
How to describe Raymarine Quantum 2 Q24D Radar Doppler w/10M Power & Data Cables?
The
Raymarine Quantum 2 Q24D Doppler radar with target tracking function provides a safer navigation experience through a simplified installation method, and its weight is only half of the competitors' radar domes. The 24NM range of Quantum 2 is very suitable for picking up and tracking long-distance targets. Low power consumption and excellent short-range target separation capabilities make this radar an ideal choice for small motorboats and sailboats. By adding
Raymarine Raynet to the Raynet coupler and increasing the connection between Raynet and Raynet cable, the connected 10m data cable can be expanded. The Doppler technology used in the Quantum 2 Q24D has been specially adjusted to detect the frequency shift of radar echoes from moving and stationary targets. Quantum 2 actually color-codes the moving targets to determine which objects are moving toward or away from the container. You can even set boundary areas, and if one of the targets enters these areas, you will receive an alert to notify you. This is a great feature if you plan to travel overnight. Quantum 2 has
Raymarine's "True Trails" target history display, which allows you to view the historical "wake up" behind each moving object. This makes it very simple to determine the direction of travel for these targets, allowing you to make informed decisions to maneuver your boat. The
Raymarine Quantum 2 Q24D Doppler 18-inch radar will add a lot of colors to the compatible
Raymarine MFD.
- The Quantum 2 is the next generation of CHIRP pulse compression radar.
- It provides superior target awareness at range, with a clear picture of what's happening in front of you.
- The Quantum 2 is designed to be used with Raymarine's high performance 10M Radar Power and Data cables.
- Quantum 2 Q24D Radar Doppler with 10M Power & Data Cables
- The Raymarine Quantum 2 Radar has Doppler collision avoidance technology.
- The Quantum 2 next generation CHIRP pulse compression radar by Raymarine provides superior target awareness at distances up to 10 miles.
- This next generation system is ideal for vessels that need the highest level of safety and performance, such as commercial fishing boats, passenger ferries, and offshore supply vessels.
The Raymarine Quantum 2 Radar Dome is the latest in radar technology, with 10m cables and a Doppler moving target display. It's fully automatic and has ARPA mode, along with manual MARPA mode for superior situational awareness. The Quantum 2 Radar Dome also has adjustable TrueTrails on targets for easy identification.
What is the output voltage?
20w
- The Quantum 2 is the next generation of CHIRP pulse compression radar.
- It provides superior target awareness at range, with a clear picture of what's happening in front of you.
- The Quantum 2 is designed to be used with Raymarine's high performance 10M Radar Power and Data cables.
- Quantum 2 Q24D Radar Doppler with 10M Power & Data Cables
- The Raymarine Quantum 2 Radar has Doppler collision avoidance technology.
- The Quantum 2 next generation CHIRP pulse compression radar by Raymarine provides superior target awareness at distances up to 10 miles.
- This next generation system is ideal for vessels that need the highest level of safety and performance, such as commercial fishing boats, passenger ferries, and offshore supply vessels.
- Get the best of both worlds with a radar dome.
- The automatic ARPA target tracking means you can focus on what matters most, and the manual MARPA mode lets you track targets of your choice.
- The true trails target display allows for a superior view of targets at a glance.
- The Raymarine Q24D Quantum 2 Radar Dome with 10m Cables Model: T70416 is a high-tech, high-performance radar dome that can be mounted on the mast of your vessel for increased situational awareness.
- With a fully automatic ARPA mode and manual MARPA mode, you'll never miss a target again.
- The adjustable TrueTrails feature allows you to select between wide and narrow coverage depending on the needs of your vessel and your desired level of detail.
What is the weight of the product?
What's the color of Raymarine Quantum 2 Q24D Radar Doppler w/10M Power & Data Cables?
What is the waterproof rating of the product?
What is the array size of the product?
Buy with the best price
Raymarine Quantum 2 Q24D Radar Doppler w/10M Power & Data Cables for only
$2399 from NVN Marine! Same day fast and free shipping before 3pm.
Raymarine Quantum 2 Q24D Radar Doppler w/10M Power & Data Cables Technical Specifications
| Type: |
|
| Vendor: |
Raymarine
|
| Weight: |
21.7 lb
|
| Array Size (Inches): |
20"
|
| Power - Output: |
20w
|
