Built for anglers that want to be one step ahead of the game, Element delivers the sharpest view of the underwater world with HyperVision 1.2 Megahertz super high-resolution sonar. HyperVision takes DownVision, SideVision, and Raymarine RealVision 3D sonar to the next level of precision imaging and fish identification, letting you see structures, vegetation, and fish with lifelike clarity.
Raymarine 7053400NAG Attributes
Maps: Navionics+ USA And Coastal Canada Charts
Display Size: 9 Inch
Display Type: WVGA 800 x 480 Pixels Resolution
Interface: Keypad Interface
Dimensions: 12.14 Inch Width X 5.88 Inch Depth X 6.73 Inch Height
Waterproof: IPX6/ IPX7 Waterproof
Sonar Compatibility: Built-In CHIRP
Raymarine 7053400NAG Features & Benefits
Bright And Rugged: Sunlight Viewable Displays With Integrated GPS/GNSS Receiver
Superior HyperVision: 1.2 Megahertz CHIRP Sonar Technology Delivers Much Higher Resolution Imaging Compared To Conventional Side And Down Scanning Sonars
RealVision 3D Built-In: Accurately Identify The Location Of Ledges, Channel Beds, And Other Contour Changes
Fast Quad-Core Processor: For Instantaneous Chart Re-Draw And Sharp 3D Imaging
All-In-One Transducer: Combines HyperVision, DownVision, SideVision, RealVision, And Conventional CHIRP Sonar Channels Into One Simple Installation
Raymarine RealBathy Personal Sonar Mapping And Navionics SonarCharts Live Support
Optimized For Fishing, The LightHouse Sport OS Is Fast And Easy-To-Learn
An Oversized Waypoint Key For Marking Your Favorite Spots And Three User-Programmable Keys
Switch To Standard 350 Kilohertz CHIRP Sonar For Longer Range, High-Resolution Imaging, And Ranges Up To 180 Meter
Limited 2 Year Warranty
Raymarine 7053400NAG Installation Instructions
Raymarine 7053400NAG Warranties
Raymarine 7053400NAG Technical Bulletins
Element 9 HV Combo with Nav+ & Canada Chart
Knowledge is powerand the Element CHIRP sonar/GPS series from Raymarine gives you the power to make smarter decisions on the water. Built for anglers that want to be one step ahead of the game, Element delivers the sharpest view of the underwater world with HyperVision 1.2 megahertz super high-resolution sonar technology. HyperVision technology takes DownVision, SideVision, and Raymarine RealVison 3D sonar to the next level of precision imaging and fish identification, letting you see structures, vegetation, and fish with photo-like clarity. And the power of Element doesnt stop therean onboard quad-core processor delivers instantaneous chart redraw, fast response, and smooth RealVision 3D imaging. To keep you on target, Element features simple keypad controls and an angler-centric user interface so you can focus on the fishnot the helm. An oversized waypoint key puts you on your favorite spots, and Elements RealBathy personal depth map generator lets you make your own high definition bathymetric maps on the fly.
Features:
High-visibility sunlight viewable 9 display
Superior HyperVision CHIRP sonar technology achieves 3x the clarity of conventional side and down imaging sonars
Built-in RealVision 3D sonar gives you the power to accurately identify the location of ledges, channel beds, and other contour changes
Fast quad-core processor allows instantaneous chart re-draw and continuous 3D rending while running a simple, easy-to-learn user interface.
1.2 megahertz HyperVision sonar provides outstanding resolution up to 100 while 350kHz Down and SideVision delivers photo-like imaging up to 600
Take 3D sonar to the next level with HyperVision mode for unprecedented resolution and positional awareness
Dedicated keypad controls for simple operation, plus an oversized waypoint key for marking favorite spots
Raymarine RealBathy personal sonar mapping and Navionics SonarCharts Live support
User-programmable keys allow quick access to most-used configurations
Support for Raymarine LightHouse NC2 with Fishing Hot Spots, Navionics, C-MAP and other regional charting options
NMEA2000 networking for VHF, engine, tanks, and heading sensor integration

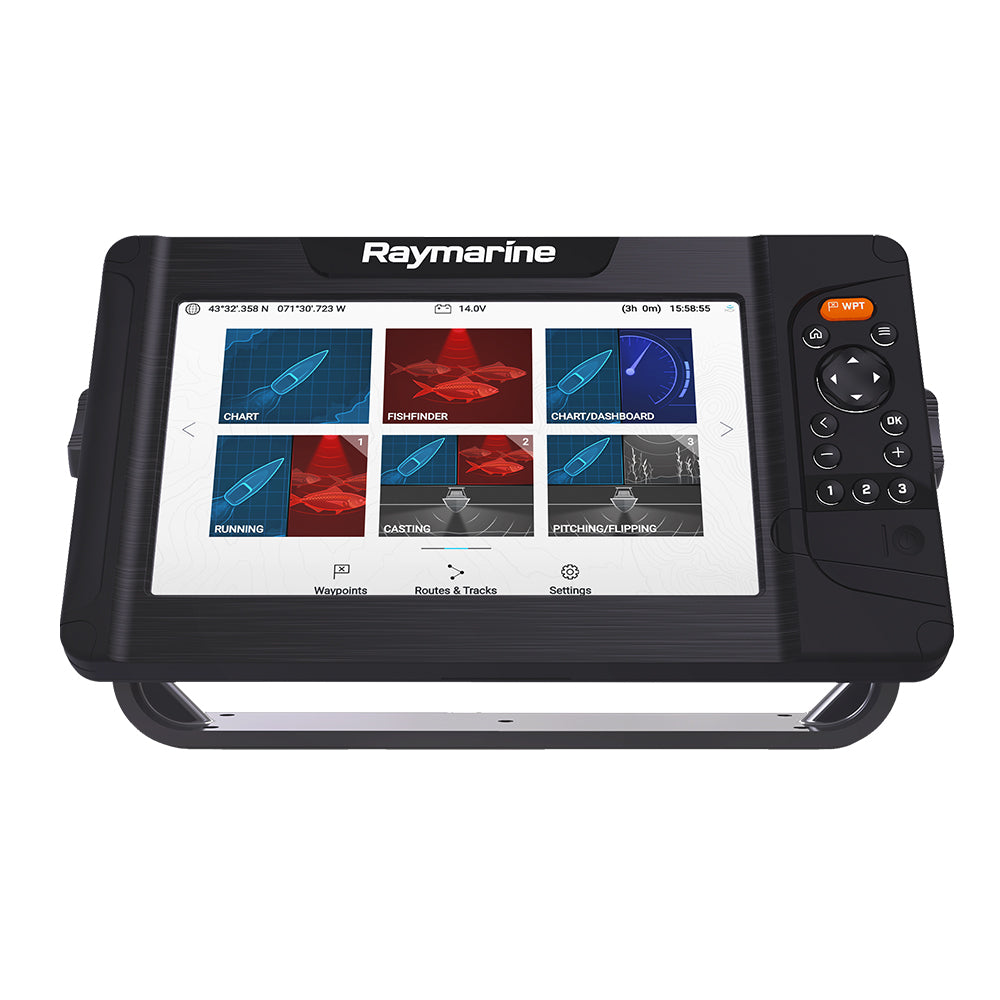

Raymarine Element 9 HV Combo w/Nav+ Canada Chart
Model: E70534-00-NAG
High-visibility sunlight viewable 9" display
Superior HyperVision CHIRP sonar technology achieves 3x the clarity of conventional side and down imaging sonars
Built-in RealVision 3D sonar gives you the power to accurately identify the location of ledges, channel beds, and other contour changes
Fast quad-core processor allows instantaneous chart re-draw and continuous 3D rending while running a simple, easy-to-learn user interface.
1.2 megahertz HyperVision sonar provides outstanding resolution up to 100 while 350kHz Down and SideVision delivers photo-like imaging up to 600
Take 3D sonar to the next level with HyperVision mode for unprecedented resolution and positional awareness
Dedicated keypad controls for simple operation, plus an oversized waypoint key for marking favorite spotsDedicated keypad controls for simple operation, plus an oversized waypoint key for marking favorite spotsDedicated keypad controls for simple operation, plus an oversized waypoint key for marking favorite spotsDedicated keypad controls for simple operation, plus an oversized waypoint key for marking favorite spotsDedicated keypad controls for simple operation, plus an oversized waypoint key for marking favorite spots
Raymarine RealBathy personal sonar mapping and Navionics SonarCharts Live support
User-programmable keys allow quick access to most-used configurations
Support for Raymarine LightHouse NC2 with Fishing Hot Spots, Navionics, C-MAP and other regional charting options
NMEA2000 networking for VHF, engine, tanks, and heading sensor integration
Knowledge is powerand the Element CHIRP sonar/GPS series from Raymarine gives you the power to make smarter decisions on the water. Built for anglers that want to be one step ahead of the game, Element delivers the sharpest view of the underwater world with HyperVision 1.2 megahertz super high-resolution sonar technology. HyperVision technology takes DownVision, SideVision, and Raymarine RealVison 3D sonar to the next level of precision imaging and fish identification, letting you see structures, vegetation, and fish with photo-like clarity. And the power of Element doesnt stop therean onboard quad-core processor delivers instantaneous chart redraw, fast response, and smooth RealVision 3D imaging. To keep you on target, Element features simple keypad controls and an angler-centric user interface so you can focus on the fishnot the helm. An oversized waypoint key puts you on your favorite spots, and Elements RealBathy personal depth map generator lets you make your own high definition bathymetric maps on the fly.
Specifications
GENERAL SPECIFICATIONS
Display Size
9.0" Optically Bonded LCD
Display Resolution
800 x 480 WVGA
Display Type
Non-Touch
Brightness
1,500 nits
Viewing Angle
Top 50° / Bottom 60° / Left 70° / Right 70°
PHYSICAL
Overall Dimensions
287 x 161 x 62mm
W x H x D
(11.3 x 6.3 x 2.4 inches)
Product Weight (lbs)
5.0
Water Ingress Protection
IPx6 and IPx7
Operating Temperature Range
-25°C to + 55°C (-13°F to 131°F)
Storage temperature range
-30°C to +70°C (-22°F to 158°F)
POWER
Voltage
12V DC (8V to 16V DC)
Power Consumption (max 12V DC)
20 Watts
SENSORS
GNSS / GPS
Built-in GNSS Receiver: GPS/GLONASS
Sonar Type (Built-in)
Built-in CHIRP Sonar, DownVision (Standard and Hyper), SideVision (Standard and Hyper), RealVision 3D (Standard and Hyper)
Raymarine LightHouse NC2, Navionics, C-MAP Essentials, C-MAP 4D MAX+, and compatible with all charts listed on Raymarine Chart Store.
Tides & Currents
Requires LightHouse LNC2, Navionics or C-MAP
Waypoint / Routes / Tracks
10,000 wpts / 200 wpt groups / 150 rts - 250 wpt max / 16 tracks - 10,000 max trk pts
Internal Memory
8GB Solid State
External Memory
1 x microSD slots (rear) - microSDHC max 32GB NTFS or FAT32 format / microSDXC max 2TB NTFS or FAT32 format (microSD native format of exFAT must be reformatted to NTFS or FAT32)
What's in the Box:
Trunnion bracket with mounting hardware
Flush mount kit with mounting hardware
Sun cover
Power / NMEA2000 1.5m cable
Documentation pack
Cartography (optional)
Raymarine Element 9 HV Combo w / Nav + Canada Chart Model: E70534-00-Nag Highly visible sunlight visible 9-inch display Excellent Hyper Vision Chirp sonar technology achieves 3 times the clarity of traditional side and down imaging sonar built-in The powerful function of Real Vision 3D sonar can accurately identify the position of wall shelf, channel bed and other contour changes. The fast quad-core processor can draw charts and perform continuous 3D rendering in real time while running the simple and easy-to-learn user interface. The 1.2 MHz Hyper Vision sonar can provide excellent resolution up to 100', while 350k Hz Down and Side Vision can provide up to 600' of photo-level imaging. HyperVision mode can take 3D sonar to a new level to achieve unprecedented resolution and position perception. Special keyboard controls for super large waypoint keys for marking favorite places, for simple operation, and super large waypoint keys for marking favorite places. Dedicated keyboard controls are used for simple operation, plus a large waypoint button for marking favorite places, special keyboard controls for simple operation, plus a large waypoint button for marking favorite places, for simple operation, And large waypoint buttons for marking favorite places. Raymarine Real Bathy personal sonar mapping and Navionics sonar maps. Real-time support for user-programmable buttons for quick access to the most commonly used configurations. Supports fishing hotspots of Raymarine Lighthouse NC2, Navionics, C-Map and other area mapping options. Integrating knowledge of, engine, tank and heading sensor is power-Raymarineââ¬s Element Chirp sonar/GPS series enables you to make more informed decisions on the water. Designed for anglers who want to be one step ahead of the game, Element provides the clearest view of the underwater world with Hyper Vision 1.2 MHz ultra-high-resolution sonar technology. Hyper Vision technology elevates Down Vision, Side Vision and Raymarine Real Vison 3D sonar to a higher level of accurate imaging and fish recognition, allowing you to see buildings, vegetation and fish as clearly as photos. What's more, Element's functions don't stop there-the onboard quad-core processor can provide instant chart redrawing, fast response and smooth Real Vision 3D imaging. To keep you consistent, Element is equipped with simple keyboard controls and an angler-centric user interface, so you can focus on the fish instead of the helmet. The oversized waypoint button can put you in your favorite position, and Elementââ¬s Real Bathy personal depth map generator allows you to make your own high-definition bathymetry in real time. Specifications Conventional specifications Display size 9.0 inches optically bonded LCD display resolution 800 x 480 WVGA display type non-contact brightness 1,500 nits Viewing angle top 50ð/bottom 60ð/left 70ð/right 70ðPhysical overall size 287 x 161 x 62mm width x height x depth (11.3 x 6.3 x 2.4 inches) product weight (lbs) 5.0 waterproof rating IPx6 and IPx7 operating temperature range -25ðC to +55ðC (-13ðF to 131ðF ) Storage temperature range -30ðC to +70ðC (-22ðF to 158ðF) Power supply voltage 12V DC (8V to 16V DC) Power consumption (maximum 12V Dc) 20 Watts Sensorsgnss / GPS built-in Gnss receiver: GPS / GLONASS sonar type (built-in) built-in Chirp sonar, down view (standard and ultra high definition), side view (standard and ultra high definition), Real Vision 3D (standard and super) sonar connection 15-pin Hyper Vision type connector Network Ethernet N / anmea0183N / anmea20 001 x Nmea2000 port (Device Net micro C) Sea Talkng requires A06045 Device Net female (F) adapter cable-400mm USBN / AWi-Fi Wi Fi-802.11 b / g / n Bluetooth Bluetooth 4.0 + Low energy consumption + power level 1.5 Other specifications for drawing Raymarine Light House Nc2, Navionics, C-Map Essentials, C-Map 4D Max +, and compatible with all charts listed on the Raymarine Chart Store. / 200 wpt group / 150 rts-maximum 250 wpt / 16 tracks-maximum 10,000 trk pts internal memory 8 GB solid external memory 1 x micro SD slot (rear)-micro Sdhc maximum 32 Gb Ntfs or Fat32 format / micro Sdxc Maximum 2 TB Ntfs or Fat32 format (ex FAT micro SD native format must be reformatted to Ntfs or Fat32) What's in the box: Trunnion bracket with mounting hardware Embedded mounting kit with mounting hardware Sun cover Power supply/Nmea2000 1.5m cable documentation package drawing (optional)
Element 9 HV Combo with Nav+ and Canadian chart knowledge is power-Raymarine's Element CHIRP sonar/GPS series enables you to make more informed decisions on the water. ...
Raymarine, the world leader in marine electronics, develops and manufactures the most comprehensive range of electronic equipment. Raymarine is dedicated to the design, manufacture and distribution of the highest quality marine electronic products and services to the worldwide recreational and light commercial markets. Whether it be stand-alone units or fully integrated systems, Raymarine understands boating and what it takes to make it safer.
How to describe Raymarine Element 9 HV Combo w/Nav+ & Canada Chart?
Element 9 HV Combo with Nav+ and Canadian chart knowledge is power-Raymarine's Element CHIRP sonar/GPS series enables you to make more informed decisions on the water. ...
Element 9 HV Combo with Nav+ & Canada Chart Knowledge is powerand the Element CHIRP sonar/GPS series from Raymarine gives you the power to make smarter decisions on the water. Built for anglers that want to be one step ahead
The Element 9 HV Combo with Nav+ and Canada Chart Knowledge is a perfect choice for fishing enthusiasts who want to get more out of their time on the water.
With an impressive fish finder, CH
Raymarine Element 9 HV Combo with Nav+ & Canada Chart.
The Element 9 features a high-definition, sunlight readable display and a CHIRP sonar/GPS combo that provides the most accurate readings possible in all conditions
Built for anglers that want to be one step ahead of the competition
Element 9 HV Combo with Nav+ & Canada Chart Knowledge is powerand the Element CHIRP sonar/GPS series from Raymarine gives you the power to make smarter decisions on the water. Built for anglers that want to be one step ahead
The Element CHIRP sonar/GPS series is a must-have for any angler, whether you're an experienced pro or just starting out.
With its high resolution, HD scanning sonar
What is the screen size of the product?
9"
Element 9 HV Combo with Nav+ & Canada Chart Knowledge is powerand the Element CHIRP sonar/GPS series from Raymarine gives you the power to make smarter decisions on the water. Built for anglers that want to be one step ahead
The Element 9 HV Combo with Nav+ and Canada Chart Knowledge is a perfect choice for fishing enthusiasts who want to get more out of their time on the water.
With an impressive fish finder, CH
Raymarine Element 9 HV Combo with Nav+ & Canada Chart.
The Element 9 features a high-definition, sunlight readable display and a CHIRP sonar/GPS combo that provides the most accurate readings possible in all conditions
Built for anglers that want to be one step ahead of the competition
Element 9 HV Combo with Nav+ & Canada Chart Knowledge is powerand the Element CHIRP sonar/GPS series from Raymarine gives you the power to make smarter decisions on the water. Built for anglers that want to be one step ahead
The Element CHIRP sonar/GPS series is a must-have for any angler, whether you're an experienced pro or just starting out.
With its high resolution, HD scanning sonar
Transducer included to the product?
No
What is the weight of the product?
5
What is the size?
11.3"W x 6.3"H x 2.4"D
Is this product waterproof?
IPX6/ IPX7 Waterproof
What is the display type of the product?
WVGA 800 x 480 Pixels Resolution
What is the display size of the product?
9 Inch
What is the controlling interface of the product?
Keypad Interface
What is the cartography brand of product?
Navionics/C-Map/CMOR
What is the dimensions of the product?
12.14 Inch Width X 5.88 Inch Depth X 6.73 Inch Height
Is this product is touchscreen?
No
