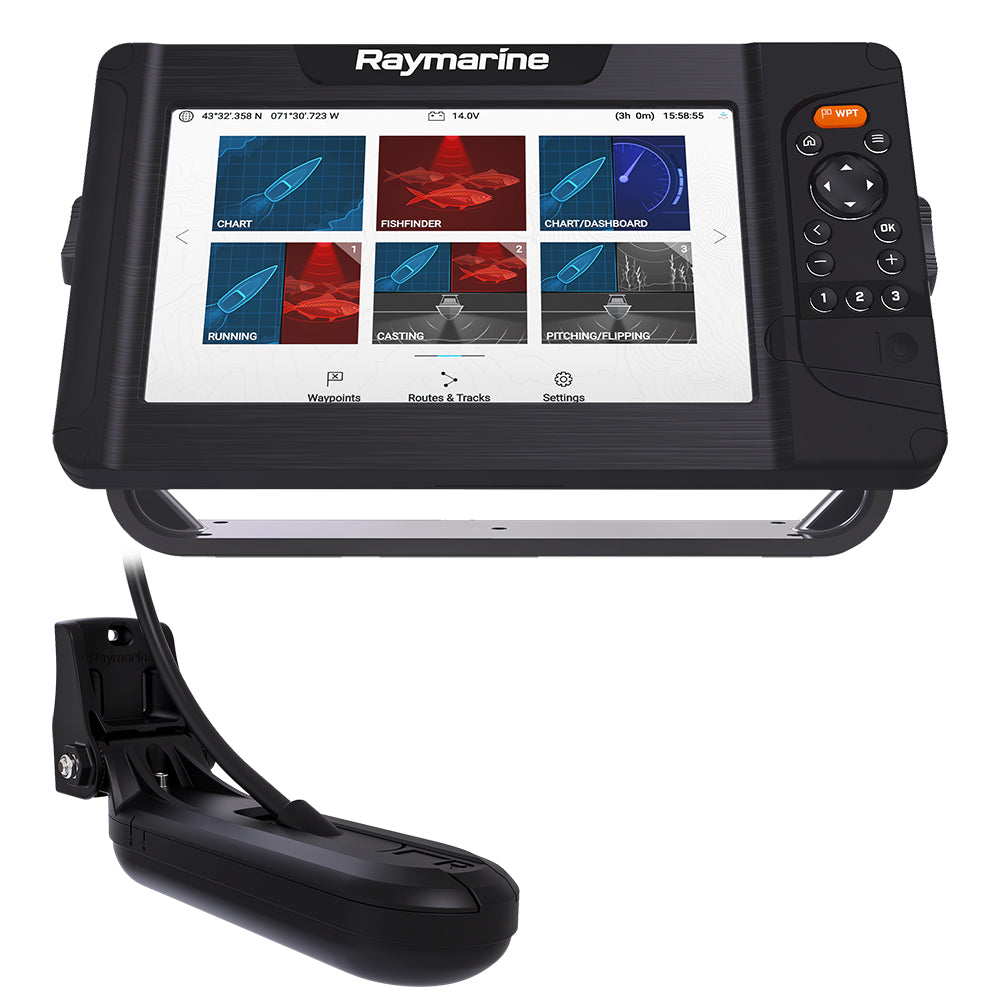

Raymarine Element™ 9 HV Combo w/HV-100 Transducer & Nav+ US & Canada Chart Product Description

Built for anglers that want to be one step ahead of the game, Element delivers the sharpest view of the underwater world with HyperVision™ 1.2 Megahertz super high-resolution sonar. HyperVision takes DownVision, SideVision, and Raymarine RealVision 3D sonar to the next level of precision imaging and fish identification, letting you see structures, vegetation, and fish with lifelike clarity.

Raymarine 7053405NAG Attributes

• Maps: Navionics+ USA And Coastal Canada Charts
• Display Size: 9 Inch
• Display Type: WVGA 800 x 480 Pixels Resolution
• Interface: Keypad Interface
• Dimensions: 12.14 Inch Width X 5.88 Inch Depth X 6.73 Inch Height
• Waterproof: IPX6/ IPX7 Waterproof
• Sonar Compatibility: Chirp Sonar

Raymarine 7053405NAG Features & Benefits

• Bright And Rugged: Sunlight Viewable Displays With Integrated GPS/GNSS Receiver
• Superior HyperVision™: 1.2 Megahertz CHIRP Sonar Technology Delivers Much Higher Resolution Imaging Compared To Conventional Side And Down Scanning Sonars
• RealVision™ 3D Built-In: Accurately Identify The Location Of Ledges, Channel Beds, And Other Contour Changes
• Fast Quad-Core Processor: For Instantaneous Chart Re-Draw And Sharp 3D Imaging
• All-In-One Transducer: Combines HyperVision, DownVision, SideVision, RealVision, And Conventional CHIRP Sonar Channels Into One Simple Installation
• Raymarine RealBathy™ Personal Sonar Mapping And Navionics SonarCharts Live Support
• Optimized For Fishing, The LightHouse Sport OS Is Fast And Easy-To-Learn
• An Oversized Waypoint Key For Marking Your Favorite Spots And Three User-Programmable Keys
• Switch To Standard 350 Kilohertz CHIRP Sonar For Longer Range, High-Resolution Imaging, And Ranges Up To 180 Meter
• Limited 2 Year Warranty

Raymarine 7053405NAG Installation Instructions

Raymarine 7053405NAG Warranties

Raymarine 7053405NAG Technical Bulletins

Element™ 9 HV Combo with HV-100 Transducer & Nav+ US & Canada Chart

Knowledge is power—and the Element™ CHIRP sonar/GPS series from Raymarine gives you the power to make smarter decisions on the water. Built for anglers that want to be one step ahead of the game, Element delivers the sharpest view of the underwater world with HyperVision™ 1.2 megahertz super high-resolution sonar technology. HyperVision technology takes DownVision, SideVision, and Raymarine RealVison 3D sonar to the next level of precision imaging and fish identification, letting you see structures, vegetation, and fish with photo-like clarity.  And the power of Element doesn’t stop there—an onboard quad-core processor delivers instantaneous chart redraw, fast response, and smooth RealVision 3D imaging. To keep you on target, Element features simple keypad controls and an angler-centric user interface so you can focus on the fish—not the helm.  An oversized waypoint key puts you on your favorite spots, and Element’s RealBathy™ personal depth map generator lets you make your own high definition bathymetric maps on the fly.

Features:

• High-visibility sunlight viewable 9” display
• Superior HyperVision CHIRP sonar technology achieves 3x the clarity of conventional side and down imaging sonars
• Built-in RealVision 3D sonar gives you the power to accurately identify the location of ledges, channel beds, and other contour changes
• Fast quad-core processor allows instantaneous chart re-draw and continuous 3D rending while running a simple, easy-to-learn user interface.
• 1.2 megahertz HyperVision sonar provides outstanding resolution up to 100’ while 350kHz Down and SideVision delivers photo-like imaging up to 600’
• Take 3D sonar to the next level with HyperVision mode for unprecedented resolution and positional awareness
• Dedicated keypad controls for simple operation, plus an oversized waypoint key for marking favorite spots
• Raymarine RealBathy™ personal sonar mapping and Navionics SonarCharts Live support
• User-programmable keys allow quick access to most-used configurations
• Comes with Raymarine LightHouse NC2 with Fishing Hot Spots Chart.
• Supports Navionics, C-MAP and other regional charting options
• NMEA2000 networking for VHF, engine, tanks, and heading sensor integration

HyperVision Transducer:

• HV-100 Transom (200kHz/350kHz/1.2MHz)

Raymarine Element 9 HV Combo w/HV-100 Transducer Navionics Nav+ US & Canada Chart

• High-visibility sunlight viewable 9" display
• Superior HyperVision CHIRP sonar technology achieves 3x the clarity of conventional side and down imaging sonars
• Built-in RealVision 3D sonar gives you the power to accurately identify the location of ledges, channel beds, and other contour changes
• Fast quad-core processor allows instantaneous chart re-draw and continuous 3D rending while running a simple, easy-to-learn user interface.
• 1.2 megahertz HyperVision sonar provides outstanding resolution up to 100’ while 350kHz Down and SideVision delivers photo-like imaging up to 600’
• Take 3D sonar to the next level with HyperVision mode for unprecedented resolution and positional awareness
• Dedicated keypad controls for simple operation, plus an oversized waypoint key for marking favorite spotsDedicated keypad controls for simple operation, plus an oversized waypoint key for marking favorite spotsDedicated keypad controls for simple operation, plus an oversized waypoint key for marking favorite spotsDedicated keypad controls for simple operation, plus an oversized waypoint key for marking favorite spotsDedicated keypad controls for simple operation, plus an oversized waypoint key for marking favorite spots
• Raymarine RealBathy™ personal sonar mapping and Navionics SonarCharts Live support
• User-programmable keys allow quick access to most-used configurations
• Comes with Raymarine LightHouse NC2 with Fishing Hot Spots Chart.
• Supports Navionics, C-MAP and other regional charting options
• NMEA2000 networking for VHF, engine, tanks, and heading sensor integration

Knowledge is power—and the Element™ CHIRP sonar/GPS series from Raymarine gives you the power to make smarter decisions on the water. Built for anglers that want to be one step ahead of the game, Element delivers the sharpest view of the underwater world with HyperVision™ 1.2 megahertz super high-resolution sonar technology. HyperVision technology takes DownVision, SideVision, and Raymarine RealVison 3D sonar to the next level of precision imaging and fish identification, letting you see structures, vegetation, and fish with photo-like clarity. And the power of Element doesn’t stop there—an onboard quad-core processor delivers instantaneous chart redraw, fast response, and smooth RealVision 3D imaging. To keep you on target, Element features simple keypad controls and an angler-centric user interface so you can focus on the fish—not the helm. An oversized waypoint key puts you on your favorite spots, and Element’s RealBathy™ personal depth map generator lets you make your own high definition bathymetric maps on the fly.

• Trunnion bracket with mounting hardware
• Flush mount kit with mounting hardware
• Sun cover
• Power / NMEA2000 1.5m cable
• Documentation pack
• Navionics Nav+ US & Canada Chart
• HV-100 Transucer with 6m cable
• Transom bracket with mounting hardware
• P-clips with mounting hardware (x5)
• Escutcheon plate with mounting hardware
