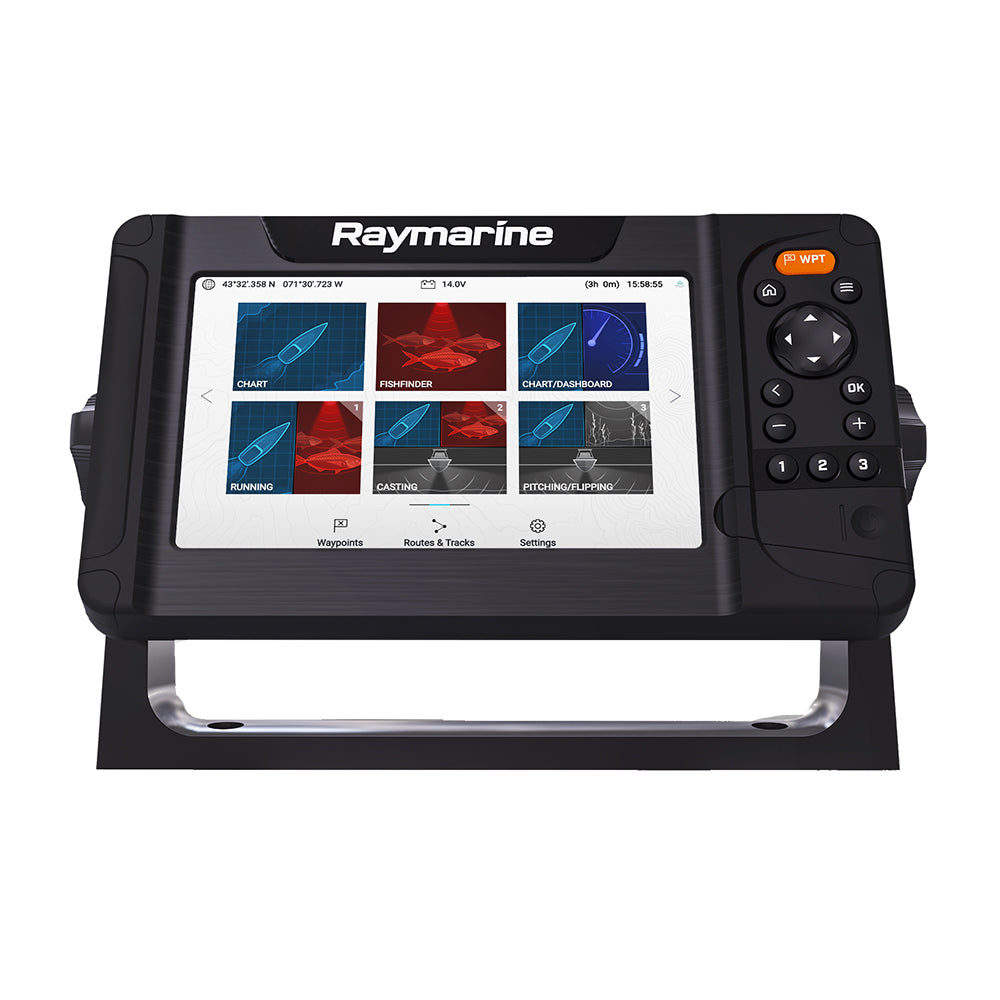

Raymarine Element 7 HV w/Nav+ US & Canada Chart - No Transducer Product Description
Element 7 HV Chartplotter & Fishfinder Combo with Nav+ US & Canada Chart - No Transducer
Knowledge is powerand the Element CHIRP sonar/GPS series from Raymarine gives you the power to make smarter decisions on the water. Built for anglers that want to be one step ahead of the game, Element delivers the sharpest view of the underwater world with HyperVision 1.2 megahertz super high-resolution sonar technology. HyperVision technology takes DownVision, SideVision, and Raymarine RealVison 3D sonar to the next level of precision imaging and fish identification, letting you see structures, vegetation, and fish with photo-like clarity. And the power of Element doesnt stop therean onboard quad-core processor delivers instantaneous chart redraw, fast response, and smooth RealVision 3D imaging. To keep you on target, Element features simple keypad controls and an angler-centric user interface so you can focus on the fishnot the helm. An oversized waypoint key puts you on your favorite spots, and Elements RealBathy personal depth map generator lets you make your own high definition bathymetric maps on the fly.
Features:
- High-visibility sunlight viewable 7 display
- Superior HyperVision CHIRP sonar technology achieves 3x the clarity of conventional side and down imaging sonars
- Built-in RealVision 3D sonar gives you the power to accurately identify the location of ledges, channel beds, and other contour changes
- Fast quad-core processor allows instantaneous chart re-draw and continuous 3D rending while running a simple, easy-to-learn user interface.
- 1.2 megahertz HyperVision sonar provides outstanding resolution up to 100 while 350kHz Down and SideVision delivers photo-like imaging up to 600
- Take 3D sonar to the next level with HyperVision mode for unprecedented resolution and positional awareness
- Dedicated keypad controls for simple operation, plus an oversized waypoint key for marking favorite spots
- Raymarine RealBathy personal sonar mapping and Navionics SonarCharts Live support
- User-programmable keys allow quick access to most-used configurations
- Comes with Nav+ US & Canada Chart
- Supports Navionics, C-MAP and other regional charting options
- NMEA2000 networking for VHF, engine, tanks, and heading sensor integration
Raymarine Element 7 HV Combo w/Navionics Nav+ US & Canada Chart - No Transducer
Model: E70532-00-NAG
- High-visibility sunlight viewable 7" display
- Superior HyperVision CHIRP sonar technology achieves 3x the clarity of conventional side and down imaging sonars
- Built-in RealVision 3D sonar gives you the power to accurately identify the location of ledges, channel beds, and other contour changes
- Fast quad-core processor allows instantaneous chart re-draw and continuous 3D rending while running a simple, easy-to-learn user interface.
- 1.2 megahertz HyperVision sonar provides outstanding resolution up to 100 while 350kHz Down and SideVision delivers photo-like imaging up to 600
- Take 3D sonar to the next level with HyperVision mode for unprecedented resolution and positional awareness
- Dedicated keypad controls for simple operation, plus an oversized waypoint key for marking favorite spots
- Raymarine RealBathy personal sonar mapping and Navionics SonarCharts Live support
- User-programmable keys allow quick access to most-used configurations
- Comes with Raymarine LightHouse NC2 with Fishing Hot Spots Chart.
- Supports Navionics, C-MAP and other regional charting options
- NMEA2000 networking for VHF, engine, tanks, and heading sensor integration
Knowledge is powerand the Element CHIRP sonar/GPS series from Raymarine gives you the power to make smarter decisions on the water. Built for anglers that want to be one step ahead of the game, Element delivers the sharpest view of the underwater world with HyperVision 1.2 megahertz super high-resolution sonar technology. HyperVision technology takes DownVision, SideVision, and Raymarine RealVison 3D sonar to the next level of precision imaging and fish identification, letting you see structures, vegetation, and fish with photo-like clarity. And the power of Element doesnt stop therean onboard quad-core processor delivers instantaneous chart redraw, fast response, and smooth RealVision 3D imaging. To keep you on target, Element features simple keypad controls and an angler-centric user interface so you can focus on the fishnot the helm. An oversized waypoint key puts you on your favorite spots, and Elements RealBathy personal depth map generator lets you make your own high definition bathymetric maps on the fly.
Specifications
| GENERAL SPECIFICATIONS |
| Display Size |
7.0" Optically Bonded LCD |
| Display Resolution |
800 x 480 WVGA |
| Display Type |
Non-Touch |
| Brightness |
1,500 nits |
| Viewing Angle |
Top 50° / Bottom 60° / Left 70° / Right 70° |
| PHYSICAL |
| Overall Dimensions |
240 x 135 62mm |
| W x H x D |
(9.5 x 5.3 x 2.4 inches) |
| Product Weight (lbs) |
3.0 |
| Water Ingress Protection |
IPx6 and IPx7 |
| Operating Temperature Range |
-25°C to + 55°C (-13°F to 131°F) |
| Storage temperature range |
-30°C to +70°C (-22°F to 158°F) |
| POWER |
| Voltage |
12V DC (8V to 16V DC) |
| Power Consumption (max 12V DC) |
15 Watts |
| SENSORS |
| GNSS / GPS |
Built-in GNSS Receiver: GPS/GLONASS- 10Hz |
| Sonar Type (Built-in) |
Built-in CHIRP Sonar, DownVision (Standard and Hyper), SideVision (Standard and Hyper), RealVision 3D (Standard and Hyper) |
| Sonar Connection |
15 pin HyperVision type connector |
| NETWORKING |
| Ethernet |
N/A |
| NMEA0183 |
N/A |
| NMEA2000 |
1 x NMEA2000 port (DeviceNet microC) |
| SeaTalkng |
Requires A06045 DeviceNet female (F) adapter cable - 400mm |
| USB |
N/A |
| Wi-Fi |
WiFi - 802.11 b / g / n |
| BlueTooth |
Bluetooth 4.0 + Low Energy + Power Class 1.5 |
| OTHER SPECIFICATIONS |
| Cartography |
Raymarine LightHouse NC2, Navionics, C-MAP Essentials, C-MAP 4D MAX+, and compatible with all charts listed on Raymarine Chart Store. |
| Tides & Currents |
Requires LightHouse LNC2, Navionics or C-MAP |
| Waypoint / Routes / Tracks |
0,000 wpts / 200 wpt groups / 150 rts - 250 wpt max / 16 tracks - 10,000 max trk pts |
| Internal Memory |
8GB Solid State |
| External Memory |
1 x microSD slots (rear) - microSDHC max 32GB NTFS or FAT32 format / microSDXC max 2TB NTFS or FAT32 format (microSD native format of exFAT must be reformatted to NTFS or FAT32) |
What's in the Box:
- Trunnion bracket with mounting hardware
- Flush mount kit with mounting hardware
- Sun cover
- Power / NMEA2000 1.5m cable
- Documentation pack
- Navionics Nav+ US & Canada Chart
If knowledge equals power, then Raymarines Element HV CHIRP sonar/GPS fish finder will make you the most powerful angler on the water. This performance-enhanced fish finder allows you to stay ahead of the game in the clearest view of the underwater world. The acclaimed HyperVision 1.2 MHz ultra-high resolution sonar takes DownVision, SideVision and Raymarine RealVision 3D sonar to a higher level of precision imaging and fish indentation. You will see structures, vegetation and fish as clear as photos. The powerful functions of Raymarine Element HV CHIRP sonar/GPS fish finder do not stop there. The onboard quad-core processor can provide instant chart redrawing, fast response and smooth RealVision 3D imaging. Raymarine Element keeps you at the target position through simple keyboard controls and the angler-centric LightHouse Sport operating system, so you can focus on the fish instead of at the helm. The oversized waypoint button will take you to your favorite location. The unique RealBathy personal depth map generator in the Elements industry even allows you to make your own high-definition bathymetry in real time. The transducer is not included. Cancer and Reproductive Hazards-www.P65Warnings.ca.gov. Type: Sonar/GPS combination.
RaymarineHyperVision technology uses DownVision, SideVision and RaymarineRealVison3Dsonoth, which have a higher level of accurate imaging and fish recognition functions, allowing you to see buildings, vegetation and fish clearly.
RAM Mount Marine Electronics Mount - Gimbal Bracket Under 15lbs.RAM Mount Marine Electronics MountRaymarine AIS350 Dual Channel ReceiverRaymarine AIS650 Class B Transceiver - Includes Programming FeeRaymarine ITC-5 Analog to Digital Transducer Converter - SeatalkngRaymarine EV-1 Sensor CoreRaymarine ECI-100 Universal Engine & Control InterfaceRAM Mount Heavy Duty Marine Electronics Mount w/Combination Pin-Lock Security Kit Short ArmRAM Mount Heavy Duty Marine Electronics Mount w/Pin-Lock Security Kit Short ArmRaymarine Quantum Q24C Radome w/Wi-Fi & Ethernet - 10M Power Cable Included
Frequently Asked Questions (FAQ) About Raymarine Element 7 HV w/Nav+ US & Canada Chart - No Transducer
Who is the Raymarine?
How to describe Raymarine Element 7 HV w/Nav+ US & Canada Chart - No Transducer?
What is the screen size of the product?
Transducer included to the product?
What is the cartography brand of product?
Is this product is touchscreen?
Who is the Raymarine?
Raymarine, the world leader in marine electronics, develops and manufactures the most comprehensive range of electronic equipment. Raymarine is dedicated to the design, manufacture and distribution of the highest quality marine electronic products and services to the worldwide recreational and light commercial markets. Whether it be stand-alone units or fully integrated systems, Raymarine understands boating and what it takes to make it safer.
How to describe Raymarine Element 7 HV w/Nav+ US & Canada Chart - No Transducer?
RaymarineHyperVision technology uses DownVision, SideVision and
RaymarineRealVison3Dsonoth, which have a higher level of accurate imaging and fish recognition functions, allowing you to see buildings, vegetation and fish clearly.
- This combo includes the Element 7 HV Chartplotter and Fishfinder with Nav+ US & Canada Chart, which features CHIRP sonar and GPS
- The Element 7 HV Chartplotter has a color display and touchscreen with an intuitive interface that makes it easy to use
- CHIRP sonar provides high-quality, accurate images of fish and structure in water up to 600 feet away
- Element 7 HV Chartplotter & Fishfinder Combo with Nav+ US & Canada Chart
- No Transducer Knowledge is powerand the Element CHIRP sonar/GPS series from Raymarine gives you the power to make smarter decisions on the water
- HV (High Visibility) display is color, high contrast and sunlight readable
- Dual or Quad Beam CHIRP sonar technology provides a clear, detailed underwater picture of what's below your boat
- No need for a transducer; the Element 7 HV Chartplotter & Fishfinder Combo with Nav+ US & Canada Chart has you covered
- Get detailed information about your surroundings, including depth, bottom composition and fish activity
- See how weather conditions impact your fishing experience with the built-in barometric pressure sensor
What is the screen size of the product?
7"
- This combo includes the Element 7 HV Chartplotter and Fishfinder with Nav+ US & Canada Chart, which features CHIRP sonar and GPS
- The Element 7 HV Chartplotter has a color display and touchscreen with an intuitive interface that makes it easy to use
- CHIRP sonar provides high-quality, accurate images of fish and structure in water up to 600 feet away
- Element 7 HV Chartplotter & Fishfinder Combo with Nav+ US & Canada Chart
- No Transducer Knowledge is powerand the Element CHIRP sonar/GPS series from Raymarine gives you the power to make smarter decisions on the water
- HV (High Visibility) display is color, high contrast and sunlight readable
- Dual or Quad Beam CHIRP sonar technology provides a clear, detailed underwater picture of what's below your boat
- No need for a transducer; the Element 7 HV Chartplotter & Fishfinder Combo with Nav+ US & Canada Chart has you covered
- Get detailed information about your surroundings, including depth, bottom composition and fish activity
- See how weather conditions impact your fishing experience with the built-in barometric pressure sensor
Transducer included to the product?
What is the cartography brand of product?
Is this product is touchscreen?
Save
$144 when you buy the
Raymarine Element 7 HV w/Nav+ US & Canada Chart - No Transducer for only
$605 from NVN Marine! Same day free shipping before 3pm.
Raymarine Element 7 HV w/Nav+ US & Canada Chart - No Transducer Technical Specifications
