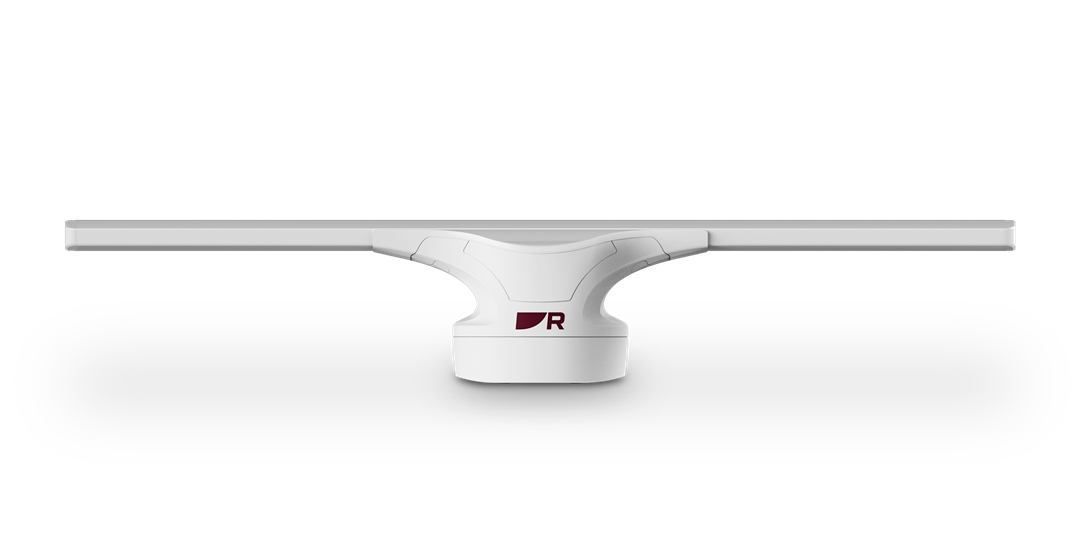

Raymarine Cyclone Pro Radar w/6' Open Array & 15M Cables

No reviews yet

$10,724.99

SKU:: T70496
UPC:: 723193836668
Condition:: New

Current Stock:

Quantity:

Request For Quote

5 customers are viewing this product

Raymarine Cyclone Pro Radar w/6' Open Array & 15M Cables

$10,724.99

Description
Shipping & Returns
Custom Product Tab
FAQ

Description

Raymarine Cyclone Pro Radar w/6' Open Array & 15M Cables Product Description

With a powerful 110 Watt solid-state transmitter, Cyclone Pro delivers superior target separation and increased long-range resolution using CHIRP pulse compression and beam sharpening technology. The increased power output of Cyclone Pro is equivalent to a 12 Kilo Watt magnetron radar and gives Cyclone Pro a range of up to 96 Nautical Miles. Cyclone Pro model features innovative detection capabilities, including Cyclone Bird Mode, RangeFusion technology and high-speed 60 RPM imaging.

Raymarine T70496 Attributes

Radar Type: Open Array
Size: 6 Feet Array
Range: 96 Nautical Miles
Rotation Speed: 12 To 60 RPM
Power Output: 110 Watt
Dimension: 15.27 Inch Length x 14.17 Inch Width x 13.18 Inch Height
Input Voltage: 12 Volt To 24 Volt
Beam Width: 1.32 Degree Horizontal/ 25 Degree Vertical
Color: White
Waterproof Rating: IPX6 Rating Waterproof
Includes: Radar Pedestal/ Voltage Convertor/ Power Cable/ Data Cable/ Mounting Kit

Raymarine T70496 Features & Benefits

Aircraft Wing Inspired: Engineered For Extremes With Best-In-Class 100-Knot Wind Rating
Cyclone's Lower Profile Allows Greater Flexibility Of Boat Architecture And More Adaptable Installation Options
Cyclone Automatically Tracks Up To 50 Targets Using The Same Advanced Arpa Technology Trusted By The United States Coast Guard
RangeFusion Technology Combines Short And Long Pulses Into The Single High Clarity Radar Image, Delivering Exceptional Short-Range And Long-Range Targets Simultaneously
Fast 60 RPM Rotational Speed Delivers 360 Degrees Of Awareness And Accurate Target Tracks In Real-Time
Doppler Target Tracking Simplifies The Interpretation Of Dangerous And Safe Targets For Added Safety
Innovative Pedestal Design Conceals Cable Connections For A Cleaner Installation
Cyclone's 6 Feet Option Delivers Superior Target Separation And Range Detection
Limited 2 Year Warranty

Raymarine T70496 Installation Instructions

Raymarine T70496 Warranties

Raymarine T70496 Technical Bulletins

Cyclone Pro Radar 110W with 6' Open Array & 15M Cables

SOLID-STATE OPEN ARRAY RADAR

The ultimate expression of design, rugged performance, and unmatched situational awareness, Cyclone solid-state open-array radars give mariners the confidence to tackle the harshest conditions, gain the upper hand in the hunt for fish, and navigate busy waterways with confidence.

Cyclone radars deliver superior target separation and long-range resolution using CHIRP pulse compression and Raymarine beam sharpening technology. Each model features innovative detection capabilities, including Cyclone Bird Mode, RangeFusion technology, and high-speed 60 rpm imaging.

CUTTING EDGE DESIGN

Aircraft-wing-inspired design is engineered for extremes with a best-in-class 100-knot wind rating and designed to meet the commercial-grade IEC 62388 standard for shipborne radar
At 13.1 inches (335 mm) tall, Cyclones lower profile allows greater flexibility of boat architecture and more adaptable installation options.
Innovative pedestal design conceals cable connections for a cleaner installation

THE ULTIMATE SITUATIONAL AWARENESS

Fast 60 RPM rotational speed delivers 360 degrees of awareness and accurate target tracks in real-time
Doppler target tracking simplifies the interpretation of dangerous and safe targets for added safety
Professional grade ARPA target tracking. Cyclone automatically tracks up to 50 targets using the same advanced ARPA technology trusted by the United States Coast Guard.
RangeFusion technology combines short and long pulses into the single high clarity radar image, delivering exceptional short-range and long-range targets simultaneously.

FISHING INTELLIGENCE

Performance tuned for locating sea birds
Enhanced Cyclone Bird Mode using CHIRP pulse compression technology

6' OPEN ARRAY SIZE

6' option delivers superior target separation and range detections

In the Pedestal Box E70621:

Pro Pedestal
M10 Stud x4
M10 Nut x8
M10 Spring Washer x4
M10 Plain washer x4
Mounting gasket
Mounting template
Radar data cable 15m
Power cable 15m
VCM100
Cable clamp
VCM100 mounting screw x2
Cable clamp mounting screw x3

6' Antenna Box E70630:
Antenna
Threaded alignment guide
Washer
Spring washer
Nut

All Axiom displays require the forthcoming LightHouse Hvar 3.16 software update for complete Cyclone compatibility. LightHouse Hvar 3.16 will be available in early November 2021.

Frequently Asked Questions (FAQ) About Raymarine Cyclone Pro Radar w/6' Open Array & 15M Cables

Who is the Raymarine?

Raymarine, the world leader in marine electronics, develops and manufactures the most comprehensive range of electronic equipment. Raymarine is dedicated to the design, manufacture and distribution of the highest quality marine electronic products and services to the worldwide recreational and light commercial markets. Whether it be stand-alone units or fully integrated systems, Raymarine understands boating and what it takes to make it safer.

How to describe Raymarine Cyclone Pro Radar w/6' Open Array & 15M Cables?

Raymarine 110 Watt Cyclone Radar with 6' Antenna

Model: T70496

Aircraft-wing-inspired design is engineered for extremes with best-in-class 100-knot wind rating and designed to meet the commercial grade IEC 62388 standard for ship bourne radar
At 13.1 inches (335 mm) tall, Cyclones lower profile allows greater flexibility of boat architecture and more adaptable installation options.
Innovative pedestal design conceals cable connections for a cleaner installation
Fast 60 RPM rotational speed delivers 360 degrees of awareness and accurate target tracks in real-time
Doppler target tracking simplifies the interpretation of dangerous and safe targets for added safety.
Professional grade ARPA target tracking. Cyclone automatically tracks up to 50 targets using the same advanced ARPA technology trusted by the United States Coast Guard.
RangeFusion technology combines short and long pulses into the single high clarity radar image, delivering exceptional short-range and long-range targets simultaneously.
Performance tuned for locating sea birds
Enhanced Cyclone Bird Mode using CHIRP pulse compression technology

The ultimate expression of design, rugged performance, and unmatched situational awareness, Cyclone solid-state openarray radars give mariners the confidence to tackle the harshest conditions, gain the upper hand in the hunt for fish, and navigate busy waterways with confidence.

Cyclone radars deliver superior target separation and long-range resolution using CHIRP pulse compression and Raymarine beam sharpening technology. Each model features innovative detection capabilities, including Cyclone Bird Mode, RangeFusion technology and high speed 60 rpm imaging.

Specifications

Supply voltage (Using VCM100)	Nominal: 12 V dc or 24 V dc / Minimum: 10.2 V dc / Maximum: 31.2 V dc
Power consumption (typical)	95 Watts
Power consumption (max)	195 Watts
Power consumption (standby)	28 Watts
Maximum range scale	96 nm
Boot up time	40 seconds
Standby to transmit	less than 5 seconds
Waterproof rating	IPX6
Operating temperature range	-25°C to +55°C (-13°F to 131°F)
Humidity	Up to 93% at 40°C (104°F)
Maximum wind speed	100 Kts
Power connection	1x Power connector
Data connection	1x RayNet connector
Transmitter frequency	9370, 9400, 9430 MHz (User Selectable)
Peak power output	110 Watts
Receiver characteristic	Linear
Receiver noise	Less than 5 dB
Pedestal
Dimensions	388 mm x 360 mm x 335 mm / 15.27 in x 14.17 in x 13.18 in (to the top of the antenna)
Weight	16 Kg
Antenna
Beamwidth (vertical)	25 degree
Beamwidth (horizontal)	1.32 degree
Polarization	Horizontal
Rotation speed	12, 24, 36, 48, 60 rpm
Length	1945 mm / 76.57 in
Weight	12 Kg / 26.45 lb

What's in the Box:

E70621 110 watt pedestal
E70630 6' Antenna
A80653 15m Power cable
A8058 15m Data Cable

Cyclone Pro Radar 110W with 6' Open Array & 15M Cables
Solid-state open-array radar that offers unparalleled situational awareness
The ultimate expression of design, rugged performance, and unmatched situational awareness

The Cyclone Pro 110W radar is the ultimate expression of design, rugged performance, and unmatched situational awareness.
With its fully open-array design, this radar is able to detect targets at ranges beyond what would be possible with a traditional rotating antenna.
It's high performance and reliability makes it an ideal choice for professional mariners who demand the best.

Cyclone Pro Radar is the ultimate expression of design, rugged performance, and unmatched situational awareness.
Solid-state open-array radars give mariners the confidence to navigate safely and confidently in any conditions.
Cyclone Pro Radar provides a powerful tool for safe navigation.

What is the output voltage?

110W

Cyclone Pro Radar 110W with 6' Open Array & 15M Cables
Solid-state open-array radar that offers unparalleled situational awareness
The ultimate expression of design, rugged performance, and unmatched situational awareness
The Cyclone Pro 110W radar is the ultimate expression of design, rugged performance, and unmatched situational awareness.
With its fully open-array design, this radar is able to detect targets at ranges beyond what would be possible with a traditional rotating antenna.
It's high performance and reliability makes it an ideal choice for professional mariners who demand the best.
Cyclone Pro Radar is the ultimate expression of design, rugged performance, and unmatched situational awareness.
Solid-state open-array radars give mariners the confidence to navigate safely and confidently in any conditions.
Cyclone Pro Radar provides a powerful tool for safe navigation.

What is the size?

6 Feet Array

What's the color of Raymarine Cyclone Pro Radar w/6' Open Array & 15M Cables?

White

What is the waterproof rating of the product?

IPX6 Rating Waterproof

What is the array size of the product?

6FT

What is the maximum range (miles) of the product?

96NM

Buy with the best price Raymarine Cyclone Pro Radar w/6' Open Array & 15M Cables for only $9749 from NVN Marine! Same day free shipping before 3pm.

Raymarine Cyclone Pro Radar w/6' Open Array & 15M Cables Technical Specifications

Type:
Vendor:	Raymarine
Array Size (Inches):	6FT
Power - Output:	110W
Range - Max (Miles):	96NM
