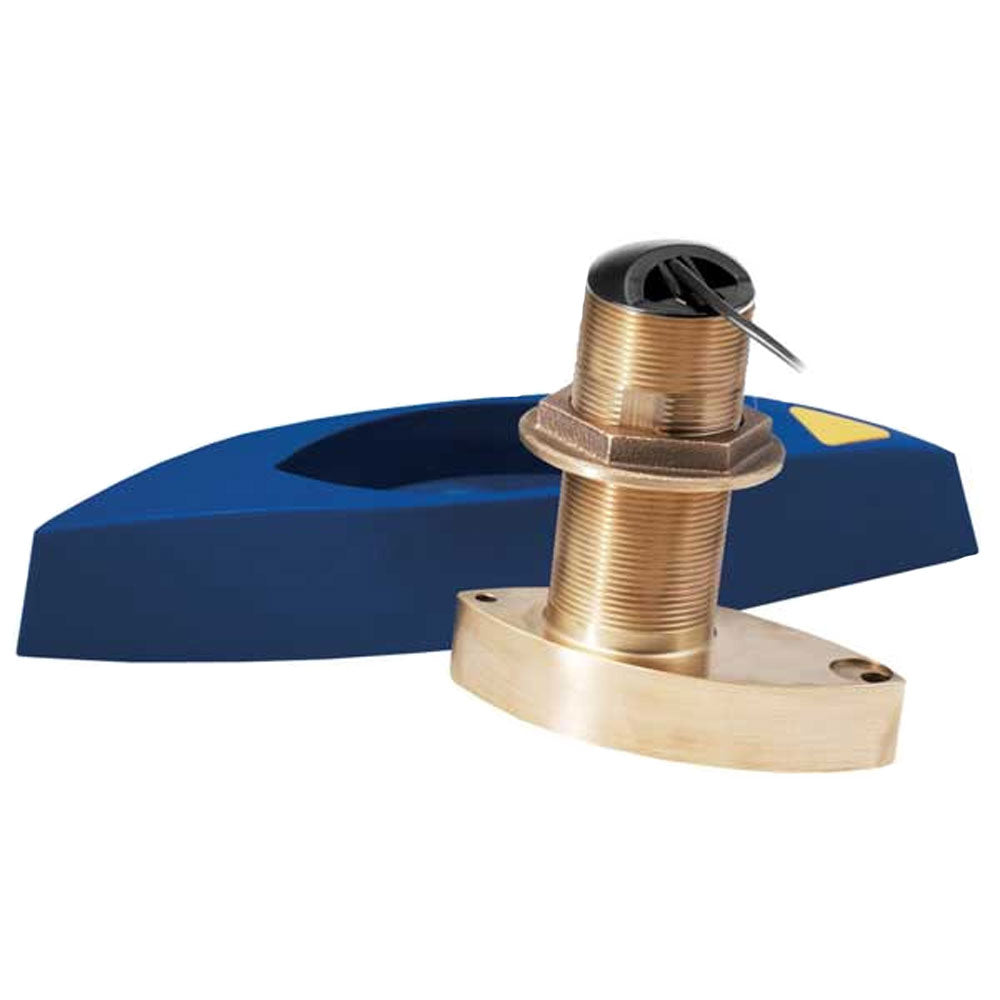

Raymarine B765LH Bronze Thru Hull f/CP450C

No reviews yet Write a Review
$2,154.38
SKU:
A80014
UPC:
723193704196
Condition:
New
5 customers are viewing this product

Raymarine B765LH Bronze Thru Hull f/CP450C

$2,154.38

Raymarine B765LH Bronze Thru Hull f/CP450C Product Description

B765LH and B765LM are thru-hull, CHIRP-ready transducers that are perfectly suited for smaller fishing boats. Both models deliver the performance of the larger transducers but in a compact package for smaller boats. The B765LH and B765LM each feature a great combination of a 300 Watt low-frequency ceramic and either a 600 Watt high-frequency or medium-frequency band ceramic for a wide range of depth capability and fish finding. The low-frequency band provides excellent depth penetration. The high-frequency band features a narrow beam width (15 Degree to 9 Degree) for excellent target separation. The medium-frequency is perfect for more coverage under the boat and delivering excellent bottom detail. The included high-performance fairing improves broadband performance at speeds over 30 knots.

Raymarine A80014 Attributes

  • Mounting Location: Thru-Hull Mount
  • Depth: 1200 Feet At Low Frequency/ 700 Feet At High Frequency
  • Power Rating: 300 Watt At Low/ 600 Watt At High Frequency
  • Frequency Range: 40 To 75 kHz Low/ 130 To 210 kHz High CHIRP
  • Supported Angle: 23 To 21 Degree Low Beam Width/ 15 To 9 Degree High Beam Width/ 0 To 24 Degree Deadrise
  • Cable Length: 33 Feet

Raymarine A80014 Features & Benefits

  • CHIRP-Ready Transducers That Are Perfectly Suited For Smaller Fishing Boats
  • Deliver The Performance Of The Larger Transducers But In A Compact Package For Smaller Boats
  • Low-Frequency Band Provides Excellent Depth Penetration
  • High-Frequency Band Features A Narrow Beam Width For Excellent Target Separation
  • Medium-Frequency Is Perfect For More Coverage Under The Boat And Delivering Excellent Bottom Detail
  • High-Performance Fairing Improves Broadband Performance At Speeds Over 30 Knots
  • Limited 2 Year Warranty

Raymarine A80014 Warranties


Raymarine B765LH CHIRP Transducer (Depth and Temperature)

The B765LH transducer is a bronze, thru-hull depth and temperature sensor compatible with Raymarine's CP450C ClearPulse CHIRP sonar. It features a depth and fast-response water temperature sensor in a bronze housing with high-performance fairing.

The B765LH covers the low-frequency spectrum from 40 kHz to 75 kHz with a beam width of 32 degrees to 21 degrees. It also covers the high-frequency spectrum from 130 kHz to 210 kHz with a beam width of 15 degrees to 9 degrees. The overall bandwidth of this transducer is 115 kHz, and covers the popular fishing frequencies of 50 and 200 kHz plus everything else in the bandwidth. The B765LH is designed to provide all the advantages of the larger thru-hull transducers, in a compact size suitable for smaller boats.

The internal array consists of 2 broadband ceramic assemblies for great sensitivity and performance.The B765LH is intended for boats 30-feet in length or longer, with fiberglass or wood hulls.

Raymarine B765Lh Chirp Sensor (Depth and Temperature) The B765Lh sensor is a bronze, depth and temperature sensor penetrating the hull, compatible with Raymarine's Cp450C Clear.













Frequently Asked Questions (FAQ) About Raymarine B765LH Bronze Thru Hull f/CP450C










Who is the Raymarine?

Raymarine, the world leader in marine electronics, develops and manufactures the most comprehensive range of electronic equipment. Raymarine is dedicated to the design, manufacture and distribution of the highest quality marine electronic products and services to the worldwide recreational and light commercial markets. Whether it be stand-alone units or fully integrated systems, Raymarine understands boating and what it takes to make it safer.

How to describe Raymarine B765LH Bronze Thru Hull f/CP450C?

Raymarine B765Lh Chirp Sensor (Depth and Temperature) The B765Lh sensor is a bronze, depth and temperature sensor penetrating the hull, compatible with Raymarine's Cp450C Clear.

What is the power rating of the product?

300 Watt At Low/ 600 Watt At High Frequency

Speed feature included to the product?

No

How to mount or what is the mounting style of Raymarine B765LH Bronze Thru Hull f/CP450C?

Thru-Hull

This product can read the temprature?

Yes

What is the imagining type of the product?

Standard

What is the length of cable?

33 Feet

Is this product supporting CHIRP and what's the type?

Low/High


Buy with the best price Raymarine B765LH Bronze Thru Hull f/CP450C for only $1299 from NVN Marine! Same day shipping before 3pm.

Raymarine B765LH Bronze Thru Hull f/CP450C Technical Specifications

Type:

Vendor:

Raymarine

Weight:

8.5 lb

Speed Included:

No

Mounting Style:

Thru-Hull

Imagining:

Standard

Chirp:

Low/High

Temperature:

Yes

Product Brochure:
