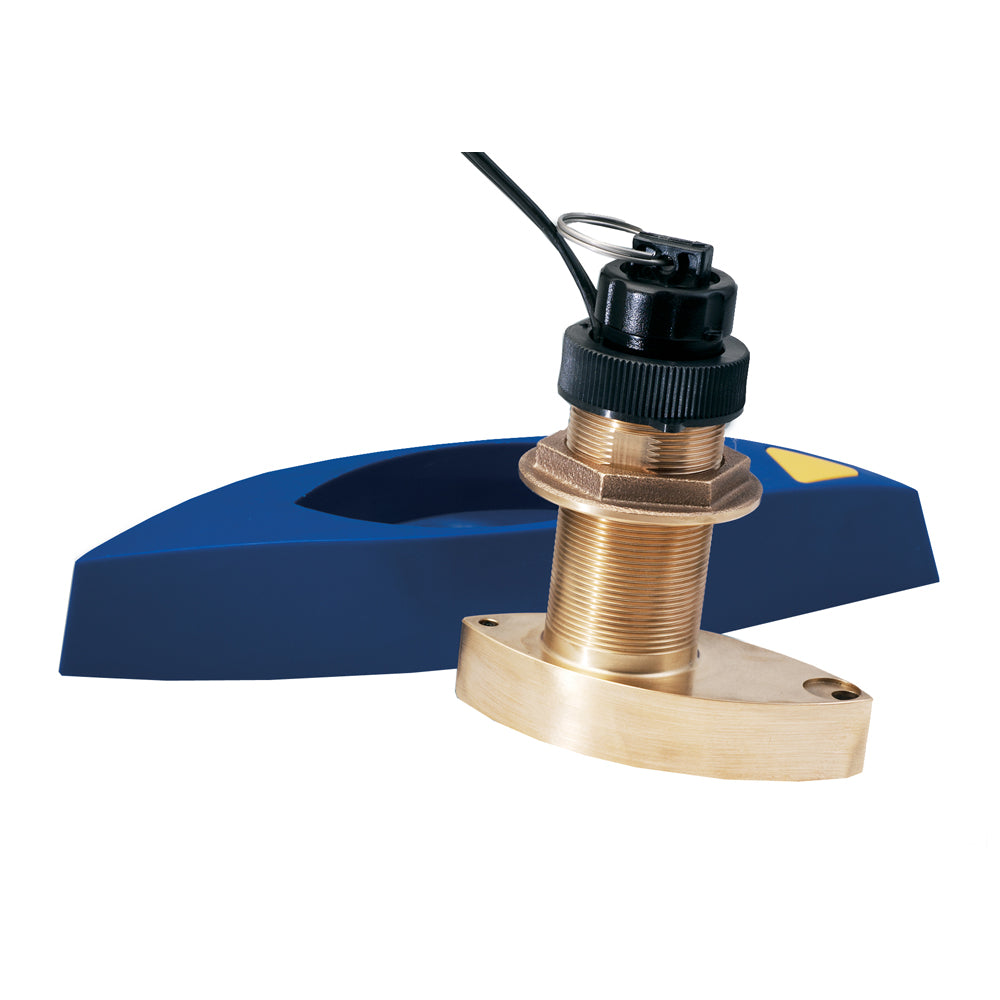

Raymarine B744V Bronze Thru Hull Tri-Ducer w/Fairing Block

No reviews yet Write a Review
$657.41
SKU:
A66091
UPC:
723193660911
Condition:
New
5 customers are viewing this product

Raymarine B744V Bronze Thru Hull Tri-Ducer w/Fairing Block

$657.41

Raymarine B744V Bronze Thru Hull Tri-Ducer w/Fairing Block Product Description

Operating at both 50 Kilohertz and 200 Kilohertz, the B744V TRIDUCER Multisensor provides you with depth, speed, and temperature in one thru-hull housing. This unit is ideal for all 600 Watt fishfinders and requires only a single hole in the hull. The B744V’s patented valve assembly prevents water from rushing into the hull when the insert is removed for cleaning or storage. The innovative housing design allows the TRIDUCER Multisensor to be fully recessed into its custom High-Performance Fairing. The end result is a streamlined installation. At speeds above 30 knots, the B744V will produce clear images and solid bottom tracking.

Raymarine A66091 Attributes

  • Mounting Location: Thru-Hull Mount
  • Depth: 1200 Feet At Low Frequency/ 700 Feet At High Frequency
  • Power Rating: 600 Watt
  • Frequency Range: 50/ 200 kHz
  • Supported Angle: 45/ 12 Degree Beam Width/ 0 To 24 Degree Deadrise
  • Cable Length: 33 Feet

Raymarine A66091 Features & Benefits

  • Multisensor Provides You With Depth, Speed, And Temperature In One Thru-Hull Housing
  • Ideal For All 600 Watt Fishfinders And Requires Only A Single Hole In The Hull
  • Patented Valve Assembly Prevents Water From Rushing Into The Hull When The Insert Is Removed For Cleaning Or Storage
  • Innovative Housing Design Allows The TRIDUCER Multisensor To Be Fully Recessed Into Its Custom High-Performance Fairing
  • Limited 2 Year Warranty

Raymarine A66091 Warranties


B744V 600 Watt Bronze thru hull transducer with depth, speed, and temperature.

Compatible with the following sounder modules:

  • DSM30
  • DSM300


Compatible hull material: Wood and fiberglass

Max power: 600 W

Frequency: 200/50 kHz

Cable: 30ft (10m) cable with connector

Hole diameter for installation: 2"

Other: Self-sealing removable paddle wheel insert.

Includes high speed fairing block.

Compatible with the following depth sounder modules DSM30 DSM300 compatible hull material wood and glass fiber maximum power 600 W frequency 200 50 kHz cable 30ft (10m) cable, with...













Frequently Asked Questions (FAQ) About Raymarine B744V Bronze Thru Hull Tri-Ducer w/Fairing Block




















Who is the Raymarine?

Raymarine, the world leader in marine electronics, develops and manufactures the most comprehensive range of electronic equipment. Raymarine is dedicated to the design, manufacture and distribution of the highest quality marine electronic products and services to the worldwide recreational and light commercial markets. Whether it be stand-alone units or fully integrated systems, Raymarine understands boating and what it takes to make it safer.

How to describe Raymarine B744V Bronze Thru Hull Tri-Ducer w/Fairing Block?

Compatible with the following depth sounder modules DSM30 DSM300 compatible hull material wood and glass fiber maximum power 600 W frequency 200 50 kHz cable 30ft (10m) cable, with...

What is the power rating of the product?

600 Watt

What is the type of the product?

Thru-Hull

What is the working frequency of the product?

50/200kHz

What is the material of Raymarine B744V Bronze Thru Hull Tri-Ducer w/Fairing Block?

Bronze

What is the sonar type of the product?

Depth
Speed
Temperature

What is the maximum depth of the product?

1000 Feet

Speed feature included to the product?

Yes

How to mount or what is the mounting style of Raymarine B744V Bronze Thru Hull Tri-Ducer w/Fairing Block?

Thru-Hull

This product can read the temprature?

Yes

What is the imagining type of the product?

Standard

What is the connection interface of product?

7-Pin Connector

What is the length of cable?

33 Feet

What is the length of cable (feet)?

30'

Is this product supporting CHIRP and what's the type?

No

What is the beam metrics for this product?

12x45 Degrees

What is the deadrise angle of product?

0 to 24 Degree

What is the transmit power of the product?

600 Watts


Save $98 when you buy the Raymarine B744V Bronze Thru Hull Tri-Ducer w/Fairing Block for only $396 from NVN Marine! Same day shipping before 3pm.

Raymarine B744V Bronze Thru Hull Tri-Ducer w/Fairing Block Technical Specifications

Type:

Vendor:

Raymarine

Weight:

7.65 lb

Temperature:

Yes

Speed Included:

Yes

Mounting Style:

Thru-Hull

Imagining:

Standard

Chirp:

No

Cable Length (Feet):

30'

Product Manual:

Product Brochure:
