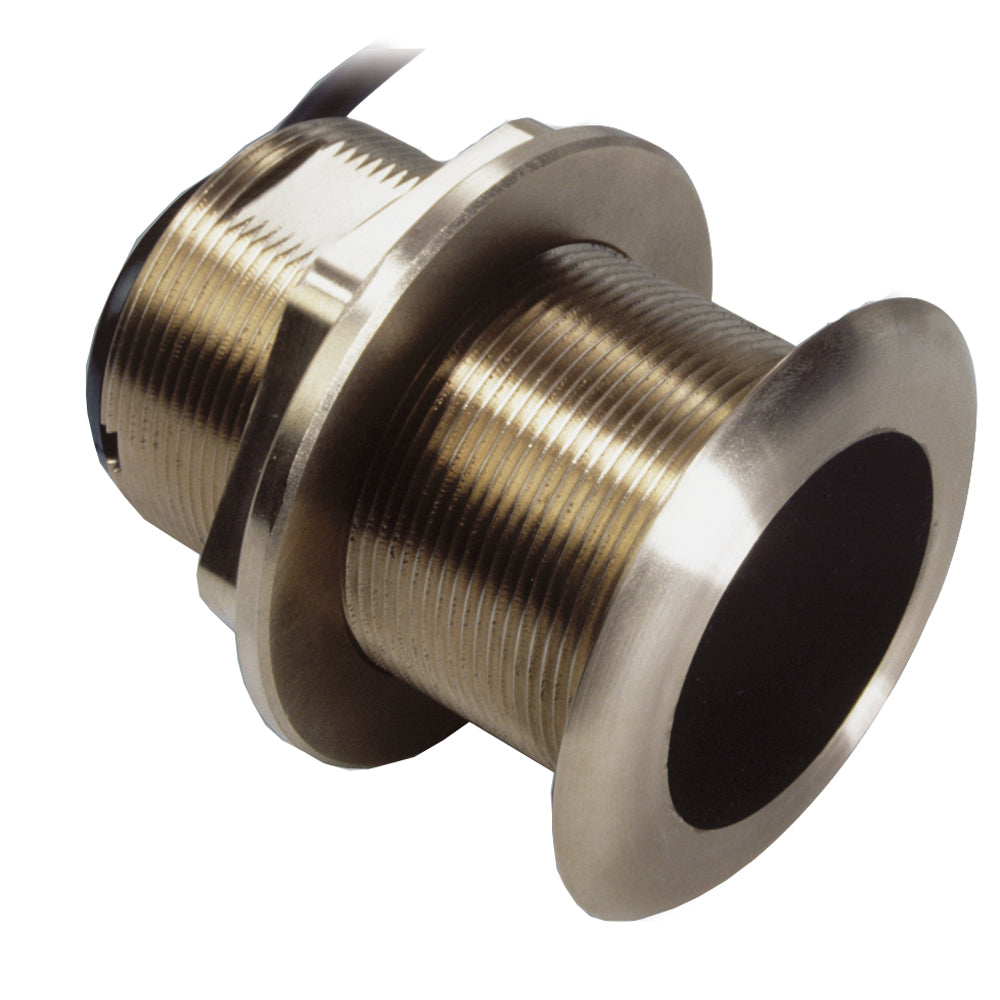

Raymarine B60-20, 20 Degree Tilted Element Transducer f/DSM300 / DSM300G / DSM250 / DSM30

No reviews yet Write a Review
$373.74
SKU:
E66085
UPC:
723193660850
Condition:
New
5 customers are viewing this product

Raymarine B60-20, 20 Degree Tilted Element Transducer f/DSM300 / DSM300G / DSM250 / DSM30

$373.74

Raymarine B60-20, 20 Degree Tilted Element Transducer f/DSM300 / DSM300G / DSM250 / DSM30 Product Description

The B60 is a bronze, dual-frequency through hull transducer with tilted element technology that compensates for the boat's hull dead rise, eliminating the need for a fairing block. The transducer mounts nearly flush to the boat's hull reducing drag and improving water flow. Built-in dead rise compensation keeps the main focus of the beam pointing straight down, resulting in strong echo returns and accurate depth readings. The B60 also has a built-in water temperature sensor. The B60 is ideal for inshore or coastal fishing in shallow to medium depths. Its combination for frequencies and beams make it ideal for slow trolling, structure fishing and drifting. This is also a great choice for deep-water lake fishing.

Raymarine E66085 Attributes

  • Mounting Location: Thru-Hull Mount
  • Depth: 1200 Feet Maximum Depth At Low Frequency/ 700 Feet Maximum Depth At High Frequency
  • Power Rating: 600 Watt
  • Frequency Range: 50/ 200 kHz Frequency
  • Supported Angle: 45/ 12 Degree Beam Width/ 16 To 24 Degree Deadrise/ For Depth/ Temperature
  • Cable Length: 33 Feet

Raymarine E66085 Features & Benefits

  • Bronze, Dual-Frequency Through Hull Transducer With Tilted Element Technology That Compensates For The Boat's Hull Dead Rise, Eliminating The Need For A Fairing Block
  • Transducer Mounts Nearly Flush To The Boat's Hull Reducing Drag And Improving Water Flow
  • Built-In Dead Rise Compensation Keeps The Main Focus Of The Beam Pointing Straight Down, Resulting In Strong Echo Returns And Accurate Depth Readings
  • Built-In Water Temperature Sensor
  • Ideal For Inshore Or Coastal Fishing In Shallow To Medium Depths
  • Bronze Through-Hull Fitting Is Ideal For Wood Or Fiberglass Hulls
  • Limited 2 Year Warranty

Raymarine E66085 Warranties


B60 Tilted Element™ 20°

20° titled version is designed for 16° - 24° deadrise angles

For use with Raymarine DSM250/DSM300/DSM300G/DSM30/CP300

The bronze B60-20° provide a vertical beam without a fairing. Inside the housing, the ceramic element is tilted to provide built-in deadrise compensation. The resulting vertical beam provides excellent echo returns for more accurate depth readings. The nearly flush housing minimizes drag with only 5 mm (3/16") extending outside of the hull.

Features:
  • Depth/Temp
  • 50/200 kHz
  • 600w RMS
  • Mid-performance
  • Bronze


Raymarine B60-20 thin depth/temperature sensor provides built-in dead angle compensation without fairing. Ideal for wood or fiberglass...




Frequently Asked Questions (FAQ) About Raymarine B60-20, 20 Degree Tilted Element Transducer f/DSM300 / DSM300G / DSM250 / DSM30











Who is the Raymarine?

Raymarine, the world leader in marine electronics, develops and manufactures the most comprehensive range of electronic equipment. Raymarine is dedicated to the design, manufacture and distribution of the highest quality marine electronic products and services to the worldwide recreational and light commercial markets. Whether it be stand-alone units or fully integrated systems, Raymarine understands boating and what it takes to make it safer.

How to describe Raymarine B60-20, 20 Degree Tilted Element Transducer f/DSM300 / DSM300G / DSM250 / DSM30?

Raymarine B60-20 thin depth/temperature sensor provides built-in dead angle compensation without fairing. Ideal for wood or fiberglass...
  • The tilted element is designed for use in a deadrise angle of 16-24 degrees
  • The bronze coating provides a vertical beam without a fairing
  • It is compatible with Raymarine DSM250/DSM300/DSM300G/DSM30/CP300
  • The B60 Tilted Element& 153; 20& 176; 20& 176; titled version is designed for 16& 176; - 24& 176; deadrise angles
  • For use with Raymarine DSM250/DSM300/DSM300G/DSM30/CP300
  • The bronze B60-20& 176; provide a vertical beam without a fairing. Inside the

What is the power rating of the product?

600 Watt
  • The tilted element is designed for use in a deadrise angle of 16-24 degrees
  • The bronze coating provides a vertical beam without a fairing
  • It is compatible with Raymarine DSM250/DSM300/DSM300G/DSM30/CP300
  • The B60 Tilted Element& 153; 20& 176; 20& 176; titled version is designed for 16& 176; - 24& 176; deadrise angles
  • For use with Raymarine DSM250/DSM300/DSM300G/DSM30/CP300
  • The bronze B60-20& 176; provide a vertical beam without a fairing. Inside the
  • This housing is designed to fit on vessels with hull deadrise of 16 to 24 degrees.
  • The housing is made of fiberglass and has a 600 watt power rating.
  • It also has a depth and temperature sensor that reads out in both 50 kHz and 200 kHz frequencies.
  • The B60 housing provides a sturdy and durable solution for your boat.
  • The 600 watt transducer delivers excellent performance in shallow water, while the 20 degree tilt provides better reception in deep water.
  • Compatible with fiberglass and other common hull materials, this housing is perfect for a variety of vessels.

Speed feature included to the product?

No

How to mount or what is the mounting style of Raymarine B60-20, 20 Degree Tilted Element Transducer f/DSM300 / DSM300G / DSM250 / DSM30?

Thru-Hull

This product can read the temprature?

Yes

What is the length of cable (feet)?

33'

What is the imagining type of the product?

Standard

What is the length of cable?

33 Feet

Is this product supporting CHIRP and what's the type?

No


Buy with the best price Raymarine B60-20, 20 Degree Tilted Element Transducer f/DSM300 / DSM300G / DSM250 / DSM30 for only $324 from NVN Marine! Same day shipping before 3pm.

Raymarine B60-20, 20 Degree Tilted Element Transducer f/DSM300 / DSM300G / DSM250 / DSM30 Technical Specifications

Type:

Vendor:

Raymarine

Weight:

4.9 lb

Chirp:

No

Cable Length (Feet):

33'

Temperature:

Yes

Speed Included:

No

Mounting Style:

Thru-Hull

Imagining:

Standard

Product Manual:

Product Brochure:
