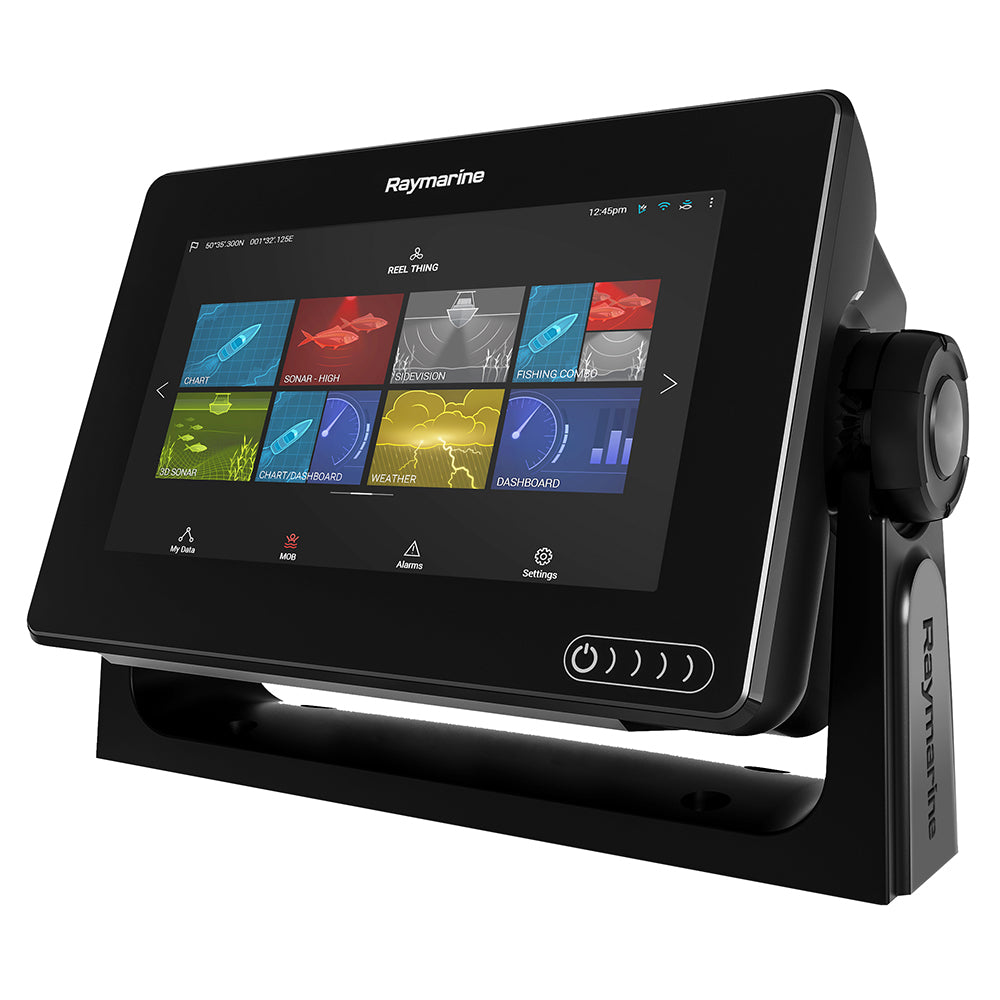

Raymarine Axiom 7 DV 7" MFD w/CHIRP DownVision, CPT-100 DVS Transducer & Navionics+ Chart Product Description
Axiom is expandable, so its capabilities can grow, as needed. It supports the full range of Raymarine accessories, including Quantum radar, CHIRP Sonar, FLIR thermal cameras, audio integration, instruments, cameras and Evolution autopilot. Standard Wi-Fi and Bluetooth connectivity allows connection to the latest Raymarine apps for tablets and smartphones.
Raymarine 7036402NAG Attributes
-
Maps: Navionics+ USA And Coastal Canada Charts
-
Display Size: 7 Inch
-
Display Type: WVGA 800 x 480 Pixels Resolution
-
Interface: Touchscreen Interface
-
Dimensions: 7.92 Inch Width X 3 Inch Depth X 5.24 Inch Height
-
Waterproof: IPX6/ IPX7 Waterproof
-
Sonar Compatibility: Built-In CHIRP
Raymarine 7036402NAG Features & Benefits
- Axiom Chartplotter Displays Feature A Built-In GPS Receiver
- Simple Touchscreen Operation
- Fast Quad-Core Performance
- Rugged All-Glass Display Optimized For Flush Or Surface Mounting
- Sleek Buttonless Design With Swipe-To-Power Control
- Blazing Fast Performance And Power
- LightHouse Operating System Is Fast, Fluid And Easy To Learn Which Is An Uncluttered Interface Is Easily Personalized For Your Style Of Navigating
- Wide Spectrum CHIRP Sonar: DownVision For Structure Identification And CHIRP Sonar For Fish Detection And Bottom Tracking
- Features Navionics+ USA And Coastal Canada Chart And CPT-100 DVS Transducer
- Limited 2 Year Warranty
Raymarine 7036402NAG Installation Instructions
Raymarine 7036402NAG Warranties
Raymarine 7036402NAG Technical Bulletins
Axiom 7 DV 7" MFD with CHIRP DownVision, CPT-100 DVS Transducer & Navionics+ Chart
The Axiom is a powerful multifunction navigation system from Raymarine. The Axiom 7 DV features a 7-inch rugged all-glass touchscreen display and is powered by Raymarine's powerful LightHouse 3 operating system and a supercharged quad-core processor. Axiom 7 DV has built-in dual channel CHIRP DownVision sonar for imaging bottom structure and fish. A deluxe CPT-100DVS transom mount CHIRP DownVision transducer is included.
Axiom 7 DV is expandable so its capabilities can grow as needed. It supports the full range of Raymarine accessories including Quantum radar, CHIRP Sonar, FLIR thermal cameras, audio integration, instruments, cameras, and Evolution autopilot. Standard Wi-Fi and Bluetooth connectivity allows connection to the latest Raymarine apps for tablets and smartphones.
The Axiom 7 DV is bundled with Navionics+ Charts for North America with full coastal coverage for the USA and Canada, plus over 80,000 inland ponds, lakes and rivers. You can also make your HD contour maps with your depth sounder and Navionics SonarChart Live.
Axiom 7 DV also includes a CPT-100DVS transom mount transducer, surface and trunnion mounting kits, mounting hardware, power/data cable, and installation instructions. Navionics+ Chart
Features:
- Rugged, All-Glass touch screen display delivers a big screen experience in a small footprint. Optically bonded for brighter colors, sharper contrast, and sunlight visibility
- LightHouse 3 OS is fast, fluid, and easy to learn. An uncluttered interface that is easily personalized for your style of navigating.
- Wide Spectrum CHIRP sonar transmits on 60 different frequencies for the most life-like sonar imagery and simply the best fish targeting- hands down!
- Deluxe CPT-100 DVS Transom Mount Transducer Included for CHIRP DownVision and fish targeting
- Fast 10 Hz 72 Channel GPS/GLONASS Receiver for rapid position and heading updates and smooth on screen tracking
- Support for the best charts from Navionics and LightHouse Raster and Vector Charts sourced from leading map makers like NV Digital, Blue Latitude, and more
- Navigate Safely at Night with the optional FLIR M100 and M200 compact marine thermal cameras
- Quantum CHIRP Radar Ready - Superior solid state CHIRP radar delivers no compromise performance on long and extremely short ranges
- Marine Audio Control - Turn up the volume and control NMEA2000 compatible marine audio systems like Rockford Fosgate
- Ready to Network with Raynet Ethernet and NMEA2000. Connect multiple Axiom displays or expand with Quantum, HD radar, IP cameras, engine gauges, autopilots, instruments, and more
- Built-in Wi-Fi lets you to stream and control Axiom right from your smartphone or tablet. You can also sync Axiom's waypoints, routes, and charts with Navionics mobile apps
CPT-100DVS Transom Mount CHIRP DownVision Transducer
- Installation: Transom Mount
- Material: Urethane
- Max Depth (Ft): DV=600 | FF=900
- Frequency (KHz): CHIRP DownVision | CHIRP DownVision / Fishfinder
- Beam Width (L/H)25°/60°
- Records: Depth / Temperature
- Approved Hull Material: Fibreglass / Wood / Metal
- Cable Length (Ft/M):33'/10M
- Deadrise: 0-90° Transom
Fast performance and powerful functions at your fingertips. Raymarine launched the powerful Axioma multi-function navigation system. Axiom 7 DV has a 7-inch diagonal, solid all-glass touch screen display, and is supported by the powerful Raymarines new LightHouse 3 operating system and supercharged quad-core processor. Built-in DownVision sonar: Axiom 7 DV has a built-in dual-channel CHIRP DownVision sonar for imaging the bottom structure and fish, including the CHIRP DownVision sensor installed on the back of the CPT-100DVS. Expanded network hub: Axiom 7 DV can be expanded, so it can expand functions as needed, and can support all Raymarine accessories, including quantum radar, CHIRP sonar, FLIR thermal imager, audio integration, instruments, cameras and Evolution autopilot; You can connect standard Wi-Fi and Bluetooth connectivity to the latest Raymarine app for tablets and smartphones. Applicable to North America, with full coastal coverage of the United States and Canada, and more than 80,000 inland ponds, lakes and rivers. Your depth sounder and Navionics SonarChart Live. The main functions of Axiom 7 DV's sturdy all-glass display are optimized for embedded or surface mounting. Lightweight 7.0-inch buttonless design, which can be controlled by sliding the power supply. Optical bonding can provide brighter colors, sharper contrast and visibility in sunlight. High visibility and 800 x 480 high resolution. WVGA LCD display, brightness adjustable to 1200 nits. View from multiple angles: 60/70/70/70 (top/bottom/left/right) New LightHouse 3 OS is fast, smooth and easy to learn. The simple interface is easy to customize according to your navigation style. Broad-spectrum CHIRP sonar can transmit the most realistic sonar image frequency on 60 different frequencies, as well as the best signal targeting fish! DownVision CPT-100DVS tail plate mount sensor, used for CHIRP DownVision and fish aiming. Fast 10Hz 72-channel GPS/GLONASS receiver for fast positioning and heading updates, and smoothly displayed on the screen to support the best charts from Navionics and LightHouse Raster, as well as from leading map manufacturers such as NV Digital, Blue Latitude Vector illustration. Optional FLIR M100 and M200 compact marine thermal imaging cameras. Quantum CHIRP Radar Ready The excellent solid-state CHIRP radar will not degrade performance at long and very short distances. Marine audio controls can increase the volume and control NMEA2000 compatible marine audio systems, such as Rockford Fosgate. Prepare for network connection via Raynet Ethernet and NMEA2000. Connect multiple Axiom displays or expand through Quantum, HD radar, IP cameras, engine meters, autopilots, instruments, etc. The built-in Wi-Fi allows you to stream and control Axiom directly from your smartphone or tablet. You can also synchronize Axioms waypoints, routes and charts with the Navionics mobile app. Customizable installation methods, simple installation options for top, embedded, front and bracket installation. Box axiom display content (included with Trunnion adapter) Trunnion bracket Trunnion knob x 2 Suncover Trunnion mounting panel mounting gasket for surface/embedded M5 x 58 x 4 M5 wing nut x 4 Document packaging power supply/NMEA 2000 cable (with 1.5 m (4.92 ft) power cord and 0.5 m (1.64 ft) NMEA 2000 cable) DownVision CPT-100DVS sensor and related accessories
Frequently Asked Questions (FAQ) About Raymarine Axiom 7 DV 7" MFD w/CHIRP DownVision, CPT-100 DVS Transducer & Navionics+ Chart
Who is the Raymarine?
Raymarine, the world leader in marine electronics, develops and manufactures the most comprehensive range of electronic equipment. Raymarine is dedicated to the design, manufacture and distribution of the highest quality marine electronic products and services to the worldwide recreational and light commercial markets. Whether it be stand-alone units or fully integrated systems, Raymarine understands boating and what it takes to make it safer.
How to describe Raymarine Axiom 7 DV 7" MFD w/CHIRP DownVision, CPT-100 DVS Transducer & Navionics+ Chart?
Fast performance and powerful functions at your fingertips.
Raymarine launched the powerful Axioma multi-function navigation system. Axiom 7 DV has a 7-inch diagonal, solid all-glass touch screen display, and is supported by the powerful
Raymarines new LightHouse 3 operating system and supercharged quad-core processor. Built-in DownVision sonar: Axiom 7 DV has a built-in dual-channel CHIRP DownVision sonar for imaging the bottom structure and fish, including the CHIRP DownVision sensor installed on the back of the CPT-100DVS. Expanded network hub: Axiom 7 DV can be expanded, so it can expand functions as needed, and can support all
Raymarine accessories, including quantum radar, CHIRP sonar, FLIR thermal imager, audio integration, instruments, cameras and Evolution autopilot; You can connect standard Wi-Fi and Bluetooth connectivity to the latest
Raymarine app for tablets and smartphones. Applicable to North America, with full coastal coverage of the United States and Canada, and more than 80,000 inland ponds, lakes and rivers. Your depth sounder and Navionics SonarChart Live. The main functions of Axiom 7 DV's sturdy all-glass display are optimized for embedded or surface mounting. Lightweight 7.0-inch buttonless design, which can be controlled by sliding the power supply. Optical bonding can provide brighter colors, sharper contrast and visibility in sunlight. High visibility and 800 x 480 high resolution. WVGA LCD display, brightness adjustable to 1200 nits. View from multiple angles: 60/70/70/70 (top/bottom/left/right) New LightHouse 3 OS is fast, smooth and easy to learn. The simple interface is easy to customize according to your navigation style. Broad-spectrum CHIRP sonar can transmit the most realistic sonar image frequency on 60 different frequencies, as well as the best signal targeting fish! DownVision CPT-100DVS tail plate mount sensor, used for CHIRP DownVision and fish aiming. Fast 10Hz 72-channel GPS/GLONASS receiver for fast positioning and heading updates, and smoothly displayed on the screen to support the best charts from Navionics and LightHouse Raster, as well as from leading map manufacturers such as NV Digital, Blue Latitude Vector illustration. Optional FLIR M100 and M200 compact marine thermal imaging cameras. Quantum CHIRP Radar Ready The excellent solid-state CHIRP radar will not degrade performance at long and very short distances. Marine audio controls can increase the volume and control NMEA2000 compatible marine audio systems, such as Rockford Fosgate. Prepare for network connection via Raynet Ethernet and NMEA2000. Connect multiple Axiom displays or expand through Quantum, HD radar, IP cameras, engine meters, autopilots, instruments, etc. The built-in Wi-Fi allows you to stream and control Axiom directly from your smartphone or tablet. You can also synchronize Axioms waypoints, routes and charts with the Navionics mobile app. Customizable installation methods, simple installation options for top, embedded, front and bracket installation. Box axiom display content (included with Trunnion adapter) Trunnion bracket Trunnion knob x 2 Suncover Trunnion mounting panel mounting gasket for surface/embedded M5 x 58 x 4 M5 wing nut x 4 Document packaging power supply/NMEA 2000 cable (with 1.5 m (4.92 ft) power cord and 0.5 m (1.64 ft) NMEA 2000 cable) DownVision CPT-100DVS sensor and related accessories
- The Axiom 7 DV 7" MFD with CHIRP DownVision, CPT-100 DVS Transducer and Navionics+ Chart is designed for those who want to go beyond the basics of a fishfinder and chartplotter.
- The Axiom features a 7-inch rugged all-glass touchscreen that is perfect for those who want to navigate in tough conditions.
- This unit has a built-in CHIRP DownVision sonar and CPT 100 DVS
- Powerful multifunction navigation system with a 7-inch rugged all-glass touchscreen
- The Axiom 7 DV features CHIRP DownVision, CPT-100 DVS Transducer and Navionics+ Chart compatibility
The Raymarine Axiom 7 is the ultimate marine electronics package for serious boaters. It's a 7" MFD with integrated DownVision, 600W Sonar w/CPT-100DVS, Navionics Nav+ US and Canada Charts, and sleek buttonless design. It's built to be rugged and withstand the harsh marine environment, so you can take it anywhere.
What is the screen size of the product?
7"
- The Axiom 7 DV 7" MFD with CHIRP DownVision, CPT-100 DVS Transducer and Navionics+ Chart is designed for those who want to go beyond the basics of a fishfinder and chartplotter.
- The Axiom features a 7-inch rugged all-glass touchscreen that is perfect for those who want to navigate in tough conditions.
- This unit has a built-in CHIRP DownVision sonar and CPT 100 DVS
- Powerful multifunction navigation system with a 7-inch rugged all-glass touchscreen
- The Axiom 7 DV features CHIRP DownVision, CPT-100 DVS Transducer and Navionics+ Chart compatibility
- The latest in navigation technology that's fully integrated into a single, sleek touchscreen display.
- Powerful sonar and the most detailed maps available make this a must-have for any fisherman.
- Rugged, all-glass design is watertight, shockproof and has been tested to withstand extreme temperatures from -4°F to 122°F.
- Navigate the water with ease.
- See the bottom of the ocean without getting wet.
- Tap into all of your favorite apps with a simple swipe.
Transducer included to the product?
Is this product waterproof?
Which transducer included to the product?
What is the display size of the product?
What is the display type of the product?
WVGA 800 x 480 Pixels Resolution
What is the controlling interface of the product?
What is the cartography brand of product?
What is the dimensions of the product?
7.92 Inch Width X 3 Inch Depth X 5.24 Inch Height
Is this product is touchscreen?
Save
$181 when you buy the
Raymarine Axiom 7 DV 7" MFD w/CHIRP DownVision, CPT-100 DVS Transducer & Navionics+ Chart for only
$780 from NVN Marine! Same day shipping before 3pm.
Raymarine Axiom 7 DV 7" MFD w/CHIRP DownVision, CPT-100 DVS Transducer & Navionics+ Chart Technical Specifications
| Type: |
|
| Vendor: |
Raymarine
|
| Weight: |
8.8 lb
|
| Cartography Brand: |
Navionics/C-Map/CMOR
|
| Included Transducer: |
A80351
|
| Screen Size: |
7"
|
| Touchscreen: |
Yes
|
| Transducer Included: |
Yes
|
