Raymarine Axiom 2 XL 22 Multifunction Display w/RCR-SD Reader, Alarm & Cable

No reviews yet Write a Review
$13,749.99
SKU:
T70547
Condition:
New
5 customers are viewing this product

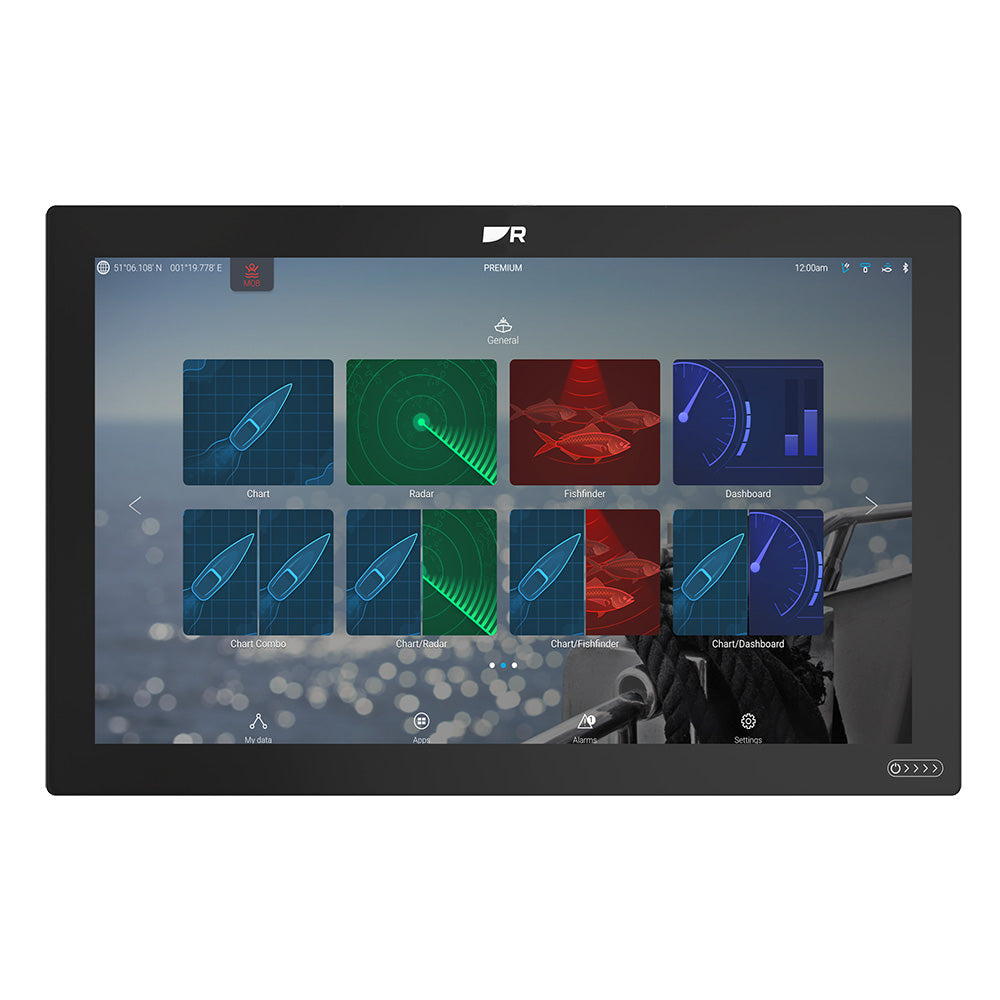

Raymarine Axiom 2 XL 22 Multifunction Display w/RCR-SD Reader, Alarm & Cable

$13,749.99

Raymarine Axiom 2 XL 22 Multifunction Display w/RCR-SD Reader, Alarm & Cable Product Description

Axiom 2 XL 22 Multifunction Display with RCR-SD Reader, Alarm & Cable

Axiom 2 XL, the flagship of the Axiom family, delivers powerful chartplotter performance, stylish large-format navigation, and the elegant simplicity of the LightHouse 4 operating system. Designed for all weather conditions, the rugged yet beautiful Axiom 2 XL displays are at home in open cockpits or enclosed glass bridge stations. Enhanced with powerful 6-core processors, expanded networking, and ultra-bright HydroTough displays, Axiom 2 XL is the premium chartplotter for captains who demand the best. Axiom 2 XL displays are available in 16, 19, 22, and 24-inch diagonal display sizes.

Features

  • A slim bezel display allows the largest possible displays in a small footprint. Experience big-screen navigation even on tightly spaced helms.
  • Get underway faster with a fast 6-core processor
  • HydroTough™ nano-coating repels water for reliable touchscreen control and superior sunlight visibility
  • Smart backlighting and an ambient light sensor automatically adjust display brightness for day and evening
  • Create your own glass bridge Axiom 2 XL system with multiple Axiom 2 XL displays
  • Three power-over-Ethernet ports simplify the remote camera and RMK-10 remote keypad connectivity
  • Stay entertained with streaming apps and Axiom 2 XL’s HDMI and audio output for remote displays and marine entertainment systems
  • Pair Axiom 2 XL with the RVM1600 RealVision Max for the ultimate big-screen CHIRP sonar experience
  • HDMI output for connecting to remote monitors or HDTVs
  • HDMI input and USB touchscreen input for remote PC integration
  • Analog audio output for integrating with marine entertainment systems
  • Easy to upgrade with the same mounting footprint as Axiom XL
  • Built-in ambient light sensor and smart backlighting automatically adjust backlighting based on lighting conditions
  • Three RayNet Ethernet POE ports for networking multiple Axiom displays, radar, cameras, and sonar modules
  • NMEA 2000 port
  • Integrated high-accuracy GPS/GNSS sensor with support for the Galileo constellation
  • Ample storage with 64 GB of internal memory for apps, charts, and waypoint storage
















Frequently Asked Questions (FAQ) About Raymarine Axiom 2 XL 22 Multifunction Display w/RCR-SD Reader, Alarm & Cable



Who is the Raymarine?

Raymarine, the world leader in marine electronics, develops and manufactures the most comprehensive range of electronic equipment. Raymarine is dedicated to the design, manufacture and distribution of the highest quality marine electronic products and services to the worldwide recreational and light commercial markets. Whether it be stand-alone units or fully integrated systems, Raymarine understands boating and what it takes to make it safer.

How to describe Raymarine Axiom 2 XL 22 Multifunction Display w/RCR-SD Reader, Alarm & Cable?

"

Raymarine AXIOM2 XL 22 - 21.5"" Multifunction Display Only

Model: E70663
  • Created from official hydrographic charts, you can trust LightHouse Charts and Axiom 2 XL for maximum readability, intuitive navigation, and superior quality.
  • Add a Quantum 2 radome or Cyclone open array radar and navigate safer with Doppler target tracking and radar/chart overlay.
  • FLIR thermal imaging and Axiom 2 XL turn night into day, keeping you safe and secure so you can boat with confidence.
  • Outfit Axiom 2 XL with CHIRP sonar modules. Choose the CP570 for deep water adventures or the RVM1600 with RealVision MAX SideVision, DownVision, and 3D fish finder.
  • Axiom 2 XL offers a suite of smart sailing features to help you optimize your performance under sail, including layline overlays, preloaded polars, sailing dashboards, and race timers.
  • Axiom 2 XL's intuitive LightHouse operating system makes everything easier. Integrate all navigation, engine and sensor data on a single display
  • Add a CAM300 and an AR200 sensor for ClearCruise augmented reality. See AIS, waypoints, and chart objects overlaid on high-definition video.
  • Add the YachtSense Link router and keep your system connected onboard and off with the Raymarine mobile App.
  • Built-in Wi-Fi lets you view and control your Axiom 2 XL on your phone or tablet with the Raymarine Mobile App.

The flagship of the Axiom family, Axiom 2 XL delivers powerful chartplotter performance, stylish large-format navigation, and the confidence of the LightHouse operating system. Designed for all weather conditions, the rugged yet beautiful Axiom 2 XL displays are at home in open cockpits or enclosed glass bridge stations. Enhanced with powerful 6-core processors, expanded networking, and ultra-bright HydroTough displays, Axiom 2 XL is the premium chartplotter for captains who demand the best.

Axiom 2 XL chartplotters do everything faster. Pan and zoom charts with ease and harness the full power of Axiom 2 XL with radar, sonar modules, autopilot, and video integrated seamlessly with the intelligent LightHouse operating system.

Axiom 2 XL's exclusive HydroTough™ nano-coating technology repels water for confident touchscreen control, beautiful colors, and excellent sunlight visibility.

Axiom 2 XL's ambient light sensor automatically adjusts display brightness for day and evening lighting conditions.

Navigate effortlessly with Axiom 2 XL's touchscreen or take command with the optional RMK-10 remote keypad. The RMK-10 provides full remote control of every Axiom on the helm.

Specifications
Weight 9.9 kg (21.83 lbs)
Power consumption @ 12 V dc94.25 W
Power consumption @ 24 V dc 79.46 W
Off current @ 12 V dcPoE: 2,135 mA (25.62 W), No PoE: 352 mA (4.32 W)
Off current @ 24 V dcPoE: 1,161 mA (27.6 W), No PoE: 352 mA (5.54 W)
PoE operating voltage range9.5 V dc to 32 V dc
Current 10.12 A
Operating voltage range8 V dc to 32 V dc
Fuse rating15 A
Nominal supply voltage12 V dc / 24 V dc
Dimensions Height: 326.33 mm (12.85 in), Width, 533.56 mm (21.00 in), Depth (including cables): 180.75 mm (7.12 in)
"


Buy with the best price Raymarine Axiom 2 XL 22 Multifunction Display w/RCR-SD Reader, Alarm & Cable for only $12499 from NVN Marine! Same day free shipping before 3pm.

Raymarine Axiom 2 XL 22 Multifunction Display w/RCR-SD Reader, Alarm & Cable Technical Specifications

Type:

Vendor:

Raymarine
