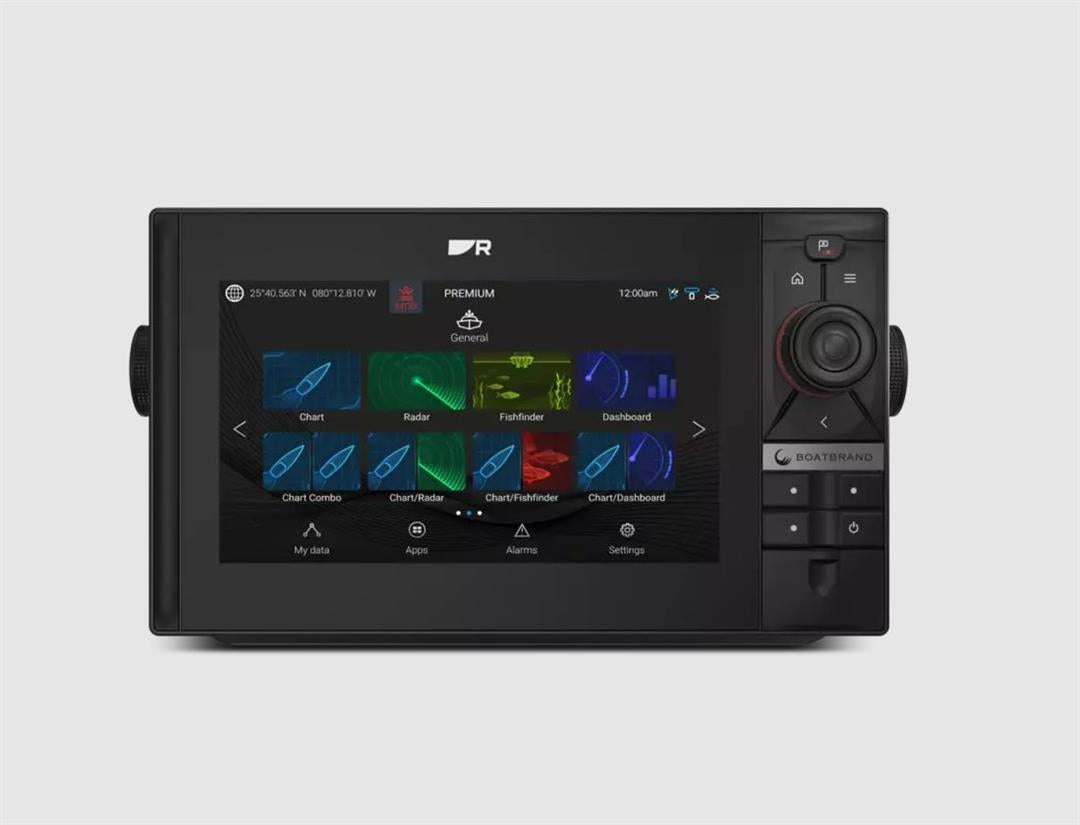

Raymarine Axiom 2 Pro 9 RVM Chartplotter/Fishfinder - No Transducer

No reviews yet

$3,354.99

SKU:: E70654
Condition:: New

Current Stock:

Quantity:

Request For Quote

5 customers are viewing this product

Raymarine Axiom 2 Pro 9 RVM Chartplotter/Fishfinder - No Transducer

$3,354.99

Description
Shipping & Returns
Custom Product Tab
FAQ

Description

Raymarine Axiom 2 Pro 9 RVM Chartplotter/Fishfinder - No Transducer Product Description

Axiom(R) 2 Pro combines chartplotter, fish finder, radar, autopilot and video into a powerful all-in-one fishing system. Plan your next offshore adventure and get underway confidently with Axiom 2 Pros HybridTouch: a simple touchscreen and keypad experience made possible by the intuitive LightHouse operating system. Designed for discovering the deep, Axiom 2 Pro RVM chartplotters feature an integrated multi-channel fish finder with RealVision(R) MAX CHIRP sonar technology. Get underway quickly with Axiom 2 Pros powerful 6-core processor. Enjoy faster, seamless integration of GPS, fishfinder, radar and video thanks to the super intuitive LightHouse operating system.

Raymarine E70654 Attributes

Maps: Without Map
Display Size: 9 Inch LCD
Display Type: HD With 1280 X 720 Pixels Resolution
Interface: Touchscreen
Dimensions: 12.97 Inch Width X 7.33 Inch Height
Waterproof: IPX6/ IPX7 Rating Waterproof
Sonar Compatibility: RealVision MAX CHIRP And Dual Channel 1kW CHIRP Sonar

Raymarine E70654 Features & Benefits

Axiom 2 Pro's HydroTough Nano-Coating Technology Repels Water For Reliable Touchscreen Control, Enhanced Colors And Excellent Sunlight Visibility
Smart Backlighting And An Ambient Light Sensor Automatically Adjust Display Brightness For Day And Evening Lighting Conditions
Plan And Plot Your Course With HybridTouch Control And Take Command With Reliable Keypad Control When Seas Are Rough
Customize Your Axiom 2 Pro With Interchangeable Keypads That Allow You To Choose Between A Dedicated Evolution Autopilot Keypad Or User-Programmable Soft Keys
RealVision MAX Ups Your Fishfinding Game With Increased Range, Better Resolution And Sharper Fish Targets
Created From Official Hydrographic Chart Sources, You Can Trust LightHouse Charts For Maximum Readability, Intuitive Navigation, And Superior Quality
Add A Quantum 2 Radome Or Cyclone Open Array Radar And Navigate Safer With Doppler Target Tracking And Radar Or Chart Overlay
Built-In Wi-Fi Lets You View And Control Your Axiom 2 Pro On Your Phone Or Tablet With The Raymarine Mobile Application
Limited 2 Year Warranty

Axiom 2 Pro 9 RVM Chartplotter/Fishfinder - No Transducer

Axiom 2 Pro combines chartplotter, sonar, radar, autopilot, and video into a powerful all-in-one navigation system. With Axiom 2 Pro, you can navigate smarter and expand your system, thanks to the super intuitive LightHouse operating system. Plan your next trip and get underway confidently with Axiom 2 Pros HybridTouch a simple touchscreen and keypad experience. Axiom 2 Pro RVM chartplotters feature built-in wide-spectrum CHIRP with RealVision MAX technology. RealVision MAX ups your fish-finding game with DownVision, SideVision, and 3D sonar upgraded with increased range, better resolution, and sharper fish targets.

Features:

Get underway faster with a fast 6-core processor
HydroTough nano-coating repels water for reliable touchscreen control and superior sunlight visibility
Confident HybridTouch control plus an interchangeable autopilot keypad or user-programable soft keys
Find more fish with built-in RealVision MAX CHIRP and dual channel 1kW CHIRP sonar
Smart backlighting and an ambient light sensor automatically adjust display brightness for day and evening
Create your own Axiom 2 Pro system with multiple networked Axiom displays
Stay entertained with streaming Apps and Axiom 2 Pros HDMI and audio output for remote displays and marine entertainment system

What's in the Box?

Display unit
User Configurable Keypad
Suncover
Gasket
Trunnion knobs (x 2)
Trunnion bracket (Axiom 2 Pro 9 and 12 Only)
Optional grounding connection (Screw (M3x5), Spring washer (M3), Crimp terminal (M3))
DeviceNet to SeaTalkng adaptor cable 1m (3.28 ft)
RayNet (Female) to RayNet (Female) network cable 2 m (6.56 ft)
Mounting fixings x 4
Documentation
Power/Video/Audio cable 1.5 m (4.92 ft)

Frequently Asked Questions (FAQ) About Raymarine Axiom 2 Pro 9 RVM Chartplotter/Fishfinder - No Transducer

Who is the Raymarine?

Raymarine, the world leader in marine electronics, develops and manufactures the most comprehensive range of electronic equipment. Raymarine is dedicated to the design, manufacture and distribution of the highest quality marine electronic products and services to the worldwide recreational and light commercial markets. Whether it be stand-alone units or fully integrated systems, Raymarine understands boating and what it takes to make it safer.

How to describe Raymarine Axiom 2 Pro 9 RVM Chartplotter/Fishfinder - No Transducer?

Raymarine Axiom2 Pro 9RVM HybridTouch chartplotters with RealVision MAX and 1kW CHIRP sonar

Model: E70654

Axiom 2 Pro combines chartplotter, fish finder, radar, autopilot, and video into a powerful all-in-one fishing system. Plan your next offshore adventure and get underway confidently with Axiom 2 Pros HybridTouch a simple touchscreen and keypad experience made possible by the intuitive LightHouse operating system. Designed for discovering the deep, Axiom 2 Pro RVM chartplotters feature an integrated multi-channel fish finder with RealVision MAX CHIRP sonar technology.

Get underway quickly with Axiom 2 Pros powerful 6-core processor. GPS, fish finder, radar, and video are integrated seamlessly and faster with the super intuitive LightHouse operating system.

Axiom 2 Pro's HydroTough nano-coating technology repels water for reliable touchscreen control, enhanced colors, and excellent sunlight visibility.

Smart backlighting and an ambient light sensor automatically adjust display brightness for day and evening lighting conditions.

Plan and plot your course with HybridTouch control and take command with reliable keypad control when seas are rough.

Customize your Axiom 2 Pro with interchangeable keypads. Choose a dedicated Evolution autopilot keypad or user-programable soft keys.

RealVision MAX ups your fish-finding game with increased range, better resolution, and sharper fish targets.

Axiom 2 Pro models with RealVision MAX feature built-in CHIRP DownVision, SideVision, RealVision 3D, and 600-watt traditional CHIRP fish finder for coastal fishing, plus a 1kW dual channel CHIRP fish finder for deep water.

Specifications

PHYSICAL
Dimensions (Trunnion mounted)	Height: 186.2 mm (7.33 in), Width: 329.5 mm (12.97 in), Depth (including cables): 234.9 mm (9.25 in)
Dimensions (Surface/Flush mounted)	Height: 173.79 mm (6.84 in), Width: 299.32 mm (11.78 in), Depth (including cables): 234.9 mm (9.25 in)
CONNECTIONS
Ethernet connection	2 RayNet (10/100/1,000 Mbits/s) ports
NMEA 2000 connection	DeviceNet connector
Wi-Fi	Multiband - 2.4GHz, and 5Ghz 802.11b/g/n
Bluetooth	v4.0
Accessory connection	USB Micro B
Internal storage	64GB Solid State
External storage	2 front mounted MicroSDXC card slots
Digital Video and Audio	HDMI Out Micro connector type D
Analog video connections	BNC Analog video input (on power cable)
Analog audio connections	RCA connectors via power cable
External GPS anternna	TNC connector
POWER
Power consumption @ 12 V dc	33.12 W
Power consumption @ 24 V dc	30.96 W
Operating voltage range	8 V dc to 32 V dc
Nominal supply voltage	12 V dc / 24 V dc
Off current @ 12 V dc	11 mA (0.13 W)
Off current @ 24 V dc	18 mA (0.43 W)
LEN (NMEA 2000 Load Equivalency Number)	1
Current	5 A
Fuse rating	15 A
ENVIRONMENTAL
Operating temperature	-25°C to +55°C (-13°F to 131°F)
Storage temperature	-30°C to +70°C (-22°F to 158°F)
Relative humidity	Up to 93% @ 40°C (104°F)
Waterproof rating	IPx6, IPx7
LCD
Size (diagonal)	9.0""
Resolution	1280 x 720 HD
Viewing angle	Top 88° / Bottom 88° / Left 88° / Right 88°
Type	IPS (In-Plane Switching)
Color depth	24-bit
Illumination	1300 nits / 1300 cd/m2
Number of simultaneous touches	1 to 16
GPS (GNSS)
Position Accuracy	Without SBAS: ? 15 metres 95% of the time, With SBAS: ? 5 metres 95% of the time
Geodetic Datum	WGS-84 (alternatives can be selected on the MFD)
Satellite Differential Type (SBAS)	WAAS (United States), EGNOS (Europe), MSAS (Japan), GAGAN (India), QZSS (Japan)
Channels	Track up to 28 satellites simultaneously
Antenna	Internal - Ceramic chip mounted near top of unit
GNSS compatibility	GPS, Galileo, GLONASS, Beidou
Almanac Update	Automatic
Refresh rate	10 Hz (10 times per second)
SONAR
Power output	RealVision MAX high CHIRP sonar channel: 600 Watts RMS Traditional dual channel CHIRP channel: 1kW RMS
Sonar channels	RealVision MAX Port: High CHIRP (200kHz), DownVision (350kHz), SideVision (350kHz) and RealVision 3D (350kHz) 1kW CHIRP Port: 42 - 250kHz (Transducer dependent)
RealVision MAX Depth range	25-pin RealVision type connector: High CHIRP conical sonar: 366 m (1200 ft), DownVision: 183 m (600 ft), SideVision: 91 m (300 ft), RealVision 3D: 91 m (300 ft)
1 kW Depth range	11 pin 1kW connector: : 0.9 m (3 ft) to 914.4 m (3,000 ft) (In optimum conditions using a 1kW transducer)
Connections	1x 25-pin RealVision Max 3D / RealVision 3D transducer connector, and 1 x 11-pin 1kW transducer connector

What's in the Box:

Axiom 2 Pro 9 RVM
Suncover
Gasket
Trunnion knobs (x 2)
Trunnion bracket (Axiom 2 Pro 9 and 12 Only)
Optional grounding connection (Screw (M3x5), Spring washer (M3), Crimp terminal (M3))
DeviceNet to SeaTalkng adaptor cable 1m (3.28 ft)
RayNet (Female) to RayNet (Female) network cable 2 m (6.56 ft)
Mounting fixings x4
Documentation
Power/Video/Audio cable 1.5 m (4.92 ft)

Is this product waterproof?

IPX6/ IPX7 Rating Waterproof

What is the display type of the product?

HD With 1280 X 720 Pixels Resolution

What is the display size of the product?

9 Inch LCD

What is the controlling interface of the product?

Touchscreen

What is the dimensions of the product?

12.97 Inch Width X 7.33 Inch Height

Buy with the best price Raymarine Axiom 2 Pro 9 RVM Chartplotter/Fishfinder - No Transducer for only $3049 from NVN Marine! Same day free shipping before 3pm.

Raymarine Axiom 2 Pro 9 RVM Chartplotter/Fishfinder - No Transducer Technical Specifications

Type:
Vendor:	Raymarine
Cartography Brand:	Navionics/C-Map
Screen Size:	9"
Touchscreen:	Yes
Transducer Included:	No
