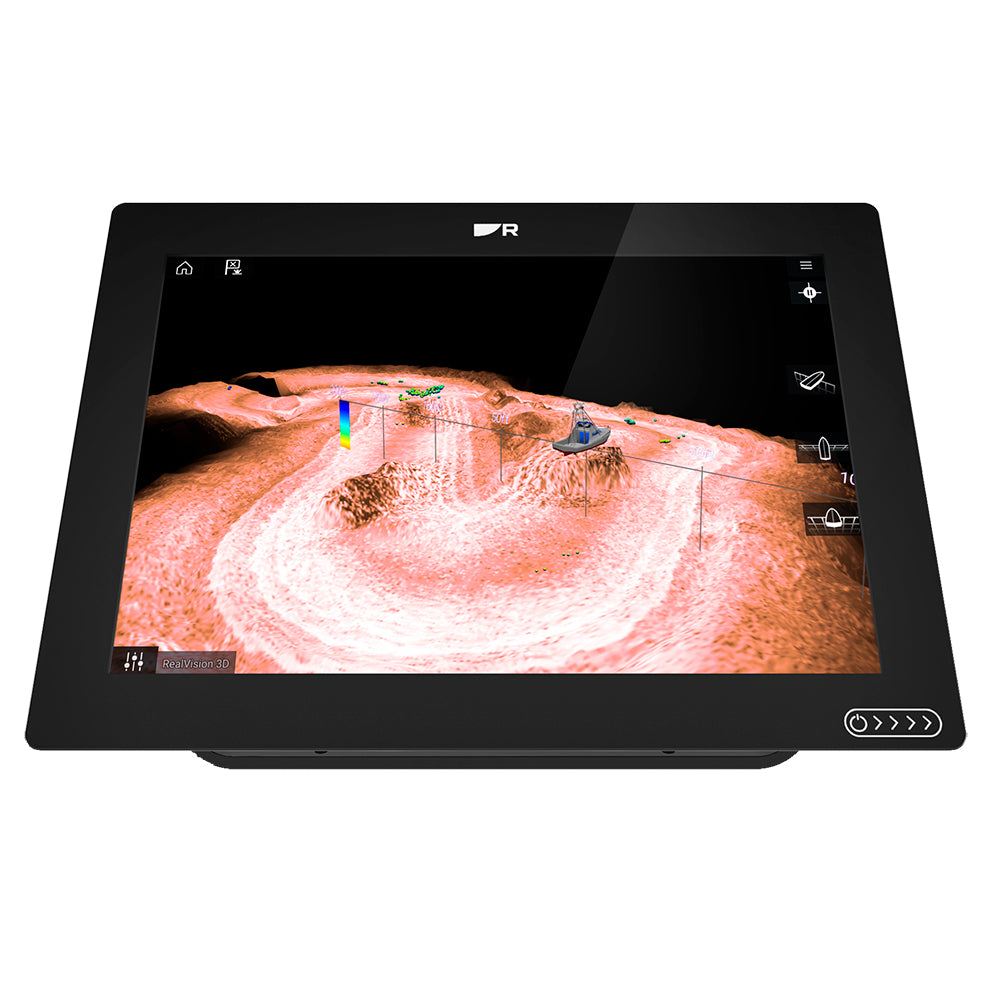

Raymarine Axiom+ 12 RV - 12" Chartplotter/Fishfinder w/RV-100 T/M Transducer Product Description
The performance-tuned Axiom Plus is a new generation of award-winning Raymarine multifunction displays. Optimized for speed, Axiom Plus is equipped with a powerful quad-core processor for industry-leading responsiveness and speed, giving you the power to seamlessly redraw charts, navigate with augmented reality.
Raymarine E7063903 Attributes
-
Maps: No Pre-Loaded Maps
-
Display Size: 12 Inch
-
Display Type: WXGA 1280 x 800 Pixels Resolution
-
Interface: Touchscreen Interface
-
Dimensions: 12.36 Inch Width X 3 Inch Depth X 8.54 Inch Height
-
Waterproof: IPX6/ IPX7 Waterproof
-
Sonar Compatibility: RealVision 3D, 600W Sonar
Raymarine E7063903 Features & Benefits
- High Frequency CHIRP Sonar For Targeting Fish And Determining Bottom Density
- CHIRP DownVision Sonar For High Definition Views Of Structure, Fish Habitat And Man-Made Objects
- CHIRP SideVision For Scanning Beyond Casting Distance To See Fish, Structure And Submerged Objects Out To The Sides Of The Boat
- RealVision 3D Sonar Which Provides A Gyro-Stabilized, GPS-Locked Bathymetric Model Of The Bottom And Water Column
- Upgraded IPS Display Technology Delivers Charts, Sonar, Radar And Video In Stunning Color And Improved Viewing With New LightHouse Color Themes, Including Day, Dusk And Night Mode
- Smart And Intuitive LightHouse OS Makes Navigating Easy
- Axiom+ Features HydroTough Nano-Coated, Impact-Resistant Screens That Dispels Water, Oil And Smudges
- All-Weather HydroTough Technology Delivers Improved Color And Contrast And Accurate Touch Controls - Even When Wet
- Features RV-100 Transducer
- Limited 2 Year Warranty
Raymarine E7063903 Installation Instructions
Raymarine E7063903 Warranties
Raymarine E7063903 Technical Bulletins
Axiom+ 12 RV - 12" Chartplotter/Fishfinder with RV-100 Transom Mount Transducer
The performance-tuned Axiom® Plus is a generation of award-winning Raymarine multifunction displays. Optimized for speed, Axiom Plus is equipped with a powerful quad-core processor for industry-leading responsiveness and speed, giving you the power to seamlessly redraw charts, navigate with augmented reality, and experience RealVision 3D sonar. Higher resolution IPS displays deliver 25 percent more brightness and day/night color palettes offer enhanced visibility in any lighting condition. Axiom Plus features the renowned LightHouse 3 OS, the most powerful and easy-to-use Raymarine MFD operating system to date.
PERFORMANCE TUNED
- Designed for speed, responsiveness, and future expansion
- Powerful quad-core processor, plus increased onboard storage for personal data and apps
- Fluid and fast chart redraw of Raymarine LightHouse Charts, plus Navionics and C-MAP
- ClearCruise Augmented Reality-capable for smarter navigation decisions
- Smart and intuitive LightHouse 3 OS makes navigating easy
MAXIMUM VISIBILITY
- Upgraded IPS display technology delivers charts, sonar, radar, and video in stunning color
- IPS display technology delivers wider viewing angles and sharp contrast at twice the resolution of traditional displays
- 7-, 9-, and 12-inch all-weather displays are 25 percent brighter (up to 1,800 nits)
- HydroTough Nano-coated, impact-resistant glass screen repels water, oil, and smudges for better viewing and accurate touch controls
- Improved viewing with LightHouse 3 color themes, including light, dark, and night mode
The Axiom+ 12 RV includes surface and trunnion mounting kits, mounting hardware, power/data cable, and installation instructions.
Features:
- IPS display technology delivers wider viewing angles and sharp contrast at twice the resolution of traditional displays
- LightHouse 3 OS is fast, fluid, and easy to learn. An uncluttered interface that is easily personalized for your style of navigating
- RealVision 3D Sonar Built-In - Go fishing like never before with life-like 3D imagery of structures and fish - an unprecedented view of the underwater world
- Powerful 4 Channel Sonar supports RealVision 3D, CHIRP DownVision, SideVision, High Frequency CHIRP, and 600 Watt (50/200 kHz) sonar
- Wide Spectrum CHIRP sonar transmits on 60 different frequencies for the most life-like sonar imagery and simply the best fish targeting
- Next-generation, high-performance 10 Hz GPS/GNSS receiver with 4X increased sensitivity for accurate positioning
- Support for the best charts from Navionics and LightHouse Raster and Vector Charts sourced from leading map makers like NV Digital, Blue =Latitude, and more
- Navigate Safely at Night with the optional FLIR M100 and M200 compact marine thermal cameras
- Quantum CHIRP Radar Ready - Superior solid state CHIRP radar delivers no compromise performance on long and extremely short range
- Marine Audio Control - Turn up the volume and control NMEA2000 compatible marine audio systems like Rockford Fosgate
- Ready to Network with Raynet Ethernet and NMEA2000. Connect multiple Axiom displays or expand with Quantum, HD radar, IP cameras, engine gauges, autopilots, instruments, and more
- Built-in Wi-Fi lets you to stream and control Axiom right from your smartphone or tablet. You can also sync Axiom's waypoints, routes, and charts with Navionics mobile app
RV-100 - RealVision 3D All-In-One Transom Mount Transducer
Raymarines RV-100 All-In-One Transom Mount Transducer lets you easily identify structures and locate fish with the life-like clarity of RealVision 3D sonar. The RV-100 is a 4-channel, Wide Spectrum CHIRP transducer with DownVision, SideVision, high frequency CHIRP fish targeting and RealVision 3D sonar inside. The transducer has a built-in attitude and heading reference system (AHRS) that stabilizes the sonar imagery, automatically compensating for vessel motion. Youll enjoy crystal-clear imagery in waves, swells and while maneuvering. The RV-100 also has a built-in fast response water temperature sensor for quick, accurate readings.The RV-100 is designed for easy transom mounting on outboard-powered motor boats. It features a rugged, marine-grade stainless steel mounting bracket with integrated kick-up to prevent damage in the event of a strike with floating debris, rocks, or stumps.The RV-100 can also be removed from the transom bracket and attached to the stainless Jack-Plate mounting bracket (sold separately) which is ideal for bass boats, flats boats and skiffs. The RV-100 can also be mounted onto stepped hull vessels using the optional stainless steel step-mounting bracket (sold separately)
Whats in the Box?
- RV-100 All-In-One Transom Mount Transducer with 8-meter (26-foot) cable
- Transom bracket
- Mounting hardware
- Installation instructions
Raymarine Axiom+ 12 12" Muilti-Function Display with RealVison Sonar, With RV100 Transducer
Model: E70639-03
- Fluid and fast chart redraw of LightHouse, Navionics, and C-MAP electronic charts.
- Powerful quad-core processor, plus increased onboard storage for personal data and apps.
- Smart and intuitive LightHouse 3 OS makes navigating easy.
- ClearCruise Augmented Reality-capable for smarter navigation decisions.
- Nano-coated, impact-resistant glass screen repels water, oil, and smudges for better viewing and accurate touch controls.
- IPS display technology delivers wider viewing angles and sharp contrast at twice the resolution of traditional displays.
- Network with multiple Axiom displays, radars, sonar, and more.
- Next-generation, high-performance 10 Hz GPS/GNSS receiver with 4X increased sensitivity for accurate positioning.
The performance-tuned Axiom Plus is a new generation of award-winning Raymarine multifunction displays. Optimized for speed, Axiom Plus is equipped with a powerful quad-core processor for industry-leading responsiveness and speed, giving you the power to seamlessly redraw charts, navigate with augmented reality, and experience RealVision 3D sonar.
New, higher resolution IPS displays deliver 25 percent more brightness and new day/night color palettes offer enhanced visibility in any lighting condition. Axiom Plus features the renowned LightHouse 3 OS, the most powerful and easy-to-use Raymarine MFD operating system to date.
Specifications
| General |
| Display Size |
12.1 inch High Density IPS |
| Display Resolution |
1280 x 720 (WXGA) |
| Display Type |
Multitouch with HydroTough rugged hydrophobic coating |
| Brightness |
1,800 nits |
| Viewing Angle |
88° Top, Bottom, Left, Right |
| Dimensions W x H x D (Excluding trunnion and cables) |
12.36 x 8.54 x 3.0in |
| Mounting Options |
Surface, Flush, Trunnion, (Front installation bracket available) |
| Waterproof Rating |
IPX6 / IPX7 |
| Operating Temperature Range |
-25°C to +55°C (-13°F to +131°F) |
| Storage Temperature Range |
-30°C to +70°C (-22°F to +158°F) |
| Power |
| Voltage |
12V DC (8V to 16V DC) |
| Power Consumption (Full brightness) |
19.96 Watts |
| Sensors |
| GNSS / GPS |
Built-in GNSS Receiver: GPS/GLONASS/Galileo/Beidou* - 10Hz 28 Channel *Future software update required |
| Sonar Type (Built-in) |
RV Version equipped with High CHIRP, DownVision, SideVision and RealVision 3D |
| Sonar Connections |
25pin RealVision type connector |
| Sonar Depth |
High CHIRP Sonar = 900 feet (274m)
DownVision = 600 feet (183m)
SideVision = 300 feet (91m)
RealVision 3D = 300 feet (91m) |
| External Sonar Option |
Yes - CP100, CP200, CP370, CP470, CP570, RVX1000 via RayNet |
| Radar |
Yes - Quantum, Digital, HD Colour / Super HD Colour and Magnum Radars |
| AIS |
Yes - NMEA2000 compatible |
| Autopilot Control |
Yes - Evolution Autopilot |
| Thermal Night Vision |
Yes FLIR AX8, M232, M300 Series, M400, M500 |
| Video / Camera |
Compatible with CAM210IP, CAM220IP (Up to 10 IP network cameras) |
| Weather |
GRIB View - Free GRIB viewer and Theyr Ltd Subscription
SiriusXM - N. America Only |
| Audio |
NMEA2000 / Bluetooth speaker controls / Optional SiriusXM Audio |
| Digital Switching |
Yes - Empirbus & C-Zone compatible |
| Remote Control |
Yes Optional RMK-10 (A80438) |
| Networking |
| Ethernet |
1 x 10/100 Mbit/s Network (RayNet) |
| NMEA0183 |
No |
| NMEA2000 |
NMEA2000 via DeviceNet port. SeaTalkng compatible using an optional adapter |
| SeaTalkNG |
Requires DeviceNet Female (F) adaptor cable (A06079 120mm adaptor included in box) |
| USB |
1 x USB microAB |
| Wi-Fi |
WiFi - 802.11 a/b/g/n |
| BlueTooth |
Bluetooth v4.0 |
| Navigation |
| Cartography |
Lighthouse Charts, Navionics, and C-MAP compatible |
| Waypoint/Routes/Tracks (Wpts/Rts/Trk) |
10,000 wpts / 200 wpt groups / 150 rts - 250 wpt max / 16 tracks - 10,000 max trk pts |
| Memory |
| Internal Memory |
16 GB Solid State |
| External Memory |
1x MicroSD Card Slot |
| Languages |
24 |
| Conformances |
NMEA 2000 certification
Europe: 1999/5/EC
Australia and New Zealand: C-Tick, Compliance Level 2
FCC 47CFR part 15
Industry Canada RSS210 |
What's in the Box:
- Multifunction Display
- Trunnion bracket
- Trunnion knobs x 2
- Suncover Trunnion mount
- Panel mount gasket for surface/flush mounting
- M5x58 Threaded studs x 4
- M5 Thumb nuts x 4
- Documentation pack
- DeviceNet to SeaTalkng ® adaptor cable 120 mm (4.7 in)
- Power/NMEA 2000 cable (with 1.5 m (4.92 ft) power lead and 0.5 m (1.64 ft) NMEA 2000 lead)
- Rear mounting brackets
- RV100 Transducer
Raymarine Axiom + 12 12-inch multi-function display with RealVision sonar, with RV100 sensor, model: E70639-03, Fluid diagram and quick diagram redrawing of LightHouse, Navionics and C-.
Frequently Asked Questions (FAQ) About Raymarine Axiom+ 12 RV - 12" Chartplotter/Fishfinder w/RV-100 T/M Transducer
Who is the Raymarine?
Raymarine, the world leader in marine electronics, develops and manufactures the most comprehensive range of electronic equipment. Raymarine is dedicated to the design, manufacture and distribution of the highest quality marine electronic products and services to the worldwide recreational and light commercial markets. Whether it be stand-alone units or fully integrated systems, Raymarine understands boating and what it takes to make it safer.
How to describe Raymarine Axiom+ 12 RV - 12" Chartplotter/Fishfinder w/RV-100 T/M Transducer?
Raymarine Axiom + 12 12-inch multi-function display with RealVision sonar, with RV100 sensor, model: E70639-03, Fluid diagram and quick diagram redrawing of LightHouse, Navionics and C-.
- Rugged, weather-resistant design for use on the water
- High-sensitivity GPS receiver for accurate positioning
- Advanced, high-speed chartplotting engine for displaying detailed charts
- Easy to install and use
- The Axiom+ 12 RV - 12" Chartplotter/Fishfinder with RV-100 Transom Mount Transducer is a multifunction display that is optimized for speed.
- It includes a high-speed processor, a large, high-resolution display, and a powerful data engine for fast chart plotting and zooming.
- Its interface is designed to be easy to use and intuitive.
- The Axiom+ 12 RV - 12" Chartplotter/Fishfinder with RV-100 Transom Mount Transducer is an all-round, high-performance multifunction display that is designed for speed.
- Equipped with a powerful processor and lightning fast screen response, the Axiom+ 12 RV - 12" Chartplotter/Fishfinder with RV-100 Transom Mount Transducer is the best choice for sailors looking for a multifunction display that can keep up with them.
What is the screen size of the product?
12"
- Rugged, weather-resistant design for use on the water
- High-sensitivity GPS receiver for accurate positioning
- Advanced, high-speed chartplotting engine for displaying detailed charts
- Easy to install and use
- The Axiom+ 12 RV - 12" Chartplotter/Fishfinder with RV-100 Transom Mount Transducer is a multifunction display that is optimized for speed.
- It includes a high-speed processor, a large, high-resolution display, and a powerful data engine for fast chart plotting and zooming.
- Its interface is designed to be easy to use and intuitive.
- The Axiom+ 12 RV - 12" Chartplotter/Fishfinder with RV-100 Transom Mount Transducer is an all-round, high-performance multifunction display that is designed for speed.
- Equipped with a powerful processor and lightning fast screen response, the Axiom+ 12 RV - 12" Chartplotter/Fishfinder with RV-100 Transom Mount Transducer is the best choice for sailors looking for a multifunction display that can keep up with them.
Transducer included to the product?
What is the weight of the product?
Is this product waterproof?
Which transducer included to the product?
What is the display size of the product?
What is the display type of the product?
WXGA 1280 x 800 Pixels Resolution
What is the controlling interface of the product?
What is the cartography brand of product?
What is the dimensions of the product?
12.36 Inch Width X 3 Inch Depth X 8.54 Inch Height
Is this product is touchscreen?
Buy with the best price
Raymarine Axiom+ 12 RV - 12" Chartplotter/Fishfinder w/RV-100 T/M Transducer for only
$2999 from NVN Marine! Same day fast and free shipping before 3pm.
Raymarine Axiom+ 12 RV - 12" Chartplotter/Fishfinder w/RV-100 T/M Transducer Technical Specifications
| Type: |
|
| Vendor: |
Raymarine
|
| Weight: |
17.15 lb
|
| Touchscreen: |
Yes
|
| Screen Size: |
12"
|
| Included Transducer: |
A80464
|
| Cartography Brand: |
Navionics/C-Map
|
| Transducer Included: |
Yes
|
