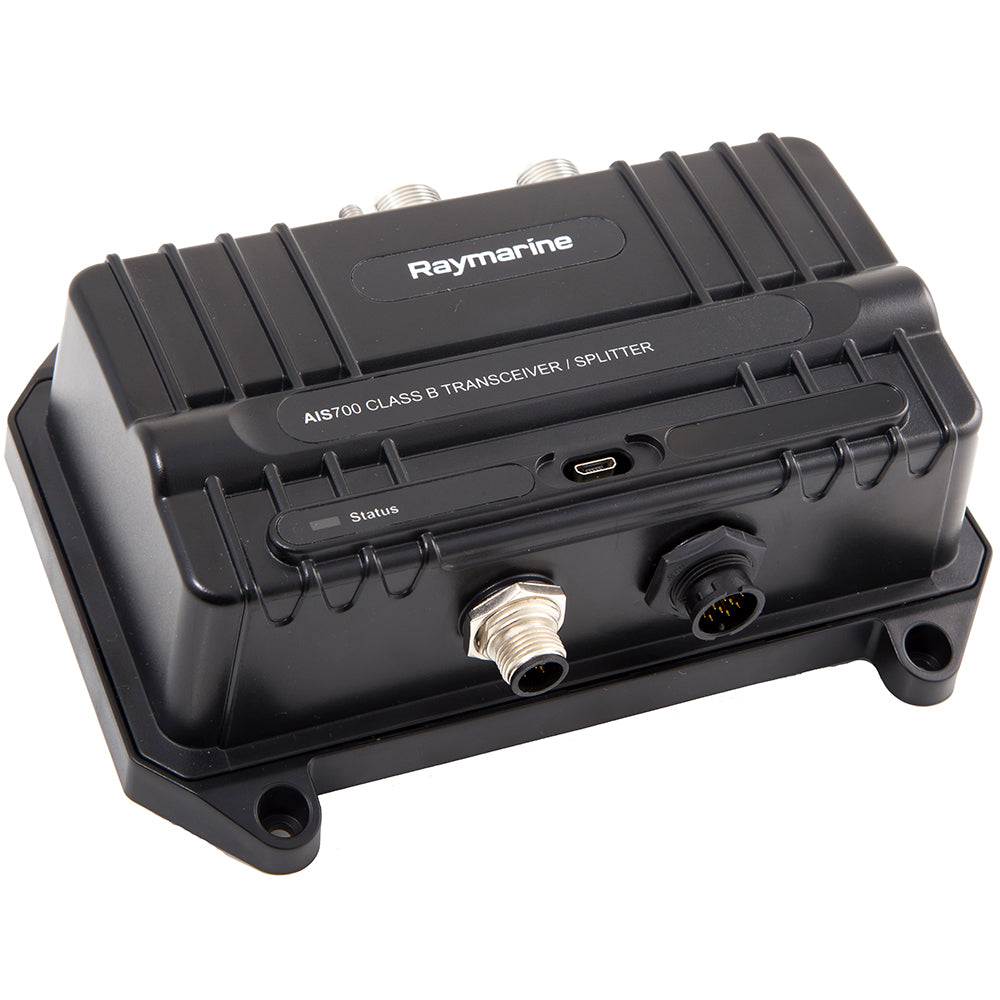

Raymarine AIS700 Class B AIS Transceiver w/Antenna Splitter Product Description
The AIS700 from Raymarine is a Class B Automatic Identification System (AIS) transceiver designed for use with any multifunction navigation display systems. As a Class B AIS transceiver, the AIS700 not only receives broadcasts from other vessels, it also transmits your own boats information too helping you to be seen on other vessels systems.
Raymarine E70476 Attributes
-
Compatibility: Multi Function Navigation Display Systems
-
Waterproof Rating: IPX6/IPX7 Waterproof
-
Approval: Class-B Approved
-
SD Card Storage: No
-
Includes: With GNSS Antenna/ Power Cable/ Data Cable/ VHF Radio Cable/ DeviceNet To SeaTalkng Adaptor Cable
Raymarine E70476 Features & Benefits
- Full Transmit And Receive AIS For Enhanced Situational Awareness And Safety
- Latest SO-TDMA Technology For Longer Range And Faster Performance
- Built-In Antenna Splitter Simplifies Installation With Existing VHF Radio Antenna
- Software Or Hardware Switchable Silent Mode For Enhanced Security When Needed
- Limited 2 Year Warranty
Raymarine E70476 Installation Instructions
Raymarine E70476 Warranties
Raymarine E70476 Technical Bulletins
AIS700 Class B AIS Transceiver with Antenna Splitter
**As the FCC requires all units sold in the US to be programmed by a qualified technician. Please submit the form below for programming at time of purchase. A copy of the MMSI registration or FCC Ship Station License is required along with the vessel master or owner's signature on the completed programming form.**
The AIS700 from Raymarine is a Class B Automatic Identification System (AIS) transceiver designed for use with Raymarine multifunction navigation display systems. AIS is an international marine navigation safety system that allows participating vessels to silently exchange key navigation information including vessel name, identification, course, speed and more. AIS contacts can be displayed on Raymarine multifunction displays, chartplotters, radar displays and select instruments. As a Class B AIS transceiver, the AIS700 not only receives broadcasts from other vessels, it also transmits your own boats information too helping you to be seen on other vessels systems.
The AIS700 is engineered using the very latest SO-TDMA (Self Organized Time Division Multiple Access) networking technology which allows it to perform faster and at longer ranges than d speed over previous generation AIS products. For ease-of-installation, the AIS700 has a built in VHF-band antenna splitter which allows it to share a single antenna with your current VHF radio. AIS700 also has its own internal, dedicated 72-channel GPS receiver with external antenna as required by international standards.
AIS700 also supports both hardware and software-enabled Silent Mode. This allows you to temporarily restrict broadcasting your vessels own data, while continuing to receive updates from surrounding traffic. Silent Mode can be particularly useful when transiting waters where extra security is a concern, or even in competitive tournament scenarios when you might want to prevent other from finding out the location of the hot bite. Normal AIS safety broadcasts can be easily reinstated with a few simple touches of the AIS controls in your Raymarine MFD, or with the flip of a switch for hardware-silenced systems.
The AIS700 is super-compact for easy mounting inside your helm, in a service locker, or other out-of-the-way location. It can connect to your other onboard electronics using the latest NMEA2000 networking. AIS700 also has a built-in NMEA0183 multiplexer to assist in connecting it to older MFDs and VHF radio systems. AIS700 also has a built-in USB 2.0 connection that can be used to tie the transceiver into a computer or laptop running AIS compatible navigation software. AIS700 has a Secure Digital (SD) memory slot that can be fitted with an owner-suppled flash memory card for continuous recording of the AIS data stream.
Features:
- Full transmit and receive AIS for enhanced situational awareness and safety
- Latest SO-TDMA networking for longer range and faster performance
- Built-in antenna splitter simplifies installation with existing VHF radio antenna
- NMEA2000, NMEA0183, PC and SeaTalkng Compatible
- Software or hardware switchable Silent Mode for enhanced security when needed
In the Box
- AIS700 Class B AIS Transceiver with built-in VHF antenna splitter
- GNSS (GPS) Antenna, gasket and pole mount kit
- Power and data cable (2 meters)
- VHF Radio antenna interconnect cable (1 meter)
- DeviceNet to SeaTalk NG Cable (1 meter)
- Mounting Hardware
- Pro-AIS Programming Software CD-ROM
- Documentation kit
This product may not be returned to the original point of purchase. Please contact the manufacturer directly with any issues or concerns. The fully transmitting AIS Raymarine AIS700 Class B AIS transceiver with a built-in antenna splitter is a complete transmitting and receiving device, and has a variety of connection options. AIS 700 can be connected to NMEA 2000 compliant MFD, old MFD with NMEA 0183 connection, PC connected via built-in USB, and devices connected to Raymarine MFD via SeaTalk NG network. Such a wide range of interconnection capabilities allows each end user to find the best connection without feeling limited in the way of sharing and viewing data. Exchange data with other ship users, including ship name, course, speed, etc. AIS contacts can be quickly shared and displayed on Raymarine MFD, radar and other selected instruments. With AIS700, you can transmit your own ship data or receive data from other ships nearby, so you can understand the surrounding environment. The "silent mode" with hardware and software enabled allows you to temporarily restrict the broadcast of ship data while still receiving other ship data, which is essential for race settings or to improve safety. Raymarine has manufactured this compact device that can be easily installed in almost any position on the ship, so that it takes up minimal space inside the helmet or behind the console. The built-in VHF band antenna splitter allows you to share a single antenna with current VHF radios for seamless installation. AIS700 is designed with the latest network technology. Compared with the previous models on the market, it can run at a longer distance and at a faster speed. For the latest transceiver technology, Raymarine AIS 700 Class B AIS is the ultimate solution. The included GPS antenna must be used to obtain proper performance.
Frequently Asked Questions (FAQ) About Raymarine AIS700 Class B AIS Transceiver w/Antenna Splitter
Who is the Raymarine?
Raymarine, the world leader in marine electronics, develops and manufactures the most comprehensive range of electronic equipment. Raymarine is dedicated to the design, manufacture and distribution of the highest quality marine electronic products and services to the worldwide recreational and light commercial markets. Whether it be stand-alone units or fully integrated systems, Raymarine understands boating and what it takes to make it safer.
How to describe Raymarine AIS700 Class B AIS Transceiver w/Antenna Splitter?
The fully transmitting AIS
Raymarine AIS700 Class B AIS transceiver with a built-in antenna splitter is a complete transmitting and receiving device, and has a variety of connection options. AIS 700 can be connected to NMEA 2000 compliant MFD, old MFD with NMEA 0183 connection, PC connected via built-in USB, and devices connected to
Raymarine MFD via SeaTalk NG network. Such a wide range of interconnection capabilities allows each end user to find the best connection without feeling limited in the way of sharing and viewing data. Exchange data with other ship users, including ship name, course, speed, etc. AIS contacts can be quickly shared and displayed on
Raymarine MFD, radar and other selected instruments. With AIS700, you can transmit your own ship data or receive data from other ships nearby, so you can understand the surrounding environment. The "silent mode" with hardware and software enabled allows you to temporarily restrict the broadcast of ship data while still receiving other ship data, which is essential for race settings or to improve safety.
Raymarine has manufactured this compact device that can be easily installed in almost any position on the ship, so that it takes up minimal space inside the helmet or behind the console. The built-in VHF band antenna splitter allows you to share a single antenna with current VHF radios for seamless installation. AIS700 is designed with the latest network technology. Compared with the previous models on the market, it can run at a longer distance and at a faster speed. For the latest transceiver technology,
Raymarine AIS 700 Class B AIS is the ultimate solution. The included GPS antenna must be used to obtain proper performance.
- FCC compliant
- US only
- Programmed by qualified technician
- AIS700 Class B AIS Transceiver with Antenna Splitter
- FCC requires all units sold in the US to be programmed by a qualified technician.
- Submit the form below for programming at time of purchase.
What's the class of Automatic Identification System (AIS)?
B
- FCC compliant
- US only
- Programmed by qualified technician
- AIS700 Class B AIS Transceiver with Antenna Splitter
- FCC requires all units sold in the US to be programmed by a qualified technician.
- Submit the form below for programming at time of purchase.
- The Raymarine AIS700 Class B AIS with Splitter is a full-featured Class B AIS transceiver for enhanced situational awareness and safety.
- Latest SO-TDMA networking for longer range and faster performance.
- Built in antenna splitter simplifies installation.
- AIS700 Class B AIS with Splitter
- Latest SO-TDMA networking for longer range and faster performance
- Built-in antenna splitter simplifies installation
What is the weight of the product?
What is the waterproof rating of the product?
Display included with the product?
Antenna is included with the product?
What is the compatibility of this product?
Multi Function Navigation Display Systems
Is this product receive only or receive / transmit?
GPS included to this product?
Save
$212 when you buy the
Raymarine AIS700 Class B AIS Transceiver w/Antenna Splitter for only
$887 from NVN Marine! Same day fast and free shipping before 3pm.
Raymarine AIS700 Class B AIS Transceiver w/Antenna Splitter Technical Specifications
| Type: |
|
| Vendor: |
Raymarine
|
| Weight: |
3.85 lb
|
| GPS Included: |
Yes
|
| Function: |
Receive/Transmit
|
| Display Included: |
No
|
| Antenna Included: |
No
|
| AIS Class: |
B
|
| Product Installation: |
|
