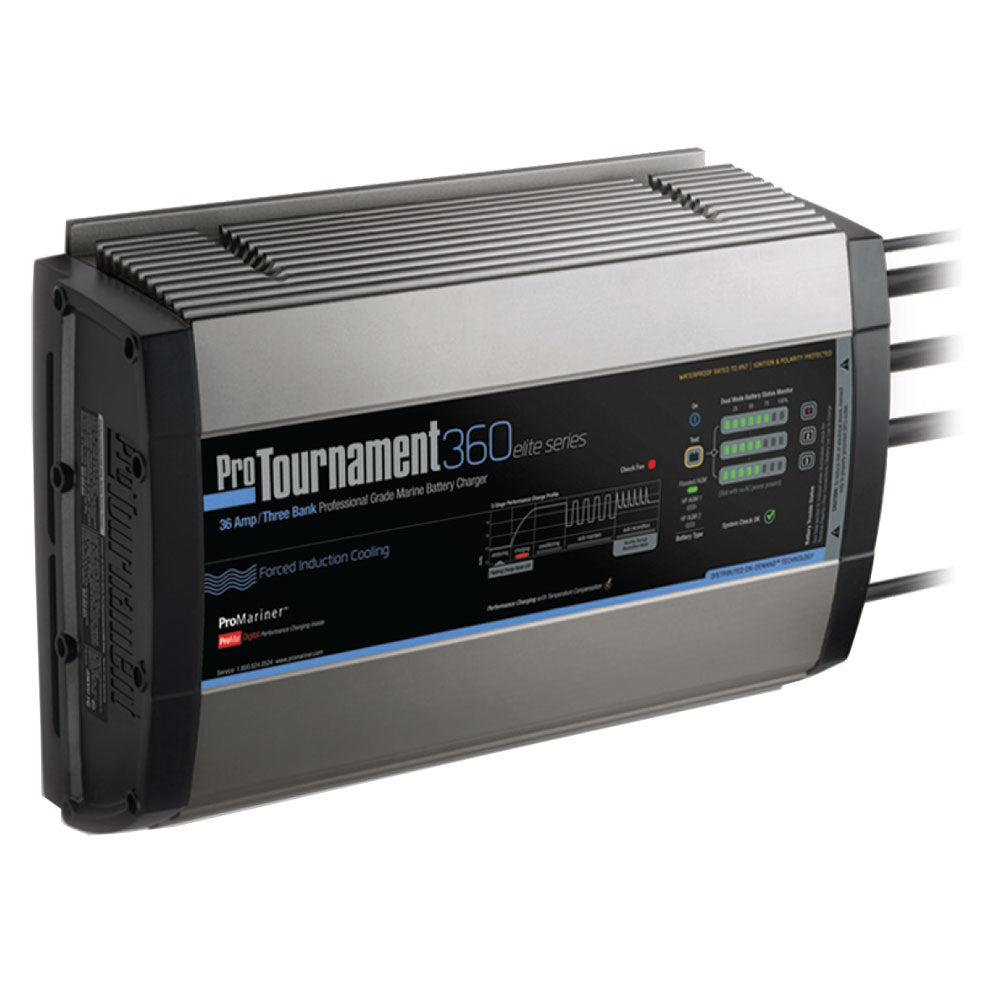

ProMariner ProTournament 360 elite Triple Charger - 36 Amp, 3 Bank Product Description
Tournament Winning Technology. The fastest battery charger with the most features in its class. Specifically designed to deliver maximum charging performance and extend battery life. Get on the water first and stay there longer with tournament winning technology providing: 100 percent charge upon completion of multi-stage charging process. 100 percent charging output with AC power as low as 90 VAC. 50 percent lighter and 2 to 3 times faster than traditional chargers. Give your batteries what they demand with ProTournament Elite's three digitally selectable performance matched 5-stage charge profiles. Using 100 percent of the applicable charging amps, ProTournament Elite's Distributed-On-Demand Charging technology will always distribute its full charging output to the combination of batteries connected to it as required by the discharge state of each battery. 3 Selectable Performance Matched Charge Profiles: Profiles features: Standard Flooded and AGM batteries, HP AGM1 for pure lead AGM batteries like OPTIMA Blue Top Marine Batteries, HP AGM 2 for pure lead AGM Batteries like Odyssey Marine Batteries. Built-in Safety and Pre-Wired for Easy Installation: Shock resistant, space saving extruded aluminum design, dual in-line DC safety fuses for trolling motor and house batteries, over-voltage, overload, over-temperature, reverse polarity and ignition protection.
Pro Mariner 53243 Attributes
-
Number Of Banks: 3
-
Application: Marine
-
Output Voltage: 12 Volt
-
Input Voltage: 120 Volt
-
Ampere Rating: 24 Amp Charging
-
Number Of Stages: 5 Stage
-
Universality: Fully Universal
-
Length (IN): 7.1 Inch
-
Width (IN): 3.2 Inch
-
Height (IN): 13.4 Inch
Pro Mariner 53243 Features & Benefits
- Professional Performance For Fastest Charge Times: Designed To Deliver Maximum Charging Performance And Extend Battery Life
- Tournament Winning Technology: 100 Percent Charge Upon Completion Of Multi-Stage Charging Process
- Forced Induction Cooling: Concealed Waterproof Fan Provides Forced Air Cooling For Cooler Operation And Fastest Charge Times
- Intuitive LED Display With Charge Mode Indicators And Real Time Charge Level Status With An On-The-Water Push-To-Test Feature For Percent Of Battery Power Remaining
- 3 Selectable Performance Matched Charge Profiles
- Waterproof Connector Port For Optional Status Remote: Optional Tri-Color LED Charge Mode Status Remote Can Be Placed Up To 12 Feet Away From The Charger
- Digital 5-Stage Charging With Temperature Compensation
- Advanced Technology Eliminates Time Consuming Trouble Shooting By Clearly Indicating System And Battery Connections Are OK Or If A Fault Is Present On A Specific Battery Bank
- Easy Installation
- Limited 3 Year Warranty
Pro Mariner 53243 Technical Bulletins
ProTournament 360 elite Triple Charger - 36 Amp, 3 BankTournament Winning TechnologyThe fastest battery charger with the most features in its class. Specifically designed to deliver maximum charging performance and extend battery life. Get on the water first and stay there longer with tournament winning technology providing: 100% charge upon completion of multi-stage charging process. 100% charging output with AC power as low as 90 VAC. 50% lighter and 2 to 3 times faster than traditional chargers. Give your batteries what they demand with ProTournament
elite's three (3) digitally selectable "performance matched" 5-stage charge profiles. Using 100% of the available charging amps, ProTournamentelite's Distributed-On-Demand Charging technology will always distribute its full charging output to the combination of batteries connected to it as required by the discharge state of each battery.
Features:Professional Performance for Fastest Charge TimesDesigned to deliver maximum charging performance and extend battery life
Tournament Winning Technology100% charge upon completion of multi-stage charging process. 100% charging output with AC power as low as 90 VAC. 50% lighter and 2 to 3 times faster than traditional chargers.
Forced Induction Cooling (360elite models only)Concealed waterproof fan provides forced air cooling for cooler operation & fastest charge times.
Digital LED Display with Dual Mode Battery Status MonitorIntuitive LED display with charge mode indicators and real time charge level status with an on-the-water push-to-test feature for percent of battery power remaining.
3 Selectable Performance Matched Charge ProfilesProfiles include: Standard Flooded/AGM batteries, HP AGM1 for pure lead AGM batteries like OPTIMA Blue Top Marine Batteries, HP AGM 2 for pure lead AGM Batteries like Odyssey Marine Batteries.
Waterproof Connector Port for Optional Status RemoteOptional tri-color LED charge mode status remote can be placed up to 12' away from the charger.
Digital 5-Stage Charging with Temperature CompensationAnalyzes connections and the ability for a battery to accept a charge, advance high fill rate charging, conditioning, auto maintain (energy saving mode) and automatic once a month storage recondition mode automatically monitors ambient temperatures and adjusts its charging output.
System OK & Individual Battery Trouble Status IndicatorsAdvanced technology eliminates time consuming trouble shooting by clearly indicating system and battery connections are OK or if a fault is present on a specific battery bank.
Built-in Safety & Pre-Wired for Easy InstallationShock resistant, space saving extruded aluminum design, dual in-line DC safety fuses for trolling motor and house batteries, over-voltage, overload, over-temperature, reverse polarity and ignition protection.
Distributed-On-Demand TechnologyDigital LED Display with Dual Mode Battery Status Monitor
- Charge level indicator with on-the-water push-to-test button
- System Check OK and battery trouble status indicators
- 3 Selectable Performance matched charge profiles
3 Selectable Performance Matched Charge Profiles- Standard Flooded/AGM batteries, HP AGM1 for pure lead AGM batteries like OPTIMA Blue Top Marine Batteries, HP AGM 2 for pure lead AGM Batteries like Odyssey Marine Batteries
Waterproof Connector Port for Optional Charge Status Remote
- Tri-color LEDs indicates charge mode status
- Remote not included
Digital 5-Stage Charging
- Analyzing, advance high fill rate charging, conditioning and auto maintain (energy saving mode)
- Automatic once a month storage recondition mode
How Distributed-On-Demand Charging Technology Works ProMariner ProTournament 360 elite Triple Charger - 36 Amp, 3 Bank Technical Specifications
| Type: |
|
| Vendor: |
ProMariner
|
| Weight: |
18.85 lb
|
| Charger Input - Voltage: |
120v
|
| Portable: |
No
|
| Charging Banks: |
3
|
| Charger Output - Amps: |
36a
|
| Charger Output Voltage: |
12/24/36v
|
