Newmar 48-12-6I DC-DC Convertr 20-56VDC To 13.6 Vdc @ 6A

No reviews yet Write a Review
$628.09
SKU:
48-12-6I
UPC:
729198710415
Condition:
New
5 customers are viewing this product

Newmar 48-12-6I DC-DC Convertr 20-56VDC To 13.6 Vdc @ 6A

$628.09

Newmar 48-12-6I DC-DC Convertr 20-56VDC To 13.6 Vdc @ 6A Product Description

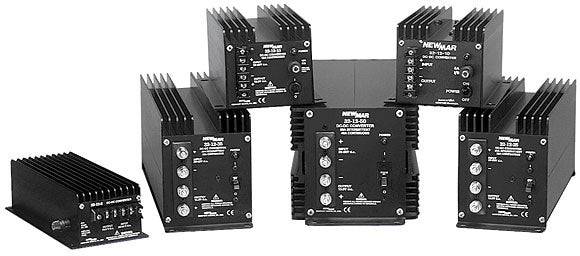

Convert 20-50 VDC to 12 or 24 VDC output for powering communication/ navigation equipment, on negative ground systems. (see Isolated series, below for positive ground applications.) Ideal for powering voice, data and navigation transceivers in mobile and marine applications.

  • Excellent Regulation: Output voltage maintained within 1% under all line and load conditions within rating.
  • Heat generated by semi-conductors is extracted and dissipated by large heat sink fins that maximize air contact for cool operation and long life of components.
  • Polyurethane conformal coating on PC boards and corrosion-resistant anodized aluminum case with heavy duty shock mounts assure survival in hostile environments.
  • Numerous converter and load protection circuits: Current limiting*; automatic thermal shutdown; short circuit proof*; reverse polarity and overvoltage protection*.  Except 3 Amp.
  • Carries the CE mark

Isolated series
Same features as Standard Series, but with the additional capability of permitting connection of negative ground gear to positive or floating ground battery systems, or vice-versa. Many models may also be used as 12 or 24 volt stabilizers for highly input voltage sensitive equipment.

Input range:10-56 VDC; positive, negative or floating ground.
Output: 12 or 24 VDC, 3 to 35 amps.

Performance Specifications - Standard & Isolated Series

  • Output: 13.6 VDC (internally adjustable 12.6-14.5) or 24.5 VDC (or specify)
  • Ripple: 150 mV P-P maximum
  • Regulation:
    • Standard: 1% Line/Load
    • Isolated: 2% Line/Load
    • except + 3% Line/Load
  • Duty Cycle Ratings*
    • Intermittent - 20 minutes max on time, 20% duty. Current limit set at approx. 105% of intermittent rating
    • Continuous - 24 hours, 100% duty
  • Idle Current:
    • Standard Series: Less than 100 mA (including power ""ON"" light )
    • Isolated Series: approx. 50 mA
  • Operating Temp: 0-50° C, Derate Linearly From 100% @ 40° C To 50% @ 50° C Thermal shutdown @ 70° C Case Temperature
  • Switching Frequency:
    • Standard: 40 Khz**
    • Isolated: 70Khz
  • Efficiency: 85% - Typical.+
  • Isolation:
    • Output/Chassis; Input/chassis: 250 VDC
    • Input/Output: 250 VDC (Isolated Series only)
  • Certification: Carries the CE mark (Standard Series only)

**except 32-12-3 - Linear, Non-Switching
+except 32-12-3- 50% @ 24 VDC Input



NEWMAR isolation converter 20-56V input, 13.6V output. Provides complete isolation between input and output POS, NEG or floating GRD. 6AMP continued 9 x 5.8 x 4.45

Frequently Asked Questions (FAQ) About Newmar 48-12-6I DC-DC Convertr 20-56VDC To 13.6 Vdc @ 6A





Who is the NewMar?

Newmar DC Power has been a leading manufacturer of high-quality communication DC power products for over 50 years. Newmar powers essential equipment in industries such as marine, telecommunications, network, land mobile, and automation IOT industries. Newmar is dedicated to high quality with fast delivery and by maintaining a large inventory of all products and components, they can ship standard products quickly and engineer, assemble and ship complete power plants in a fraction of the time it takes most other system integrators. Providing the industry?s quickest delivery of high-quality power products is what sets Newmar apart. Newmar offers an extensive line of DC Power products with an earned reputation for high reliability and quality in powering wireless networks in Broadband, iDAS, oDAS, Microwave, Cellular, and Land Mobile applications. Available in 2V, 24V, and 48V DC, they offer solutions that include DC Power Systems, Hot Swap Rectifiers, Power Supplies, DC-DC Converters, DC-AC Inverters, DC Distribution Panels, DC Power Conditioners, DIN Rail DC UPS, DIN Rail Power Supplies, and Installation Accessories.

How to describe Newmar 48-12-6I DC-DC Convertr 20-56VDC To 13.6 Vdc @ 6A?

NEWMAR isolation converter 20-56V input, 13.6V output. Provides complete isolation between input and output POS, NEG or floating GRD. 6AMP continued 9 x 5.8 x 4.45

What is the highlights of Newmar 48-12-6I DC-DC Convertr 20-56VDC To 13.6 Vdc @ 6A?

What is the detailed technical specifications of the Newmar 48-12-6I DC-DC Convertr 20-56VDC To 13.6 Vdc @ 6A?

Continuous
20-56
Lbs
13.6


Save $4 when you buy the Newmar 48-12-6I DC-DC Convertr 20-56VDC To 13.6 Vdc @ 6A for only $570 from Anchor Sailor! Same day shipping before 3pm.

Newmar 48-12-6I DC-DC Convertr 20-56VDC To 13.6 Vdc @ 6A Technical Specifications

Type:

Vendor:

NewMar

Weight:

9.0 lb
