Navico DST-810 Bronze Triducer Multisensor NMEA 2000 N2K - 6M Cable

No reviews yet Write a Review
$723.35
SKU:
000-15736-001
UPC:
9420064117901
Condition:
New
5 customers are viewing this product

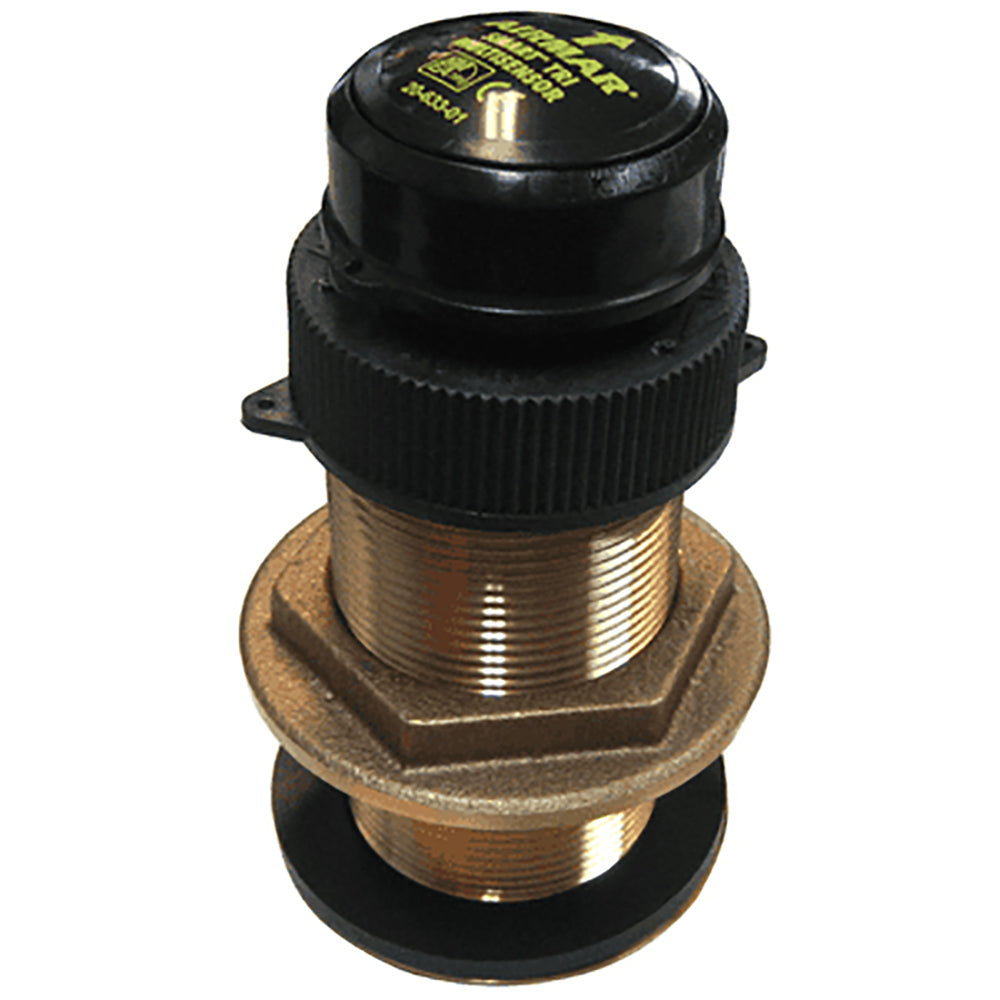

Navico DST-810 Bronze Triducer Multisensor NMEA 2000 N2K - 6M Cable

$723.35

Navico DST-810 Bronze Triducer Multisensor NMEA 2000 N2K - 6M Cable Product Description

DST-810 Bronze Triducer Multisensor NMEA 2000 N2K - 6M Cable

The DST810 Smart Multisensor, together with Airmar's CAST™ App, is the convergence of advanced hull data, matched with a simple and reliable way to calibrate accurate speed via a wireless device. This changes how boaters receive and deliver information to get greater performance from their hull. It is a simple, consistent way to calibrate speed-through-water regardless of what display system is on board. The DST810 and Airmar CAST App deliver capabilities that until now, were only available through expensive PC-based software.

Besides water temperature, depth and newly upgraded 5 Hz (5X per second) speed-through-water output, the DST810 features an integrated attitude sensor for heel and trim data. This information, combined with Airmar’s powerful and simple CAST App, makes heel-compensated speed calibration across multiple heel angles and speed ranges both fast and intuitive and is independent of the onboard instruments.

All speed calibrations and NMEA configurations are stored in the DST810 sensor—not in the displays.

Simrad IDST-810 active Depth, Speed, Temperature thru-Hull Bronze 235 kHz transducer.

Model: 000-15736-001
  • 5 Hz speed output (5X per second) for visibly smoother speed-through-water reporting and faster data for better decision making
  • Integrated attitude sensor for heel and trim benefits sailing and power boats
  • Advanced Speed Calibration allows for manual speed entries for multiple heel angles and up to 10 speeds, formerly only possible through expensive PC software
  • DST810 stores configurations and delivers data to the NMEA 2000® network.
  • Depth, heel-corrected speed-through-water, heel and trim, and water temperature from one installed multisensor.
  • Popular depth sensor for shallow water performance.
Specifications
Acoustic Window Urethane
Hull Deadrise Up to 22°
Data Update Rate Depth 1X/second
Data Update Rate Speed 5X/second
Attitude Accuracy +/— 1° nominal after sensor calibration
Depth Frequency 235 kHz
Minimum Depth Range 0.5 m (1.6')
Maximum Depth Range Up to 100 m (330')—NMEA 2000®
Speed Range Up to 45 knots
Pressure Rating 3 m (10')
Pulse Rate 20,000 p/nm* (5.6 Hz per knot)—*p/nm = pulses per nautical mile
Supply Voltage 9 VDC to 16 VDC—per NMEA 2000
Supply Current <200 mA—per NMEA 2000®
Wireless Protocol Bluetooth Low Energy (BLE)
Wireless Range Up to 30 feet depending on mount location
Standard Cable Length 6 m (20') DeviceNet—NMEA 2000®
Temperature Sensor Accuracy +/-0.5°C (+/-1.8°F)
Temperature Sensor Range -10°C to 40°C (14°F to 104°F)
NMEA 2000 Load Equivalency Number (LEN) 3

What's in the Box:
  • DST-810 Insert
  • Bronze Housing




Frequently Asked Questions (FAQ) About Navico DST-810 Bronze Triducer Multisensor NMEA 2000 N2K - 6M Cable


Who is the Navico?

Navico is the leader in marine electronics and is currently the world's largest marine electronics company. Navico is the parent company to leading marine electronics brands: Lowrance, Simrad, B&G and C-MAP. Navico has approximately 1,500 employees globally and distribution in more than 100 countries. Navico partners with a talented, global supplier network to deliver quality products to its customers.


Buy with the best price Navico DST-810 Bronze Triducer Multisensor NMEA 2000 N2K - 6M Cable for only $629 from Anchor Sailor! Same day free shipping before 3pm.

Navico DST-810 Bronze Triducer Multisensor NMEA 2000 N2K - 6M Cable Technical Specifications

Type:

Vendor:

Navico

Weight:

1.48 lb
