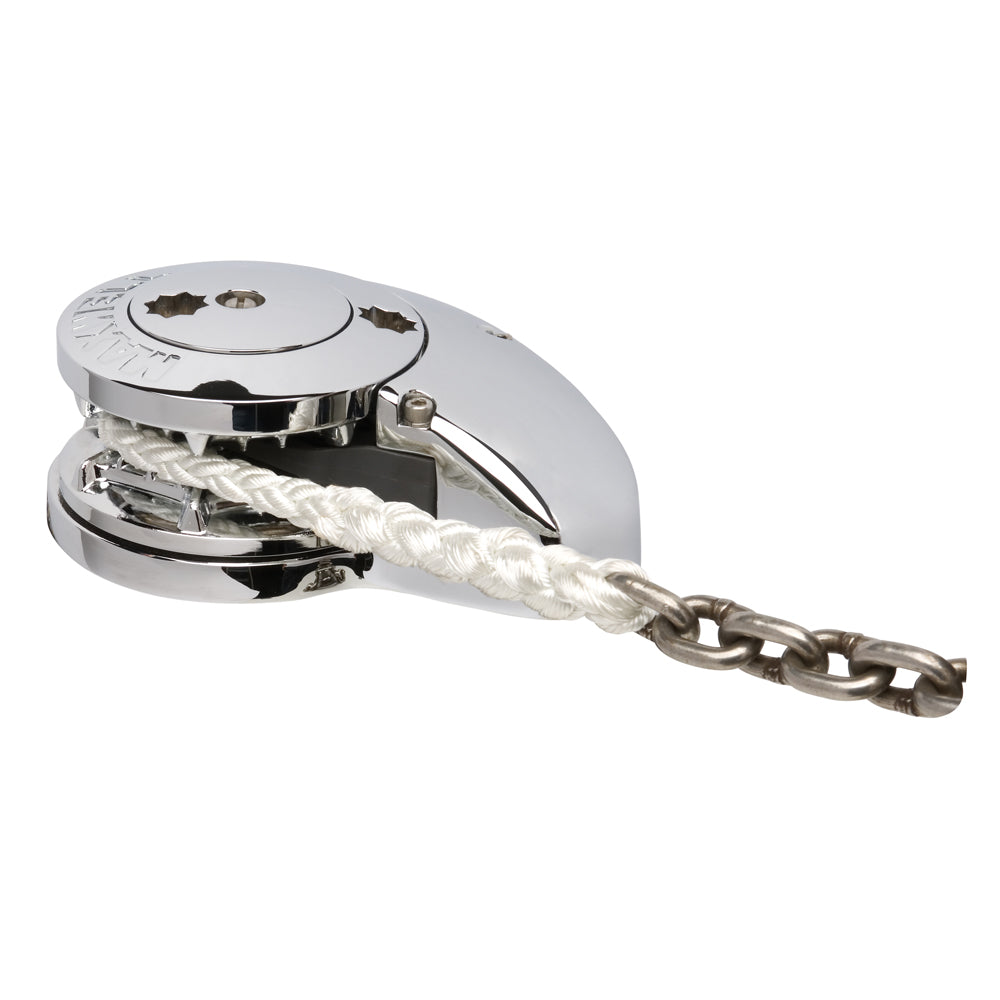

Maxwell RC10/8 12V Automatic Rope Chain Windlass 5/16" Chain to 5/8" Rope

No reviews yet Write a Review
$2,962.96
SKU:
RC10812V
UPC:
1000000004267
Condition:
New
5 customers are viewing this product

Maxwell RC10/8 12V Automatic Rope Chain Windlass 5/16" Chain to 5/8" Rope

$2,962.96

Maxwell RC10/8 12V Automatic Rope Chain Windlass 5/16" Chain to 5/8" Rope Product Description

RC Rope/Chain SeriesVertical Rope/Chain Windlass with Below-deck MotorMaxwell's all new RC series windlasses proudly follow in the highly successful footsteps of the Freedom, Liberty and HRC fully automatic rope/chain anchor winches RC10 and RC8 are available in both capstan and low profile versions RC6 is available in low profile version only

Maxwell RC10812V Attributes

  • Mount Type: Vertical, below deck motor
  • Maximum Pull: 1540 Pound
  • Maximum Line Speed: 79'/min chain; 65'/min rope
  • Size: Above Deck: 3.5''; Below Deck: 10''; Motor offset: 10.75''; Wt: 42 lbs.; Max deck thickness: 4''
  • Chain/ Rope Size: 5/16'' chain; 9/16'' rope
  • Voltage Rating: 12 VDC
  • Motor Power: 1000 Watt

Maxwell RC10812V Features & Benefits

  • Designed to effortlessly retrieve and deploy 8mm (5/16") and 10mm (3/8") short link chain and 14mm (9/16") and 16mm (5/8") three strand or 8-plait rope
  • Sleek, low profile and Max-grip capstan drum versions are available to suit individual user preference
  • Simple two piece installation saves time and money and allows easy retrofitting without disassembly of the windlass; Unique spacer tube design
  • Full disassembly capability of top works utilising handle provided, a screw driver and an Allen key No special tools required
  • The RC10 is manufactured from marine grade chromed bronze for long term durability; Heavy duty stainless steel pressure arm
  • n combination with a longer, heavy duty, large wire diameter, stainless steel pre-loaded spring, the pressure arm always exerts maximum control pressure as it pivots on a trouble free brass bearing
  • The RC10 works just as effectively with all chain rodes for those who desire a low profile, elegantly styled windlass on their foredeck
  • Huge through-deck hawse pipe throat ensures easy entry of the rope/chain rode into and out of the anchor locker
  • Cone type clutch/brake mechanism permits manual, free-fall anchoring
  • Sealed oil bath and marine grade hard anodised, alloy gearbox provides high efficiency output drive via precision worm and wormwheel

RC10 Automatic Rope/Chain Windlass

  • Designed for 5/16" chain and 5/8" rope combination
  • Maximum pull: 1540 lbs
  • Metric Chain Size: 8mm
  • Motor Wattage: 1000W
  • Innovative heavy duty stainless steel pressure arm, coupled with a unique rope/chain gypsy, giving an unparalleled level of performance.
  • Simple two piece installation, saving time and money and allowing easy retrofitting without disassembly of the windlass.
  • Manufactured from marine grade chromed bronze for long term durability
  • The topworks can be fully disassembled utilizing the handle provided, a screw driver and common allen key, making regular service and maintenance a breeze. No special tools required!
  • A huge, through deck, hawse pipe throat ensures easy entry of the rope/chain rode into and out of the anchor locker
  • Not only does the RC10 effortlessly handle combination rope/chain rodes, it works just as well with all chain rodes for those who may want the extra security of an all chain systems combined with an elegantly styled, low profile windlass on their foredeck.
  • Exclusive Maxwell 3 Year Limited Warranty ensuring your confidence that you are getting the best product on the market.


RC10 automatic rope/chain windlass, specially designed for 5/16" chain and 5/8" rope combination. Maximum tension: 1540 lbs. Metric chain size: 8mm. Motor power: 1000W, innovative heavy-duty...













Frequently Asked Questions (FAQ) About Maxwell RC10/8 12V Automatic Rope Chain Windlass 5/16" Chain to 5/8" Rope









Who is the Maxwell?

For three decades, the name Maxwell has been synonymous with the highest standards of performance in providing anchoring solutions for superyachts, pleasure boats and commercial vessels. Our international reputation for excellence has evolved through ongoing R & D, innovative design, customer service and a commitment to style and quality that is unparalleled in the industry.

How to describe Maxwell RC10/8 12V Automatic Rope Chain Windlass 5/16" Chain to 5/8" Rope?

RC10 automatic rope/chain windlass, specially designed for 5/16" chain and 5/8" rope combination. Maximum tension: 1540 lbs. Metric chain size: 8mm. Motor power: 1000W, innovative heavy-duty...
  • Engineered for heavy duty use, this windlass can withstand the toughest of jobs.
  • Innovative design allows for easy installation and operation.
  • The stainless steel pressure arm and chain drum are built to last.
  • Heavy duty stainless steel pressure arm
  • Innovative design with a unique rope/chain combination
  • Maximum pull of 1540 lbs
  • Ideal for heavy duty applications
  • Maximum pull of 1540 lbs
  • Metric chain size 8mm

What is the rope diameter of the product?

5/8"
  • Engineered for heavy duty use, this windlass can withstand the toughest of jobs.
  • Innovative design allows for easy installation and operation.
  • The stainless steel pressure arm and chain drum are built to last.
  • Heavy duty stainless steel pressure arm
  • Innovative design with a unique rope/chain combination
  • Maximum pull of 1540 lbs
  • Ideal for heavy duty applications
  • Maximum pull of 1540 lbs
  • Metric chain size 8mm

What is the size?

Above Deck: 3.5''; Below Deck: 10''; Motor offset: 10.75''; Wt: 42 lbs.; Max deck thickness: 4''

What is the mount type of the product?

Vertical, below deck motor

Has a freefall feature?

Yes

What is chain diameter of this product?

5/16"

Is this product vertical or horizontal?

Vertical


Save $673 when you buy the Maxwell RC10/8 12V Automatic Rope Chain Windlass 5/16" Chain to 5/8" Rope for only $2693 from NVN Marine! Same day fast and free shipping before 3pm.

Maxwell RC10/8 12V Automatic Rope Chain Windlass 5/16" Chain to 5/8" Rope Technical Specifications

Type:

Vendor:

Maxwell

Weight:

50.0 lb

Chain - Diameter (Inches):

5/16"

Freefall:

Yes

Rope Diameter (Inches):

5/8"

Vertical/Horizontal:

Vertical

User Guide:

Product Brochure:
