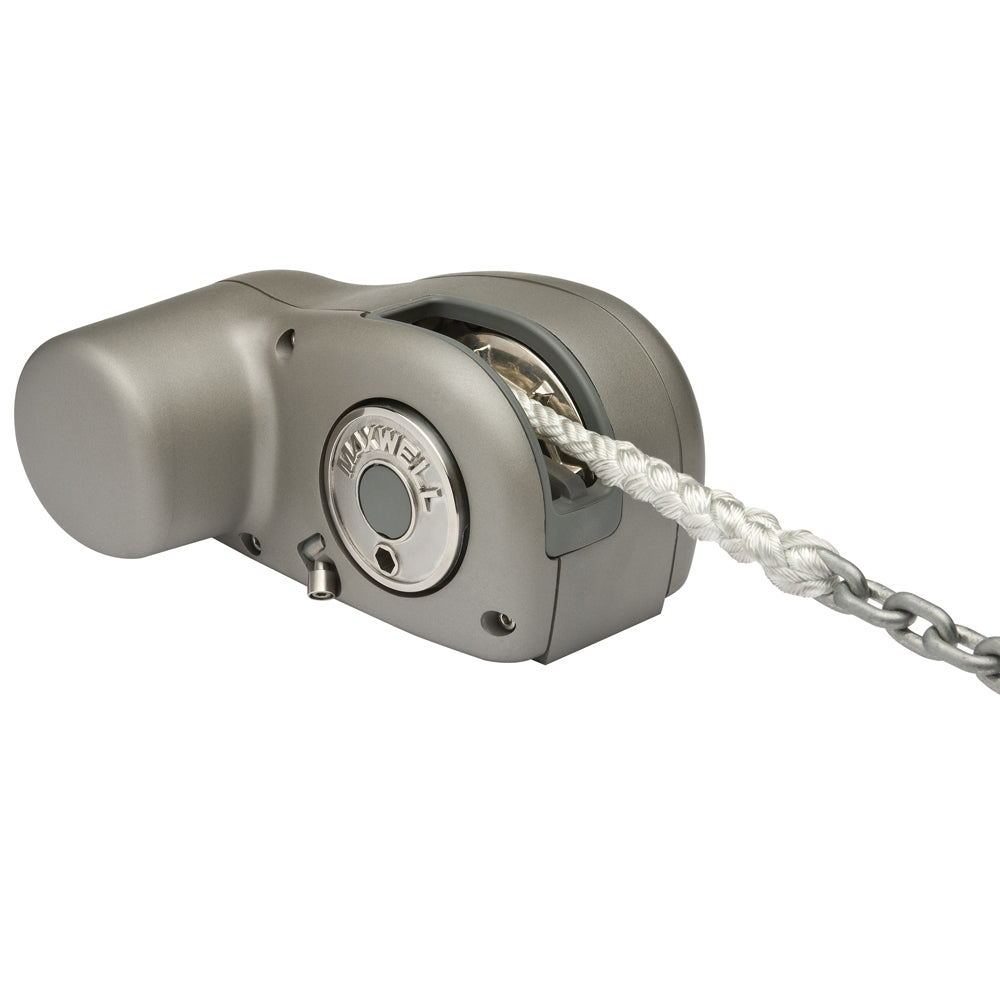

Maxwell HRC8 12V Horizontal Freefall Rope/Chain Series 5/16" Chain 9/16" Min Rope

No reviews yet

$1,437.92

26 sold in last 9 hour

SKU:: HRCFF812V
UPC:: 9414761104029
Condition:: New

Current Stock:

Quantity:

Request For Quote

5 customers are viewing this product

Maxwell HRC8 12V Horizontal Freefall Rope/Chain Series 5/16" Chain 9/16" Min Rope

$1,437.92

Description
Shipping & Returns
Custom Product Tab
FAQ

Description

Maxwell HRC8 12V Horizontal Freefall Rope/Chain Series 5/16" Chain 9/16" Min Rope Product Description

Maxwell HRC FF Rope/Chain SeriesHorizontal Mount with Above-Deck MotorNow incorporating Maxwell's automatic free-fall technology. Simply activate the windlass Free Fall lever, operate your down control (helm station or footswitch) and the windlass will freefall your anchor. Ready to lift the anchor? Activate the up control and the free fall device automatically disengages allowing you to power up your anchor.Aesthetically pleasing above deck design, encapsulating the motor and drive in a watertight case, saving space below deck and allowing simple routine maintenance.Guaranteed trouble free rode transition from rope to chain, by means of an innovative, proven and patented pressure arm system, within a safe enclosed design.

Maxwell HRCFF812V Attributes

Dimensions: 10.2''L x 10.4''W x 5.9''H; Wt 25 lbs
Input Voltage: 12VDC
Lifting Capacity: 900 Lbs.
Mounting Type: Horizontal, above deck
Other Functions: Available foot switch and chain counter
Power: 600W
Rope & Chain Size: 1/4''-5/16'' chain; 1/2''-9/16'' rope
Speed Rating: 108FT/Minute

Maxwell HRCFF812V Features & Benefits

Simple bolt down installation ensures effortless and rapid on-deck installation and set up.
Integrated composite nylon, through deck hawse pipe for ease of installation and smooth, snag-free operation.
Die cast, marine-grade, alloy case is hard anodized for unsurpassed marine protection.
High efficiency spur gearbox incorporating a robust non-backwind mechanism.
High speed, jam-free retrieval of rope and chain controlled from a remote panel mounted Up/Down switch.
Emergency free fall function in the event of onboard power failure. Activated by the supplied, emergency Free Fall lever.
Revolutionary new chainwheel.
Heavy duty, dual direction motor incorporating new technology features, including integrated wiring for quick electrical installation.
Limited 3 Year Warranty

The all new compact HRC6 and HRC8 are Maxwell's horizontal versions of the latest innovative new vertical RC6 and RC8 automatic rope/chain windlasses. The new HRC6 and HRC8 are packed with original and proven features including rode management technology developed by Maxwell.

HRC8

Simple "bolt down" installation ensures effortless and rapid on-deck installation and set up
Guaranteed trouble free rode transition from rope to chain, by means of an innovative, proven and patented pressure arm system, within a safe enclosed design
Integrated composite nylon, through deck hawse pipe for ease of installation and smooth, snag-free operation
High efficiency spur gearbox incorporating a robust non-backwind mechanism
High speed, jam-free retrieval of rope and chain controlled from a remote panel mounted Up/Down switch
Emergency "free fall" function in the event of onboard power failure
Revolutionary new chainwheel - see over
Heavy duty, dual direction motor incorporating new technology features, including integrated wiring for quick electrical installation, is easily removed for simple routine electric brush maintenance
Now incorporating Maxwell's automatic free-fall technology. Simply activate the windlass 'free fall' lever, operate your down control (helm station or footswitch) and the windlass will freefall your anchor. Ready to lift the anchor? Activate the up control and the 'free fall' device automatically disengages allowing you to power up your anchor
Aesthetically pleasing above deck design, encapsulating the motor and drive in a watertight case, saving space below deck and allowing simple routine maintenance
Die cast, marine-grade, alloy case is hard anodized for unsurpassed marine protection
Kits include:windlass, on/off breaker panel, reversing soleniod, up/down panel switch, a clutch release handle

Specifications:

Model: HRC8
Maximum Pull: 900lbs
Chain Short Link: 5/16"
Rope Size (Nylon): 9/16"
Line Speed(Anchor Retrieval): 108'/min
Power Supply(DC): 12V
Motor Power: 600W
Net Weight: 25lbs

Maxwell (Marswell) HRC 8 winch. The new HRC series is Maxwells' latest choice of fully automatic horizontal rope/chain or full chain anchor windlass. The HRC series includes...

Frequently Asked Questions (FAQ) About Maxwell HRC8 12V Horizontal Freefall Rope/Chain Series 5/16" Chain 9/16" Min Rope

Who is the Maxwell?

For three decades, the name Maxwell has been synonymous with the highest standards of performance in providing anchoring solutions for superyachts, pleasure boats and commercial vessels. Our international reputation for excellence has evolved through ongoing R & D, innovative design, customer service and a commitment to style and quality that is unparalleled in the industry.

How to describe Maxwell HRC8 12V Horizontal Freefall Rope/Chain Series 5/16" Chain 9/16" Min Rope?

Maxwell (Marswell) HRC 8 winch. The new HRC series is Maxwells' latest choice of fully automatic horizontal rope/chain or full chain anchor windlass. The HRC series includes...

The latest and most advanced rope/chain windlass technology.
The HRC6 and HRC8 have all the features of the RC6 and RC8 but are horizontal for easy use on vessels with limited deck space.
These windlasses are compact, lightweight, and will save space on your vessel.

The HRC6 and HRC8 are Maxwell's horizontal versions of the latest innovative new vertical RC6 and RC8 automatic rope/chain windlasses.
The new HRC6 and HRC8 are packed with original and proven features including rode management

The HRC6 and HRC8 are equipped with the latest features.
The HRC6 and HRC8 are Maxwell's horizontal versions of the new vertical RC6 and RC8 automatic rope/chain windlasses.
The HRC6 and HRC8 come with original and proven features including rode management

What is the rope diameter of the product?

9/16"

The latest and most advanced rope/chain windlass technology.
The HRC6 and HRC8 have all the features of the RC6 and RC8 but are horizontal for easy use on vessels with limited deck space.
These windlasses are compact, lightweight, and will save space on your vessel.
The HRC6 and HRC8 are Maxwell's horizontal versions of the latest innovative new vertical RC6 and RC8 automatic rope/chain windlasses.
The new HRC6 and HRC8 are packed with original and proven features including rode management
The HRC6 and HRC8 are equipped with the latest features.
The HRC6 and HRC8 are Maxwell's horizontal versions of the new vertical RC6 and RC8 automatic rope/chain windlasses.
The HRC6 and HRC8 come with original and proven features including rode management

What is the mounting type of the product?

Horizontal, above deck

What is the dimensions of the product?

10.2''L x 10.4''W x 5.9''H; Wt 25 lbs

Has a freefall feature?

Yes

What is chain diameter of this product?

5/16"

Is this product vertical or horizontal?

Horizontal

Save $326 when you buy the Maxwell HRC8 12V Horizontal Freefall Rope/Chain Series 5/16" Chain 9/16" Min Rope for only $1307 from NVN Marine! Same day fast and free shipping before 3pm.

Maxwell HRC8 12V Horizontal Freefall Rope/Chain Series 5/16" Chain 9/16" Min Rope Technical Specifications

Type:
Vendor:	Maxwell
Weight:	29.0 lb
Chain - Diameter (Inches):	5/16"
Freefall:	Yes
Rope Diameter (Inches):	9/16"
Vertical/Horizontal:	Horizontal
Product Brochure:
