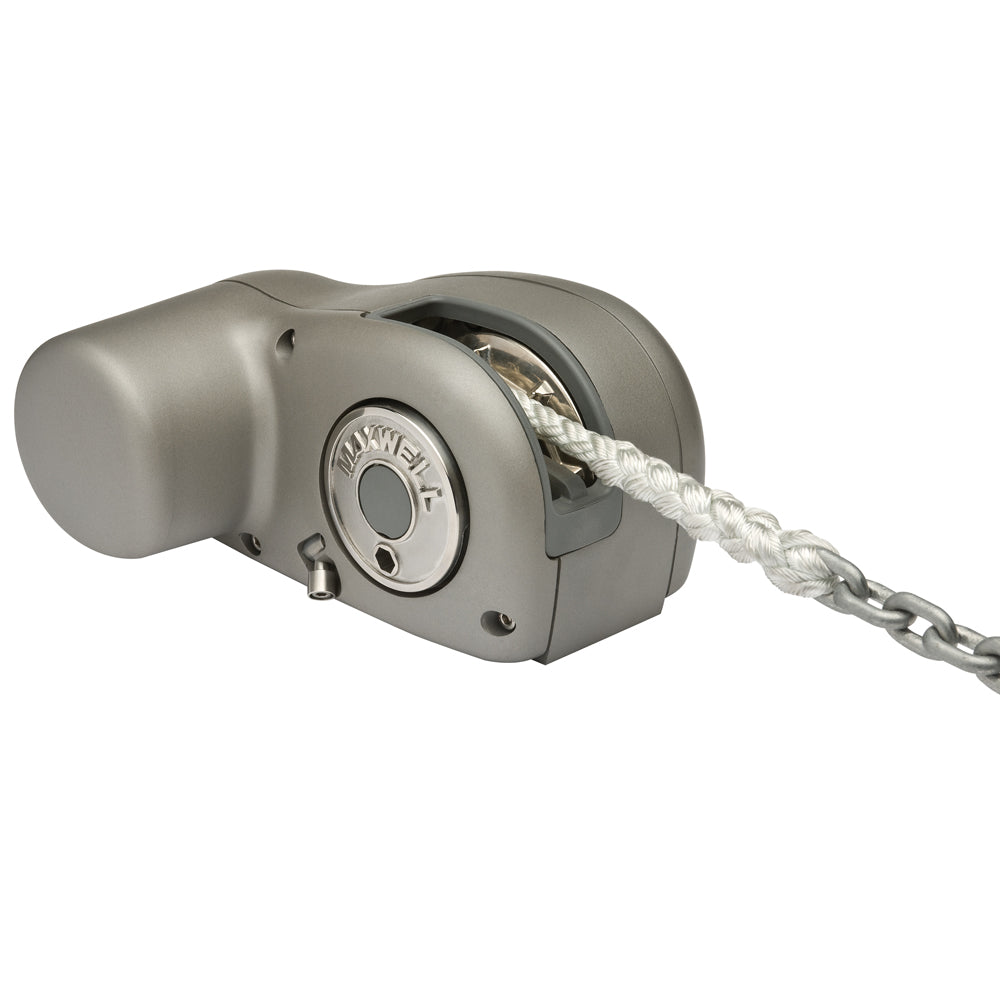

Maxwell HRC6 12V Horizontal Freefall Rope/Chain Series 1/4" Chain 1/2" Rope

No reviews yet

$1,437.92

SKU:: HRCFF612V
UPC:: 1000000002744
Condition:: New

Current Stock:

Quantity:

Request For Quote

5 customers are viewing this product

Maxwell HRC6 12V Horizontal Freefall Rope/Chain Series 1/4" Chain 1/2" Rope

$1,437.92

Description
Shipping & Returns
Custom Product Tab
FAQ

Description

Maxwell HRC6 12V Horizontal Freefall Rope/Chain Series 1/4" Chain 1/2" Rope Product Description

Maxwell HRC FF Rope/Chain SeriesHorizontal Mount with Above-Deck Motor Now incorporating Maxwell's automatic free-fall technology. Simply activate the windlass Free Fall lever, operate your down control (helm station or footswitch) and the windlass will freefall your anchor. Ready to lift the anchor? Activate the up control and the free fall device automatically disengages allowing you to power up your anchor. Aesthetically pleasing above deck design, encapsulating the motor and drive in a watertight case, saving space below deck and allowing simple routine maintenance. Guaranteed trouble free rode transition from rope to chain, by means of an innovative, proven and patented pressure arm system, within a safe enclosed design.

Maxwell HRCFF612V Attributes

Dimensions: 10.2''L x 10.4''W x 5.9''H; Wt 25 lbs
Input Voltage: 12VDC
Lifting Capacity: 900 Lbs.
Mounting Type: Horizontal, above deck
Other Functions: Available foot switch and chain counter
Power: 600W
Rope & Chain Size: 1/4'' chain; 1/2'' rope
Speed Rating: 108FT/Minute

Maxwell HRCFF612V Features & Benefits

Simple bolt down installation ensures effortless and rapid on-deck installation and set up.
Integrated composite nylon, through deck hawse pipe for ease of installation and smooth, snag-free operation.
Die cast, marine-grade, alloy case is hard anodized for unsurpassed marine protection.
High efficiency spur gearbox incorporating a robust non-backwind mechanism.
High speed, jam-free retrieval of rope and chain controlled from a remote panel mounted Up/Down switch.
Emergency free fall function in the event of onboard power failure. Activated by the supplied, emergency Free Fall lever.
Revolutionary new chainwheel.
Heavy duty, dual direction motor incorporating new technology features, including integrated wiring for quick electrical installation.
Limited 3 Year Warranty

The all new compact HRC6 and HRC8 are Maxwell's horizontal versions of the latest innovative new vertical RC6 and RC8 automatic rope/chain windlasses. The new HRC6 and HRC8 are packed with original and proven features including rode management technology developed by Maxwell.

HRC6

Simple "bolt down" installation ensures effortless and rapid on-deck installation and set up
Guaranteed trouble free rode transition from rope to chain, by means of an innovative, proven and patented pressure arm system, within a safe enclosed design
Integrated composite nylon, through deck hawse pipe for ease of installation and smooth, snag-free operation
High efficiency spur gearbox incorporating a robust non-backwind mechanism
High speed, jam-free retrieval of rope and chain controlled from a remote panel mounted Up/Down switch
Emergency "free fall" function in the event of onboard power failure
Revolutionary new chainwheel - see over
Heavy duty, dual direction motor incorporating new technology features, including integrated wiring for quick electrical installation, is easily removed for simple routine electric brush maintenance
Now incorporating Maxwell's automatic free-fall technology. Simply activate the windlass 'free fall' lever, operate your down control (helm station or footswitch) and the windlass will freefall your anchor. Ready to lift the anchor? Activate the up control and the 'free fall' device automatically disengages allowing you to power up your anchor
Aesthetically pleasing above deck design, encapsulating the motor and drive in a watertight case, saving space below deck and allowing simple routine maintenance
Die cast, marine-grade, alloy case is hard anodized for unsurpassed marine protection

Specifications:

Model: HRC6
Maximum Pull: 900lbs
Chain Short Link: 1/4"
Rope Size (Nylon): 1/2"
Line Speed(Anchor Retrieval): 108'/min
Power Supply(DC): 12V or 24V
Motor Power: 600W
Net Weight: 25lbs

The new compact HRC6 and HRC8 are the horizontal versions of Maxwell's latest innovative vertical vertical RC6 and RC8 automatic rope/chain windlass. The new HRC6 and HRC8 contain proven original features, including the ride management technology developed by Maxwell. The simple "bolted" installation of HRC6 ensures easy and fast installation and setup on the deck. In a safe closed design, the innovative, tried-and-tested and patented compression arm system ensures a trouble-free riding transition from rope to chain. Integrated composite nylon, through the deck Hough tube, easy to install, smooth operation and barrier-free. Efficient spur gear transmission adopts a robust non-upwind mechanism. High-speed non-blocking retrieval of ropes and chains controlled by the Up/Down switch installed on the remote panel. Emergency "free fall" function when onboard power fails. Revolutionary new sprocket-view. A heavy-duty two-way motor incorporating new technical functions, including integrated wiring for quick electrical installation, can be easily disassembled for regular brush maintenance. Now adopts Maxwell's automatic free fall technology. Just activate the "free fall" joystick of the windlass and operate the down control button (helmet station or foot switch), and the windlass can make the anchor free fall. Are you ready to lift the anchor? Activate the upward control, and the "free fall" device will automatically disengage, thus energizing your anchor. The beautiful deck design encapsulates the motor and driver in an impermeable shell, which saves space under the deck and simplifies routine maintenance. The die-cast marine grade alloy shell is hard anodized to provide unparalleled marine protection. Please contact your nearest Maxwell office for a complete list of service centers and distributors.

Frequently Asked Questions (FAQ) About Maxwell HRC6 12V Horizontal Freefall Rope/Chain Series 1/4" Chain 1/2" Rope

Who is the Maxwell?

For three decades, the name Maxwell has been synonymous with the highest standards of performance in providing anchoring solutions for superyachts, pleasure boats and commercial vessels. Our international reputation for excellence has evolved through ongoing R & D, innovative design, customer service and a commitment to style and quality that is unparalleled in the industry.

How to describe Maxwell HRC6 12V Horizontal Freefall Rope/Chain Series 1/4" Chain 1/2" Rope?

The new compact HRC6 and HRC8 are the horizontal versions of Maxwell's latest innovative vertical vertical RC6 and RC8 automatic rope/chain windlass. The new HRC6 and HRC8 contain proven original features, including the ride management technology developed by Maxwell. The simple "bolted" installation of HRC6 ensures easy and fast installation and setup on the deck. In a safe closed design, the innovative, tried-and-tested and patented compression arm system ensures a trouble-free riding transition from rope to chain. Integrated composite nylon, through the deck Hough tube, easy to install, smooth operation and barrier-free. Efficient spur gear transmission adopts a robust non-upwind mechanism. High-speed non-blocking retrieval of ropes and chains controlled by the Up/Down switch installed on the remote panel. Emergency "free fall" function when onboard power fails. Revolutionary new sprocket-view. A heavy-duty two-way motor incorporating new technical functions, including integrated wiring for quick electrical installation, can be easily disassembled for regular brush maintenance. Now adopts Maxwell's automatic free fall technology. Just activate the "free fall" joystick of the windlass and operate the down control button (helmet station or foot switch), and the windlass can make the anchor free fall. Are you ready to lift the anchor? Activate the upward control, and the "free fall" device will automatically disengage, thus energizing your anchor. The beautiful deck design encapsulates the motor and driver in an impermeable shell, which saves space under the deck and simplifies routine maintenance. The die-cast marine grade alloy shell is hard anodized to provide unparalleled marine protection. Please contact your nearest Maxwell office for a complete list of service centers and distributors.

HRC6 and HRC8 are Maxwell's horizontal versions of the latest innovative new vertical RC6 and RC8 automatic rope/chain windlasses.
The HRC6 and HRC8 are packed with original and proven features including rode management, a large drum for high capacity, easy-to-adjust handlebar for fast operation, large diameter sheaves for increased grip strength on the rope or chain, and a powerful gearbox for increased torque.

The HRC6 and HRC8 are the horizontal versions of our latest innovative vertical RC6 and RC8 automatic rope/chain windlasses.
The new HRC6 and HRC8 are packed with original features including rode management.

Compact design for easy installation on small boats
Rope management system to keep ropes neat and tidy
Easy operation with single hand operation
Automatic rope/chain winding

What is the rope diameter of the product?

1/2"

HRC6 and HRC8 are Maxwell's horizontal versions of the latest innovative new vertical RC6 and RC8 automatic rope/chain windlasses.
The HRC6 and HRC8 are packed with original and proven features including rode management, a large drum for high capacity, easy-to-adjust handlebar for fast operation, large diameter sheaves for increased grip strength on the rope or chain, and a powerful gearbox for increased torque.
The HRC6 and HRC8 are the horizontal versions of our latest innovative vertical RC6 and RC8 automatic rope/chain windlasses.
The new HRC6 and HRC8 are packed with original features including rode management.
Compact design for easy installation on small boats
Rope management system to keep ropes neat and tidy
Easy operation with single hand operation
Automatic rope/chain winding

What is the mounting type of the product?

Horizontal, above deck

What is the dimensions of the product?

10.2''L x 10.4''W x 5.9''H; Wt 25 lbs

Has a freefall feature?

Yes

What is chain diameter of this product?

1/4"

Is this product vertical or horizontal?

Horizontal

Save $326 when you buy the Maxwell HRC6 12V Horizontal Freefall Rope/Chain Series 1/4" Chain 1/2" Rope for only $1307 from NVN Marine! Same day fast and free shipping before 3pm.

Maxwell HRC6 12V Horizontal Freefall Rope/Chain Series 1/4" Chain 1/2" Rope Technical Specifications

Type:
Vendor:	Maxwell
Weight:	29.0 lb
Chain - Diameter (Inches):	1/4"
Freefall:	Yes
Rope Diameter (Inches):	1/2"
Vertical/Horizontal:	Horizontal
