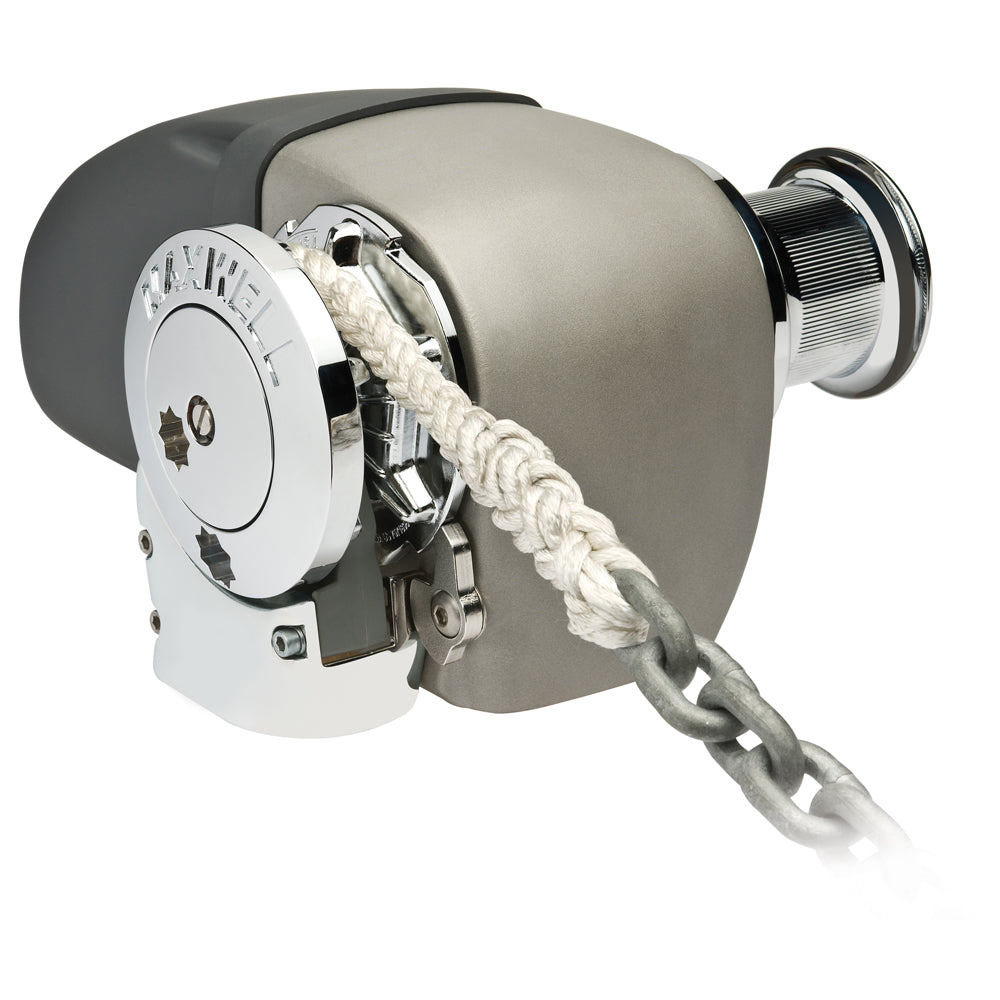

Maxwell HRC 10-8 Rope Chain Horizontal Windlass 5/16" Chain, 5/8" Rope 12V, with Capstan Product Description

HRC6/8 Rope/Chain SeriesHorizontal Above-Deck Rope/Chain WindlassThe all new compact HRC6 and HRC8 are Maxwell's horizontal versions of their latest innovative vertical RC6 and RC8 automatic rope/chain windlasses. Packed with new and proven features, including the patented rode management technology developed by Maxwell, the new HRC6 and HRC8 are destined to become industry icons.All HRC Series Windlasses Are Fitted With Maxwell's Unique Wave Design Chainwheel.This patented rope/chain wheel incorporates two unique design concepts that greatly improve the handling and control of the rope/chain spliced rode. The outer ribs of the chainwheel are angled slightly forward ensuring that the rope and the chain are smoothly guided in the wheel during anchor retrieval.As the rope pulls into the wheel, the opposite facing inner ribs grip the rope in an undulating manner, securing the rope more firmly in a 'wave pattern' action that is far superior to the traditional 'jam cleat' manner of holding the rope. Not only does this Wave Design hold the rope more securely, it is also kinder on the rope resulting in increased longevity of your anchor rode.

Maxwell HRC10812V Attributes

• Mount Type: Horizontal, above deck, w/ capstan
• Maximum Pull: 1540 Pound
• Maximum Line Speed: Not given
• Size: 14.6''L x 12.1''W x 7.9''H; Wt: 25 lbs
• Chain/ Rope Size: 5/16'' chain; 9/16''-5/8'' rope
• Voltage Rating: 12 VDC
• Motor Power: 1000 Watt

Maxwell HRC10812V Features & Benefits

• Simple "bolt down" installation ensures effortless and rapid on-deck installation and set up
• Guaranteed trouble free rode transition from rope to chain, by means of an innovative, proven and patented pressure arm system, within a safe enclosed design
• Integrated composite nylon, through deck hawse pipe for ease of installation and smooth, snag-free operation
• Maxwell's automatic free-fall technology Simply activate the windlass 'free fall' lever, operate your down control and the windlass will freefall your anchor Ready to lift the anchor
• Aesthetically pleasing above deck design, encapsulating the motor and drive in a watertight case, saving space below deck and allowing simple routine maintenance
• Die cast, marine-grade, alloy case is hard anodized for unsurpassed marine protection
• High efficiency spur gearbox incorporating a robust non-backwind mechanism
• High speed, jam-free retrieval of rope and chain controlled from a remote panel mounted Up/Down switch
• Emergency 'free fall' function in the event of onboard power failure, Revolutionary new chainwheel
• Limited 3 Year Warranty

• Windlass

• On/Off Breaker Panel

• Reversing Solenoid

• Up/down Panel Switch

• Clutch Release Handle

• The HRC10-8 is Maxwell's fully automatic rope/ chain or all chain horizontal windlass

• Designed to effortlessly retrieve and deploy 8mm (5/16" ) chain and 16mm (5/8" ) three strand or 8-brait (plait) rope.

• The HRC 10-8 has a patented uniquely designed chain wheel will accommodate ANY 5/16" or 8 mm marine grade chain spliced to 5/8" rope.

• The aesthetically pleasing above deck design, evolved from the philosophy of form follows function, encapsulates the motor and drive in a two part watertight case, saving space below deck

• Case Material: Anodized Aluminum

• The two part case consists of a die cast, marine-grade hard anodised alloy front section and a rugged and easily removable composite motor cover aft section.

• This two piece watertight case allows for quick and easy, on-deck,routine maintenance.

• Simple " bolt down" installation ensures effortless and rapid on-deck installation and set up.

• The stainless steel pressure arm always exerts maximum control pressure on the rode (rope, splice or chain).

• The new and revolutionary patented Wave Design chainwheel is able to accommodate a wide range of chain pitch differences, within the specified chain size diameters, suitable for use with the HRC10 Series.

• The unique Maxwell " wrap around" horizontal chainwheel ensures that more than 90x of the wheel is used, allowing greatly improved rope and chain handling compared with competitor designs.

• High quality Stainless Steel chainwheels

• The HRC10 works just as effectively with all-chain rodes for those who desire the added security and holding power of an all-chain anchor system.

• The integral chain pipe and huge, through deck hawse pipe throat ensures easy entry of the rope / chain rode into and out of the anchor locker.

• Cone type clutch/brake mechanism permits manual, "free fall" anchoring and emergency crank recovery of the rode and anchor if required.

• The sealed oil bath and marine-grade hard anodised, alloy gearbox provides high efficiency output drive via precision worm and wormwheel.

• Exclusive Maxwell 3 YEAR Limited Warranty


Specifications


• Maximum PUll: 1540 lbs

• Chain Short Link: 5/16" or 8mm

• Chain Speed (Anchor Retrieval): 79 ft per Minute

• Rope Speed (Anchor Retrieval): 65 ft per Minute

• Rope Size (Nylon 3 strand or 8 Plait): 5/8"

• Power Supply (DC): 12VDC

• Motor Power: 1000 Watts

• Net weight: 42 lbs


Maxwell Marine HRC 10-8 winch. The new HRC series is Maxwells' latest choice of fully automatic horizontal rope/chain or full chain windlass. HRC series...



Maxwell HRC 10-8 Rope Chain Horizontal Windlass 5/16" Chain, 5/8" Rope 12V, with Capstan Related Products















Frequently Asked Questions (FAQ) About Maxwell HRC 10-8 Rope Chain Horizontal Windlass 5/16" Chain, 5/8" Rope 12V, with Capstan











Who is the Maxwell?

For three decades, the name Maxwell has been synonymous with the highest standards of performance in providing anchoring solutions for superyachts, pleasure boats and commercial vessels. Our international reputation for excellence has evolved through ongoing R & D, innovative design, customer service and a commitment to style and quality that is unparalleled in the industry.

How to describe Maxwell HRC 10-8 Rope Chain Horizontal Windlass 5/16" Chain, 5/8" Rope 12V, with Capstan?

Maxwell Marine HRC 10-8 winch. The new HRC series is Maxwells' latest choice of fully automatic horizontal rope/chain or full chain windlass. HRC series...

• The HRC10-8 Horizontal Series windlass is designed for boats up to 45 feet.
• It features a capstan and 5/8" rope, which are both designed to handle the toughest conditions.
• It includes HRC's patented automatic clutch system, so you can enjoy the benefits of an automatic windlass without the need for a power source.

• HRC 10-8 Horizontal Windlass 5/16" Chain, 5/8" Rope, 12V, with Capstan
• Designed for boats up to 45 feet
• Maxwell's HRC10-8 Horizontal Series windlasses proudly follow in the highly successful footsteps of Maxwell's previous, fully automatic windlasses

• HRC 10-8 Horizontal Windlass 5/16" Chain, 5/8" Rope, 12V, with Capstan
• Designed for boats up to 45 feet
• HRC Series windlasses proudly follow in the footsteps of Maxwell's previous, fully automatic models
• The HRC10-8 is a horizontal windlass that features a 5/16" chain and 12V motor

What is the rope diameter of the product?

5/8"

• The HRC10-8 Horizontal Series windlass is designed for boats up to 45 feet.
• It features a capstan and 5/8" rope, which are both designed to handle the toughest conditions.
• It includes HRC's patented automatic clutch system, so you can enjoy the benefits of an automatic windlass without the need for a power source.
• HRC 10-8 Horizontal Windlass 5/16" Chain, 5/8" Rope, 12V, with Capstan
• Designed for boats up to 45 feet
• Maxwell's HRC10-8 Horizontal Series windlasses proudly follow in the highly successful footsteps of Maxwell's previous, fully automatic windlasses
• HRC 10-8 Horizontal Windlass 5/16" Chain, 5/8" Rope, 12V, with Capstan
• Designed for boats up to 45 feet
• HRC Series windlasses proudly follow in the footsteps of Maxwell's previous, fully automatic models
• The HRC10-8 is a horizontal windlass that features a 5/16" chain and 12V motor

What is the size?

14.6''L x 12.1''W x 7.9''H; Wt: 25 lbs

What is the mount type of the product?

Horizontal, above deck, w/ capstan

Has a freefall feature?

Yes

What is chain diameter of this product?

5/16"

Is this product vertical or horizontal?

Horizontal
